Display Data In jqxGrid Using ASP.NET MVC

Here, you will find the steps:

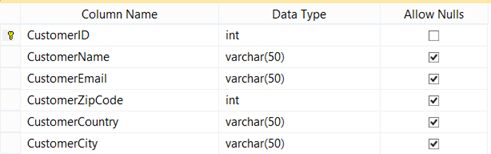

Step 1: Here, you will find the table that I used in the Application:

table

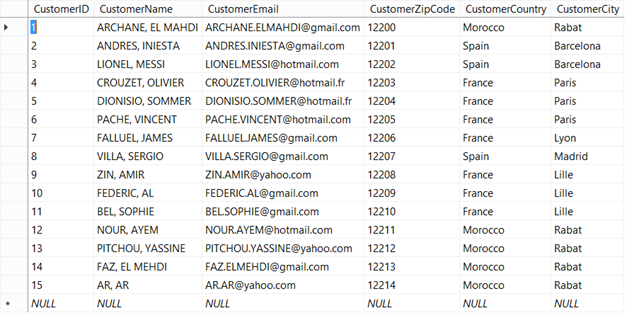

After creating the table, you need to fill it, as shown below:

fill

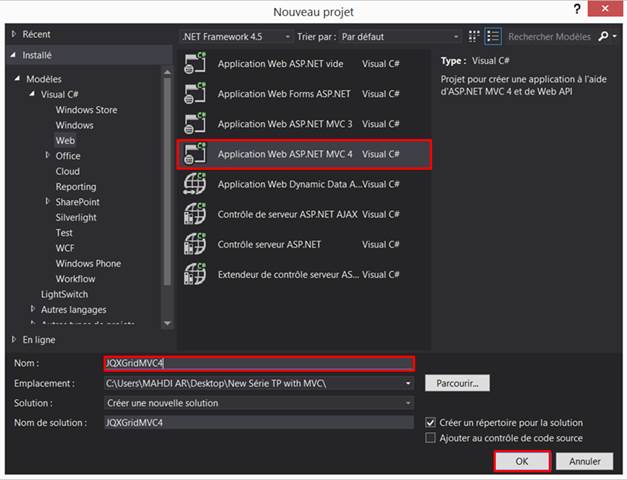

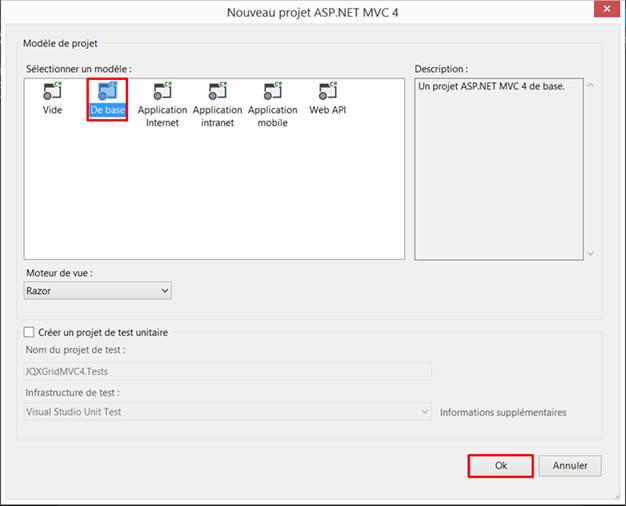

Step 2: Open Visual Studio and add New Project:

add New Project

add New Project

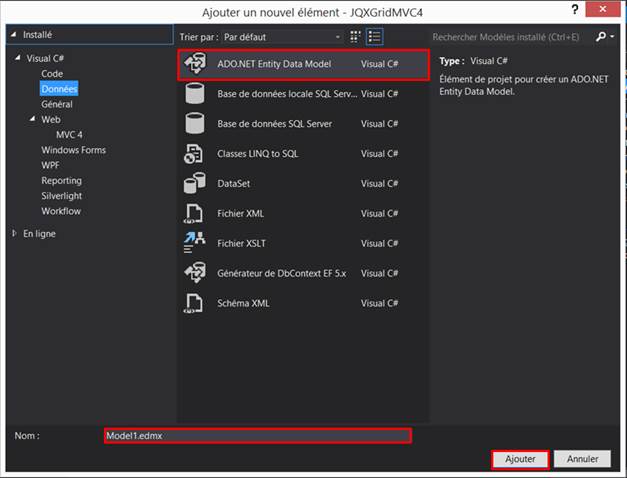

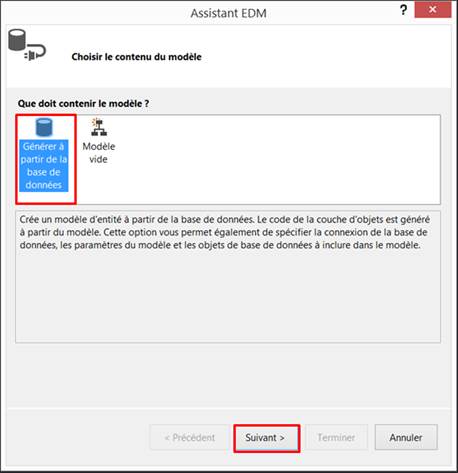

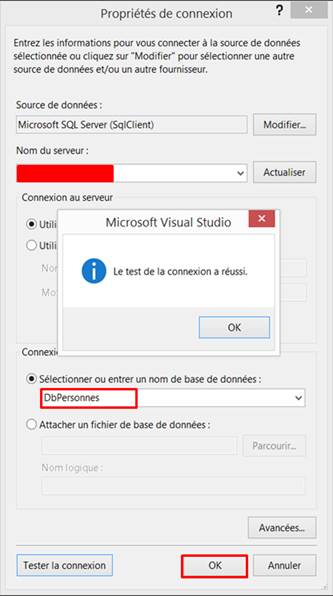

Step 3: Configuring Entity Data Model

Here, we need to follow the steps, as described below to configure EDM.

Configuring

Configuring

Configuring

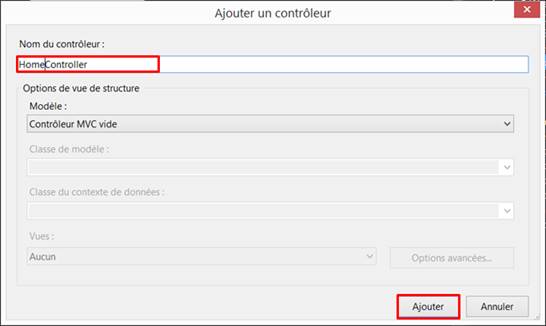

Step 4: Add new controller

Right click on the controllers folder > Add > Controller > Enter controller name (‘Home’) > Add.

controller

HomeController.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6.
  7. namespace JQXGridMVC.Controllers
  8. {
  9.     public class HomeController : Controller
  10.     {
  11.         // DbContext
  12.         DbPersonnesEntities db = new DbPersonnesEntities();
  13.
  14.         //
  15.         // GET: /Home/
  16.
  17.         public ActionResult DisplayData()
  18.         {
  19.             return View();
  20.         }
  21.
  22.         public JsonResult GetCustomers()
  23.         {
  24.             // Retrieve all data customers from database (DbPersonnes)
  25.             var result = db.Customers.ToList();
  26.
  27.             return Json(result, JsonRequestBehavior.AllowGet);
  28.         }
  29.
  30.     }
  31. }
DisplayData.cshtml
  1. @model  IEnumerable<JQXGridMVC.Customers>
  2.
  3. @{
  4.     ViewBag.Title = "Data Customers";
  5. }
  6.
  7. <h2> Data Customers</h2>
  8.
  9. <div id="gridCustomers" style="margin:20px auto;"></div>
  10.
  11. @section scripts {
  12.
  13.
  14. <script type="text/javascript" src="http://jqwidgets.com/jquery-widgets-demo/scripts/jquery-1.11.1.min.js"></script>
  15.
  16. <script type="text/javascript" src="http://jqwidgets.com/jquery-widgets-demo/jqwidgets/jqx-all.js"></script>
  17.
  18. <link rel="stylesheet" type="text/css" href="http://jqwidgets.com/jquery-widgets-demo/jqwidgets/styles/jqx.base.css" />
  19.
  20. <script type="text/javascript">
  21.     $(document).ready(function () {
  22.         // In this part, you need to prepare your data
  23.         var source =
  24.             {
  25.                 datatype: "json",
  26.
  27.                 // Here you will declare all fields that must be used in the grid
  28.                 datafields: [
  29.
  30.                { name: 'CustomerID', type: 'number' },
  31.                { name: 'CustomerName', type: 'string' },
  32.                        { name: 'CustomerEmail', type: 'string' },
  33.                        { name: 'CustomerZipCode', type: 'number' },
  34.                        { name: 'CustomerCountry', type: 'string' },
  35.               { name: 'CustomerCity', type: 'string' }
  36.
  37.                 ],
  38.                 // call the action which retrieve data customers in json format
  39.                 url: 'Home/GetCustomers'
  40.             };
  41.
  42.         var dataAdapter = new $.jqx.dataAdapter(source);
  43.
  44.         // displaying data in the grid with jqxGrid
  45.         $("#gridCustomers").jqxGrid(
  46.             {
  47.                 width: 800,
  48.                 source: dataAdapter,
  49.                 pageable: true,
  50.                 sortable: true,
  51.
  52.                 columns: [
  53.
  54.                     { text: "Customer ID", datafield: "CustomerID" },
  55.                     { text: "Customer Name", datafield: "CustomerName" },
  56.                     { text: "Customer Email", datafield: "CustomerEmail" },
  57.                     { text: "Customer ZipCode", datafield: "CustomerZipCode" },
  58.                     { text: "Customer Country", datafield: "CustomerCountry" },
  59.                     { text: "Customer City", datafield: "CustomerCity" }
  60.
  61.                 ]
  62.             });
  63.     });
  64. </script>

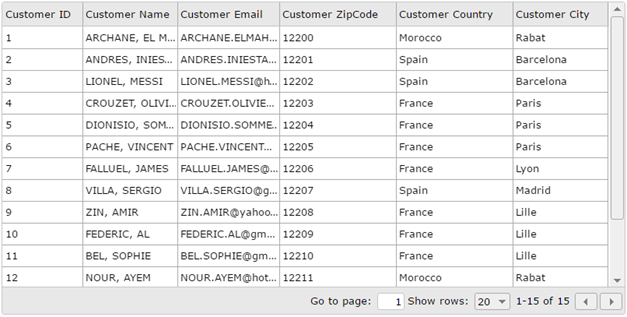

Step 5: Run Application

Application
