Gallery Android App Using Android Studio

Introduction

In this article, I will show you how to create a Gallery Android App using Android Studio. A gallery, whether in a building or on the internet, is a place where photographs are on display.

Requirements

• Android Studio version 2.3.3
• A little bit of XML and JAVA knowledge.
• Android Emulator (or) Android mobile
• Download link (Android Studio)

Steps to be followed -

Follow these steps to create a Gallery Android app. I have included the source code below.

Step 1

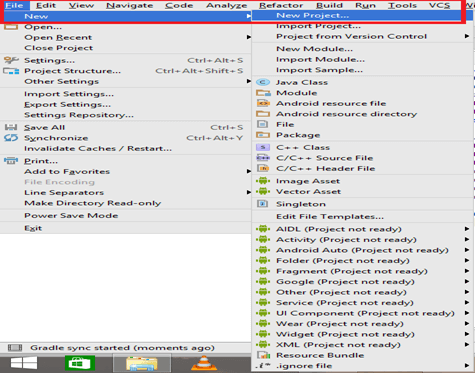

Open Android Studio and start a New Android Studio Project.

Step 2

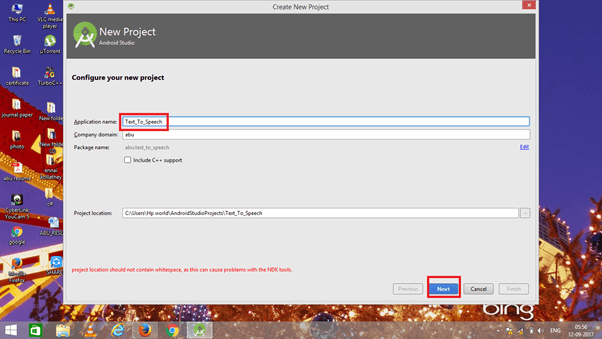

You can choose your application name and choose where your project is stored on the location. If you wish to use C++ for coding the project, mark the "Include C++ support", and click "Next" button.

Step 3

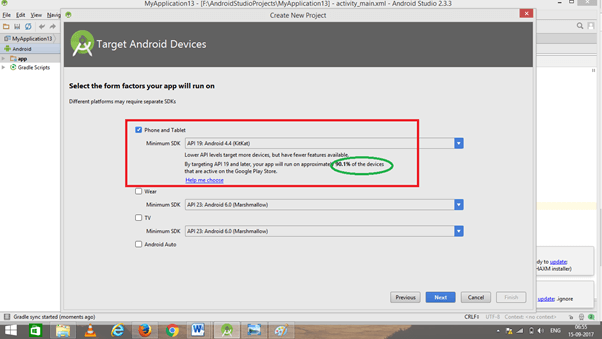

Now, select the version of Android and select the target Android devices. We need to choose the SDK level which plays an important role to run the application.

Step 4

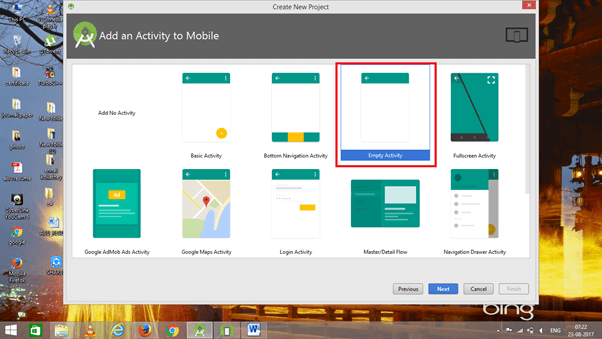

Now, add the activity and click "Next" button.

 Step 5

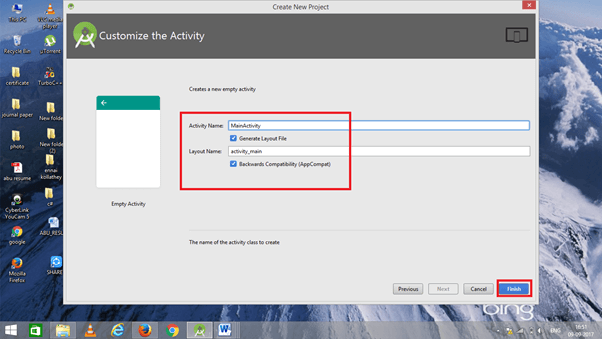

Add Activity name and click "Finish".

Step 6

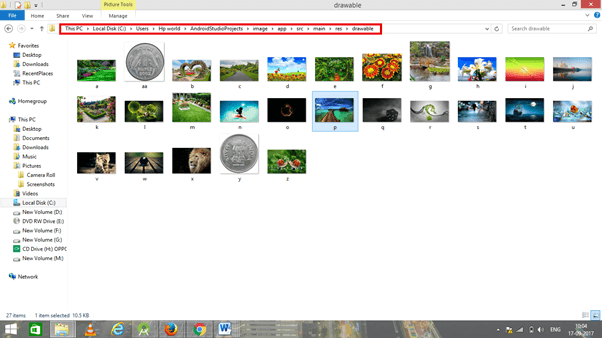

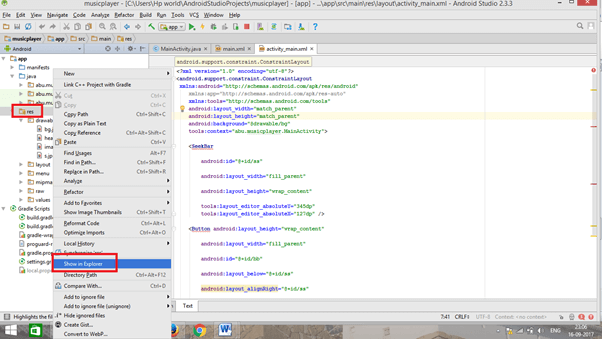

Add images in Drawable file. The below template shows how to add the image file. Go to app and right click. The “Show in Explorer” option will appear. Click on the path and add image in the main folder.

Step 7

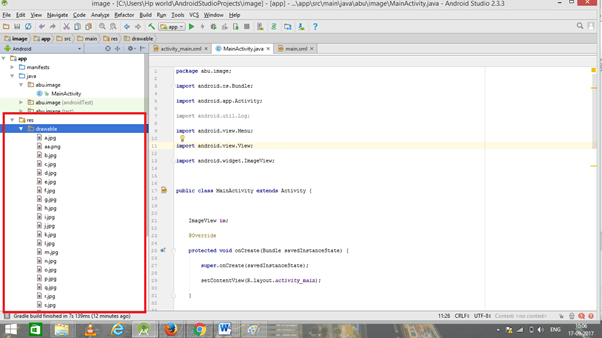

The below template is shown after adding the image file.

Step 8

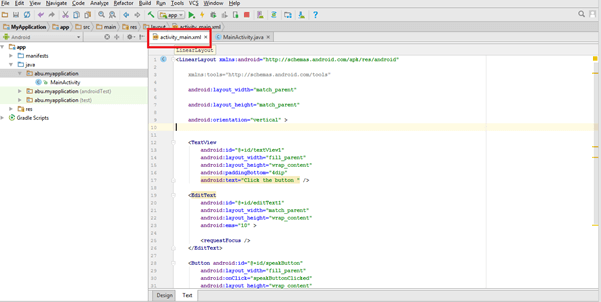

Go to activity_main.xml. This XML file contains the designing code for an Android app.

The XML code is given below.

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@android:color/white"
    android:orientation="vertical" >

    <ImageView
        android:id="@+id/selected"
        android:layout_width="fill_parent"
        android:layout_height="fill_parent"
        android:layout_above="@+id/gallery_relative_layout"
        android:layout_marginLeft="30dip"
        android:layout_marginRight="30dip"
        android:layout_marginTop="30dip" />

    <View
        android:layout_width="match_parent"
        android:layout_height="1dp"
        android:background="#770000ff"
        android:layout_marginTop="300dp"
        android:layout_above="@+id/gallery_relative_layout" />
    <RelativeLayout
        android:id="@+id/gallery_relative_layout"
        android:layout_width="fill_parent"
        android:layout_height="200dip"
        android:layout_alignParentBottom="true"
        android:orientation="horizontal"
        android:paddingTop="20dp">
        <verticalScrollView
            android:id="@+id/hor_scroll_view"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
           >
            <LinearLayout
                android:id="@+id/gallery"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:orientation="horizontal" >
                <ImageView
                    android:id="@+id/image1"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:src="@drawable/a"
                    android:onClick="biggerView"/>
                <ImageView
                    android:id="@+id/image8"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:src="@drawable/aa"
                    android:onClick="biggerView"/>
                <ImageView
                    android:id="@+id/image2"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:src="@drawable/b"
                    android:onClick="biggerView"/>
                <ImageView
                    android:id="@+id/image3"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:src="@drawable/c"
                    android:onClick="biggerView"/>
                <ImageView
                    android:id="@+id/image4"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:src="@drawable/d"
                    android:onClick="biggerView"/>
                <ImageView
                    android:id="@+id/image5"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:src="@drawable/e"
                    android:onClick="biggerView"/>
                <ImageView
                    android:id="@+id/image6"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:src="@drawable/f"
                    android:onClick="biggerView"/>
                <ImageView
                    android:id="@+id/image7"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:src="@drawable/g"
                    android:onClick="biggerView"/>
            </LinearLayout>
        </verticalScrollView>
    </RelativeLayout>
</RelativeLayout>

Step 9

Go to Main Activity.java. This Java program is the backend language for Android.



The java code is given below

package abu.image;
import android.os.Bundle;
import android.app.Activity;
import android.util.Log;
import android.view.Menu;
import android.view.View;
import android.widget.ImageView;
public class MainActivity extends Activity {
    ImageView im;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
    }
    public void biggerView(View v) {
        im = (ImageView) findViewById(R.id.selected);
        switch (v.getId()) {
            case R.id.image1:
                im.setImageResource(R.drawable.a);
                break;
            case R.id.image2:
                im.setImageResource(R.drawable.b);
                break;
            case R.id.image3:
                im.setImageResource(R.drawable.c);
                break;
            case R.id.image4:
                im.setImageResource(R.drawable.d);
                break;
            case R.id.image5:
                im.setImageResource(R.drawable.e);
                break;
            case R.id.image6:
                im.setImageResource(R.drawable.f);
                break;
            case R.id.image7:
                im.setImageResource(R.drawable.g);
                break;
            case R.id.image8:
                im.setImageResource(R.drawable.aa);
                break;
        }
    }
    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.main, menu);
        return true;
    }
}

Step 10

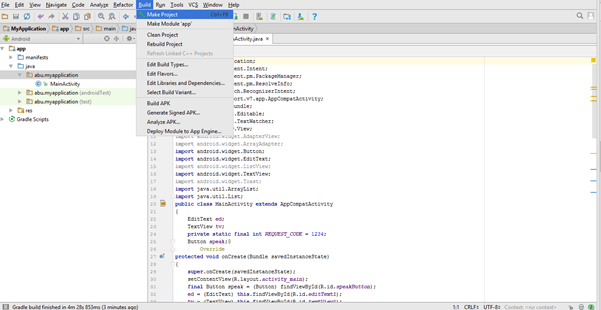

Now, go to menu bar and click "Make project" or press ctrl+f9 to debug the errors.



Step 11

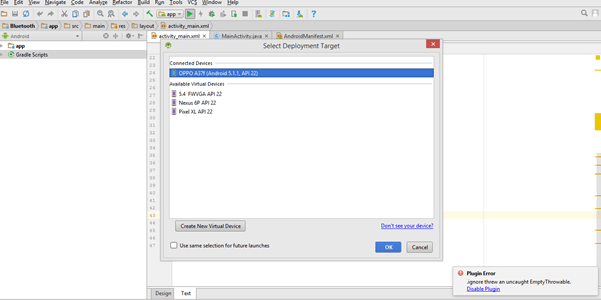

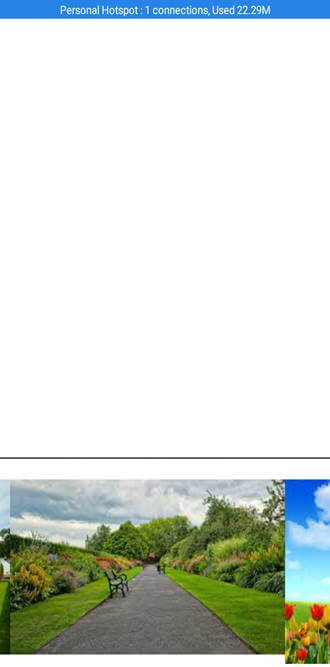

Then, click "Run" button or press shift+f10 to run the project. And choose the virtual machine and click OK.

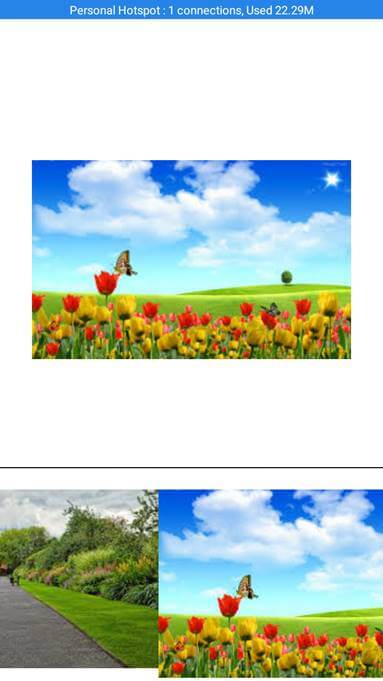

Conclusion

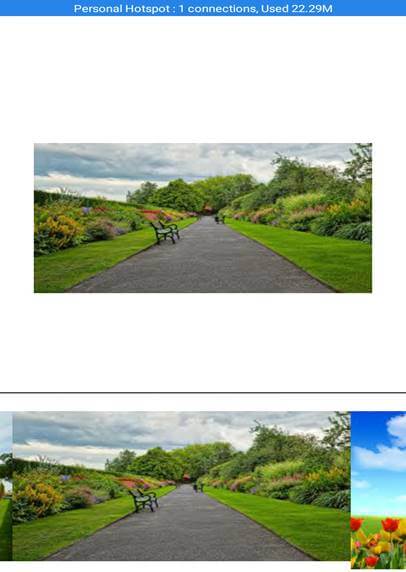

We have successfully created Gallery Android application using Android Studio.
