Self Referencing Tables In Entity Framework

Self-referencing table in entity framework means in order to store some hierarchical data you can say that a self referencing table is a table where the primary key (PK) of a table is also known a foreign key.

Basically in this topic we will cover how to deal with hierarchical data in entity framework. This hierarchical data is stored in self referencing tables.

Now we will understand this with an example. Firstly, go to SQL Server Studio and create a table, ensure that in this table we will have one primary key and other foreign key references of this table’s primary key so we can say this table is a self referencing table.

  1. Create table Students
  2. (
  3. StudentID int primary key identity,
  4. StudentName nvarchar(50),
  5. HODID int foreign key references Students(StudentID)
  6. )
  7. GO

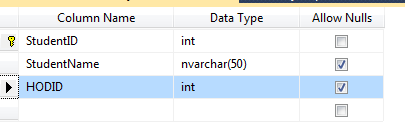

After creating your table your table design will be like this.


Now insert some data to Table but remember that in one row you put NULL for HODID . Initially you will table with NULL HODID.
  1. Insert into Students values ('Munesh'NULL)
  2. Insert into Students values ('Rahul'NULL)
  3. Insert into Students values ('Micale'NULL)
  4. Insert into Students values ('Tom'NULL)
  5. Insert into Students values ('Ram'NULL)
  6. Insert into Students values ('Lick'NULL)
  7. Insert into Students values ('ABC'NULL)

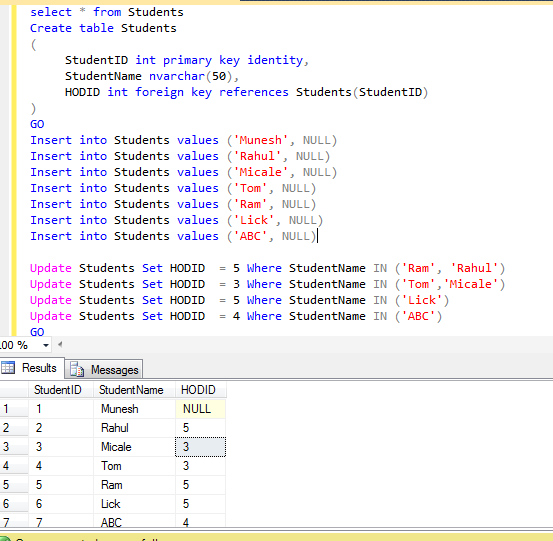

Now Update your table For HODID and execute this below query.
  1. Update Students Set HODID = 5 Where StudentName IN ('Ram''Rahul')
  2. Update Students Set HODID = 3 Where StudentName IN ('Tom','Micale')
  3. Update Students Set HODID = 5 Where StudentName IN ('Lick')
  4. Update Students Set HODID = 4 Where StudentName IN ('ABC')
  5. GO

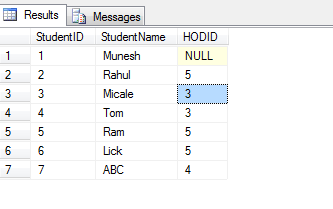

After that your table will look like this with data,

Now go to your application and add a ADO.Net Entity DataModal and give the connection when your entity will create and add automatic navigation Property (Students1 and Student1) and one self-referencing association

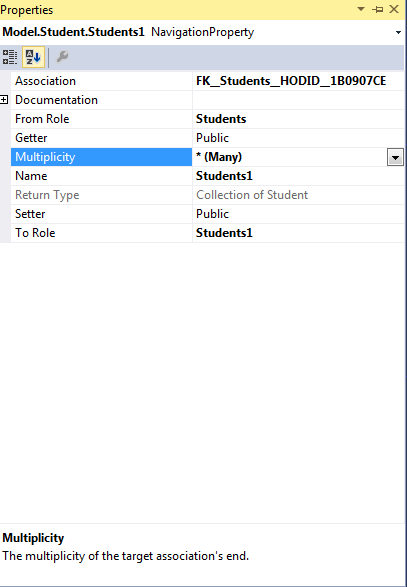

Right click on Students1 navigation property and click properties. In this property  window Multiplicity is set to Many. So, that navigation property returns Students who are subordinates.

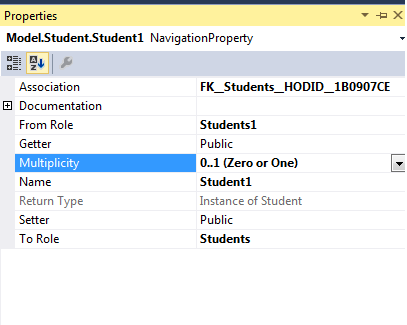

Do the same with Student1 which means go to properties and set multiplicity as Zero or OneSo, this navigation property returns the HOD of an Student.

Now we want to retrieve some data from table , For example we have a default table with some studentName and HODName.

StudentName HODName
Munesh Principle
Rahul R1
Micale M1
Tom T1
Ram R1
Lick L1

Now drag and drop a GridView control From tool box and write below cde in the code-behind file at Page_Load event.

  1. protected void Page_Load(object sender, EventArgs e)
  2. {
  3.     StudentDBContext _student = new StudentDBContext();
  4.     GridView1.DataSource = _student.Students.Select(c => new
  5.    {
  6.         StudentName = c.StudentName,
  7.             HODName = c.Student == null ? "Principle" : c.Student1.StudentName
  8.     }).ToList();
  9.     GridView1.DataBind();
  10. }
Now run your application you will see this data in Gridview.
