Call User Controls In Main Window Using WPF

Introduction

This article demonstrates how to bind a WPF UserControl with MainWindow and also call a UserControl inside another UserControl.

Description

An application consists of many forms. Creating a MainWindow for every form is not an ideal solution, we can achieve the same thing with a MainWindow along with many UserControls and call UserControl inside MainWindow. We can also call a UserControl inside another UserControl.

Steps

Before moving forward you should have minimum knowledge of xaml design. In this example I will be creating one MainWindow and 3 user controls and adding those user controls depending on requirements.

Step 1: Creating a Main Window

The MainWindow xaml code is as follows:
  1. <Grid>
  2.        <Grid.RowDefinitions>
  3.            <RowDefinition Height="*"/>
  4.            <RowDefinition Height="5*"/>
  5.        </Grid.RowDefinitions>
  6.        <Border Grid.Row="0" BorderThickness="1" BorderBrush="Aqua">
  7.            <Grid>
  8.                <Grid.ColumnDefinitions>
  9.                    <ColumnDefinition Width="*"/>
  10.                    <ColumnDefinition Width="*"/>
  11.                </Grid.ColumnDefinitions>
  12.                <Button Grid.Column="0" Background="AliceBlue" Name="BtnUser1" Click="BtnUser1_Click">Add UserControl 1</Button>
  13.                <Button Grid.Column="1" Background="AliceBlue" Name="BtnUser2" Click="BtnUser2_Click">Add UserControl 2</Button>
  14.            </Grid>
  15.        </Border>
  16.        <ScrollViewer Grid.Row="1">
  17.            <TabControl x:Name="MainTab" Background="Beige">
  18.
  19.            </TabControl>
  20.        </ScrollViewer>
  21.    </Grid>

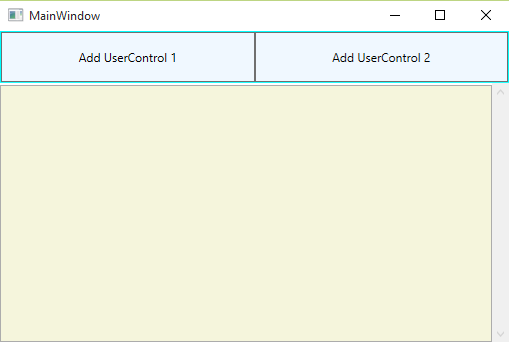

 After Implementing this and running it will look like the below image:



Step 2:
(Creating a User Controls)

 As per the above image we will be creating 2 user controls and add then on button click

User Control 1: XAML Design
  1. <Grid>
  2.        <TextBlock VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="14" FontWeight="Bold"
  3.                   Foreground="Chocolate">I am in UserControl-1</TextBlock>
  4.    </Grid>
User Control 2: XAML Design

This contains a button to add another UserControl
  1. <Grid>
  2.        <Grid.RowDefinitions>
  3.            <RowDefinition Height="*"/>
  4.            <RowDefinition Height="5*"/>
  5.        </Grid.RowDefinitions>
  6.        <Button Grid.Row="0" Background="AliceBlue" Name="BtnSubUser1" Click="BtnSubUser1_Click">Add Sub User Control 1</Button>
  7.        <TabControl Grid.Row="1" Name="SubPage">
  8.
  9.        </TabControl>
  10.    </Grid>
User Control 3: XAML Design
  1. <Grid>
  2.         <TextBlock VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="14" FontWeight="Bold"
  3.             Foreground="Chocolate">Hello C-Sharp Conner User <LineBreak/>
  4.             I am in Sub User Control-1</TextBlock>
  5.     </Grid>
Step 3: Code to User Controls

The below code has to be added in MainWindow.cs as this window have 2 buttons to show User control-1 and User Control-2. ollow the commented lines or better understanding.
  1. TabItem _tabUserPage;
  2. private void BtnUser1_Click(object sender, RoutedEventArgs e)
  3. {
  4.     MainTab.Items.Clear(); //Clear previous Items in the user controls which is my tabItems
  5.     var userControls = new MainUserControl1();
  6.     _tabUserPage = new TabItem { Content = userControls };
  7.     MainTab.Items.Add(_tabUserPage); // Add User Controls
  8.     MainTab.Items.Refresh();
  9. }
  10. private void BtnUser2_Click(object sender, RoutedEventArgs e)
  11. {
  12.     MainTab.Items.Clear(); //Clear previous Items in the user controls which is my tabItems
  13.     var userControls = new MainUserControl2();
  14.     _tabUserPage = new TabItem { Content = userControls };
  15.     MainTab.Items.Add(_tabUserPage); // Add User Controls
  16.     MainTab.Items.Refresh();
  17. }
The below code will be added in the UserControl2.cs page to show sub User control.
  1. TabItem _tabUserPage;
  2. private void BtnSubUser1_Click(object sender, RoutedEventArgs e)
  3. {
  4.     SubPage.Items.Clear();
  5.     var userControls = new Sub_UserControl1();
  6.     _tabUserPage = new TabItem { Content = userControls };
  7.     SubPage.Items.Add(_tabUserPage);
  8.     SubPage.Items.Refresh();
  9. }
Note: You can find the attached sample solution for the reference.
