WinJS application With Windows Runtime Component To Access Native C# Code

Let's get started.

Step 1:

Firstly, create a WinJS project as discussed in in my following article. For that we will start with creating a blank Universal Windows App:

Create you first WinJS Application

Step 2:

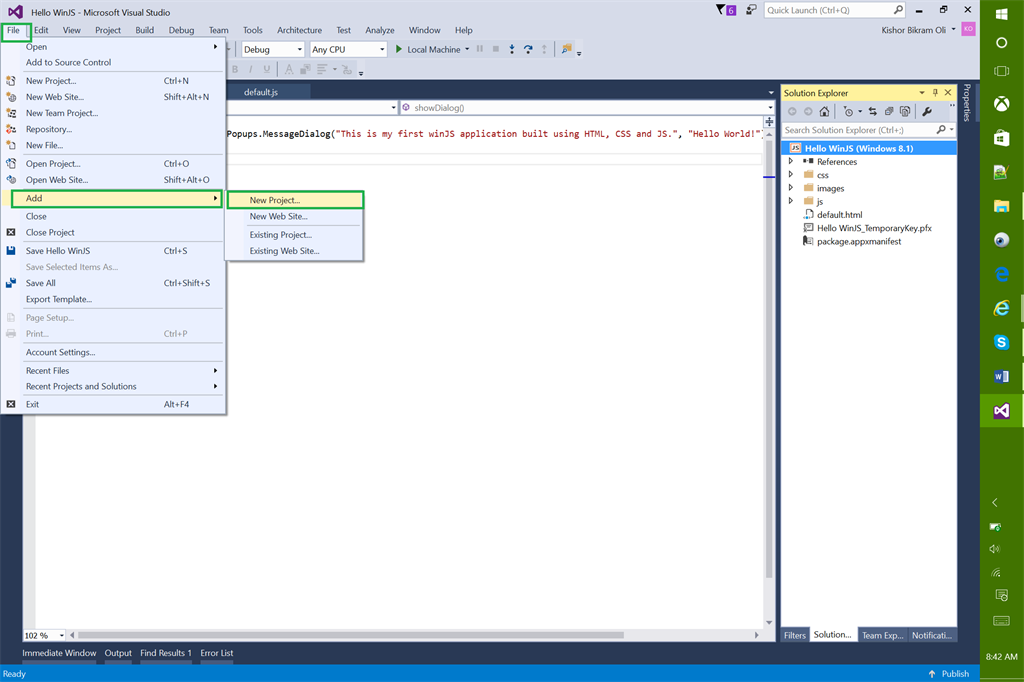

Now we will add a Windows Runtime Component. For this, go to File, Add, then click New Project.


Step 3:

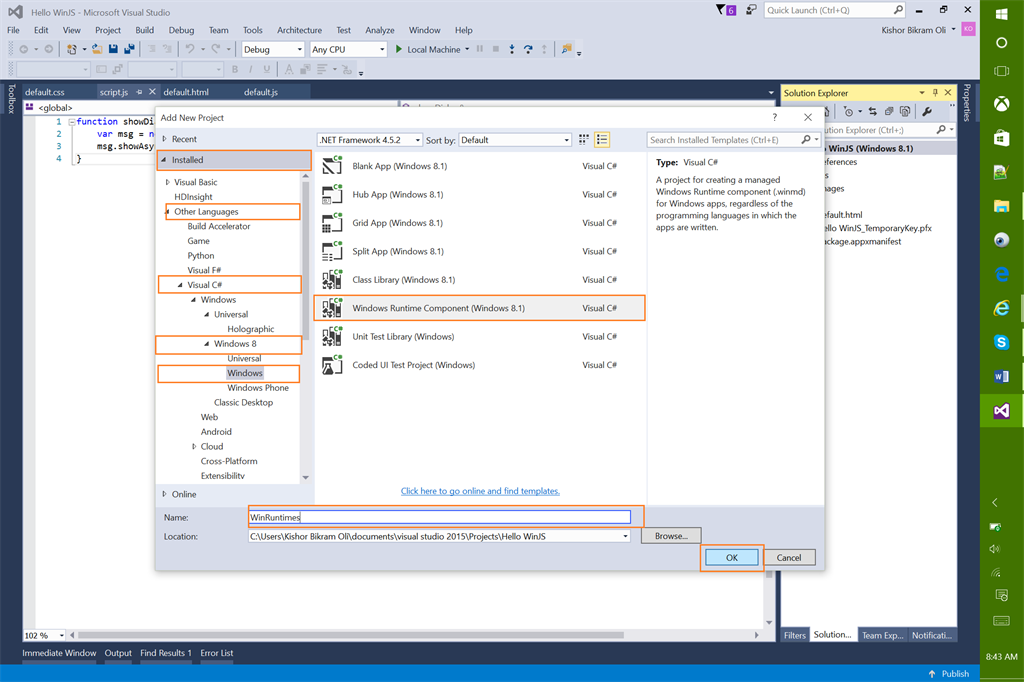

Under Other Languages, Visual C#, then Windows, elect Windows Runtime Component (Windows 8.1). Name it WinRuntimes and click OK.


Step 4:

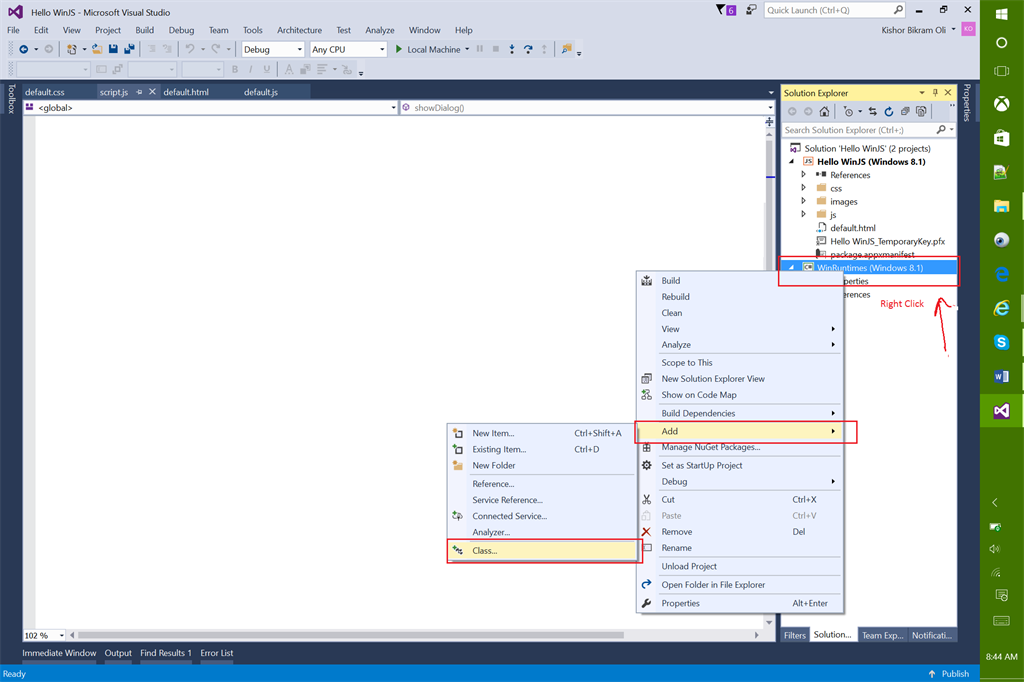

Delete the default class ‘Class1’ and add a new class Service by right click ing the WinRuntimes project and add new class.


Step 5:

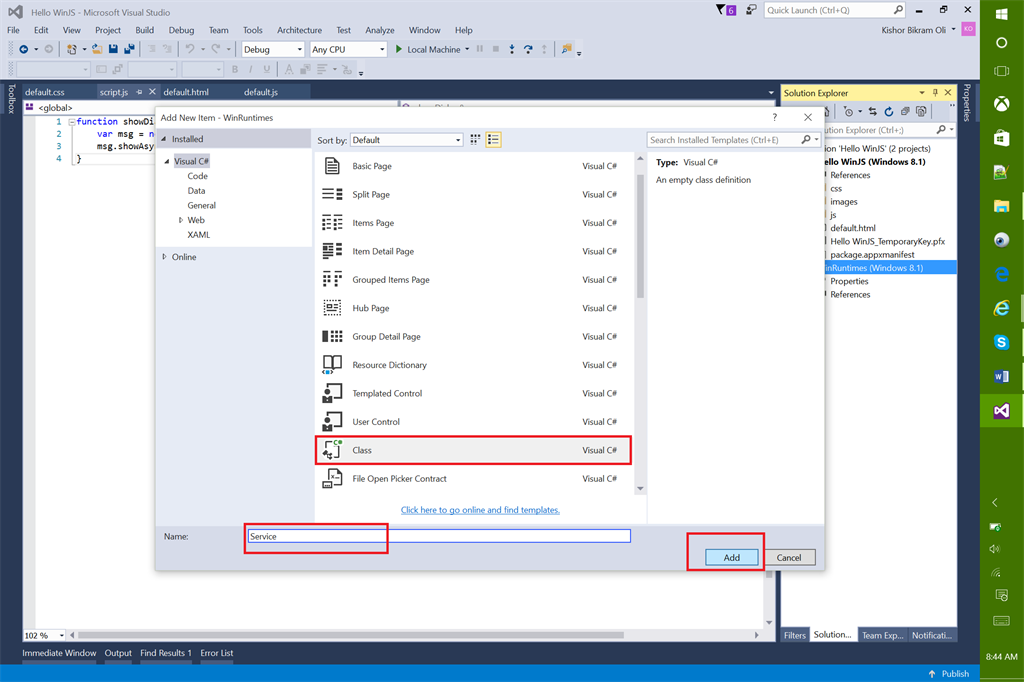

Name this class as Service and click Add.


In Service Class, make Service as sealed class and add function Hello() which returns string “Hello World”.

Complete code snippet is:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6.
  7. namespace WinRuntimes
  8. {
  9.     public sealed class Service
  10.     {
  11.         public string Hello()
  12.         {
  13.             return "Hello World";
  14.         }
  15.     }

Step 6:

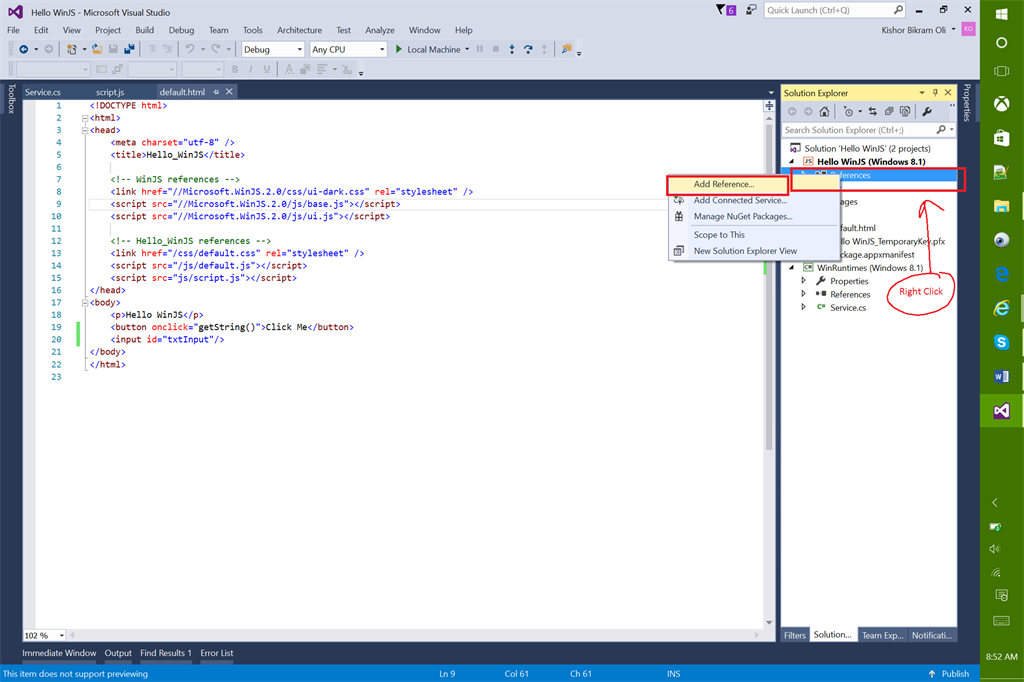

Now we have to add this WinRuntimes as reference in our WinJS project. Right Click on References > Add Reference.

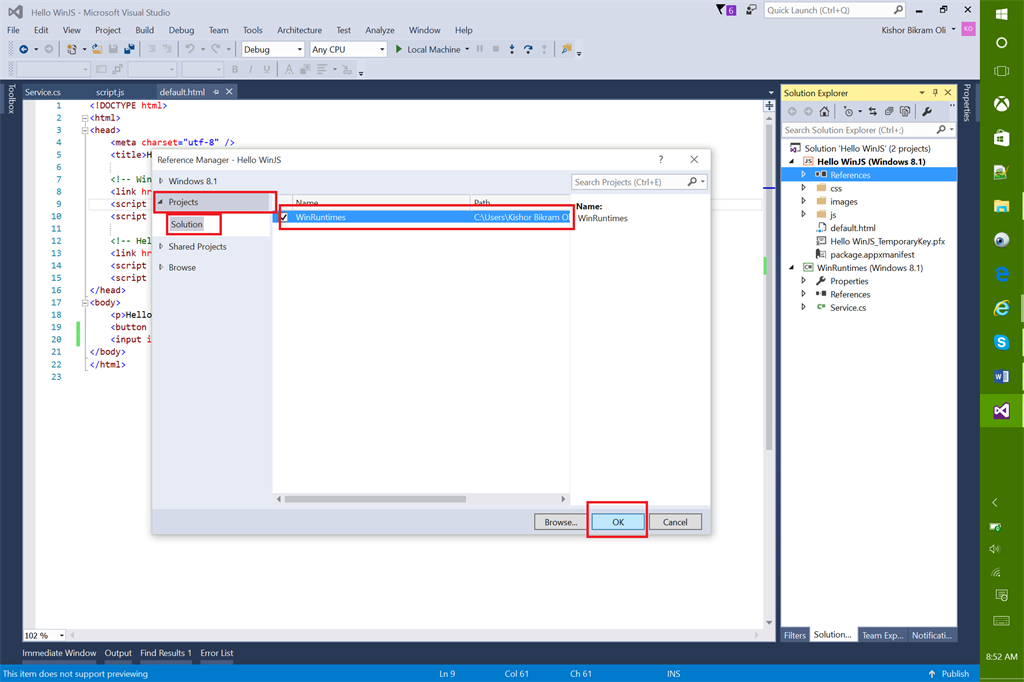

Step 7:

Under Projects, Solution, then select WinRuntimes and Click OK.

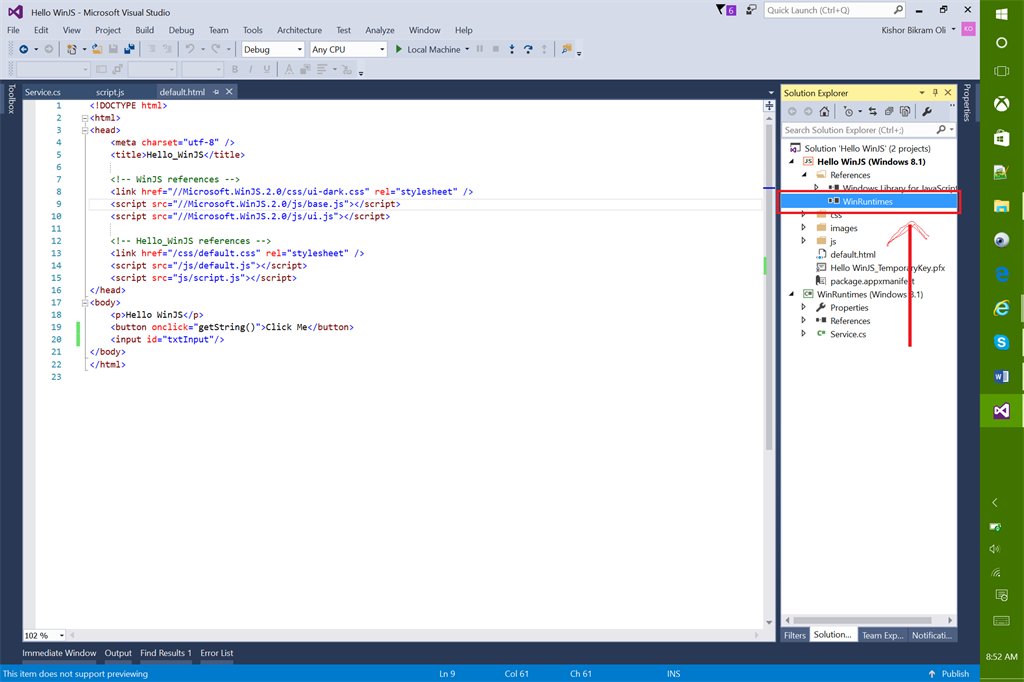

You will see a reference added in our WinJS project. Build this project or press Ctrl + Shift + B.

Step 8:

Add a script.js file and reference it in HTML similarly discussed in previous article.

Let us add the following things in HTML.

  • Button with click event.
  • Input field

Our complete HTML looks like:
  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4.     <meta charset="utf-8" />
  5.     <title>Hello_WinJS</title>
  6.
  7.     <!-- WinJS references -->
  8.     <link href="//Microsoft.WinJS.2.0/css/ui-dark.css" rel="stylesheet" />
  9.     <script src="//Microsoft.WinJS.2.0/js/base.js"></script>
  10.     <script src="//Microsoft.WinJS.2.0/js/ui.js"></script>
  11.
  12.     <!-- Hello_WinJS references -->
  13.     <link href="/css/default.css" rel="stylesheet" />
  14.     <script src="/js/default.js"></script>
  15.     <script src="js/script.js"></script>
  16. </head>
  17. <body>
  18.     <p>Hello WinJS</p>
  19.     <button onclick="getString()">Click Me</button>
  20.     <input id="txtInput"/>
  21. </body>
  22. </html>

Step 9:

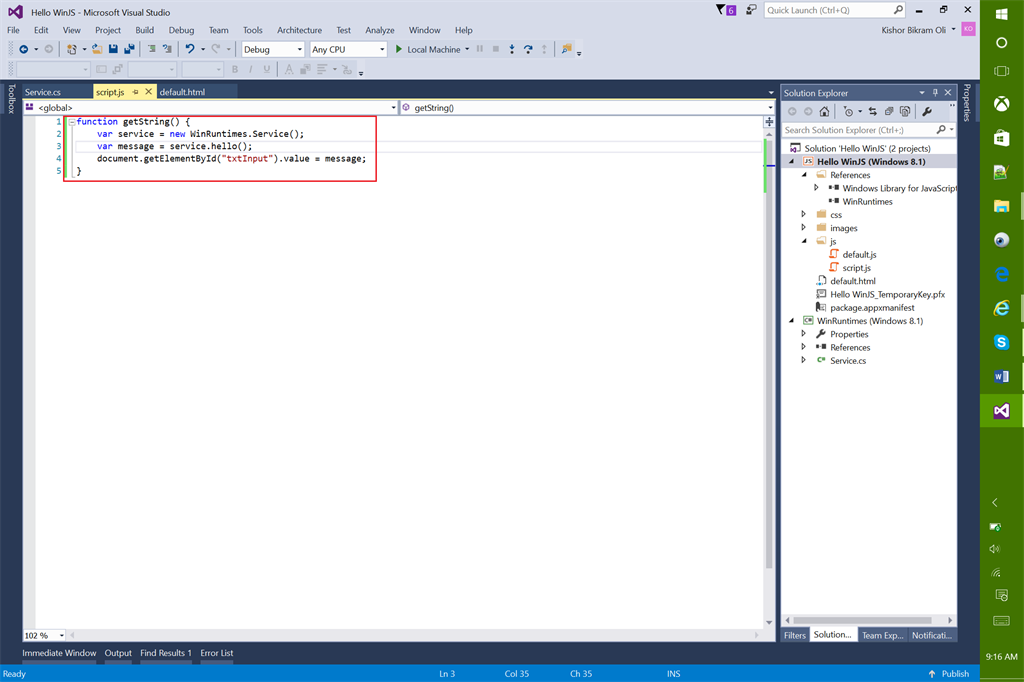

In script.js, we will add getString() function with a service object that calls the method Hello() of WinRuntimes (Windows Runtime Component) like:

  1. function getString() {
  2.     var service = new WinRuntimes.Service();
  3.     var message = service.hello();
  4.     document.getElementById("txtInput").value = message;


Step 10:

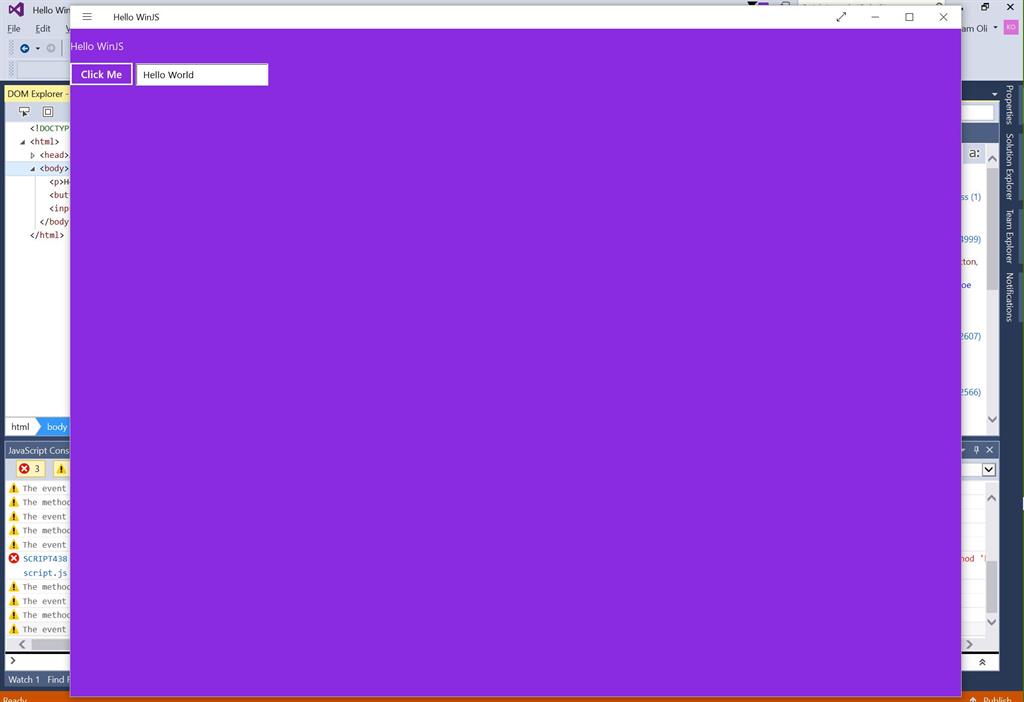

Now we are ready to run our application, Press F5 and click on Click Me button. You will see “Hello World” in the input field that is retrieved from native C# code using Windows Runtime Component.

In the coming articles, I will show you how to do asynchronous operations in Runtime Components.


That’s it.

Thanks! Happy Coding.
