Winform Chart Control in C# Using MS Access Database

Today I am going to show you how to chart control in C# using MS Access Database

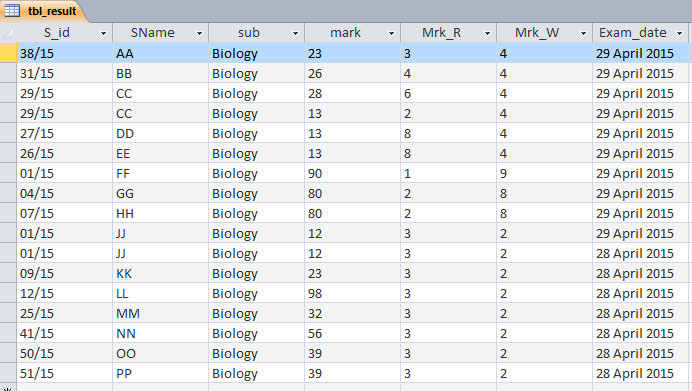

Your database is shown below:



Now create a new project.

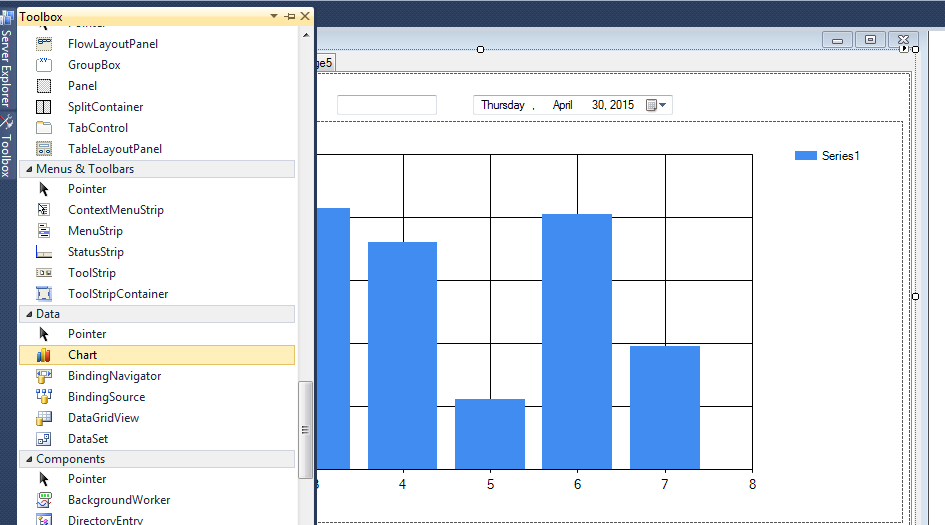

Select chart

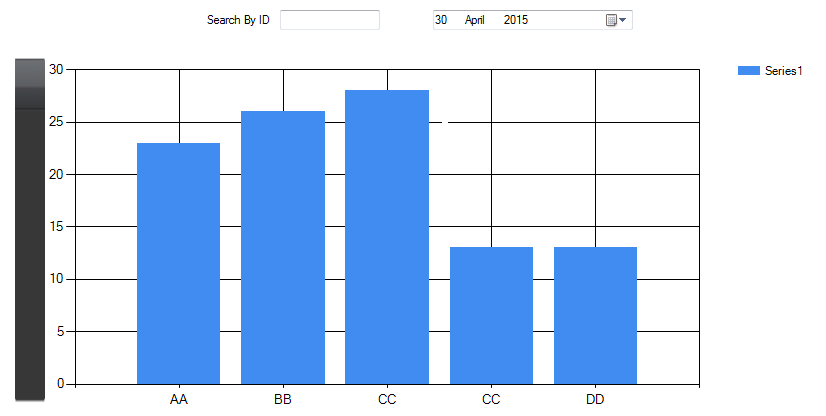

View Top 5 Record

  1. private void chartcon1()
  2. {
  3.     if (connectiondb.State == ConnectionState.Closed)
  4.     {
  5.         connectiondb.Open();
  6.     }
  7.     str3 = "select top 5 SName,mark from tbl_result";
  8.     com3 = new OleDbCommand(str3, connectiondb);
  9.     OleDbDataAdapter da = new OleDbDataAdapter(com3);
  10.     DataTable dt = new DataTable();
  11.     da.Fill(dt);
  12.     connectiondb.Close();
  13.     string[] N = new string[dt.Rows.Count];
  14.     int[] M = new int[dt.Rows.Count];
  15.     for (int i = 0; i < dt.Rows.Count; i++)
  16.     {
  17.         N[i] = dt.Rows[i][0].ToString();
  18.         M[i] = Convert.ToInt32(dt.Rows[i][1]);
  19.     }
  20.     chart1.Series[0].Points.DataBindXY(N, M);
  21. }

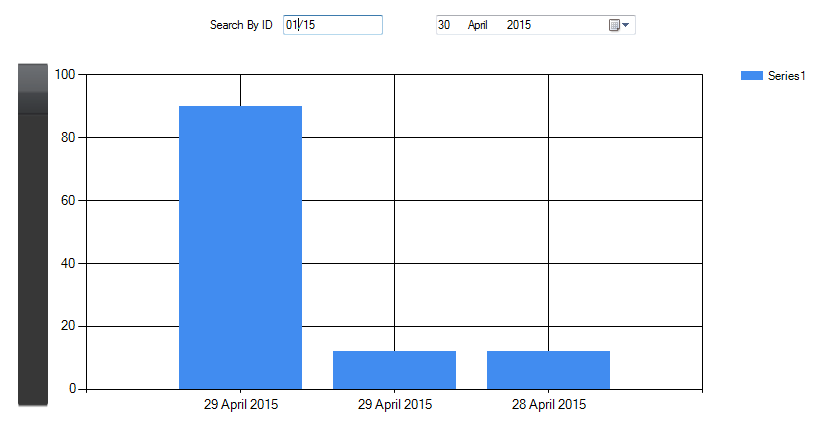

View chart By Id
  1. private void chart_by_id()
  2. {
  3.     if (connectiondb.State == ConnectionState.Closed)
  4.     {
  5.         connectiondb.Open();
  6.     }
  7.     str3 = "select Exam_date,mark from tbl_result where S_id='" + textBox5.Text.Trim() + "'";
  8.     com3 = new OleDbCommand(str3, connectiondb);
  9.     OleDbDataAdapter da = new OleDbDataAdapter(com3);
  10.     DataTable dt = new DataTable();
  11.     da.Fill(dt);
  12.     connectiondb.Close();
  13.     string[] N = new string[dt.Rows.Count];
  14.     int[] M = new int[dt.Rows.Count];
  15.     for (int i = 0; i < dt.Rows.Count; i++)
  16.     {
  17.         N[i] = dt.Rows[i][0].ToString();
  18.         M[i] = Convert.ToInt32(dt.Rows[i][1]);
  19.     }
  20.     chart1.Series[0].Points.DataBindXY(N, M);
  21. }

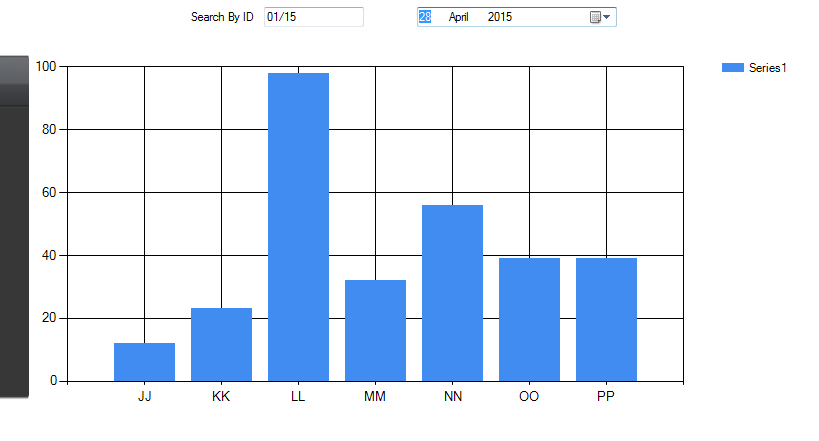

And View Chart By Date change Event

  1. private void result_by_date()
  2. {
  3.     if (connectiondb.State == ConnectionState.Closed)
  4.     {
  5.         connectiondb.Open();
  6.     }
  7.     str3 = "select SName,mark from tbl_result where Exam_date='" + dateTimePicker2.Text.Trim() + "'";
  8.     com3 = new OleDbCommand(str3, connectiondb);
  9.     OleDbDataAdapter da = new OleDbDataAdapter(com3);
  10.     DataTable dt = new DataTable();
  11.     da.Fill(dt);
  12.     connectiondb.Close();
  13.     string[] N = new string[dt.Rows.Count];
  14.     int[] M = new int[dt.Rows.Count];
  15.     for (int i = 0; i < dt.Rows.Count; i++)
  16.     {
  17.         N[i] = dt.Rows[i][0].ToString();
  18.         M[i] = Convert.ToInt32(dt.Rows[i][1]);
  19.     }
  20.     chart1.Series[0].Points.DataBindXY(N, M);
  21. }



This is my simple attempt at understanding chart control. Full code is shown below.

  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel;
  4. using System.Data;
  5. using System.Drawing;
  6. using System.Linq;
  7. using System.Text;
  8. using System.Windows.Forms;
  9. using System.Data.OleDb;
  10. using System.Windows.Forms.DataVisualization.Charting;
  11. namespace Result_GRP
  12. {
  13.     public partial class Form1: Form
  14.     {
  15.         OleDbConnection connectiondb = new OleDbConnection(@
  16.         "Provider=Microsoft.ACE.OLEDB.12.0;Data Source=C:\Users\DIPANKAR\Google Drive\resultDB.accdb");
  17.         OleDbCommand com3;
  18.         string str3;
  19.         public Form1()
  20.         {
  21.             InitializeComponent();
  22.             chartcon1();
  23.         }
  24.         private void Form1_Load(object sender, EventArgs e)
  25.         {
  26.         }
  27.         private void chartcon1()
  28.         {
  29.             if (connectiondb.State == ConnectionState.Closed)
  30.             {
  31.                 connectiondb.Open();
  32.             }
  33.             str3 = "select top 5 SName,mark from tbl_result";
  34.             com3 = new OleDbCommand(str3, connectiondb);
  35.             OleDbDataAdapter da = new OleDbDataAdapter(com3);
  36.             DataTable dt = new DataTable();
  37.             da.Fill(dt);
  38.             connectiondb.Close();
  39.             string[] N = new string[dt.Rows.Count];
  40.             int[] M = new int[dt.Rows.Count];
  41.             for (int i = 0; i < dt.Rows.Count; i++)
  42.             {
  43.                 N[i] = dt.Rows[i][0].ToString();
  44.                 M[i] = Convert.ToInt32(dt.Rows[i][1]);
  45.             }
  46.             chart1.Series[0].Points.DataBindXY(N, M);
  47.         }
  48.         private void result_chart_by_date()
  49.         {
  50.             if (connectiondb.State == ConnectionState.Closed)
  51.             {
  52.                 connectiondb.Open();
  53.             }
  54.             str3 = "select SName,mark from tbl_result where Exam_date='" + dateTimePicker2.Text.Trim() + "'";
  55.             com3 = new OleDbCommand(str3, connectiondb);
  56.             OleDbDataAdapter da = new OleDbDataAdapter(com3);
  57.             DataTable dt = new DataTable();
  58.             da.Fill(dt);
  59.             connectiondb.Close();
  60.             string[] N = new string[dt.Rows.Count];
  61.             int[] M = new int[dt.Rows.Count];
  62.             for (int i = 0; i < dt.Rows.Count; i++)
  63.             {
  64.                 N[i] = dt.Rows[i][0].ToString();
  65.                 M[i] = Convert.ToInt32(dt.Rows[i][1]);
  66.             }
  67.             chart1.Series[0].Points.DataBindXY(N, M);
  68.         }
  69.         private void chart_by_id()
  70.         {
  71.             if (connectiondb.State == ConnectionState.Closed)
  72.             {
  73.                 connectiondb.Open();
  74.             }
  75.             str3 = "select Exam_date,mark from tbl_result where S_id='" + textBox5.Text.Trim() + "'";
  76.             com3 = new OleDbCommand(str3, connectiondb);
  77.             OleDbDataAdapter da = new OleDbDataAdapter(com3);
  78.             DataTable dt = new DataTable();
  79.             da.Fill(dt);
  80.             connectiondb.Close();
  81.             string[] N = new string[dt.Rows.Count];
  82.             int[] M = new int[dt.Rows.Count];
  83.             for (int i = 0; i < dt.Rows.Count; i++)
  84.             {
  85.                 N[i] = dt.Rows[i][0].ToString();
  86.                 M[i] = Convert.ToInt32(dt.Rows[i][1]);
  87.             }
  88.             chart1.Series[0].Points.DataBindXY(N, M);
  89.         }
  90.         private void textBox5_TextChanged(object sender, EventArgs e)
  91.         {
  92.             chart_by_id();
  93.         }
  94.         private void button1_Click(object sender, EventArgs e)
  95.         {
  96.         }
  97.         private void button2_Click(object sender, EventArgs e)
  98.         {
  99.         }
  100.         private void textBox1_TextChanged(object sender, EventArgs e)
  101.         {
  102.         }
  103.         private void dateTimePicker2_ValueChanged_1(object sender, EventArgs e)
  104.         {
  105.             result_chart_by_date();
  106.         }
  107.     }
  108. }
Thanks
