Call WCF Service Using jQuery - Part 1

This article contains the following which I used:

  • Used WCF Service
  • Configuration Setting for WCF in web.config
  • Used JavaScript,JQuery and JSON.
  • Insert,Update and Delete data without refreshing page.
SQL Script
  •  This is a SQL script for above source code.
  1. CREATE TABLE [dbo].[ProductInfo](
  2.     [Id] [int] IDENTITY(1,1) NOT NULL,
  3.     [ProductName] [varchar](maxNULL,
  4.     [ProductDescription] [varchar](maxNULL,
  5.     [CreatedDate] [datetime] DEFAULT GETDATE()
  6.     )
WCF Service setting in web.config file
  •  This is service configuration setting.
  •  We need to add service end point and behavior setting in web.config file.
  •  there are so many way to host wcf service like self hosting, WAS, IIS and Window service.
  1. <system.serviceModel>
  2.   <behaviors>
  3.     <endpointBehaviors>
  4.       <behavior name="AspNetAjaxBehavior">
  5.         <enableWebScript />
  6.       </behavior>
  7.     </endpointBehaviors>
  8.   </behaviors>
  9.   <serviceHostingEnvironment aspNetCompatibilityEnabled="true" />
  10.   <services>
  11.     <service name="WCFService.ProductService">
  12.       <endpoint behaviorConfiguration="AspNetAjaxBehavior" binding="webHttpBinding"
  13.        contract="WCFService.IProductService" />
  14.     </service>
  15.   </services>
  16. </system.serviceModel>
Add Script Reference in Default.aspx page
  •  I add a script reference inside scriptmanager.
  1. <asp:ScriptManager runat="server">
  2.      <Scripts>
  3.         <asp:ScriptReference Path="~/Script/Product.js" />
  4.       </Scripts>
  5.       <Services>
  6.          asp:ServiceReference Path="~/ProductService.svc" />
  7.       </Services>
  8. </asp:ScriptManager>
IproductService.cs page
  •  The following interface method contain insert, update, delete definition only which is used in service call.
    1. [ServiceContract(Namespace = "WCFService")]
    2. interface IProductService
    3. {
    4.     [OperationContract]
    5.     void AddProductDetail(string productName, string productDescription);
    6.
    7.     [OperationContract]
    8.     void UpdateProductDetail(int updateId, string productName, string productDescription);
    9.
    10.     [OperationContract]
    11.     void DeleteProductDetail(int id);
    12.
    13.     [OperationContract]
    14.     string EditProductDetail(int id);
    15.
    16.     [OperationContract]
    17.     string LoadAllProductDetail();
    18.
    19. }
productService.cs page
  •  This file contain functionality which is mentioned in the above interface file.
    1. [AspNetCompatibilityRequirements(RequirementsMode = AspNetCompatibilityRequirementsMode.Allowed)]
    2. public class ProductService : IProductService
    3. {
    4.     #region  IproductService Member
    5.     readonly TestProductEntities _testProductEntities = new  TestProductEntities();
    6.
    7.     [WebInvoke(Method = "POST", BodyStyle = WebMessageBodyStyle.WrappedRequest, RequestFormat = WebMessageFormat.Json, ResponseFormat = WebMessageFormat.Json)]
    8.     public string LoadAllProductDetail()
    9.     {
    10.         try
    11.         {
    12.             var productDetail = (from s in _testProductEntities.ProductInfoes
    13.                                  select s).ToList();
    14.
    15.             var serializer = new JavaScriptSerializer();
    16.             return (serializer.Serialize(productDetail.ToList()));
    17.         }
    18.         catch (Exception ex)
    19.         {
    20.             throw ex;
    21.         }
    22.     }
    23.     #endregion
    24. }
product.js page
  •  This is my javascript file and highlighted area displays my service call.
  1. $(document).ready(function () {
  2.     LoadProduct();
  3. });
  4.
  5. function BindProduct(results) {
  6.     var myJsonString = JSON.parse(results);
  7.     var string = "<table class='table table-bordered'><tbody>";
  8.     string += '<tr><th>Name</th><th>Description</th><th colspan="2">Action</th></tr>';
  9.     if (myJsonString.length > 0) {
  10.         for (var i = 0; i < myJsonString.length; i++) {
  11.             string += '<tr><td>' + myJsonString[i].ProductName + '</td>';
  12.             string += '<td>' + myJsonString[i].ProductDescription + '</td>';
  13.             string += '<td><span><a href="javascript:void(0);" ' + ' onclick="EditProduct(' + myJsonString[i].Id + ');">';
  14.             string += '<img width="16" height="16" alt="Close" src="Image/Edit.jpg" /></a></span></td>';
  15.             string += '<td><span><a href="javascript:void(0);" ' + ' onclick="DeleteProduct(' + myJsonString[i].Id + ');">';
  16.             string += '<img width="16" height="16" alt="Close" src="Image/close.png" /></a></span></td></tr>';
  17.         }
  18.     }
  19.     string = string + "</tbody></table>";
  20.     $("#bindProduct").html(string);
  21. }
  22.
  23. function LoadProduct() {
  24.     WCFService.IProductService.LoadAllProductDetail(BindProduct, LoadProduct_success, LoadProduct_fail);
  25. }
  26.
  27. function LoadProduct_success() {
  28.
  29. }
  30.
  31. function LoadProduct_fail() {
  32.     alert("LoadProduct_fail");
  33. }

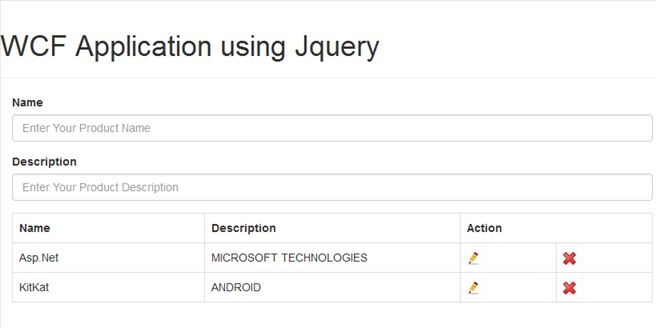

Output

You can also test the output here

output
