Use CheckBox inside Gridview in ASP.NET

Nilesh Jadav
9y
75k
0
1

Article

We will use a Checkbox inside a GridView and in that the user selects the data and that data is saved to the database.

Initial chamber

Step 1

Open your Visual Studio 2010 and create an empty website. Name it gridview_demo.

Step 2

In Solution Explorer you will see your empty website, add a web form and a SQL Server database as in the following.

For Web Form:

gridview_demo (your empty website) then right-click then select Add New Item -> Web Form. Name it gridview_demo.aspx.

For SQL Server Database

gridview_demo (your empty website) then right-click then select Add New Item -> SQL Server Database. Add the database inside the App_Data_folder.

DATABASE CHAMBER

Step 3

In Server Explorer, click on your database (Database.mdf) then select Tables -> Add New Table. Make the table like this.
Go to your database (Database.mdf) and create a table tbl_Data. Go to the database.mdf, then Table and Add New table. Design your table like the following:

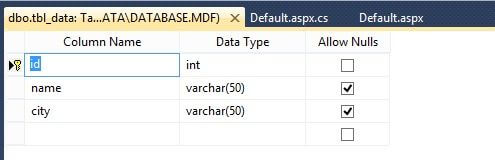

Table tbl_data (don't forget to make ID as Identity Specification - -> Yes)

table design

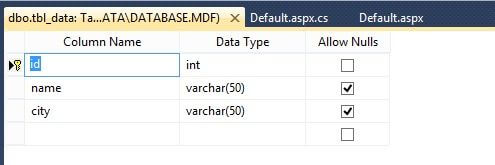

In a similar manner use another table and name it tbl_save, with the same field.

tbl_save:

table

Design chamber

Step 4

Now open your gridview_demo.aspx file to create our simple design with the GridView and a button.

Gridview_demo.aspx

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
</head>
<body>
<form id="form1" runat="server">
<div>
<asp:GridView ID="GridView1" runat="server" AutoGenerateColumns="False"
BackColor="White" BorderColor="#DEDFDE" BorderStyle="None" BorderWidth="1px"
CellPadding="4" ForeColor="Black" GridLines="Vertical">
<AlternatingRowStyle BackColor="White" />
<Columns>
<asp:TemplateField HeaderText="ID">
<EditItemTemplate>
<asp:TextBox ID="TextBox1" runat="server" Text='<%# Bind("id") %>'></asp:TextBox>
</EditItemTemplate>
<ItemTemplate>
<asp:Label ID="Label1" runat="server" Text='<%# Bind("id") %>'></asp:Label>
</ItemTemplate>
</asp:TemplateField>
<asp:TemplateField HeaderText="Name">
<EditItemTemplate>
<asp:TextBox ID="TextBox2" runat="server" Text='<%# Bind("name") %>'></asp:TextBox>
</EditItemTemplate>
<ItemTemplate>
<asp:Label ID="Label2" runat="server" Text='<%# Bind("name") %>'></asp:Label>
</ItemTemplate>
</asp:TemplateField>
<asp:TemplateField HeaderText="City">
<EditItemTemplate>
<asp:TextBox ID="TextBox3" runat="server" Text='<%# Bind("city") %>'></asp:TextBox>
</EditItemTemplate>
<ItemTemplate>
<asp:Label ID="Label3" runat="server" Text='<%# Bind("city") %>'></asp:Label>
</ItemTemplate>
</asp:TemplateField>
<asp:TemplateField HeaderText="Select Data">
<EditItemTemplate>
<asp:CheckBox ID="CheckBox1" runat="server" />
</EditItemTemplate>
<ItemTemplate>
<asp:CheckBox ID="CheckBox1" runat="server" />
</ItemTemplate>
</asp:TemplateField>
</Columns>
<FooterStyle BackColor="#CCCC99" />
<HeaderStyle BackColor="#6B696B" Font-Bold="True" ForeColor="White" />
<PagerStyle BackColor="#F7F7DE" ForeColor="Black" HorizontalAlign="Right" />
<RowStyle BackColor="#F7F7DE" />
<SelectedRowStyle BackColor="#CE5D5A" Font-Bold="True" ForeColor="White" />
<SortedAscendingCellStyle BackColor="#FBFBF2" />
<SortedAscendingHeaderStyle BackColor="#848384" />
<SortedDescendingCellStyle BackColor="#EAEAD3" />
<SortedDescendingHeaderStyle BackColor="#575357" />
</asp:GridView>
<br />
</div>
<asp:Button ID="Button1" runat="server" onclick="Button1_Click"
Text="Save to Database" />
</form>
</body>
</html>

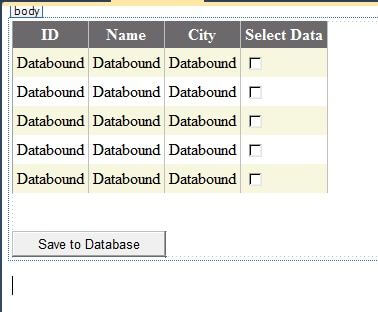

Your design will look like this:

Design

Code chamber

Step 5

Open your gridview_demo.aspx.cs and write some code so that the application works.

Gridview_demo.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data;
using System.Data.SqlClient;
public partial class _Default : System.Web.UI.Page
{
SqlConnection con = new SqlConnection(@"Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True");
protected void Page_Load(object sender, EventArgs e)
{
if (!Page.IsPostBack)
{
refreshdata();
}
}
public void refreshdata()
{
SqlCommand cmd = new SqlCommand("select * from tbl_data", con);
SqlDataAdapter sda = new SqlDataAdapter(cmd);
DataTable dt = new DataTable();
sda.Fill(dt);
GridView1.DataSource = dt;
GridView1.DataBind();
}
protected void Button1_Click(object sender, EventArgs e)
{
foreach (GridViewRow gvrow in GridView1.Rows)
{
var checkbox = gvrow.FindControl("CheckBox1") as CheckBox;
if (checkbox.Checked)
{
var lblID = gvrow.FindControl("Label1") as Label;
var lblName = gvrow.FindControl("Label2") as Label;
var lblCity = gvrow.FindControl("Label3") as Label;
SqlCommand cmd = new SqlCommand("insert into tbl_save (id,name,city) values (@id,@name,@city)", con);
cmd.Parameters.AddWithValue("id", lblID.Text);
cmd.Parameters.AddWithValue("name", lblName.Text);
cmd.Parameters.AddWithValue("city", lblCity.Text);
con.Open();
int i = cmd.ExecuteNonQuery();
con.Close();
refreshdata();
}
}
}
}

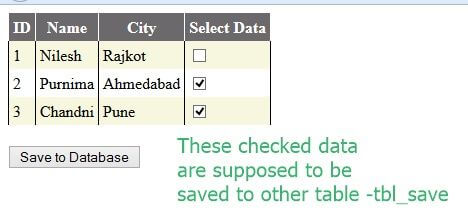

Output chamber

Output

After clicking the button, just check your tbl_save table. You will get your selected data saved to the database.

You can use multiple selections and saved to the database, I think this is much more flexible than SQLbulk functions.

I hope you like it. Thank you for reading. Have a good day.
