Add button in Visual Studio 2011 LightSwitch


Introduction

As you know that add button is used to add new data in the database. There is + sign to add new data in Visual Studio LightSwitch . If you want to add new data using custom button in the LightSwitch, it is possible.

Step by step solution

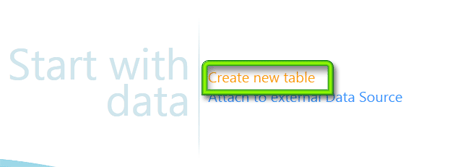

Step 1: Open Visual Studio LightSwitch->File->New->Project->Create new table.

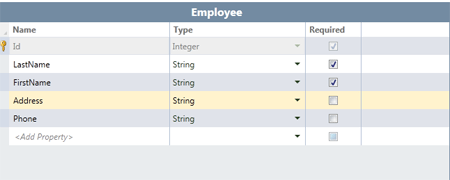

Step 2: Now we will make a table like as Employee.

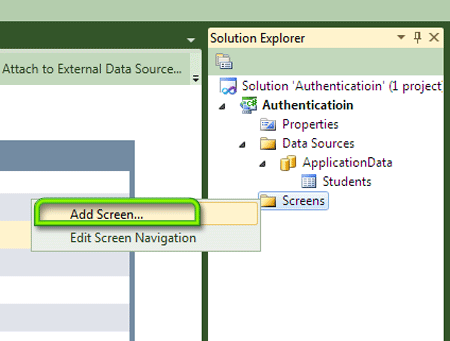

Step 3: Right click on screen->Add new screen.

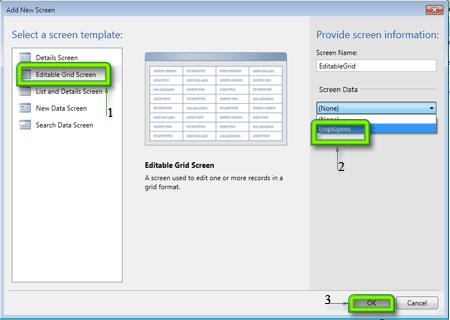

Step 4: Select Editable grid screen->Select screen data (Employee)->Ok.

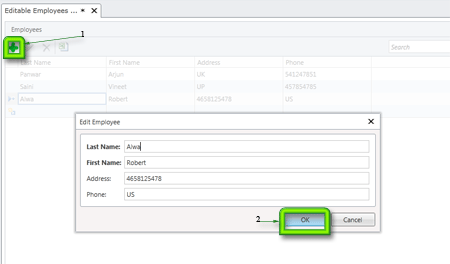

Step 5: Run application (Press F5)->Click + sign ->Fill data->Ok->Save.

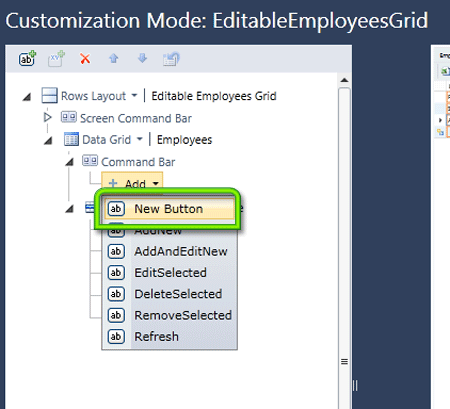

Step 6: Design screen->Command Bar->Add->New button->Change display name (AddEmployee)->Save.

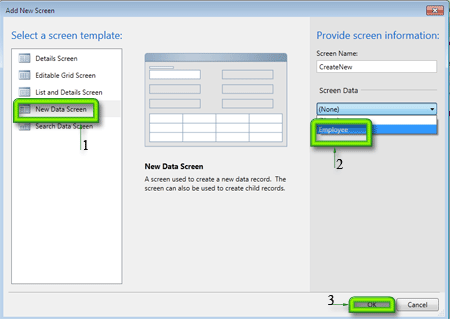

Step 7: Stop debugging->Add screen->Select new data screen->Select screen data (Employee)->Ok.


Step 8: Go to properties of Editable grid screen->Change method name (AddEmployee)->Click edit execute code>Write the below code.


Code :

using System;
using System.Linq;
using System.IO;
using System.IO.IsolatedStorage;
using System.Collections.Generic;
using Microsoft.LightSwitch;
using Microsoft.LightSwitch.Framework.Client;
using Microsoft.LightSwitch.Presentation;
using Microsoft.LightSwitch.Presentation.Extensions;
namespace LightSwitchApplication
{
    public partial class EditableEmployeesGrid
    {
        partial void ADDEmployee_Execute()
        {
            this.Application.ShowCreateNewEmployee();

        }
    }

}

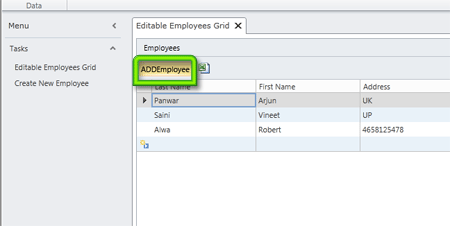

Step 9: Run application (Press F5)->Click AddEmployee button.

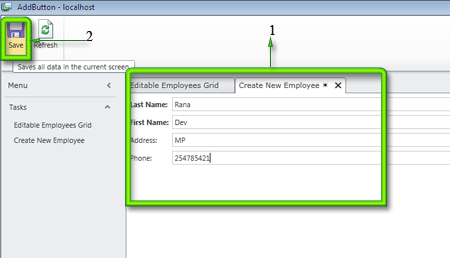

Step 10: Fill data->Save.

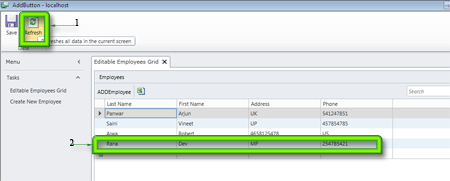

Step 11: Refresh.Here you will see new data save in the editable grid screen.


Summary

So you can use custom button as add in the LightSwitch Appliocation.
