Responsive Table Using AngularJS And Bootstrap

In today’s world, responsiveness is one of the main key advantage in web development. Since we need to open the same page in different type of device like desktop, tab or mobile. Due to the different screen size, it is important when we design a page either in html format or aspx format for web development, that design must be responsive i.e. it automatically adjusts all type of screen designs. In this article, I am going to display how to create a responsive table using bootstrap and AngularJS.

For it, we first need to create some stylesheet. For this, add a stylesheet file in the project and write down the following code:
  1. body: not(.fixed - sidebar): not(.canvas - menu).mini - navbar.nav - second - level
  2. {
  3.     display: none;
  4. }
  5. /* TABLES */
  6. .table - bordered
  7. {
  8.     border: 1 px solid# EBEBEB;
  9. }.table - bordered > thead > tr > th, .table - bordered > thead > tr > td
  10. {
  11.     background - color: #FFF;
  12.     border - bottom - width: 1 px;
  13. }.table - bordered > thead > tr > th, .table - bordered > tbody > tr > th, .table - bordered > tfoot > tr > th, .table - bordered > thead > tr > td, .table - bordered > tbody > tr > td, .table - bordered > tfoot > tr > td
  14. {
  15.     border: 1 px solid# e7e7e7;border - width: 1 px 1 px 0 1 px;
  16. }.table > thead > tr > th
  17. {
  18.     border - bottom: 1 px solid# DDDDDD;
  19.     vertical - align: bottom;
  20. }.table > thead > tr > th, .table > tbody > tr > th, .table > tfoot > tr > th, .table > thead > tr > td, .table > tbody > tr > td, .table > tfoot > tr > td
  21. {
  22.     border - top: 1 px solid# e7eaec;
  23.     line - height: 1.42857;
  24.     padding: 5 px;
  25.     vertical - align: top;
  26. }
  27. /* GLOBAL  */
  28. .ibox
  29. {
  30.     clear: both;margin - bottom: 10 px;margin - top: 0;padding: 0;
  31. }.ibox.collapsed.ibox - content
  32. {
  33.     display: none;
  34. }.ibox.collapsed.fa.fa - chevron - up: before
  35. {
  36.     content: "\f078";
  37. }.ibox.collapsed.fa.fa - chevron - down: before
  38. {
  39.     content: "\f077";
  40. }.ibox: after, .ibox: before
  41. {
  42.     display: table;
  43. }.ibox - title
  44. {
  45.     -moz - border - bottom - colors: none; - moz - border - left - colors: none; - moz - border - right - colors: none; - moz - border - top - colors: none;
  46.     background - color: #ffffff;
  47.     border - color: #e7eaec;
  48.     border - image: none;
  49.     border - style: solid solid none; /*border-width: 3px 0 0;*/
  50.     border - width: 0 px 0 0;
  51.     color: inherit;
  52.     margin - bottom: 0;
  53.     padding: 10 px 15 px 0; /* min-height: 35px;*/
  54.     min - height: 28 px;
  55. }.ibox - content
  56. {
  57.     background - color: #ffffff;
  58.     color: inherit; /* padding: 0px 10px 10px;*/
  59.     padding: 10 px 10 px 10 px;
  60.     border - color: #e7eaec;
  61.     border - image: none;
  62.     border - style: solid solid none; /* border-width: 1px 0px;*/
  63.     border - width: 0 px 0 px;
  64. }.ibox - footer
  65. {
  66.     color: inherit;border - top: 1 px solid# e7eaec;font - size: 90 % ;background: #ffffff;padding: 10 px 15 px;
  67. }
  68. table.table - mail tr td
  69. {
  70.     padding: 12 px;
  71. }.table - mail.check - mail
  72. {
  73.     padding - left: 20 px;
  74. }.table - mail.mail - date
  75. {
  76.     padding - right: 20 px;
  77. }.ibox - content
  78. {
  79.     clear: both;
  80. }.ibox - heading
  81. {
  82.     background - color: #f3f6fb;
  83.     border - bottom: none;
  84. }.ibox - heading h3
  85. {
  86.     font - weight: 200;
  87.     font - size: 24 px;
  88. }.ibox - title h5
  89. {
  90.     display: inline - block;font - size: 14 px;margin: 0 0 7 px;padding: 0;text - overflow: ellipsis;float: left;color: #1ab394; font-weight:bold; }
  91.     .ibox-title .label { float: left; margin-left: 4px; }
  92.     .ibox-tools { display: block; float: none; margin-top: 0; position: relative; padding: 0; text-align: right; }
  93.     .ibox-tools a { cursor: pointer; margin-left: 5px; color: # c4c4c4;
  94. }.ibox - tools a.btn - primary
  95. {
  96.     color: #fff;
  97. }.ibox - tools.dropdown - menu > li > a
  98. {
  99.     padding: 4 px 10 px;font - size: 12 px;
  100. }.ibox.ibox - tools.open > .dropdown - menu
  101. {
  102.     left: auto;right: 0;
  103. }.ibox.fullscreen
  104. {
  105.     z - index: 2030;
  106.     position: fixed;
  107.     top: 0;
  108.     left: 0;
  109.     right: 0;
  110.     bottom: 0;
  111.     overflow: auto;
  112.     margin - bottom: 0;
  113. }.ibox.fullscreen.collapse - link
  114. {
  115.     display: none;
  116. }.ibox.fullscreen.ibox - content
  117. {
  118.     min - height: calc(100 % -48 px);
  119. }
  120. /*Responsive Table*/
  121. .ibox - table
  122. /*margin-bottom:10px;*/
  123.     position: relative;
  124. }.ibox - table.responsive - table
  125. {
  126.     width: 100 % ;
  127. }.ibox - table.responsive - table th, .ibox - table.responsive - table td
  128. {
  129.     padding: 7 px;
  130. }
  131. @media screen and(max - width: 992 px)
  132. {.ibox - table.responsive - table thead
  133. {
  134.     display: none;
  135. }.ibox - table.responsive - table tr
  136. {
  137.     display: block;border - bottom: 1 px solid# ddd;
  138. }.ibox - table.responsive - table td
  139. {
  140.     display: block;text - align: left;padding: 7 px 5 px 7 px 50 % !important;
  141. }.ibox - table.responsive - table td: last - child
  142. {
  143.     border - bottom: 0;
  144. }.ibox - table.responsive - table td: before
  145. {
  146.     content: attr(data - label);text - align: right;width: 45 % ;position: absolute;left: 2 px;font - weight: bold;white - space: pre - wrap;padding: 0 px 0 5 px;
  147. }.minimalize - styl - 2.fa - bars
  148. {
  149.     display: inline - block;
  150. }.minimalize - styl - 2.fa - chevron - left
  151. {
  152.     display: none;
  153. }
  154. body.mini - navbar.minimalize - styl - 2.fa - chevron - left
  155. {
  156.     display: inline - block;
  157. }
  158. body.mini - navbar.minimalize - styl - 2.fa - bars
  159. {
  160.     display: none;
  161. }
Now add a html file named index.html and add the following code:
  1. <!DOCTYPE html>
  2. <html xmlns="http://www.w3.org/1999/xhtml">
  3. <head>
  4.     <title>Responsive Data Grid in Angular Js</title>
  5.     <link href="../../RefStyle/bootstrap.min.css" rel="stylesheet" />
  6.     <link href="Style.css" rel="stylesheet" />
  7.     <script src="../../Scripts/angular.min.js"></script>
  8.     <script src="IndexController.js"></script>
  9. </head>
  10. <body data-ng-app="TestApp" data-ng-controller="IndexController as model">
  11.     <div class="row animated fadeInRight">
  12.         <div class="col-lg-12">
  13.             <div class="rowDiv">
  14.                 <h3>{{model.message}}</h3>
  15.             </div>
  16.         </div>
  17.         <div class="ibox-content">
  18.             <div class="ibox-table">
  19.                 <div class="table-responsive">
  20.                     <table class="responsive-table table-striped table-bordered table-hover">
  21.                         <thead>
  22.                             <tr>
  23.                                 <th data-ng-repeat="header in model.headerData" data-ng-switch on="header.caption">
  24.                                     <span data-ng-switch-when="chkBox">
  25.                                         <input id="chkHeader" type="checkbox" class="i-checks" name="input[]" data-ng-init="model.assignControlProperty(-1);">
  26.                                     </span>
  27.                                     <span data-ng-switch-when="btnInfo"></span>
  28.                                     <span data-ng-switch-default>{{header.caption}}</span>
  29.                             </tr>
  30.                         </thead>
  31.                         <tbody>
  32.                             <tr data-ng-repeat="item in model.gridData">
  33.                                 <td data-ng-repeat="field in model.columnField" data-ng-switch on="field.fieldName" data-label="{{field.dataLabel}}" data-ng-click="model.gridRowClick(item,$parent.$index,field);">
  34.                                     <span data-ng-switch-default>{{item[field.fieldName]}}</span>
  35.                                 </td>
  36.                             </tr>
  37.                         </tbody>
  38.                     </table>
  39.                 </div>
  40.             </div>
  41.         </div>
  42. </body>
  43. </html>
Now add a JavaScript file and add the following code:
  1. 'use strict';
  2. var testApp = angular.module('TestApp', []);
  3. testApp.controller('IndexController', ['$http', function ($http, urlService)
  4. {
  5.     var self = this;
  6.     self.message = 'Responsive Bootstrap Based Table';
  7.     var gridData = [
  8.     {
  9.         Id: 1,
  10.         Code: 'A001',
  11.         EmployeeName: 'Sumit Sharma',
  12.         Dept: 'Accounts',
  13.         Desig: 'Manager',
  14.         City: 'Kolkata',
  15.         Salary: 25000
  16.     },
  17.     {
  18.         Id: 2,
  19.         Code: 'A002',
  20.         EmployeeName: 'Ramesh Sharma',
  21.         Dept: 'Sales',
  22.         Desig: 'Agent',
  23.         City: 'New Delhi',
  24.         Salary: 15000
  25.     },
  26.     {
  27.         Id: 3,
  28.         Code: 'A003',
  29.         EmployeeName: 'Arun Roy',
  30.         Dept: 'Accounts',
  31.         Desig: 'Clerk',
  32.         City: 'Mumbai',
  33.         Salary: 22000
  34.     },
  35.     {
  36.         Id: 4,
  37.         Code: 'D001',
  38.         EmployeeName: 'Swapan Das',
  39.         Dept: 'HR',
  40.         Desig: 'Admin',
  41.         City: 'Kolkata',
  42.         Salary: 40000
  43.     },
  44.     {
  45.         Id: 5,
  46.         Code: 'S021',
  47.         EmployeeName: 'Akash Srivastava',
  48.         Dept: 'Marketing',
  49.         Desig: 'Manager',
  50.         City: 'Pune',
  51.         Salary: 32000
  52.     },
  53.     {
  54.         Id: 6,
  55.         Code: 'A004',
  56.         EmployeeName: 'Nilesh Roy',
  57.         Dept: 'Sales',
  58.         Desig: 'Executive',
  59.         City: 'Kolkata',
  60.         Salary: 17000
  61.     }];
  62.     var gridHeader = 'Code,Employee Name,Department,Designation,Salary Amount';
  63.     var displayField = 'Code,EmployeeName,Dept,Desig,Salary';
  64.     self.gridData = gridData;
  65.     self.headerArray = gridHeader.split(',')
  66.     self.headerData = [];
  67.     angular.forEach(self.headerArray, function (field, i)
  68.     {
  69.         self.headerData.push(
  70.         {
  71.             caption: self.headerArray[i]
  72.         });
  73.     });
  74.     var returnDataLabel = function (index)
  75.     {
  76.         return self.headerArray[index];
  77.     }
  78.     var colData = displayField.split(',');
  79.     self.columnField = [];
  80.     angular.forEach(colData, function (field, i)
  81.     {
  82.         self.columnField.push(
  83.         {
  84.             fieldName: colData[i],
  85.             dataLabel: returnDataLabel(i)
  86.         });
  87.     });
  88.     var returnDataLabel = function (index)
  89.     {
  90.         return self.headerArray[index];
  91.     }
  92.     self.gridRowClick = function (item, index, column)
  93.     {
  94.         alert('grid row click for ' + item.EmployeeName);
  95.     }
  96. }]);

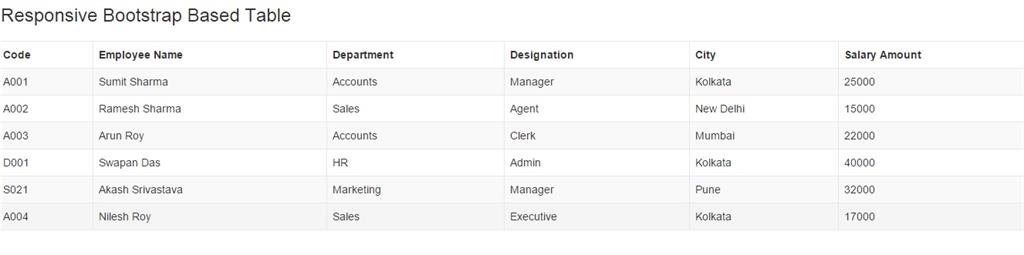

The above mentioned table is totally dynamic. Since the grid source data (i.e. self.source) contains menu fields like id etc but in the table it only shows those fields which are mentioned in the displayField variable. Firstly, we run the above written code and below is the output.

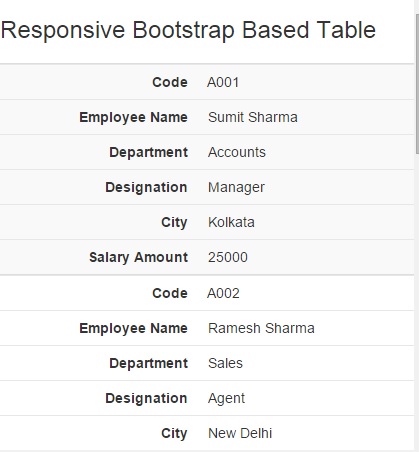

The following output for small screen device.

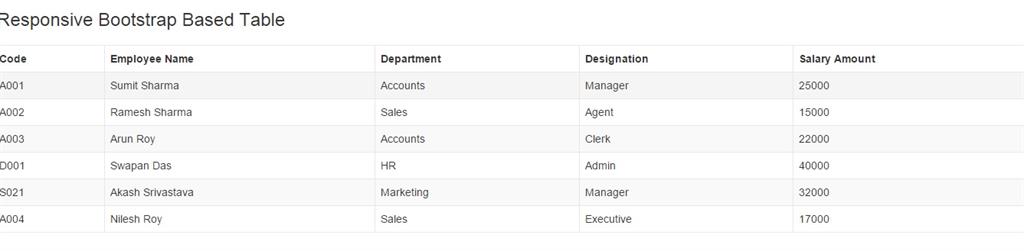

Now, I want to remove the city field from the table. For that, just change the following two line of code and check:
  1. var gridHeader = 'Code,Employee Name,Department,Designation,Salary Amount';
  2.    var displayField = 'Code,EmployeeName,Dept,Desig,Salary';
