Learn About How to Design Buttons Using Drawable

Introduction

This article explains how to design a button using drawable.

Android provides many drawable resources. In this we use only a shape darwable resource. A drawable shape provides many basic shapes, such as Rectangle, Oval, Ring, Line. Form these shapes you can create many effects. All of these shapes support the following tags.

gradient: used for gradient background

size: used to give size to the shapes

stroke:
used to give stroke to the shapes

solid : used to give solid background color

padding:
used to give padding to the shapes

Step 1

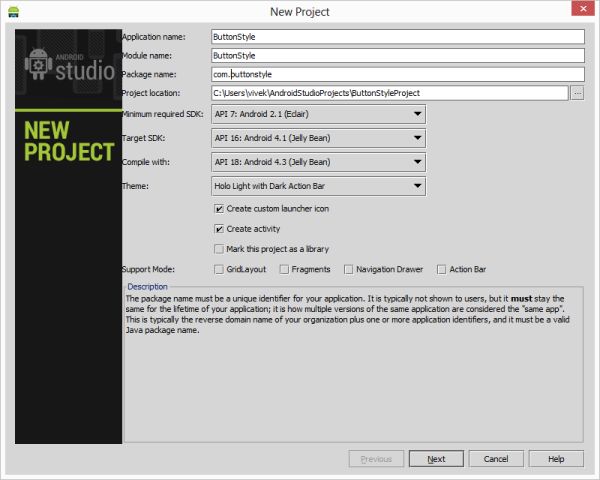

Create a project like this:


Step 2

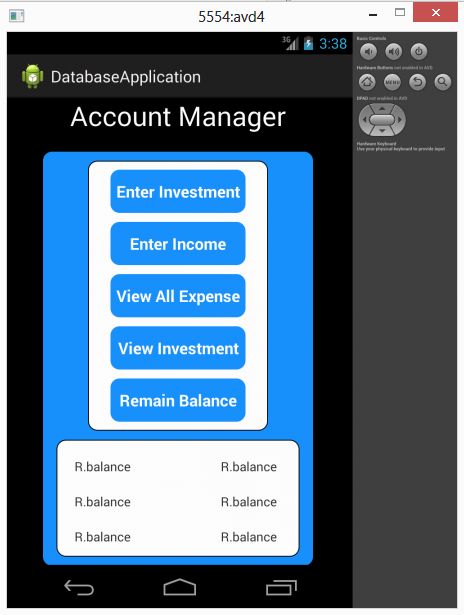

Create an XML file and write the following.

In this I have taken multiple buttons inside a linear layout and I have given the shape and color through the drawable XML file. This will change the color and shape of the buttons. I set all the backgrounds of all the buttons to a gradient XML file that I have created inside the drawable folder.

I set the gradient2.xml file to the LinearLayout at the bottom that contains a textview.

<?xml version="1.0" encoding="utf-8"?>



<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

    android:layout_width="fill_parent"

    android:layout_height="fill_parent"

    android:orientation="vertical"

    android:background="#000000">



    <LinearLayout



        android:layout_width="fill_parent"

        android:layout_height="wrap_content"

        android:layout_marginLeft="70dp"

        >

        <TextView

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:text="Account Manager"

        android:textSize="30dp"

        android:textColor="#ffffff"/>



    </LinearLayout>



    <LinearLayout

        android:orientation="vertical"

        android:layout_width="300dp"

        android:layout_height="460dp"

        android:layout_marginLeft="40dp"

        android:layout_centerVertical="true"

        android:layout_marginTop="20dp"

        android:background="@drawable/gradient">



        <LinearLayout

            android:orientation="vertical"

            android:layout_width="200dp"

            android:layout_height="300dp"

            android:layout_marginLeft="50dp"

            android:layout_marginTop="10dp"

            android:background="@drawable/gradient2"

           >

            <Button

                android:layout_width="150dp"

                android:layout_height="wrap_content"

                android:text="Enter Investment"

                android:textColor="#ffffffff"

                android:textStyle="bold"

                android:id="@+id/buttonInvestment"

                android:layout_gravity="center"

                android:layout_marginTop="10dp"

                android:background="@drawable/gradient"

             />



            <Button

                android:textColor="#ffffffff"

                android:textStyle="bold"

                android:layout_width="150dp"

                android:layout_height="wrap_content"

                android:text="Enter Income"

                android:id="@+id/buttonIncome"

                android:background="@drawable/gradient"

                android:layout_marginTop="10dp"

                android:layout_gravity="center" />



            <Button

                android:layout_width="150dp"

                android:layout_height="wrap_content"

                android:textColor="#ffffffff"

                android:textStyle="bold"

                android:text="View All Expense"

                android:id="@+id/button3"

                android:layout_gravity="center"

                android:layout_marginTop="10dp"

                android:background="@drawable/gradient"/>



            <Button

                android:layout_width="150dp"

                android:layout_height="wrap_content"

                android:text="View Investment"

                android:textColor="#ffffffff"

                android:textStyle="bold"

                android:id="@+id/button4"

                android:layout_gravity="center"

                android:layout_marginTop="10dp"

                android:background="@drawable/gradient"/>



            <Button

                android:textColor="#ffffffff"

                android:textStyle="bold"

                android:layout_width="150dp"

                android:layout_height="wrap_content"

                android:text="Remain Balance"

                android:id="@+id/button4"

                android:layout_marginTop="10dp"

                android:layout_gravity="center"

                android:background="@drawable/gradient"/>

        </LinearLayout>



        <LinearLayout

            android:layout_height="130dp"

            android:layout_width="270dp"

            android:background="@drawable/gradient3"

            android:layout_marginTop="10dp"

            android:orientation="vertical"

            android:layout_gravity="center">



            <LinearLayout

                android:layout_width="wrap_content"

                android:layout_height="wrap_content"

                android:layout_marginTop="20dp">

            <TextView

                android:layout_width="wrap_content"

                android:layout_height="wrap_content"

                android:text="R.balance"

                android:layout_marginLeft="20dp"

/>



            <TextView

                android:layout_width="wrap_content"

                android:layout_height="wrap_content"

                android:text="R.balance"

                android:layout_marginLeft="100dp"/>



            </LinearLayout>



            <LinearLayout

                android:layout_width="wrap_content"

                android:layout_marginTop="20dp"

                android:layout_height="wrap_content">

                <TextView

                    android:layout_width="wrap_content"

                    android:layout_height="wrap_content"

                    android:text="R.balance"

                    android:layout_marginLeft="20dp"

                    />



                <TextView

                    android:layout_width="wrap_content"

                    android:layout_height="wrap_content"

                    android:text="R.balance"

                    android:layout_marginLeft="100dp"/>



            </LinearLayout>

            <LinearLayout

                android:layout_width="wrap_content"

                android:layout_height="wrap_content"

                android:layout_marginTop="20dp">



                <TextView

                    android:layout_width="wrap_content"

                    android:layout_height="wrap_content"

                    android:text="R.balance"

                    android:layout_marginLeft="20dp"

                    />



                <TextView

                    android:layout_width="wrap_content"

                    android:layout_height="wrap_content"

                    android:text="R.balance"

                    android:layout_marginLeft="100dp"

                   />



            </LinearLayout>





        </LinearLayout>



</LinearLayout>



</LinearLayout>




Step 3

Create  an XML file inside a drawable folder and write the following. I hope that you know how to create an XML file inside a drawable folder.


gradient.xml


<?xml version="1.0" encoding="utf-8"?>

<shape xmlns:android="http://schemas.android.com/apk/res/android"

    android:shape="rectangle">


    <corners

        android:bottomLeftRadius="10dp"

        android:bottomRightRadius="10dp"

        android:topLeftRadius="10dp"

        android:topRightRadius="10dp"/>



    <gradient android:startColor="#1E90FF"

        android:endColor="#1E90FF"/>



</shape>

Step 4

Another XML file inside the drawable folder:


gradient 2.xml

<?xml version="1.0" encoding="utf-8"?>

<shape xmlns:android="http://schemas.android.com/apk/res/android"

    android:shape="rectangle">



    <corners android:bottomLeftRadius="10dp"

android:bottomRightRadius="10dp"

android:topLeftRadius="10dp"

android:topRightRadius="10dp" />



<gradient android:startColor="#ffffff"

android:endColor="#ffffff" />



<stroke android:color="#000000"

android:width="1dp" />

</shape>



Step 5
