Learn Table Layout in Android

Introduction

This article explains TableLayout in Android. Android Studio is used to create the sample application.


TableLayout arranges its children into row and column. The Table Layout consists of a TableRow object to arrange children in a row.


In this you will first use a TableLayout in your XML file and use Textviews according to your needs. I took five TextViews in this example. First you will use one TextView inside the first Table Row, three TextViews inside a second Table Row and one TextView inside a third TableRow object.

Step 1

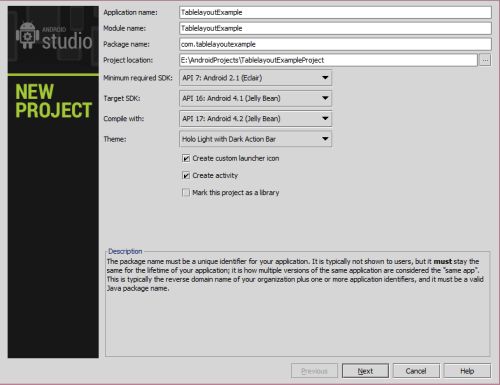

Create a project like this:



Step 2
In this you will first use a TableLayout in your XML file and use Textviews according to your needs. I took five TextViews in this example. First you will use one TextView inside the first Table Row, three TextViews inside a second Table Row and one TextView inside the third TableRow object.

Create an XML file and write this:

<TableLayout

        xmlns:android="http://schemas.android.com/apk/res/android"

        android:layout_width="match_parent"

        android:layout_height="match_parent"

        android:shrinkColumns="*"

        android:stretchColumns="*"

        android:background="#faa">

    <TableRow

            android:layout_height="wrap_content"

            android:layout_width="fill_parent"

            android:gravity="center_horizontal">

        <TextView

                android:layout_width="match_parent"

                android:layout_height="wrap_content"

                android:textSize="20dp"

                android:text="TextView1"

                android:layout_span="3"

                android:padding="16dip"

                android:background="#0ff"

                android:textColor="#000000"/>

    </TableRow>



    <TableRow

            android:id="@+id/tableRow1"

            android:layout_height="wrap_content"

            android:layout_width="match_parent"

            >

        <TextView

                android:id="@+id/TextView02"

                android:text="TextView2"

                android:layout_weight="1"

                android:background="#0df"

                android:textColor="#000000"

                android:padding="28dip"

                android:gravity="center"/>

        <TextView

                android:id="@+id/TextView04"

                android:text="textView3"

                android:layout_weight="1"

                android:background="#dff"

                android:textColor="#000000"

                android:padding="28dip"

                android:gravity="center"/>

        <TextView

                android:id="@+id/TextView4"

                android:text="TextView4"

                android:layout_weight="1"

                android:background="#faa"

                android:textColor="#000000"

                android:padding="27dip"

                android:gravity="center"/>

    </TableRow>



    <TableRow

            android:layout_height="wrap_content"

            android:layout_width="fill_parent"

            android:gravity="center_horizontal">

        <TextView

                android:id="@+id/TextView05"

                android:text="Textview5"

                android:layout_weight="1"

                android:background="#d0d0ff"

                android:textColor="#000000"

                android:padding="20dip"

                android:gravity="center"/>



        <TextView

                android:id="@+id/TextView04"

                android:text="Row 3 column 2"

                android:layout_weight="1"

                android:background="#fdadbe"

                android:textColor="#000000"

                android:padding="20dip"

                android:gravity="center"/>

    </TableRow>



</TableLayout>

<TableLayout

        xmlns:android="http://schemas.android.com/apk/res/android"

        android:layout_width="match_parent"

        android:layout_height="match_parent"

        android:shrinkColumns="*"

        android:stretchColumns="*"

        android:background="#faa">

    <TableRow

            android:layout_height="wrap_content"

            android:layout_width="fill_parent"

            android:gravity="center_horizontal">

        <TextView

                android:layout_width="match_parent"

                android:layout_height="wrap_content"

                android:textSize="20dp"

                android:text="TextView1"

                android:layout_span="3"

                android:padding="16dip"

                android:background="#0ff"

                android:textColor="#000000"/>

    </TableRow>



    <TableRow

            android:id="@+id/tableRow1"

            android:layout_height="wrap_content"

            android:layout_width="match_parent"

            >

        <TextView

                android:id="@+id/TextView02"

                android:text="TextView2"

                android:layout_weight="1"

                android:background="#0df"

                android:textColor="#000000"

                android:padding="28dip"

                android:gravity="center"/>

        <TextView

                android:id="@+id/TextView04"

                android:text="textView3"

                android:layout_weight="1"

                android:background="#dff"

                android:textColor="#000000"

                android:padding="28dip"

                android:gravity="center"/>

        <TextView

                android:id="@+id/TextView4"

                android:text="TextView4"

                android:layout_weight="1"

                android:background="#faa"

                android:textColor="#000000"

                android:padding="27dip"

                android:gravity="center"/>

    </TableRow>



    <TableRow

            android:layout_height="wrap_content"

            android:layout_width="fill_parent"

            android:gravity="center_horizontal">

        <TextView

                android:id="@+id/TextView05"

                android:text="Textview5"

                android:layout_weight="1"

                android:background="#d0d0ff"

                android:textColor="#000000"

                android:padding="20dip"

                android:gravity="center"/>



        <TextView

                android:id="@+id/TextView04"

                android:text="Row 3 column 2"

                android:layout_weight="1"

                android:background="#fdadbe"

                android:textColor="#000000"

                android:padding="20dip"

                android:gravity="center"/>

    </TableRow>



</TableLayout>


Step 3

Create a Java file and write this:



package com.tablayoutexample;

import android.os.Bundle;

import android.app.Activity;

import android.view.Menu;



public class MainActivit extends Activity {



    @Override

    protected void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);

        setContentView(R.layout.activity_main);

    }



    @Override

    public boolean onCreateOptionsMenu(Menu menu) {

        // Inflate the menu; this adds items to the action bar if it is present.

        getMenuInflater().inflate(R.menu.main, menu);

        return true;

    }



}

Step 4

Android Manifest.xml file


<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

    package="com.tablayoutexample"

    android:versionCode="1"

    android:versionName="1.0" >



    <uses-sdk

        android:minSdkVersion="7"

        android:targetSdkVersion="16" />



    <application

        android:allowBackup="true"

        android:icon="@drawable/ic_launcher"

        android:label="@string/app_name"

        android:theme="@style/AppTheme" >

        <activity

            android:name="com.tablayoutexample.MainActivit"

            android:label="@string/app_name" >

            <intent-filter>

                <action android:name="android.intent.action.MAIN" />



                <category android:name="android.intent.category.LAUNCHER" />

            </intent-filter>

        </activity>

    </application>



</manifest>

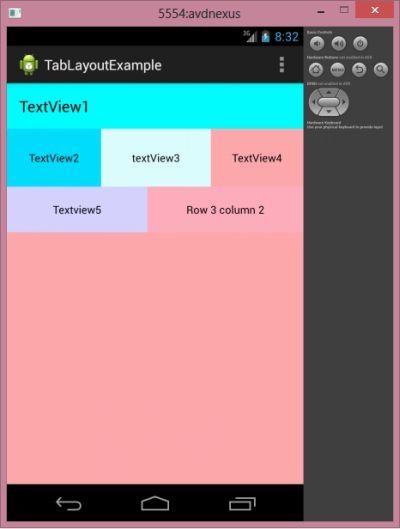

Step 5
