Design Patterns: Mediator

The Mediator Pattern allows objects to communicate with each other through a common instance of a mediator class. It promotes loose coupling and prevents objects from referring to each other directly.

Through a common instance of a mediator the classes subscribing to it can communicate by sending messages to this instance and it will notify the other subscribed instances.

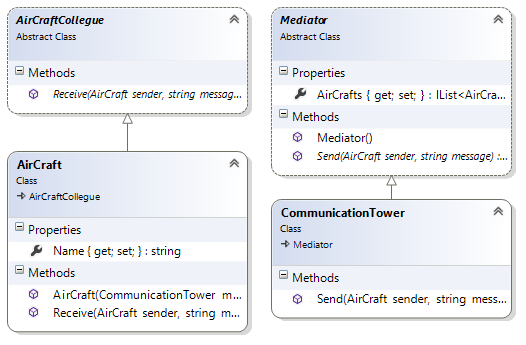

Figure 1: Subscribed instances
  1. public abstract class Mediator
  2. {
  3.     public IList<AirCraft> AirCrafts { getprivate set; }
  4.
  5.     public Mediator()
  6.     {
  7.         AirCrafts = new List<AirCraft>();
  8.     }
  9.
  10.     public abstract void Send(AirCraft sender, string message);
  11. }
  12.
  13. public class CommunicationTower : Mediator
  14. {
  15.     public override void Send(AirCraft sender, string message)
  16.     {
  17.         foreach (var airCraft in AirCrafts)
  18.         {
  19.             if (airCraft != sender)
  20.             {
  21.                 airCraft.Receive(sender, message);
  22.             }
  23.         }
  24.     }
  25. }
  26.
  27. public abstract class AirCraftCollegue
  28. {
  29.     public abstract void Receive(AirCraft sender, string message);
  30. }
  31.
  32. public class AirCraft : AirCraftCollegue
  33. {
  34.     public AirCraft(CommunicationTower mediator)
  35.     {
  36.         mediator.AirCrafts.Add(this);
  37.     }
  38.
  39.     public string Name { getset; }
  40.
  41.     public override void Receive(AirCraft sender, string message)
  42.     {
  43.         Console.WriteLine("{0}: Received message '{1}' from '{2}'", Name, message, sender.Name);
  44.     }
  45. }

In the preceding example the mediator tells the subscribed aircrafts (except the sender) that one of them is saying something.

Example usage:
  1. class Program
  2. {
  3.     static void Main(string[] args)
  4.     {
  5.         var towerMediator = new CommunicationTower();
  6.
  7.         var airCraft1 = new AirCraft(towerMediator) { Name = "Unit #1" };
  8.         var airCraft2 = new AirCraft(towerMediator) { Name = "Unit #2" };
  9.         var airCraft3 = new AirCraft(towerMediator) { Name = "Unit #3" };
  10.         var airCraft4 = new AirCraft(towerMediator) { Name = "Unit #4" };
  11.         var airCraft5 = new AirCraft(towerMediator) { Name = "Unit #5" };
  12.
  13.         towerMediator.Send(airCraft1, "Let's go up!");
  14.     }
  15. }

Output:

  1. Unit #2: Received message 'Let's go up!' from 'Unit #1'
  2. Unit #3: Received message 'Let's go up!' from 'Unit #1'
  3. Unit #4: Received message 'Let's go up!' from 'Unit #1'
  4. Unit #5: Received message 'Let's go up!' from 'Unit #1'

One actual example is the EventAggreagator that we see in WPF. It allows the communication between view models that don't know about the existence of each other.
