Introduction
This article explains how to a row from a WebGrid in the Web API. We use a Grid with 4 rows and select the row from the WebGrid and get the desired row.
Let's see an example.
Step 1
Create a Web Application as in the following:
- Start Visual Studio 2012.
- From the Start window select "Installed" -> "Visual C#" -> "Web".
- Select "ASP.NET MVC4 Web Application" and click on the "Ok" button.

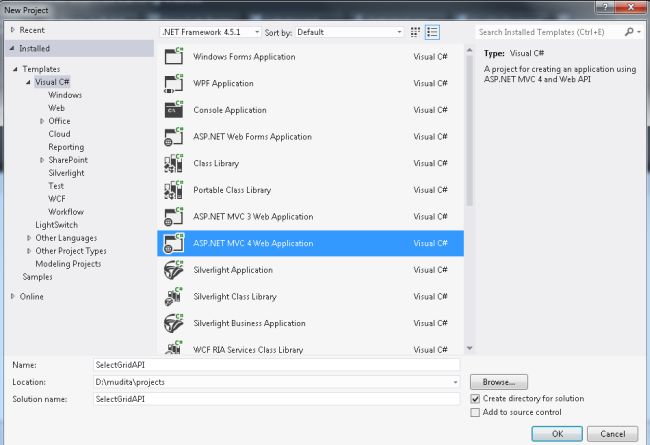

![Select MVC4 Web Application]()
- From the "MVC4 Project" window select "Web API".

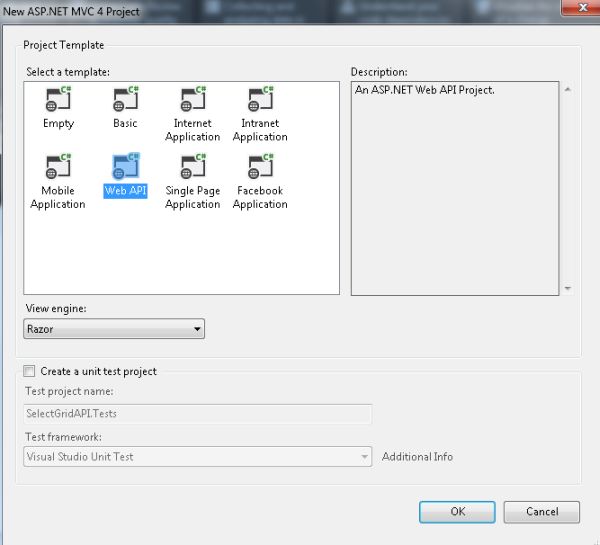

![Select Web API]()
- Click on the "OK" button.
Step 2
Create a Model Class.
- In the "Solution Explorer".
- Right-click on the Model Folder.
- Select "Add" -> "Class".
- Select "Installed" -> "Visual C#" and select class.

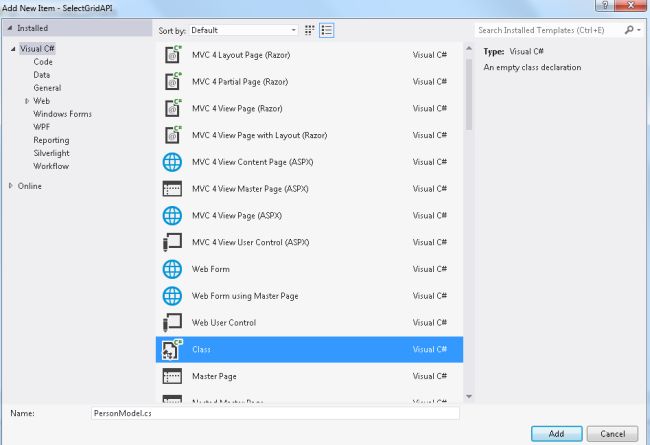

![Add Model Class]()
- Click on the "Add" button.
Add the following code:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
namespace SelectGridAPI.Models
{
public class PersonModel
{
public int ID { get; set; }
public string FirstName { get; set; }
public string LastName { get; set; }
public int Contact { get; set; }
public static List<PersonModel> GetPersonDetail()
{
return new List<PersonModel>
{
new PersonModel { ID = 1, FirstName = "Joy", LastName = "Khanna", Contact = 87965 },
new PersonModel { ID = 2, FirstName = "Piyush", LastName = "Mehra", Contact = 98754 },
new PersonModel { ID = 3, FirstName = "Tanya", LastName = "Kapoor", Contact = 45678 },
new PersonModel { ID = 3, FirstName = "Neha", LastName = "Jain", Contact = 48654 },
};
}
}
}
Step 3
Now select the "HomeController".
- In the "Solution Explorer".
- Expand the Controller folder.
- Select the "HomeController".

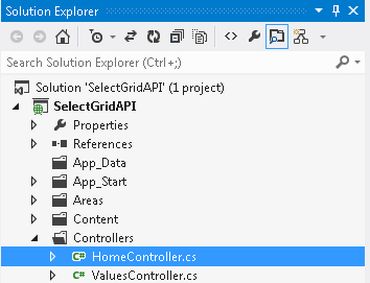

![Select Controller]()
Add the following code:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;
using SelectGridAPI.Models;
namespace SelectGridAPI.Controllers
{
public class HomeController : Controller
{
public ActionResult Index()
{
return View(PersonModel.GetPersonDetail());
}
[HttpPost]
public ActionResult Display(FormCollection Col)
{
return PartialView("~/Views/Home/DisplayDetail.cshtml" , new PersonModel {FirstName = "Priyanka",LastName = "Sinha",Contact = 73234});
}
}
}
Step 4
Now write some HTML code in the "index.cshtml" file. This file exists:

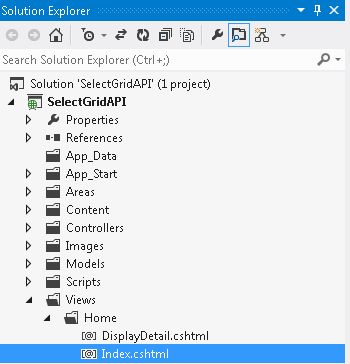

![Select Index View]()
Add the following code.
@model IEnumerable<SelectGridAPI.Models.PersonModel>
@{
ViewBag.Title = "Index";
}
<h2>Person Detail</h2>
@{
WebGrid grid = new WebGrid(Model, selectionFieldName: "SelectedRow");
@grid.GetHtml(
columns: grid.Columns(
grid.Column("Select", header: null, format: @<text>@item.GetSelectLink("Select")</text>),
grid.Column("Firstname", format: @<text>@item.FirstName</text>),
grid.Column("LastName", format: @<text>@item.LastName</text>),
grid.Column("Contact", format: @<text>@item.Contact</text>)
)
)
}
@if (grid.HasSelection)
{
@RenderPage("~/Views/Home/DisplayDetail.cshtml", new { PersonModel = grid.SelectedRow })
}
Step 5
Create a Partial View:

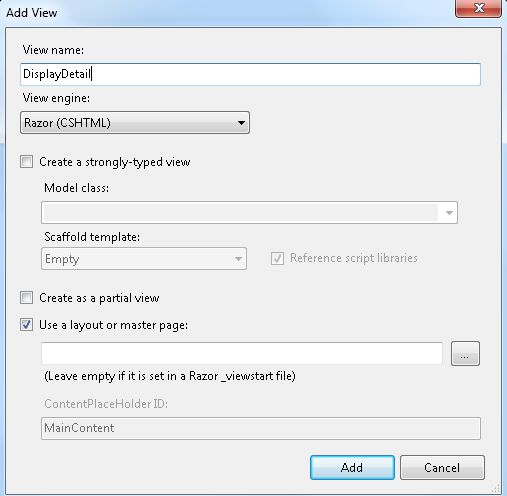

![Create Partial View]()
Add the following code:
@{
ViewBag.Title = "DisplayDetail";
}
<h2>DisplayDetail</h2>
<text>
@Page.PersonModel.FirstName @Page.PersonModel.LastName @Page.PersonModel.Contact
</text>
Step 6
Execute the application:

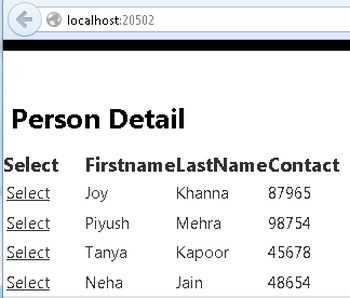

![Display WebGrid Data]()
Select any row and click on the Select link:

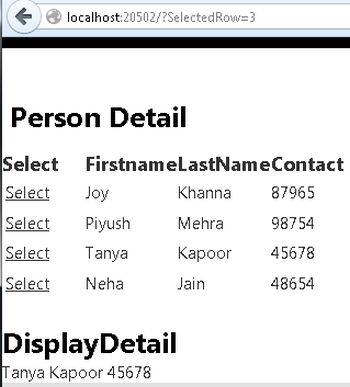

![Display Selected Row from WebGrid]()
