Visiting the Visitor Pattern


Challenge

You have a list of objects with the following class structure:


public class Member

{

public string Name;

public DateTime DateOfBirth;
 }


You need to do an operation of selecting all Members who have an age greater than 18.

One way is to add a new property called IsAboveEighteen and set the value by iterating over the items and comparing with current date. But this requires more processing.

We can achieve the same using Visitor pattern by adding a property which operations on the existing properties and returns the value.

Definition

"Represent an operation to be performed on the elements of an object structure. Visitor lets you define a new operation without changing the classes of the elements on which it operates."

Implementation

Introducing a new property named IsAboveEighteen and in the getter implement the code to read Date-Of-Birth property to calculate the value.


public class Member

{

public string Name;

public DateTime DateOfBirth;

public bool IsAboveEighteen
     {

get

        {

bool result = (DateTime.Now - this.DateOfBirth).TotalDays > 365 * 18;

return result;
         }
     }
 }


In the above example, the new property explores the existing property values to calculate its own value. The advantage is that there is no change of structure and no extra operations to achieve the desired result.

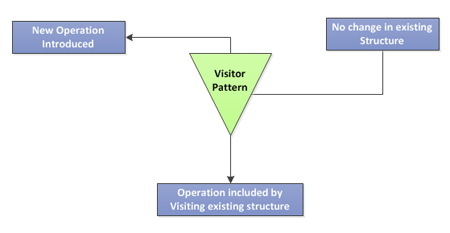

Visitor Pattern

The following unit tests operate on the new property and display the result having IsAboveEighteen as true.


[TestMethod()]

public void IsAboveEighteenTest()
 {

IList<Member> list = new List<Member>()
     {

new Member() { Name = "N1", DateOfBirth= new DateTime(2000, 1, 1)},

new Member() { Name = "N2", DateOfBirth= new DateTime(2000, 1, 1)},

new Member() { Name = "N3", DateOfBirth= new DateTime(1990, 1, 1)},

new Member() { Name = "N4", DateOfBirth= new DateTime(1980, 1, 1)}
     };


var selectedList = list.Where(m => m.IsAboveEighteen);

foreach (Member member in selectedList)

Console.WriteLine(member.Name);

Assert.AreEqual(2, selectedList.Count());
 }

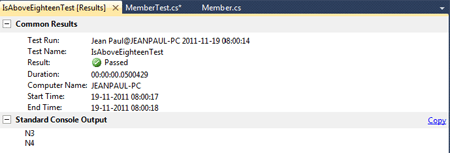

On running the test we can see the following output.

Visitor Pattern in .NET

Extending Visitor in Sql Server

In Sql Server the same functionality can be achieve using Computed Columns. Even though Vistor Pattern is an Object Oriented Extension we can use the concept in database too.

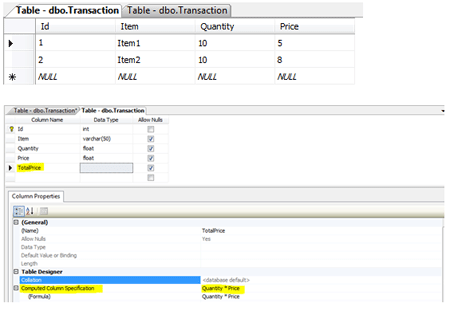

Let us explore this with a simple example. We are having a table to store Transaction having Quantity and Price. The table is populated with data. We need to get the TotalPrice which is Quantity multiplied by Price. Without doing any data updating we can use Computed Column as shown below to achieve the results.

Pattern

The result is shown below:

Visitor Pattern sql

The above result is achieved without doing any data updating.

Summary

In this article we have explored the Visitor pattern. It allows us to be add more functionality without doing much change in the structure. Keeping this pattern in mind often helps in a better way of architecting.
