Delete Selected Item From ListBox And Database In ASP.NET

This article explains the following:

  • How to bind the ListBox from the database.
  • How to delete selected item from ListBox as well as in the database.

Database Chamber

Use the following table and Stored Procedure to demonstrate this concept.

  1. Create table Mas_Employee
  2. (
  3.     Id int primary key identity(1,1),
  4.     Name varchar(50)
  5. )
  6.
  7. --To get all the employees
  8. Create Procedure USP_Select_Mas_Employee
  9. @Id int = null
  10. AS
  11. Begin
  12.     Select E.Id, E.Name
  13.     From Mas_Employee E
  14.     Where Id = Isnull(@Id, Id)
  15. End
  16.
  17. --To Insert employee details
  18. Create Procedure USP_Insert_Mas_Employee
  19. @Name varchar(50)
  20. AS
  21. Begin
  22.     Insert into Mas_Employee(NameValues(@Name)
  23. End
  24.
  25. --To Delete employee details
  26. Create Procedure USP_Delete_Mas_Employee
  27. @Id int
  28. AS
  29. Begin
  30.     Delete From Mas_Employee
  31.     where Id=@Id
  32. End
Application Chamber

To create the project -
  • Go to Start, then All Programs and click Microsoft Visual Studio 2010.
  • Go to File, New, Project..., Visual C# , Web. Then select ASP.NET Empty Web Application.
  • Provide the project a name and specify the location.

Web.Config:

Create the connection string in the Web.Config file as in the following code snippet:

  1. <connectionStrings>
  2.    <add name="conStr"
  3.    connectionString="Password= 1234; User ID=sa; Database=DB_CsharpCorner; Data Source=."
  4.    providerName="System.Data.SqlClient"/>
  5. </connectionStrings>
Next: Right-click on Solution Explorer and add a web form to your project.

Webform Design:

Design you Webform (.aspx page) as in the following:
  1. <form id="form1" runat="server">
  2.         <div style="width: 100%;" align="center">
  3.             <fieldset style="width: 40%;">
  4.                 <legend>Delete Selected item from ListBox and Database</legend>
  5.                 <table style="width: 100%;">
  6.                     <tr>
  7.                         <td>
  8.                             Name:
  9.                         </td>
  10.                         <td>
  11.                             <asp:TextBox ID="txtEmpName" runat="server"></asp:TextBox>
  12.                         </td>
  13.                         <td>
  14.                             <asp:Button ID="btnAdd" runat="server" Text="Add" OnClick="btnAdd_Click" />
  15.                         </td>
  16.                     </tr>
  17.                     <tr>
  18.                         <td colspan="3" style="text-align:center;">
  19.                             <asp:Label ID="lblMsg" runat="server"></asp:Label>
  20.                         </td>
  21.                     </tr>
  22.                     <tr>
  23.
  24.                         <td colspan="2">
  25.                             <asp:ListBox ID="lstEmployee" runat="server"></asp:ListBox>
  26.                         </td>
  27.                         <td>
  28.                             <asp:Button ID="btnDelete" runat="server" Text="Delete Selected Item" OnClick="btnDelete_Click" />
  29.                         </td>
  30.                     </tr>
  31.                 </table>
  32.             </fieldset>
  33.         </div>
  34.     </form>
CodeBehind:

Add the following namespaces:
  1. using System.Data;
  2. using System.Data.SqlClient;
  3. using System.Configuration;
  4. using System.Drawing;
Invoke the ConnectionString from Web.Config as in the following:
  1. SqlConnection con = new SqlConnection(ConfigurationManager.ConnectionStrings["conStr"].ConnectionString);
User Defined Functions:
  1. #region User Defined Methods
  2.
  3. //To Clear the fields
  4. private void Clear()
  5. {
  6.     txtEmpName.Text = string.Empty;
  7.     lblMsg.Text = string.Empty;
  8. }
  9.
  10. //To bind listBox from Database
  11. private void BindListBox()
  12. {
  13.     SqlDataAdapter adp = new SqlDataAdapter("USP_Select_Mas_Employee", con);
  14.     adp.SelectCommand.CommandType = CommandType.StoredProcedure;
  15.     DataSet ds = new DataSet();
  16.     adp.Fill(ds);
  17.     if (ds != null && ds.Tables.Count > 0 && ds.Tables[0].Rows.Count > 0)
  18.     {
  19.         lstEmployee.DataSource = ds;
  20.         lstEmployee.DataValueField = "Id";
  21.         lstEmployee.DataTextField = "Name";
  22.         lstEmployee.DataBind();
  23.     }
  24. }
  25.
  26. //To delete the selected item from Database
  27. private void DeleteSelectedItem(int Id)
  28. {
  29.     SqlCommand cmd = new SqlCommand("USP_Delete_Mas_Employee", con);
  30.     cmd.CommandType = CommandType.StoredProcedure;
  31.     cmd.Parameters.AddWithValue("@Id", Id);
  32.     if (con.State == ConnectionState.Closed)
  33.     {
  34.         con.Open();
  35.     }
  36.     int result = cmd.ExecuteNonQuery();
  37.     if (result > 0)
  38.     {
  39.         Clear();
  40.         //BindListBox();
  41.         lblMsg.Text = "Employee deleted successfully";
  42.         lblMsg.ForeColor = Color.Green;
  43.     }
  44. }
  45.
  46. //To add the employee from textbox to listBox
  47. private void AddEmployee(string Name)
  48. {
  49.     SqlCommand cmd = new SqlCommand("USP_Insert_Mas_Employee", con);
  50.     cmd.CommandType = CommandType.StoredProcedure;
  51.     cmd.Parameters.AddWithValue("@Name", Name);
  52.     if (con.State == ConnectionState.Closed)
  53.     {
  54.         con.Open();
  55.     }
  56.     int result = cmd.ExecuteNonQuery();
  57.     if (result > 0)
  58.     {
  59.         Clear();
  60.         BindListBox();
  61.         lblMsg.Text = "Employee added successfully";
  62.         lblMsg.ForeColor = Color.Green;
  63.     }
  64. }
  65.
  66. #endregion
Page Event Handlers:
  1. #region Page Event Handlers
  2.
  3. protected void Page_Load(object sender, EventArgs e)
  4. {
  5.     lblMsg.Text = string.Empty;
  6.     if (!Page.IsPostBack)
  7.     {
  8.         BindListBox();
  9.     }
  10. }
  11.
  12. protected void btnAdd_Click(object sender, EventArgs e)
  13. {
  14.     if (txtEmpName.Text.ToString() != string.Empty || txtEmpName.Text.ToString() != null)
  15.         AddEmployee(txtEmpName.Text.ToString());
  16.     else
  17.     {
  18.         lblMsg.Text = "Please provide the Name";
  19.         lblMsg.ForeColor = Color.Red;
  20.         return;
  21.     }
  22. }
  23.
  24. protected void btnDelete_Click(object sender, EventArgs e)
  25. {
  26.     if (Convert.ToInt32(lstEmployee.SelectedValue) < 0)
  27.     {
  28.         lblMsg.Text = "Please select an item";
  29.         lblMsg.ForeColor = Color.Red;
  30.         return;
  31.     }
  32.     else
  33.     {
  34.         for (int i = lstEmployee.Items.Count - 1; i >= 0; i--)
  35.         {
  36.             if (lstEmployee.Items[i].Selected)
  37.             {
  38.                 DeleteSelectedItem(Convert.ToInt32(lstEmployee.Items[i].Value));
  39.                 lstEmployee.Items.Remove(lstEmployee.Items[i]);
  40.             }
  41.         }
  42.     }
  43. }
  44. #endregion
Output:

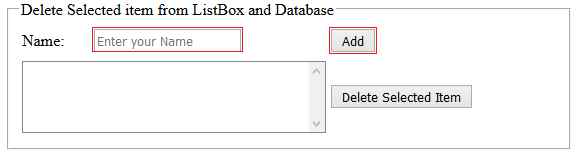

Enter the name and click on Add.

Enter the name

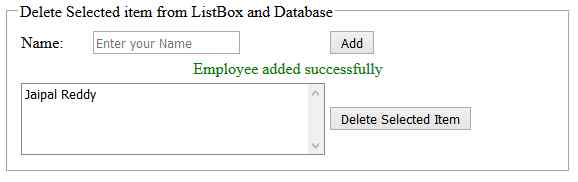

Then the output will be as in the following screenshot:

output

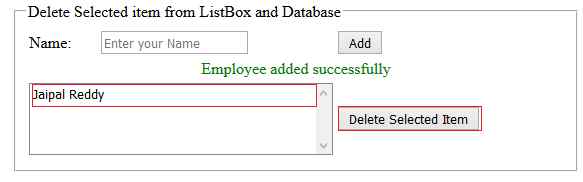

Select the ListBox Item and click Delete Selected Item button then it will be Deleted in ListBox as well as in the database.

Select the ListBox

I hope you enjoyed this article. Please provide your valuable suggestions and feedback to make this article much reliable.
