Creating Simple WebGrid In MVC 4 Using Simple Model And Dataset

Starting SQL Server

Create a table as in the following:

CREATE TABLE [dbo].[Product](

[pid] [bigint] IDENTITY(1,1) Primary Key NOT NULL,

[productID] [bigint] NULL,

[Productname] [varchar](20) NULL,

[Productprice] [varchar](20) NULL,

[ProductDate] [datetime] NULL,

[ProductGrade] [char](1) NULL,

[ProductMfg] [varchar](50) NULL

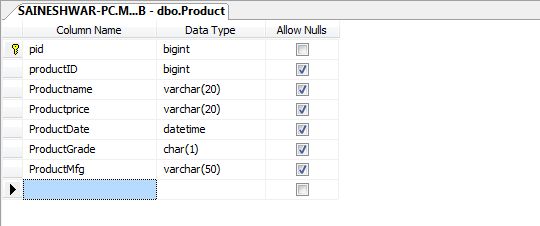

Table View

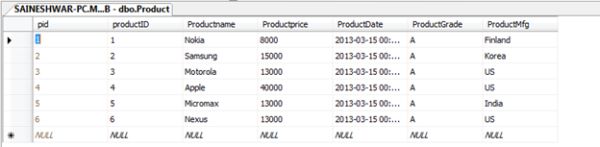

Display Records

Code part

In Solution Explorer, right-click the Controllers folder and then select Add Controller and name it GridviewController.

After adding a Controller I am just adding a Model and naming it modeldata.

To add a model right-click on the Model folder and then select Add Model.

Inside modeldata.cs we will set properties for get and set as in the following:

public class modeldata


   public Int64 pid { getset; }

   public Int64 productID { getset; }

   public string Productname { getset; }

   public string Productprice { getset; }

   public DateTime ProductDate { getset; }

   public char ProductGrade { getset; }

   public string ProductMfg { getset; }


After adding the Model I will add a connection class.

Because I am not use the Entity Framwork (EF) I need to manully write code to retreive data from the database.

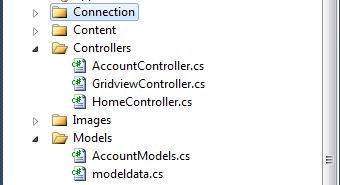

For this I have added a folder and named it Connection.

Inside that folder I added a Connection.cs file for the Connection class as in the following:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Data;

using System.Data.SqlClient;

using System.Configuration;

using Gridsample.Models;


namespace Gridsample.Connection


    public class Connection


        public DataSet mydata()


            SqlConnection con = new SqlConnection(ConfigurationManager.ConnectionStrings["Mycon"].ToString());

            SqlCommand cmd = new SqlCommand("select * from Product", con);

            cmd.CommandType = CommandType.Text;

            SqlDataAdapter da = new SqlDataAdapter();

            da.SelectCommand = cmd;

            DataSet myrec = new DataSet();


            return myrec;




After retrieving data we have just completed the work on the database.

Now we will work with the Controller and View.


Inside the controller I am just getting data from the Connection class and adding it to the dataset.

Then I have created a List of Model List<Modeldata>.

And adding dataset rows into the list.

And returing the View with the Model.



using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.Mvc;

using System.Data;

using Gridsample.Models;


namespace Gridsample.Controllers


    public class GridviewController : Controller


        public ActionResult grid()


            List<modeldata> lmd = new List<modeldata>();  // creating list of model.


            DataSet ds = new DataSet();


            Connection.Connection con = new Connection.Connection(); // connection to getdata.


            ds = con.mydata(); // fill dataset


            foreach (DataRow dr in ds.Tables[0].Rows) // loop for adding add from dataset to list<modeldata>


                lmd.Add(new modeldata


                    pid = Convert.ToInt64(dr["pid"]), // adding data from dataset row in to list<modeldata>

                    productID = Convert.ToInt64(dr["productID"]),

                    Productname = dr["Productname"].ToString(),

                    Productprice = dr["Productprice"].ToString(),

                    ProductDate = Convert.ToDateTime(dr["ProductDate"]),

                    ProductGrade = (char)dr["ProductGrade"],

                    ProductMfg = dr["ProductMfg"].ToString()



            return View(lmd);







After doing the controller now to do the View.

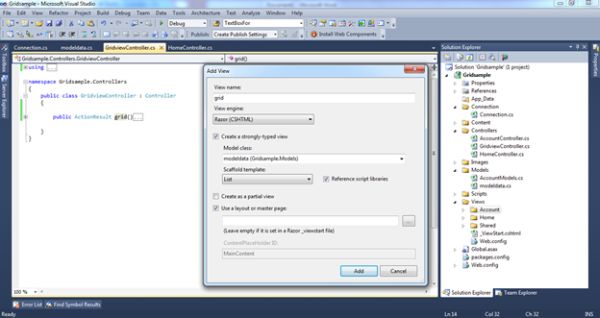

Right-click on the Action result (grid) and select Add View.

While adding the view we will create a strongly-typed view.

And in the model class select the name of the model that we created (modeldata) .

In the Scaffold template select List.

After adding, it will create a Grid for you, just delete the complete code from the table and keep the Header part.

@model IEnumerable<Gridsample.Models.modeldata>



    ViewBag.Title = "grid";

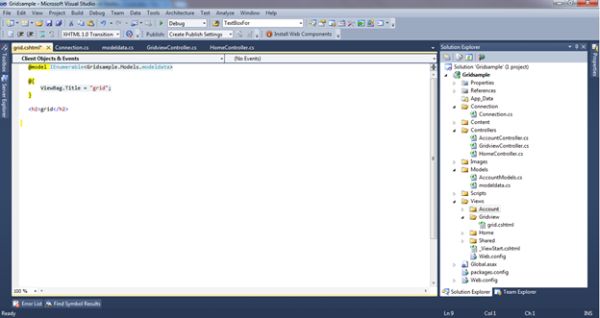

The preceding shows the result of deleting the unwanted stuff.

Just access the webgrid class and create an object of WebGrid and pass a model to it.


    ViewBag.Title = "grid";

    WebGrid grid = new WebGrid(Model, rowsPerPage: 5);

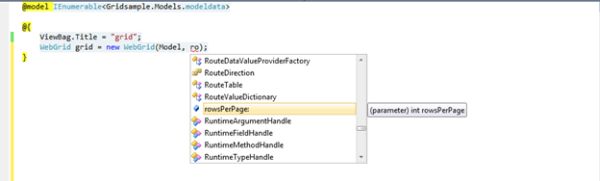

You must be thinking, what is a rowperpage?

Its is a property of WebGrid to display a number of rows per page in a grid.

After creating an object just create a grid from it.

@model IEnumerable<Gridsample.Models.modeldata>



    ViewBag.Title = "grid";

    WebGrid grid = new WebGrid(Model, rowsPerPage: 5);



    <style type="text/css">













        .table th.table td


            border1px solid black;







    tableStyle: "table"// applying style on grid


    fillEmptyRows: true

    //show empty row when there is only one record on page to it will display all empty rows there.

    headerStyle: "header"//applying style.


    footerStyle: "grid-footer"//applying style.


    mode: WebGridPagerModes.All, //paging to grid

    firstText: "<< First",

    previousText: "< Prev",

    nextText: "Next >",

    lastText: "Last >>",


    columns: new[]  // colums in grid


        grid.Column("productID"), //the model fields to display

        grid.Column("Productname"  ),







After this just run your application and its done.

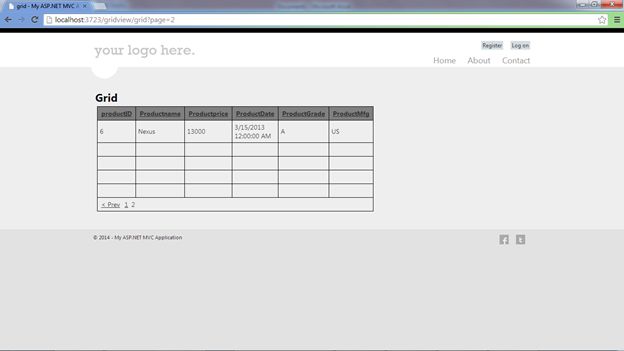

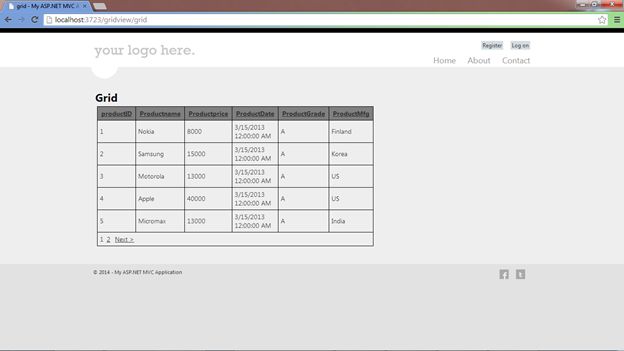

Final Output

One thing remaining to explain is empty rows.

The answer is as in the following:

fillEmptyRows: true,

Show an empty row when there is only one record on the page so it will display all empty rows there.

If you do not understand then just download the code and check the flow, you will understand.

Simple code for a webgrid in MVC. You can check all of the example and compare.
