This article provides a sample of drawing a Label in HTML.
First we download the file in the following attachment:
-
Kinectic_beta.js
This file is then added to the project, then use the following procedure.
Step 1
Open Visual Studio 2010 and click "File" -> "New" -> "Website...". A window is opened. In this window, give the name of your application as "Label" and then click "Ok".
Step 2
Add the "kinetic_beta.js" file. The project will have then been created; a new window is opened on the right side. This window is called the Solution Explorer. The Solution Explorer contains the js file and html files.
![solution.jpg]()
Coding
Label.html
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<style type="text/css">
#container {
height: 361px;
}
</style>
<title></title>
</head>
<body>
<h3> Label in HTML5 </h3>
<div id="container"></div>
<script src="Kinetic_beta.js" type="text/javascript"></script>
<script>
var stage = new Kinetic.Stage({
container: 'container',
width: 478,
height: 800
});
var layer = new Kinetic.Layer();
var tooltip = new Kinetic.Label({
x: 170,
y: 75,
opacity: 0.75,
listening: false,
text: {
text: 'Tooltip pointing down',
fontFamily: 'Calibri',
fontSize: 18,
padding: 5,
fill: 'Black'
},
rect: {
fill: '#CCCCFF',
pointerDirection: 'down',
pointerWidth: 10,
pointerHeight: 10,
lineJoin: 'round',
shadowColor: 'black',
shadowBlur: 10,
shadowOffset: 10,
shadowOpacity: 0.5
}
});
var labelLeft = new Kinetic.Label({
x: 195,
y: 130,
opacity: 0.75,
listening: false,
text: {
text: 'Label pointing left',
fontFamily: 'Calibri',
fontSize: 18,
padding: 5,
fill: 'white'
},
rect: {
fill: 'green',
pointerDirection: 'left',
pointerWidth: 20,
pointerHeight: 28,
lineJoin: 'round',
}
});
var simpleLabel = new Kinetic.Label({
x: 350,
y: 50,
opacity: 0.75,
text: {
text: 'Simple label',
fontFamily: 'Calibri',
fontSize: 18,
padding: 5,
fill: 'black'
},
rect: {
fill: '#0099CC',
}
});
// add the shape to the layer
layer.add(tooltip).add(labelLeft).add(simpleLabel);
// add the layer to the stage
stage.add(layer);
</script>
</body>
</html>
Output

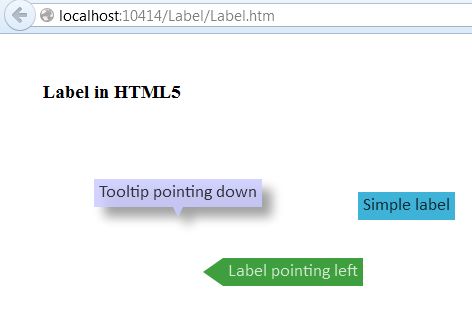

![output.jpg]()
For more information, download the attached sample application.
