Access Folders & Files From SharePoint Using Angular JS & REST API

Here we will explore pure Angular JS directives (without using jQuery or other frameworks) by accessing the SharePoint REST API. The example I have taken is accessing the folder and files from the library by the following two events:

• On page load, accessing all the folders from the library and storing them in a dropdown box.
• On button click event, populate the files in a table based on the selected folder from the dropdown.

So, we will make two requests to the server and render it in a page.

The following will apply a Folder collection to the Dropdown list.

HTML Snippet:

<select id="lib-folder" ng-model="libFolders" ng-options=" fldr as fldr.Title for fldr in Folders" >
    <option value="">--Select Folder--</option>
</select>

ng-options: This directive is an alternative to the ng-repeat directive. This is used to dynamically generate the list of <option> elements for the select element using the array “$scope.Folders” obtained as the result of the SharePoint REST API.

fldr.Title This is the retrieved folder name that is rendered as a value to the dynamically generated <option> element to the dropdown.

Note: If you have not used “<option value=””>--Select Folder--</option>” code, the empty option will be dynamically generated when populating the folders to the dropdown.

Script Snippet:

$http({
    method: "GET",      url:_spPageContextInfo.webAbsoluteUrl+"/_api/web/lists/getbytitle('DocumentLibrary')/items?$select=Id,Title ,FileDirRef,FileRef,FSObjType&$filter=FSObjType%20eq%201",
    headers: {"Accept":"application/json;odata=verbose"}
}
).success(function(data, status, headers, config){
    $scope.Folders = data.d.results;
    $scope.libFolders = $scope.Folder[0];
}).error(function (data, status, headers, config){
});

_spPageContextInfo.webAbsoluteUrl :_spPageContextInfo is very useful when writing JavaScript code on the SP site. This has a webAbsoluteUrl property that returns the web URL that we use to generate the REST API request URL.

REST API URL: fetches the items with the values for the following fields filtered by folder from the “DocumentLibrary” library.
_spPageContextInfo.webAbsoluteUrl+"/_api/web/lists/getbytitle('DocumentLibrary')/items

View Fields:

$select=Id,Title ,FileDirRef,FileRef,FSObjType

Filter:

$filter=FSObjType%20eq%201

Returns the items, if the item type is 1 (folder).

$scope.Folders = data.d.results

The successful response assigns the folder collection array to the scope variable $scope.Folders.
The ng-options directive uses this array variable and dynamically generates the options.

$scope.libFolders = $scope.Folders[0]

Assign the first item of Folder collection array to the default value for dropdown.

Populate files based on the selected Folder:

Now we are done with the rendering of the folder list to the dropdown. To invoke the event to request the files for the selected folder, we have a button and the function “btnGetFiles()” as in the following:
<input type="button" value="Get Files" ng-click="btnGetFiles()"/>

HTML Snippet:

<!-- Populate Files based on selected Folder -->
<table width="100%" cellpadding="10" cellspacing="2" class="files-table">
    <thead>
    <tr>
        <th>Title</th>
        <th>Author</th>
    </tr>
    </thead>
    <tbody>
    <tr ng-repeat="file in Files">
        <td><a href="{{file.ServerRelativeUrl}}">{{file.Name}}</a></td>
        <td>{{file.Author.Title}}</td>
    </tr>
    </tbody>
</table>

Script Snippet:

$scope.btnGetFiles = function()
{
    var selectedFolder = $scope.libFolders.FileRef+"/";
    var resturl = _spPageContextInfo.webAbsoluteUrl+"/_api/web/getfolderbyserverrelativeurl('"+selectedFolder+"')/files?$select=Name,Author/Title&$expand=Author/Title";
    $http(
    {
        method: "GET",
        url:resturl,
        headers: {"Accept":"application/json;odata=verbose"}
    }
    ).success(function(data, status, headers, config){
        $scope.Files = data.d.results;
    }).error(function (data, status, headers, config){
    });
}

$scope.libFolders.FileRef : Returns the dropdown's selected value.

REST API URL

$expand: this option has the ability to retrieve the related properties. This is used to retrieve the author name using a single request instead of sending multiple requests.

$expand=Author/Title: file.Author.Title is to be added in HTML to retrieve the expanded value.

The successful result is stored in the scope variable “$scope.Files” and this is used in a table element to dynamically generate the rows because of the ng-repeat directive.

ng-show

If there is no files retrieved for the folder, use the ng-show directive with the condition to show the proper message as in the following:
<p ng-show="!Files.length">There are no files available under this folder.</p>

Here is the full code:

<style type="text/css">
.files-table th{ background-color:#ddd; border:2px solid #fff; text-align:left}
.files-table td{ background-color:#eee; border:2px solid #fff;}
.web-heading{ padding:2px;}
</style>

<script type="text/javascript" src="/siteassets/angular.min.js"></script>
<div ng-app="spng-App">
<h2 class="web-heading">Folder and Files</h2>
<div ng-controller="spng-WebCtrl">
<select id="lib-folder" ng-model="libFolders" ng-options="fldr as fldr.Title for fldr in Folders" >
<option value="">--Select Folder--</option>
</select>
<input type="button" value="Get Files" ng-click="btnGetFiles()"/>
<!-- Populate Files based on selected Folder -->
<table width="100%" cellpadding="10" cellspacing="2" class="files-table">
<thead>
<tr>
<th>Title</th>
<th>Author</th>
</tr>
</thead>
<tbody>
<tr ng-repeat="file in Files">
<td><a href="{{file.ServerRelativeUrl}}">{{file.Name}}</a></td>
<td>{{file.Author.Title}}</td>
</tr>
</tbody>
</table>
<p ng-show="!Files.length">There are no files available under this folder.</p>
</div>
</div>

<script type="text/javascript">
var spApp= angular.module('spng-App', []);
spApp.controller('spng-WebCtrl', function($scope, $http){

//Controller load event to append the choices with folder value to the dropdown
$http({
method: "GET",
url:_spPageContextInfo.webAbsoluteUrl+"/_api/web/lists/getbytitle('DocumentSetLibrary')/items?$select=Id,Title,FileLeafRef,FileDirRef,FileRef,FSObjType&$filter=FSObjType%20eq%201",
headers: {"Accept":"application/json;odata=verbose"}
}
).success(function(data, status, headers, config){
//Store the folder collections to the Folders scope variable
$scope.Folders = data.d.results;
//Set the default value to the dropdown
$scope.libFolders = $scope.DocumentSets[0];
}).error(function (data, status, headers, config){
});

//Button click event to populate the files in table
$scope.btnGetFiles = function(){
//Get the selected folder from the select element
var selectedFolder = $scope.libFolders.FileRef+"/";
var resturl = _spPageContextInfo.webAbsoluteUrl+"/_api/web/getfolderbyserverrelativeurl('"+selectedFolder+"')/files?$select=Name,Author/Title&$expand=Author/Title";
$http({
method: "GET",
url:resturl,
headers: {"Accept":"application/json;odata=verbose"}
}
).success(function(data, status, headers, config){
//Store the filecollection for the folder to the Files scope variable
$scope.Files = data.d.results;
}).error(function (data, status, headers, config){
});
}
});
</script>

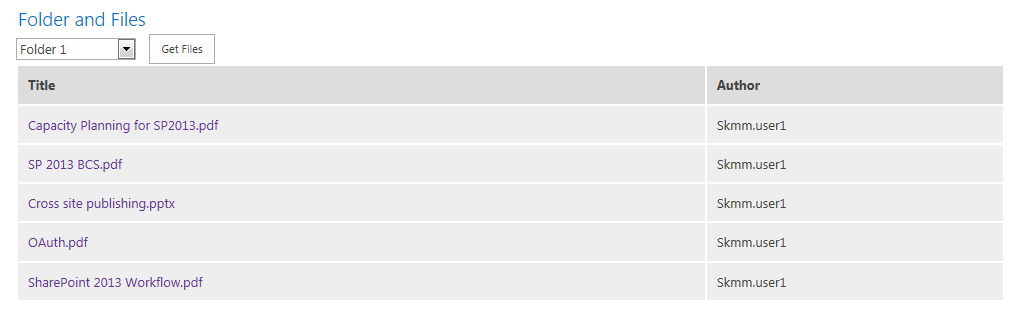

OUTPUT:



Still we have many options available in Angular JS and we will continue our exploration in this area. We will welcome the new technologies to ease the coding. Happy learning.
