Append XML Data With Append Method


Introduction

Today, in this article let's play around with one of the interesting and most useful concepts in XML in C#.

Question: What is appending XML data with the append method?

In simple terms "It provides flexibility to append XML data and save the changes to the XML document.".

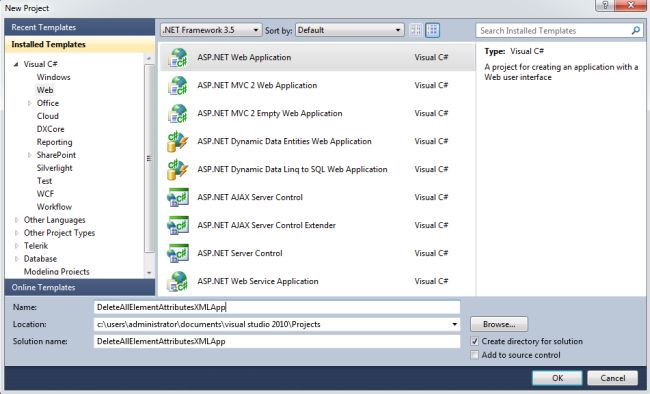

Step 1: Create a new "ASP.NET Web Application", as in:




Step 2: Add a new XML file item to the project and name it Employee.xml.



Step 3: The complete code of webform1.aspx looks like this:



<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="AppendXMLDataApp._Default" %>



<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head id="Head1" runat="server">

    <title></title>

</head>

<body>

    <form id="form1" runat="server">

    <center>

        <div>

            <table>

                <tr>

                    <td colspan="2" align="center">

                        <asp:Label ID="Label1" runat="server" Text="Append XML Data with Append Method" Font-Bold="true"

                            Font-Size="Large" Font-Names="Verdana" ForeColor="Maroon"></asp:Label>

                    </td>

                </tr>

                <tr>

                    <td>

                        <asp:Label ID="Label6" runat="server" Text="Please Enter Id" Font-Size="Large" Font-Names="Verdana"

                            Font-Italic="true"></asp:Label>

                    </td>

                    <td>

                        <asp:TextBox ID="TextBox4" runat="server"></asp:TextBox>

                    </td>

                </tr>

                <tr>

                    <td>

                        <asp:Label ID="Label2" runat="server" Text="Please Enter FirstName" Font-Size="Large"

                            Font-Names="Verdana" Font-Italic="true"></asp:Label>

                    </td>

                    <td>

                        <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>

                    </td>

                </tr>

                <tr>

                    <td>

                        <asp:Label ID="Label3" runat="server" Text="Please Enter LastName" Font-Size="Large"

                            Font-Names="Verdana" Font-Italic="true"></asp:Label>

                    </td>

                    <td>

                        <asp:TextBox ID="TextBox2" runat="server"></asp:TextBox>

                    </td>

                </tr>

                <tr>

                    <td>

                        <asp:Label ID="Label4" runat="server" Text="Please Enter Age" Font-Size="Large" Font-Names="Verdana"

                            Font-Italic="true"></asp:Label>

                    </td>

                    <td>

                        <asp:TextBox ID="TextBox3" runat="server"></asp:TextBox>

                    </td>

                </tr>

                <tr>

                    <td colspan="2" align="center">

                        <asp:Button ID="Button1" runat="server" Text="Append Data" Font-Names="Verdana" Width="213px"

                            BackColor="Orange" Font-Bold="True" OnClick="Button1_Click" />

                    </td>

                </tr>

                <tr>

                    <td colspan="2" align="center">

                        <asp:Label ID="Label5" runat="server" Font-Bold="true" Font-Names="Verdana"></asp:Label>

                    </td>

                </tr>

            </table>

        </div>

    </center>

    </form>

</body>

</html>



Step 4: The complete code of webform1.aspx.cs looks like this:



using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.UI;

using System.Web.UI.WebControls;

using System.Xml;

namespace AppendXMLDataApp

{

    public partial class _Default : System.Web.UI.Page

    {

        protected void Page_Load(object sender, EventArgs e)

        {

        }

        protected void Button1_Click(object sender, EventArgs e)

        {

            if (string.IsNullOrEmpty(TextBox4.Text) || string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text) || string.IsNullOrEmpty(TextBox3.Text))

            {

                Label5.Text = "Please Enter Some Values";

                Label5.ForeColor = System.Drawing.Color.Red;

            }

            else

            {

                XmlDocument doc = new XmlDocument();

                XmlNode rootNode = doc.CreateXmlDeclaration("1.0", "UTF-8", null);

                doc.AppendChild(rootNode);

                XmlNode employeesNode = doc.CreateElement("Employees");

                doc.AppendChild(employeesNode);

                XmlNode employeeNode = doc.CreateElement("Employee");

                employeesNode.AppendChild(employeeNode);

                XmlNode idNode = doc.CreateElement("Id");

                idNode.InnerText = TextBox4.Text;

                employeeNode.AppendChild(idNode);

                XmlNode firstNameNode = doc.CreateElement("FirstName");

                firstNameNode.InnerText = TextBox1.Text;

                employeeNode.AppendChild(firstNameNode);

                XmlNode lastNameNode = doc.CreateElement("LastName");

                lastNameNode.InnerText = TextBox2.Text;

                employeeNode.AppendChild(lastNameNode);

                XmlNode ageNode = doc.CreateElement("Age");

                ageNode.InnerText = TextBox3.Text;

                employeeNode.AppendChild(ageNode);

                doc.Save(Server.MapPath("Employee.xml"));

                Label5.Text = "Data Appended Successfully";

                Label5.ForeColor = System.Drawing.Color.Green;

                TextBox4.Text = string.Empty;

                TextBox1.Text = string.Empty;

                TextBox2.Text = string.Empty;

                TextBox3.Text = string.Empty;

            }

        }

    }

}

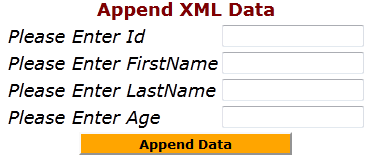

Step 5: The output of the application looks like this:

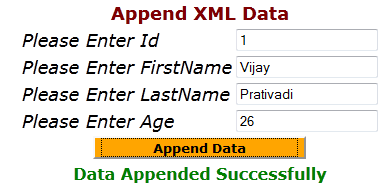

Step 6: The data appending output of the application looks like this:




Step 7: The complete code of Employee.xml looks like this:


<?xml version="1.0" encoding="UTF-8"?>

<Employees>

  <Employee>

    <Id>1</Id>

    <FirstName>Vijay</FirstName>

    <LastName>Prativadi</LastName>

    <Age>26</Age>

  </Employee>

</Employees>


I hope this article is useful for you.
