Introduction

Today, in this article let' dig out with one more wonderful concept in windows phone whereby communicating with WCF Service to perform some expected arithmetic operation. Once Implemented, it gives flexibility to the user to access phone pivot features and perform expected operation in much easy manner.

Question Arises: What is Pivot Control?

In Simple Terms "It is a simple light-weighted control which enables phone user to manage or navigate across different pages very easily. It enables the tasks to be turned on easily. It can be viewed from left to right or right to left depends upon screen touch scrolling by the user."

So, let's get it started off!!!

Step 1: The Complete Code of IService1.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;

namespace Pivot_WCF
{
    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the interface name "IService1" in both code and config file together.
    [ServiceContract]
    public interface IService1
    {
        [OperationContract]
        double Add(double a, double b);

[OperationContract]
double Sub(double a, double b);

[OperationContract]
double Mul(double a, double b);

[OperationContract]
double Div(double a, double b);

}
}

Step 2: The Complete Code of Service1.svc.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;

namespace Pivot_WCF
{
    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the class name "Service1" in code, svc and config file together.
    public class Service1 : IService1
    {

        public double Add(double a, double b)
        {
            return a + b;
        }

        public double Sub(double a, double b)
        {
            return a - b;
        }

        public double Mul(double a, double b)
        {
            return a * b;
        }

        public double Div(double a, double b)
        {
            return a / b;
        }
    }
}

Step 3: The Complete Code of Web.Config looks like this:

<?xml version="1.0"?>
<configuration>

<system.web>
    <compilation debug="true" targetFramework="4.0" />
</system.web>
<system.serviceModel>
    <behaviors>
      <serviceBehaviors>
        <behavior>

          <serviceMetadata httpGetEnabled="true"/>

          <serviceDebug includeExceptionDetailInFaults="false"/>
        </behavior>
      </serviceBehaviors>
    </behaviors>
    <serviceHostingEnvironment multipleSiteBindingsEnabled="true" />
</system.serviceModel>
<system.webServer>
    <modules runAllManagedModulesForAllRequests="true"/>
</system.webServer>

</configuration>

Step 4: The Complete Code of MainPage.xaml looks like this:

<phone:PhoneApplicationPage
    x:Class="Pivot_Control_Application.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
    xmlns:controls="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone.Controls"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"
    d:DataContext="{d:DesignData SampleData/MainViewModelSampleData.xaml}"
    FontFamily="{StaticResource PhoneFontFamilyNormal}"
    FontSize="{StaticResource PhoneFontSizeNormal}"
    Foreground="{StaticResource PhoneForegroundBrush}"
    SupportedOrientations="Portrait" Orientation="Portrait"
    shell:SystemTray.IsVisible="True">

<Grid x:Name="LayoutRoot" Background="Transparent">

        <controls:Pivot Title="Vijay's Pivot Application via WCF Service" FontFamily="Verdana" FontSize="22">

            <controls:PivotItem Header="Addition">

                <StackPanel x:Name="stackpanel1" Width="500" FlowDirection="LeftToRight" >

</StackPanel>

</controls:PivotItem>

<controls:PivotItem Header="Substract">

                <StackPanel x:Name="stackpanel2" Width="500" FlowDirection="LeftToRight" >

</StackPanel>

</controls:PivotItem>

<controls:PivotItem Header="Multiply">

                <StackPanel x:Name="stackpanel3" Width="500" FlowDirection="LeftToRight" >

</StackPanel>

</controls:PivotItem>

            <controls:PivotItem Header="Divide">

                <StackPanel x:Name="stackpanel4" Width="500" FlowDirection="LeftToRight" >

</StackPanel>

</controls:PivotItem>

</controls:Pivot>

</Grid>

</phone:PhoneApplicationPage>

Step 5: The Complete Code of MainPage.xaml.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Microsoft.Phone.Controls;
using Pivot_Control_Application.ServiceReference1;

namespace Pivot_Control_Application
{
    public partial class MainPage : PhoneApplicationPage
    {
        // Constructor
        public MainPage()
        {
            InitializeComponent();

        }

        // Load data for the ViewModel Items
        private void MainPage_Loaded(object sender, RoutedEventArgs e)
        {

}

        static void add_Call(object sender, AddCompletedEventArgs e)
        {

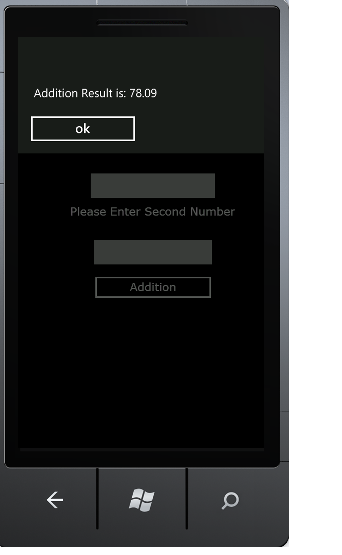

            MessageBox.Show(" Addition Result is: " + e.Result.ToString());
        }

        private void btnAdd1_Click(object sender, RoutedEventArgs e)
        {
            textBlock3.Text = "";
            if (string.IsNullOrEmpty(textbox1.Text) || string.IsNullOrEmpty(textbox2.Text))
            {

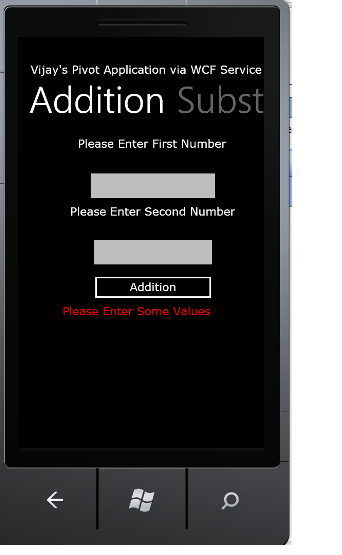

                textBlock3.Text = "Please Enter Some Values";
            }
            else
            {
                Service1Client objClient = new Service1Client();
                objClient.AddCompleted += new EventHandler<AddCompletedEventArgs>(add_Call);
                objClient.AddAsync(Convert.ToDouble(textbox1.Text), Convert.ToDouble(textbox2.Text));
                textbox1.Text = "";
                textbox2.Text = "";
            }
        }

        static void sub_Call(object sender, SubCompletedEventArgs e)
        {

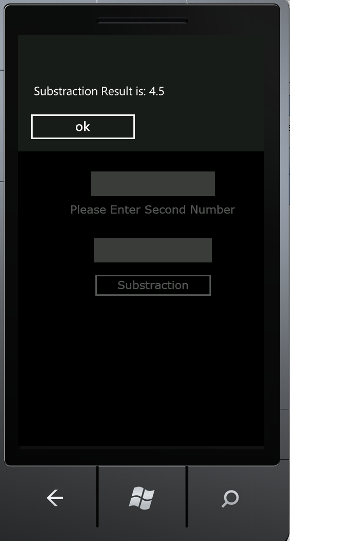

            MessageBox.Show(" Substraction Result is: " + e.Result.ToString());
        }

        private void btnSub1_Click(object sender, RoutedEventArgs e)
        {
            textBlock6.Text = "";
            if (string.IsNullOrEmpty(textbox3.Text) || string.IsNullOrEmpty(textbox4.Text))
            {
                textBlock6.Text = "Please Enter Some Values";
            }
            else
            {
                Service1Client objClient = new Service1Client();
                objClient.SubCompleted += new EventHandler<SubCompletedEventArgs>(sub_Call);
                objClient.SubAsync(Convert.ToDouble(textbox3.Text), Convert.ToDouble(textbox4.Text));
                textbox3.Text = "";
                textbox4.Text = "";
            }
        }

        static void mul_Call(object sender, MulCompletedEventArgs e)
        {
            MessageBox.Show(" Multiplication Result is: " + e.Result.ToString());
        }

        private void btnMul1_Click(object sender, RoutedEventArgs e)
        {
            textBlock9.Text = "";
            if (string.IsNullOrEmpty(textbox5.Text) || string.IsNullOrEmpty(textbox6.Text))
            {
                textBlock9.Text = "Please Enter Some Values";
            }
            else
            {
                Service1Client objClient = new Service1Client();
                objClient.MulCompleted += new EventHandler<MulCompletedEventArgs>(mul_Call);
                objClient.MulAsync(Convert.ToDouble(textbox5.Text), Convert.ToDouble(textbox6.Text));
                textbox5.Text = "";
                textbox6.Text = "";
            }
        }

        static void div_Call(object sender, DivCompletedEventArgs e)
        {
            MessageBox.Show(" Division Result is: " + e.Result.ToString());
        }

        private void btnDiv1_Click(object sender, RoutedEventArgs e)
        {
            textBlock12.Text = "";
            if (string.IsNullOrEmpty(textbox7.Text) || string.IsNullOrEmpty(textbox8.Text))
            {
                textBlock12.Text = "Please Enter Some Values";
            }
            else
            {
                Service1Client objClient = new Service1Client();
                objClient.DivCompleted += new EventHandler<DivCompletedEventArgs>(div_Call);
                objClient.DivAsync(Convert.ToDouble(textbox7.Text), Convert.ToDouble(textbox8.Text));
                textbox7.Text = "";
              textbox8.Text = "";
            }
        }
    }
}
