Login Template Creation on Windows Phone with Navigation Service


Today, in this article let's deal with mostly used login template which is seen in most of the projects, So, today let's create this template and perform  the operations on Windows Phone and we will navigate from one page to other via navigation service.

So, let's get it started off now.

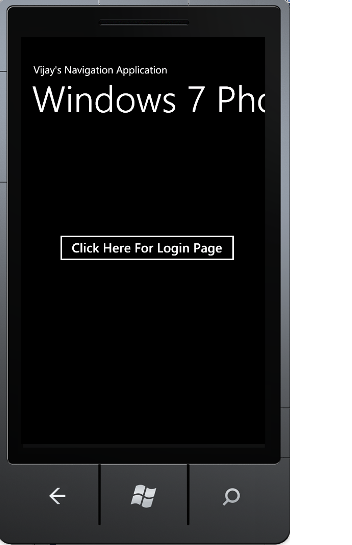

The Complete Code of MainPage.xaml looks like this:

<phone:PhoneApplicationPage
    x:Class="NavigationApplication.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"
    FontFamily="{StaticResource PhoneFontFamilyNormal}"
    FontSize="{StaticResource PhoneFontSizeNormal}"
    Foreground="{StaticResource PhoneForegroundBrush}"
    SupportedOrientations="Portrait" Orientation="Portrait"
    shell:SystemTray.IsVisible="True">

    <!--LayoutRoot is the root grid where all page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="Vijay's Navigation Application" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="Windows 7 Phone" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>

        <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <Button Content="Click Here For Login Page" Height="72" HorizontalAlignment="Left" Margin="53,184,0,0" Name="Button1" VerticalAlignment="Top" Width="364" Click="Button1_Click" />
        </Grid>

    </Grid>

    <!--Sample code showing usage of ApplicationBar-->
    <!--<phone:PhoneApplicationPage.ApplicationBar>
        <shell:ApplicationBar IsVisible="True" IsMenuEnabled="True">
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button1.png" Text="Button 1"/>
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button2.png" Text="Button 2"/>
            <shell:ApplicationBar.MenuItems>
                <shell:ApplicationBarMenuItem Text="MenuItem 1"/>
                <shell:ApplicationBarMenuItem Text="MenuItem 2"/>
            </shell:ApplicationBar.MenuItems>
        </shell:ApplicationBar>
    </phone:PhoneApplicationPage.ApplicationBar>-->

</phone:PhoneApplicationPage>

The Complete Code of MainPage.xaml.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Microsoft.Phone.Controls;

namespace NavigationApplication
{
    public partial class MainPage : PhoneApplicationPage
    {
        // Constructor
        public MainPage()
        {
            InitializeComponent();
        }

        private void Button1_Click(object sender, RoutedEventArgs e)
        {
            NavigationService.Navigate(new Uri("/Page1.xaml", UriKind.RelativeOrAbsolute));
        }

    }
}

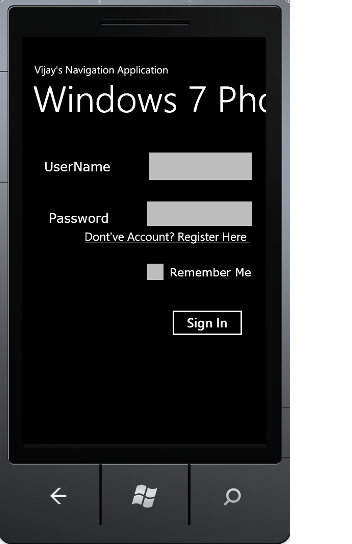

The Complete Code of Page1.xaml looks like this:

<phone:PhoneApplicationPage
    x:Class="NavigationApplication.Page1"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    FontFamily="{StaticResource PhoneFontFamilyNormal}"
    FontSize="{StaticResource PhoneFontSizeNormal}"
    Foreground="{StaticResource PhoneForegroundBrush}"
    SupportedOrientations="Portrait" Orientation="Portrait"
    mc:Ignorable="d" d:DesignHeight="768" d:DesignWidth="480"
    shell:SystemTray.IsVisible="True" >

    <!--LayoutRoot is the root grid where all page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="Vijay's Navigation Application" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="Windows 7 Phone" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>

        <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <TextBlock Height="30" FontFamily="Verdana" FontSize="25" HorizontalAlignment="Left" Margin="31,45,0,0" Name="textBlock1" VerticalAlignment="Top" Text="UserName" />
            <TextBox Height="78" HorizontalAlignment="Left" Margin="225,21,0,0" Name="textBox1" Text="" VerticalAlignment="Top" Width="225" />
            <TextBlock Height="30" HorizontalAlignment="Left" FontFamily="Verdana" FontSize="25" Margin="40,146,0,0" Name="textBlock2" Text="Password" VerticalAlignment="Top" />
            <Button Content="Sign In" Height="72" HorizontalAlignment="Left" Margin="271,331,0,0" Name="button1" VerticalAlignment="Top" Width="160" Click="button1_Click" />
            <TextBox Height="72" HorizontalAlignment="Left" Margin="221,117,0,0" Name="textBox2" VerticalAlignment="Top" Width="229" />
            <HyperlinkButton Content="Dont've Account? Register Here " Height="30" HorizontalAlignment="Left" Margin="93,182,0,0" Name="hyperlinkButton1" VerticalAlignment="Top" Width="357" Click="hyperlinkButton1_Click" />
            <CheckBox Content="Remember Me" Height="72" HorizontalAlignment="Left" Margin="221,231,0,0" Name="checkBox1" VerticalAlignment="Top" Width="229"  FontFamily="Verdana" FontSize="22"/>

        </Grid>

    </Grid>

    <!--Sample code showing usage of ApplicationBar-->
    <!--<phone:PhoneApplicationPage.ApplicationBar>
        <shell:ApplicationBar IsVisible="True" IsMenuEnabled="True">
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button1.png" Text="Button 1"/>
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button2.png" Text="Button 2"/>
            <shell:ApplicationBar.MenuItems>
                <shell:ApplicationBarMenuItem Text="MenuItem 1"/>
                <shell:ApplicationBarMenuItem Text="MenuItem 2"/>
            </shell:ApplicationBar.MenuItems>
        </shell:ApplicationBar>
    </phone:PhoneApplicationPage.ApplicationBar>-->

</phone:PhoneApplicationPage>

The Complete Code of Page1.xaml.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Microsoft.Phone.Controls;

namespace NavigationApplication
{
    public partial class Page1 : PhoneApplicationPage
    {
        public Page1()
        {
            InitializeComponent();
        }

        private void hyperlinkButton1_Click(object sender, RoutedEventArgs e)
        {
            NavigationService.Navigate(new Uri("/Page2.xaml", UriKind.Relative));
        }

        private void button1_Click(object sender, RoutedEventArgs e)
        {
            NavigationService.Navigate(new Uri("/Page3.xaml", UriKind.Relative));
        }

    }
}

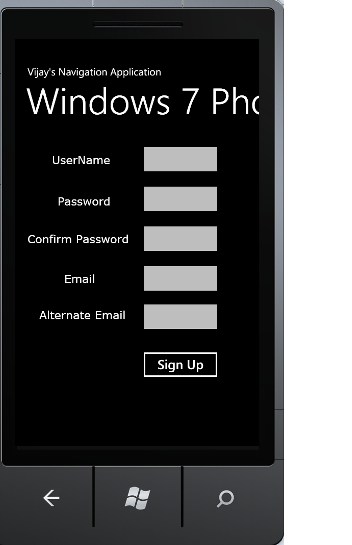

The Complete Code of Page2.xaml looks like this:

<phone:PhoneApplicationPage
    x:Class="NavigationApplication.Page2"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    FontFamily="{StaticResource PhoneFontFamilyNormal}"
    FontSize="{StaticResource PhoneFontSizeNormal}"
    Foreground="{StaticResource PhoneForegroundBrush}"
    SupportedOrientations="Portrait" Orientation="Portrait"
    mc:Ignorable="d" d:DesignHeight="768" d:DesignWidth="480"
    shell:SystemTray.IsVisible="True">

    <!--LayoutRoot is the root grid where all page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="Vijay's Navigation Application" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="Windows 7 Phone" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>

        <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="60,30,0,0" Name="textBlock1" FontFamily="Verdana" FontSize="22" Text="UserName" VerticalAlignment="Top" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="71,111,0,0" Name="textBlock2" FontFamily="Verdana" FontSize="22" Text="Password" VerticalAlignment="Top" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="12,185,0,0" Name="textBlock3" FontFamily="Verdana" FontSize="22" Text="Confirm Password" VerticalAlignment="Top" Width="235" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="84,263,0,0" Name="textBlock4" Text="Email" FontFamily="Verdana" FontSize="22" VerticalAlignment="Top" />
            <TextBlock HorizontalAlignment="Left" Margin="35,334,0,243" Name="textBlock5" Text="Alternate Email" FontFamily="Verdana" FontSize="22" />
            <Button Content="Sign Up" Height="72" HorizontalAlignment="Left" Margin="228,409,0,0" Name="button1" VerticalAlignment="Top" Width="168" Click="button1_Click" />
            <TextBox Height="72" HorizontalAlignment="Left" Margin="228,6,0,0" Name="textBox1"  VerticalAlignment="Top" Width="168" />
            <TextBox Height="72" HorizontalAlignment="Left" Margin="228,84,0,0" Name="textBox2"  VerticalAlignment="Top" Width="168" />
            <TextBox Height="72" HorizontalAlignment="Left" Margin="228,162,0,0" Name="textBox3"  VerticalAlignment="Top" Width="168" />
            <TextBox Height="72" HorizontalAlignment="Left" Margin="228,240,0,0" Name="textBox4"  VerticalAlignment="Top" Width="168" />

            <TextBox Height="72" HorizontalAlignment="Left" Margin="228,315,0,0" Name="textBox5"  VerticalAlignment="Top" Width="168" />
        </Grid>

    </Grid>

    <!--Sample code showing usage of ApplicationBar-->
    <!--<phone:PhoneApplicationPage.ApplicationBar>
        <shell:ApplicationBar IsVisible="True" IsMenuEnabled="True">
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button1.png" Text="Button 1"/>
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button2.png" Text="Button 2"/>
            <shell:ApplicationBar.MenuItems>
                <shell:ApplicationBarMenuItem Text="MenuItem 1"/>
                <shell:ApplicationBarMenuItem Text="MenuItem 2"/>
            </shell:ApplicationBar.MenuItems>
        </shell:ApplicationBar>
    </phone:PhoneApplicationPage.ApplicationBar>-->

</phone:PhoneApplicationPage>

The Complete Code of Page2.xaml.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Microsoft.Phone.Controls;

namespace NavigationApplication
{
    public partial class Page2 : PhoneApplicationPage
    {
        public Page2()
        {
            InitializeComponent();
        }

        private void button1_Click(object sender, RoutedEventArgs e)
        {
            NavigationService.Navigate(new Uri("/Page3.xaml", UriKind.Relative));
        }

    }
}

The Complete Code of Page3.xaml looks like this:

<phone:PhoneApplicationPage
    x:Class="NavigationApplication.Page3"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    FontFamily="{StaticResource PhoneFontFamilyNormal}"
    FontSize="{StaticResource PhoneFontSizeNormal}"
    Foreground="{StaticResource PhoneForegroundBrush}"
    SupportedOrientations="Portrait" Orientation="Portrait"
    mc:Ignorable="d" d:DesignHeight="768" d:DesignWidth="480"
    shell:SystemTray.IsVisible="True" Loaded="PhoneApplicationPage_Loaded">

    <!--LayoutRoot is the root grid where all page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="Vijay's Navigation Application" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="Windows 7 Phone"  Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>

        <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0" Loaded="ContentPanel_Loaded">
                    <TextBlock  FontFamily="Verdana" FontSize="22" Visibility="Collapsed" Margin="20,170,20,367" HorizontalAlignment="Center" VerticalAlignment="Center" x:Name="textblock6" />
            <TextBox Margin="20,483,3,52" FontFamily="Verdana" FontSize="22" Visibility="Collapsed" x:Name="textblock7"/>
            <HyperlinkButton Content="Log Out" Height="30" FontFamily="Verdana" FontSize="22" HorizontalAlignment="Left" Margin="346,0,0,0" Name="hyperlinkButton1" VerticalAlignment="Top" Width="110" Click="hyperlinkButton1_Click" />
        </Grid>
    </Grid>

    <!--Sample code showing usage of ApplicationBar-->
    <!--<phone:PhoneApplicationPage.ApplicationBar>
        <shell:ApplicationBar IsVisible="True" IsMenuEnabled="True">
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button1.png" Text="Button 1"/>
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button2.png" Text="Button 2"/>
            <shell:ApplicationBar.MenuItems>
                <shell:ApplicationBarMenuItem Text="MenuItem 1"/>
                <shell:ApplicationBarMenuItem Text="MenuItem 2"/>
            </shell:ApplicationBar.MenuItems>
        </shell:ApplicationBar>
    </phone:PhoneApplicationPage.ApplicationBar>-->

</phone:PhoneApplicationPage>

The Complete Code of Page3.xaml.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Microsoft.Phone.Controls;

namespace NavigationApplication
{
    public partial class Page3 : PhoneApplicationPage
    {
        public Page3()
        {
            InitializeComponent();
        }

        private void ContentPanel_Loaded(object sender, RoutedEventArgs e)
        {

            textblock6.Text = "Whoomp!!!....You've Registered Now.";
            textblock6.Visibility = Visibility.Visible;
        }

        private void textblock6_Loaded(object sender, RoutedEventArgs e)
        {

        }

        private void PhoneApplicationPage_Loaded(object sender, RoutedEventArgs e)
        {
            textblock6.Text = "Whoomp!!!....You've Logged In";
            textblock6.Visibility = Visibility.Visible;

        }

        private void hyperlinkButton1_Click(object sender, RoutedEventArgs e)
        {
            NavigationService.Navigate(new Uri("/Page1.xaml", UriKind.Relative));

        }

    }
}

The Output of the Application looks like this:





The Sign up Application Output looks like this:


After Logout the Application, the page is direction to Page1 where the output looks like this:



I hope this article is useful for you.

Up Next
    Ebook Download
    View all
    Learn
    View all
    MVC Corporation is consulting and IT services based company.
    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
