LINQ

Select and Delete Data With LINQ Using XSD

Introduction

Question: What is select data with LINQ using XSD?

In simple terms "It enables selection of data using XSD with LINQ queries".

Step 1: Create a new webform project:

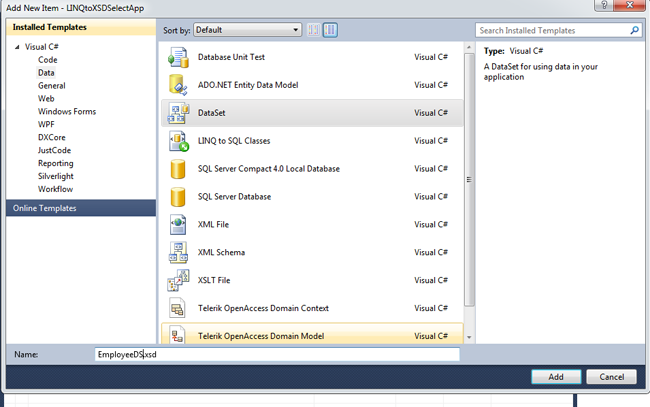

Step 2: Add a new XSD dataset item:


Step 3: Add a new employee table to the dataset:


Step 4: The complete code of webform1.aspx looks like this:

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="LINQtoXSDSelectApp.WebForm1" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head id="Head1" runat="server">
    <style type="text/css">
        .grid
        {
            margin-top: 50px;
        }
    </style>
    <title></title>
</head>
<body>
    <form id="form1" runat="server">
    <center>
        <div>
            <table>
                <tr>
                    <td colspan="2" align="center">
                        <asp:Label ID="Label1" runat="server" Text="Select Data with LINQ using XSD (DataSet)"
                            Font-Bold="true" Font-Size="Large" Font-Names="Verdana" ForeColor="Maroon"></asp:Label>
                    </td>
                </tr>
                <tr>
                    <td colspan="2" align="center">
                        <asp:Button ID="Button1" runat="server" Text="Select Data" Font-Names="Verdana" Width="213px"
                            BackColor="Orange" Font-Bold="True" OnClick="Button1_Click" />
                    </td>
                </tr>
                <tr>
                    <td colspan="2" align="center">
                        <asp:GridView ID="GridView1" runat="server" CssClass="grid" BackColor="LightGoldenrodYellow"
                            BorderColor="Tan" BorderWidth="1px" CellPadding="2" ForeColor="Black" GridLines="None">
                            <AlternatingRowStyle BackColor="PaleGoldenrod" />
                            <FooterStyle BackColor="Tan" />
                            <HeaderStyle BackColor="Tan" Font-Bold="True" />
                            <PagerStyle BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue" HorizontalAlign="Center" />
                            <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite" />
                            <SortedAscendingCellStyle BackColor="#FAFAE7" />
                            <SortedAscendingHeaderStyle BackColor="#DAC09E" />
                            <SortedDescendingCellStyle BackColor="#E1DB9C" />
                            <SortedDescendingHeaderStyle BackColor="#C2A47B" />
                        </asp:GridView>
                    </td>
                </tr>
            </table>
        </div>
    </center>
    </form>
</body>
</html>

Step 5: The complete code of webform1.aspx.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
namespace LINQtoXSDSelectApp
{
    public partial class WebForm1 : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {
        }
        protected void Button1_Click(object sender, EventArgs e)
        {
            EmployeeDS.EmployeeDataTable objEmployeeTable = objAdapter.GetData();
            var query = from r in objEmployeeTable select new
            {
                FirstName = r.FirstName, LastName = r.LastName, Age = r.Age };
            GridView1.DataSource = query;
            GridView1.DataBind();
        }
        #region Instance MembersEmployeeDSTableAdapters.EmployeeTableAdapter
        objAdapter = new EmployeeDSTableAdapters.EmployeeTableAdapter();
        #endregion
    }
}

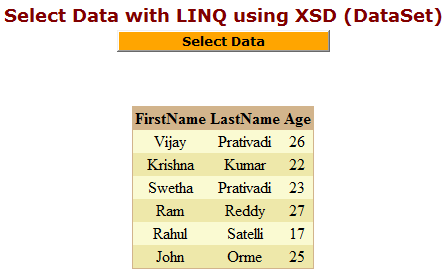

Step 6: The output of the application looks like this:


Step 7: The select output operation of the application looks like this:


Question: What is delete data with LINQ using XSD?

In simple terms "It enables data to be deleted using XSD with LINQ queries".

Step 1: Create a new webform project

Step 2: Add a new XSD dataset item

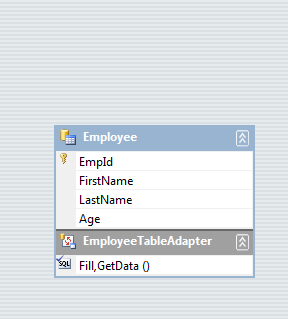

Step 3: Add a new employee table to the dataset:

Output3 (1).png

Step 4: The complete code of webform1.aspx looks like this:

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="LINQtoXSDDeleteApp.WebForm1" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head id="Head1" runat="server">
    <style type="text/css">
        .grid
        {
            margin-top: 50px;
        }
    </style>
    <title></title>
</head>
<body>
    <form id="form1" runat="server">
    <center>
        <div>
            <table>
                <tr>
                    <td colspan="2" align="center">
                        <asp:Label ID="Label1" runat="server" Text="Delete Data with LINQ using XSD (DataSet)"
                            Font-Bold="true" Font-Size="Large" Font-Names="Verdana" ForeColor="Maroon"></asp:Label>
                    </td>
                </tr>
                <tr>
                    <td>
                        <asp:Label ID="Label2" runat="server" Text="Please Enter Employee Id" ForeColor="Brown"
                            Font-Bold="true" Font-Size="Medium" Font-Names="Verdana"></asp:Label>
                    </td>
                    <td>
                        <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>
                    </td>
                </tr>
                <tr>
                    <td colspan="2" align="center">
                        <asp:Button ID="Button1" runat="server" Text="Delete Data" Font-Names="Verdana" Width="213px"
                            BackColor="Orange" Font-Bold="True" OnClick="Button1_Click" />
                    </td>
                </tr>
                <tr>
                    <td colspan="2" align="center">
                        <asp:GridView ID="GridView1" runat="server" CssClass="grid" BackColor="LightGoldenrodYellow"
                            BorderColor="Tan" BorderWidth="1px" CellPadding="2" ForeColor="Black" GridLines="None">
                            <AlternatingRowStyle BackColor="PaleGoldenrod" />
                            <FooterStyle BackColor="Tan" />
                            <HeaderStyle BackColor="Tan" Font-Bold="True" />
                            <PagerStyle BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue" HorizontalAlign="Center" />
                            <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite" />
                            <SortedAscendingCellStyle BackColor="#FAFAE7" />
                            <SortedAscendingHeaderStyle BackColor="#DAC09E" />
                            <SortedDescendingCellStyle BackColor="#E1DB9C" />
                            <SortedDescendingHeaderStyle BackColor="#C2A47B" />
                        </asp:GridView>
                    </td>
                </tr>
                <tr>
                    <td colspan="2" align="center">
                        <asp:Label ID="Label3" runat="server" Font-Bold="true" Font-Size="Medium" Font-Names="Verdana"></asp:Label>
                    </td>
                </tr>
            </table>
        </div>
    </center>
    </form>
</body>
</html>

Step 5: The complete code of webform1.aspx.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
namespace LINQtoXSDDeleteApp
{
    public partial class WebForm1 : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {
        }
        protected void Button1_Click(object sender, EventArgs e)
        {
            if (string.IsNullOrEmpty(TextBox1.Text))
            {
                Label3.Text = "Please Enter Some Values";
                Label3.ForeColor = System.Drawing.Color.Red;
            }
            else
            {
                objAdapter.Delete(int.Parse(TextBox1.Text));
                EmployeeDS.EmployeeDataTable objEmployeeTable = objAdapter.GetData();
                var query = from r in objEmployeeTable select new
                {
                    FirstName = r.FirstName, LastName = r.LastName, Age = r.Age };
                    GridView1.DataSource = query;
                }
            GridView1.DataBind();
            Label3.Text = "Records Deleted Successfully";
            Label3.ForeColor = System.Drawing.Color.Green;T
                extBox1.Text = string.Empty;
        }
        }
        #region Instance MembersEmployeeDSTableAdapters.EmployeeTableAdapter
        objAdapter = new EmployeeDSTableAdapters.EmployeeTableAdapter();
        #endregion
    }
}

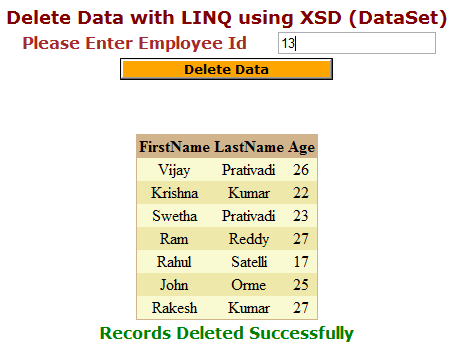

Step 6: The output of the application looks like this:

Output4 (1).png

Step 7: The data deleted output of the application looks like this:


I hope this article is useful for you.. I look forward for your comments and feedback..Thanks Vijay Prativadi
