Table Splitting Delete Data

Introduction

This article shows how to do table splitting and later we will also look at how to do a delete data operation.

SQL Server table structure


Create an ASP.Net Web Application as in the following:


Set up Entity Framework as in the following:







Cut columns from the Employee entity as in the following:


Paste them into the EmployeeDetails entity as in the following:

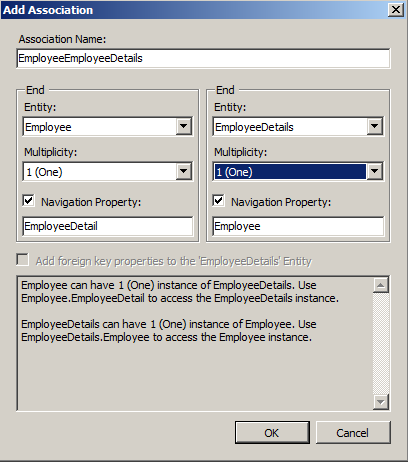

Add an association between Employee and EmployeeDetails as in the following:





Referential Constraints


Webform1.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="Table_Splitting_Delete_Data.WebForm1" %>
  2.
  3. <!DOCTYPE html>
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8. </head>
  9. <body>
  10.     <form id="form1" runat="server">
  11.     <div>
  12.         <asp:Button ID="Button1" runat="server" Text="Delete" OnClick="Button1_Click" style="height: 26px" />
  13.     </div>
  14.     </form>
  15. </body>
  16. </html>

Webform1.aspx.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data.Entity;
  4. using System.Linq;
  5. using System.Web;
  6. using System.Web.UI;
  7. using System.Web.UI.WebControls;
  8.
  9. namespace Table_Splitting_Delete_Data
  10. {
  11.     public partial class WebForm1 : System.Web.UI.Page
  12.     {
  13.         protected void Page_Load(object sender, EventArgs e)
  14.         {
  15.
  16.         }
  17.
  18.         protected void Button1_Click(object sender, EventArgs e)
  19.         {
  20.             using (var dbContext = new EmployeeDBEntities())
  21.             {
  22.                 var master = dbContext.Set<Employee>().Include(m => m.EmployeeDetail)
  23.                         .SingleOrDefault(m => m.EmpId == 1);
  24.                 dbContext.Set<Employee>().Remove(master);
  25.                 dbContext.SaveChanges();
  26.             }
  27.         }
  28.     }
  29. }

The following is the output of the application:

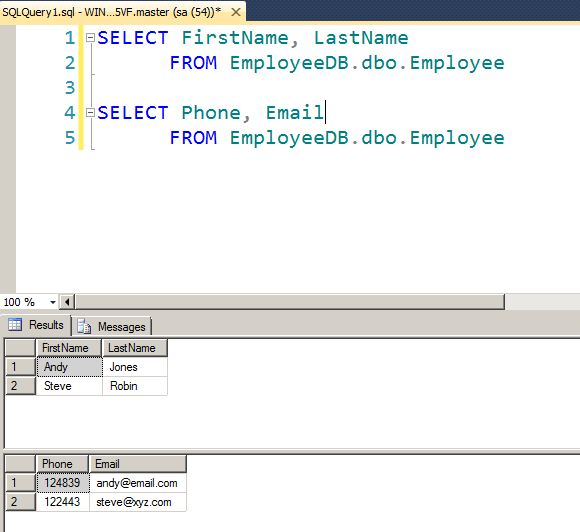

Before delete:



After deletion:



Summary

In this article we saw how to do table splitting and delete data operations. Happy coding!
