SharePoint Hosted App Data Manipulation With Office 365 Using Custom JavaScript Library - Part 1

  • WhatsApp
  • Rupali Shinde
  • 9y
  • 4.3k
  • 0
  • 1
    • 100
  • Article

Here are the steps,

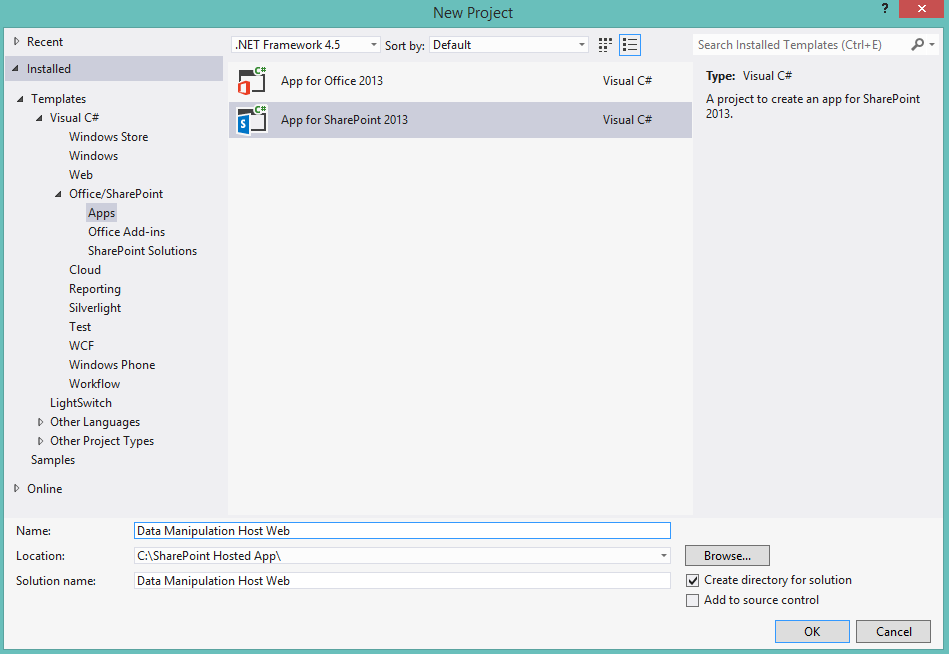

Step 1: Create SharePoint Hosted App with Office 365 account credentials. Open Visual Studio and select New Project as in the following,

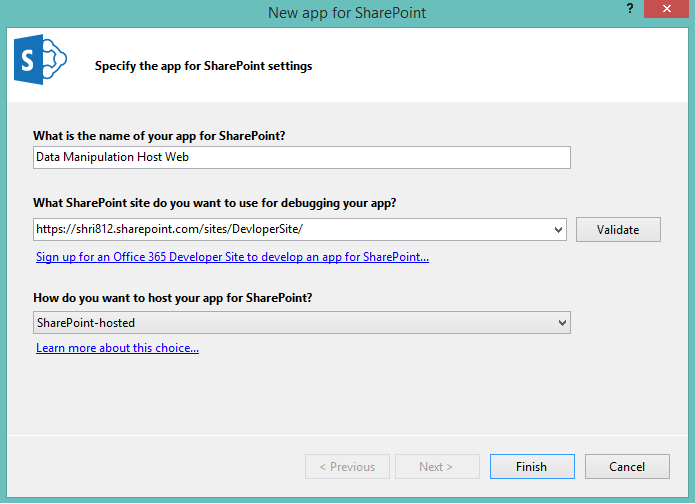

 Step 2: Specify Site URL & app type to proceed next.

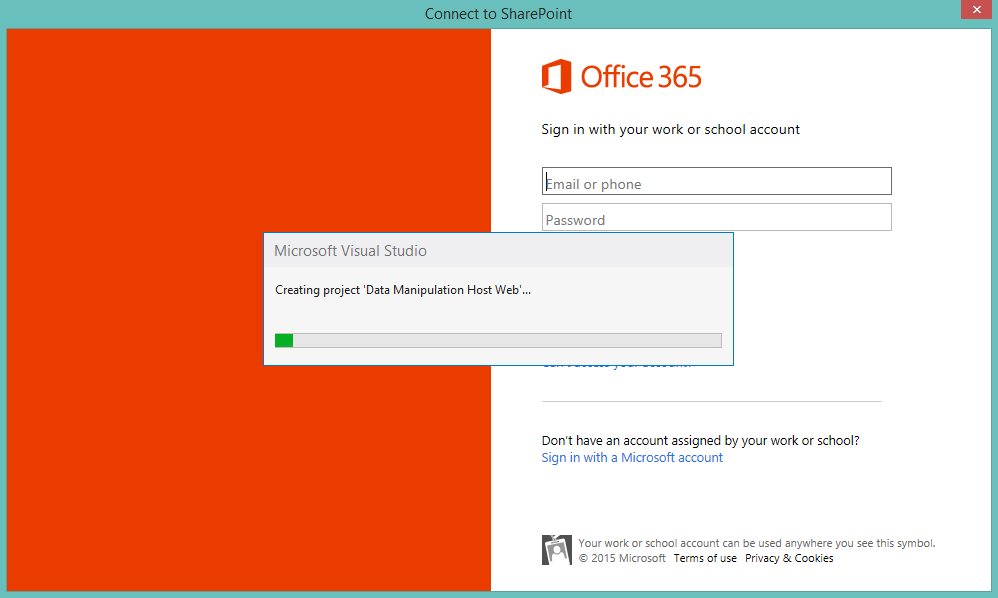

Step 3: Provide Office365 credentials to continue further.

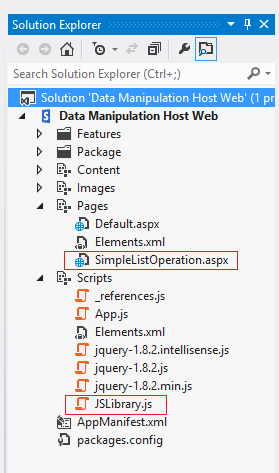

Step 4: Project structure is as in the following,

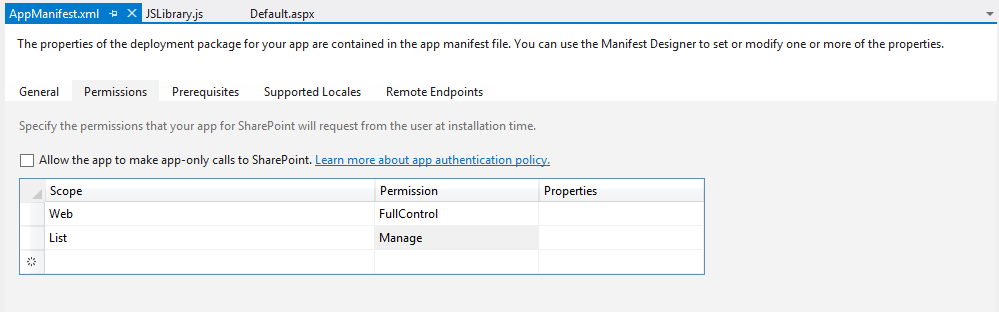

Step 5: We first need to set permission for App, so that we can communicate with site properly.

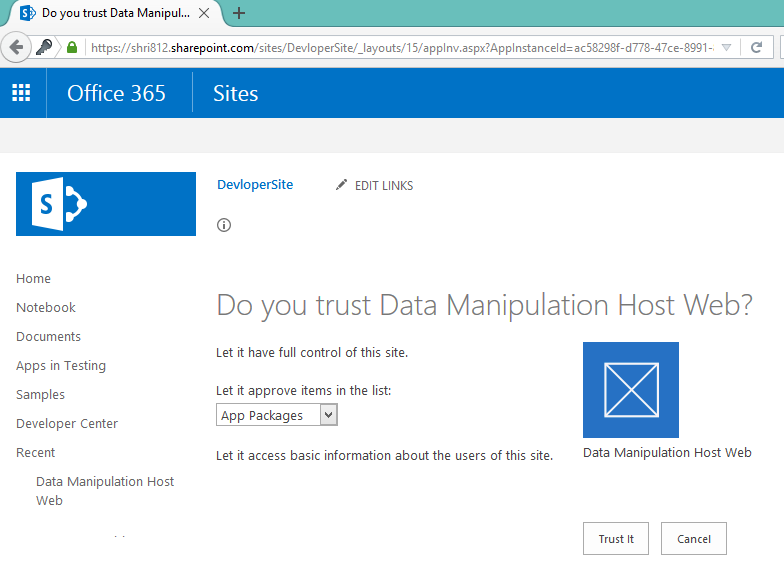

Step 6: Deploy the app into Office 365 environment.

Step 7: User Interface creation code

In this part, we are going to perform simple operation so UI is also very simple as in the following example,

Source Code
  1. <%@ Page Language="C#" MasterPageFile="~masterurl/default.master" Inherits="Microsoft.SharePoint.WebPartPages.WebPartPage, Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
  2. <%@ Register TagPrefix="Utilities" Namespace="Microsoft.SharePoint.Utilities" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
  3. <%@ Register TagPrefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
  4. <%@ Register TagPrefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
  5. <asp:Content ContentPlaceHolderID="PlaceHolderAdditionalPageHead" runat="server">
  6.                 <SharePoint:ScriptLink Name="sp.js" runat="server" OnDemand="true" LoadAfterUI="true" Localizable="false" />
  7.                 <script src="../Scripts/jquery-1.8.2.js" type="text/javascript"></script>
  8.                 <script src="../Scripts/JSLibrary.js" type="text/javascript"></script>
  9.             </asp:Content>
  10.             <asp:Content ContentPlaceHolderID="PlaceHolderMain" runat="server">
  11.                 <WebPartPages:WebPartZone runat="server" FrameType="TitleBarOnly" ID="full" Title="loc:full" />
  12.                 <hr />
  13.                 <div>
  14.                     <h2><b>Office 365 Host Web Details</b></h2>
  15.                     <br />
  16.                     <div id="HostwebDetails"></div>
  17.                 </div>
  18.                 <hr />
  19.                 <div>
  20.                     <h3><b>Folder Creation</b></h3>
  21.                     <input type="text" id="txtFolderName" /> <a href="#" onclick="Wingtip.JSOMHostWebCollections.HWCreateFolder()">Create Folder</a> </div>
  22.                 <hr />
  23.                 <div>
  24.                     <h3><b>List Creation</b></h3>
  25.                     <input type="text" id="txtListName" /> <a href="#" onclick="Wingtip.JSOMHostWebCollections.HWCreateList()">Create List</a> </div>
  26.                 <hr />
  27.                 <div>
  28.                     <h3><b>List Deletion</b></h3>
  29.                     <input type="text" id="txtDeletionListName" /> <a href="#" onclick="Wingtip.JSOMHostWebCollections.HWDeleteList()">Delete List</a> </div>
  30.                 <hr/> </asp:Content>
Step 8: Fetch current Web Site details on page load. The following code is used to perform this operation.
  1. var clientContext;
  2. var factory;
  3. var appContextSite;
  4. var web;
  5. var collList;
  6. var itemCreateInfo;
  7. var param1, param2, param3;
  8. var oList, targetList, listFields, oListItem, oField, itemId;
  9. var ExsitingListNameVal;
  10. window.Wingtip = window.Wingtip ||
  11. {}
  12. Wingtip.JSOMHostWebCollections = function()
  13. {
  14.     LoadlayoutsJS = function()
  15.     {
  16.         //debugger
  17.         hostweburl = decodeURIComponent(Wingtip.JSOMHostWebCollections.QSParameter("SPHostUrl"));
  18.         appweburl = decodeURIComponent(Wingtip.JSOMHostWebCollections.QSParameter("SPAppWebUrl"));
  19.         var Sessionhostweburl = sessionStorage.getItem("hostweburl");
  20.         var Sessionappweburl = sessionStorage.getItem("appweburl");
  21.         if (Sessionhostweburl == null || Sessionappweburl == null)
  22.         {
  23.             sessionStorage.setItem("hostweburl", hostweburl);
  24.             sessionStorage.setItem("appweburl", appweburl);
  25.         }
  26.         if (hostweburl == null || appweburl == null || hostweburl == 'undefined' || appweburl == 'undefined')
  27.         {
  28.             hostweburl = sessionStorage.getItem("hostweburl");
  29.             appweburl = sessionStorage.getItem("appweburl");
  30.         }
  31.         var scriptbase = hostweburl + "/_layouts/15/";
  32.         $.getScript(scriptbase + "SP.Runtime.js", function()
  33.         {
  34.             $.getScript(scriptbase + "SP.js", function()
  35.             {
  36.                 $.getScript(scriptbase + "SP.RequestExecutor.js", Wingtip.JSOMHostWebCollections.HWLoadClientContext);
  37.             });
  38.         });
  39.     }
  40.     getQueryStringParameter = function(paramToRetrieve)
  41.     {
  42.         //debugger
  43.         try
  44.         {
  45.             var params = document.URL.split("?")[1].split("&");
  46.             var strParams = "";
  47.             for (var i = 0; i < params.length; i = i + 1)
  48.             {
  49.                 var singleParam = params[i].split("=");
  50.                 if (singleParam[0] == paramToRetrieve) return singleParam[1];
  51.             }
  52.         }
  53.         catch (ex)
  54.         {}
  55.     }
  56.     LoadClientContext = function()
  57.     {
  58.         //debugger
  59.         clientContext = new SP.ClientContext(appweburl);
  60.         factory = new SP.ProxyWebRequestExecutorFactory(appweburl);
  61.         clientContext.set_webRequestExecutorFactory(factory);
  62.         appContextSite = new SP.AppContextSite(clientContext, hostweburl);
  63.         web = appContextSite.get_web();
  64.         clientContext.load(web);
  65.         Wingtip.JSOMHostWebCollections.HWGetTitle();
  66.         //Wingtip.JSOMHostWebCollections.HWCreateFolder("Rupali");
  67.         //Wingtip.JSOMHostWebCollections.HWCreateList("Book");
  68.         //Wingtip.JSOMHostWebCollections.HWDeleteList("Book");
  69.     }
  70.     GetTitle = function()
  71.         {
  72.             //debugger
  73.             web.set_title('Office365 Host Web');
  74.             web.update();
  75.             clientContext.load(web);
  76.             clientContext.executeQueryAsync(Function.createDelegate(this, SPHostWebDetailsSuccessHandler), Function.createDelegate(this, SPHostWebDetailsErrorHandler));
  77.
  78.             function SPHostWebDetailsSuccessHandler()
  79.             {
  80.                 var Result = "";
  81.                 Result = Result + "<b>Title :</b> " + web.get_title() + "<br/>";
  82.                 Result = Result + "<b> ID :</b> " + web.get_id() + "</br>";
  83.                 Result = Result + "<b> Created :</b> " + web.get_created() + "</br>";
  84.                 document.getElementById("HostwebDetails").innerHTML = Result;
  85.             }
  86.
  87.             function SPHostWebDetailsErrorHandler(data, errorCode, errorMessage)
  88.             {
  89.                 alert("fail" + errorMessage);
  90.                 document.getElementById("HostwebTitle").innerText = "Could not complete cross-domain call: " + errorMessage;
  91.             }
  92.         }
  93.         //public interface
  94.     return {
  95.         HWLoadlayoutsJS: LoadlayoutsJS,
  96.         QSParameter: getQueryStringParameter,
  97.         HWLoadClientContext: LoadClientContext,
  98.         HWGetTitle: GetTitle,
  99.         HWCreateFolder: CreateFolder,
  100.         HWCreateList: CreateList,
  101.         HWDeleteList: DeleteList,
  102.         HWEmpty: Empty
  103.     }
  104. }();
  105. $(document).ready(function()
  106. {
  107.     //Load Out Of Box JS file for List Operation
  108.     Wingtip.JSOMHostWebCollections.HWLoadlayoutsJS();
  109. });

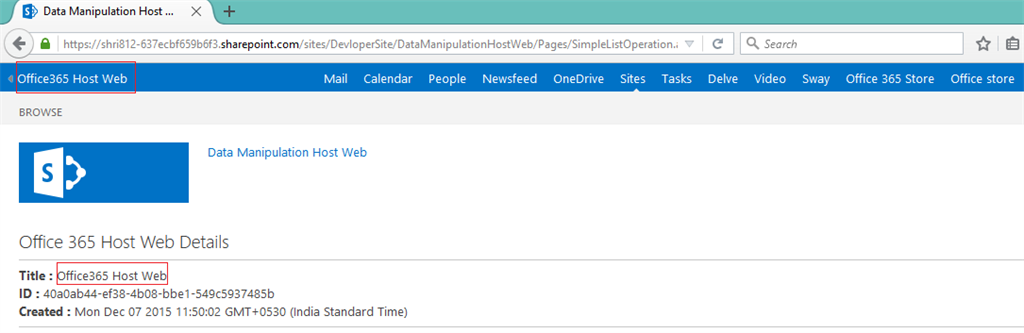

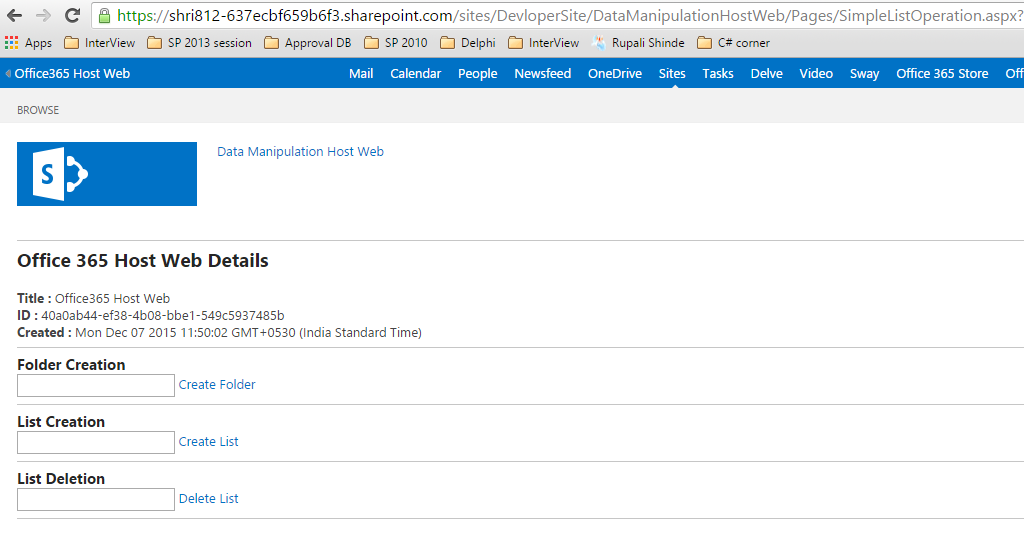

Output


Step 9: Create folder at site, we can use the following code,
  1. CreateFolder = function()
  2. {
  3.     //debugger
  4.     oList = web.get_lists().getByTitle("Documents");
  5.     itemCreateInfo = new SP.ListItemCreationInformation();
  6.     itemCreateInfo.set_underlyingObjectType(SP.FileSystemObjectType.folder);
  7.     var FolderNameVal = $(txtFolderName).val();
  8.     console.log(FolderNameVal);
  9.     itemCreateInfo.set_leafName(FolderNameVal);
  10.     //itemCreateInfo.set_leafName("My new folder!!!");
  11.     oListItem = oList.addItem(itemCreateInfo);
  12.     oListItem.update();
  13.     clientContext.load(oListItem);
  14.     clientContext.executeQueryAsync(Function.createDelegate(this, CreateFolderSuccessHandler), Function.createDelegate(this, CreateFolderErrorHandler));
  15.
  16.     function CreateFolderSuccessHandler()
  17.     {
  18.         alert("Go to Site Content ->Documents to see your new folder.");
  19.     }
  20.
  21.     function CreateFolderErrorHandler()
  22.     {
  23.         alert("Request failed: " + arguments[1].get_message());
  24.     }
  25. }

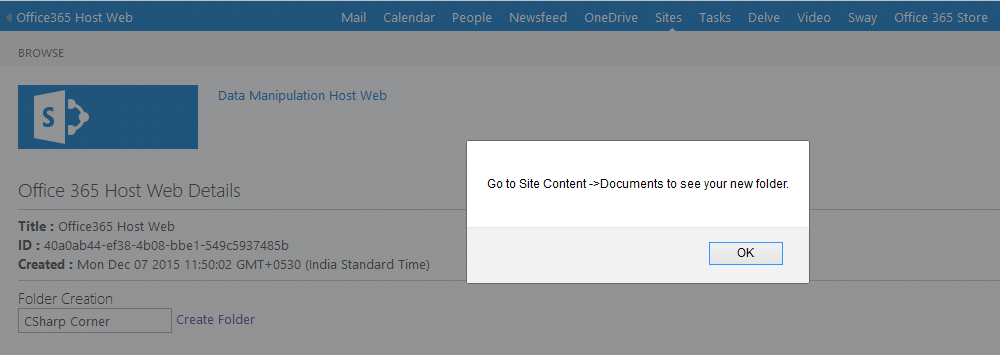

Output

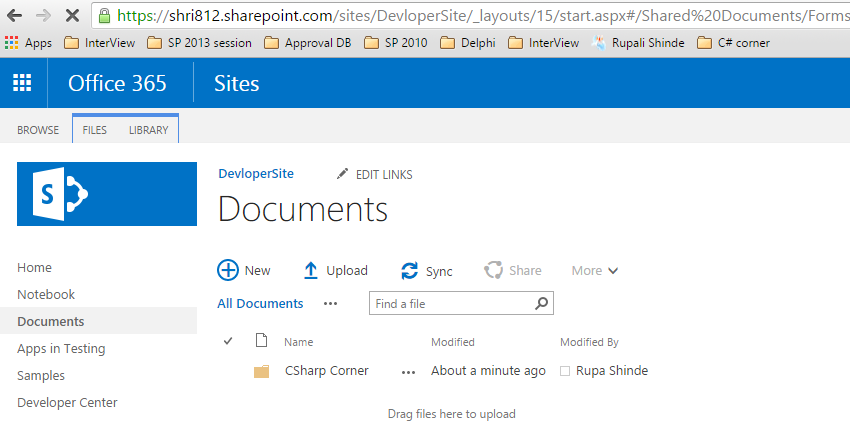

New folder is getting created inside Document folder at root level.


Step 10: Create List at host web using the following code,
  1. CreateList = function()
  2. {
  3.     //debugger
  4.     var listCreationInfo = new SP.ListCreationInformation();
  5.     var ListNameVal = $(txtListName).val();
  6.     //var ListNameVal = ListName;
  7.     listCreationInfo.set_title(ListNameVal);
  8.     listCreationInfo.set_templateType(SP.ListTemplateType.announcements);
  9.     oList = web.get_lists().add(listCreationInfo);
  10.     clientContext.load(oList);
  11.     oList.set_description(ListNameVal + 'created via JSOM Model ...');
  12.     oList.update();
  13.     clientContext.executeQueryAsync(Function.createDelegate(this, SPHostWebCreateListSuccessHandler), Function.createDelegate(this, SPHostWebCreateListErrorHandler));
  14.
  15.     function SPHostWebCreateListSuccessHandler()
  16.     {
  17.         var result = oList.get_title() + ' List created successfully.';
  18.         alert(result);
  19.     }
  20.
  21.     function SPHostWebCreateListErrorHandler(sender, args)
  22.     {
  23.         alert('Request failed. ' + args.get_message() + '\n' + args.get_stackTrace());
  24.     }
  25. }

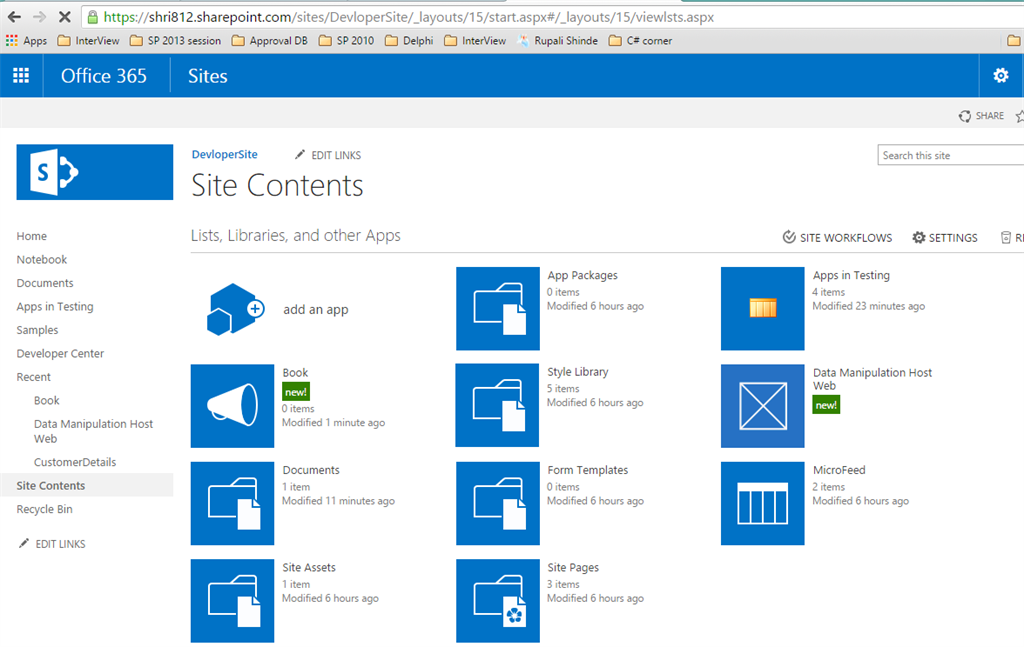

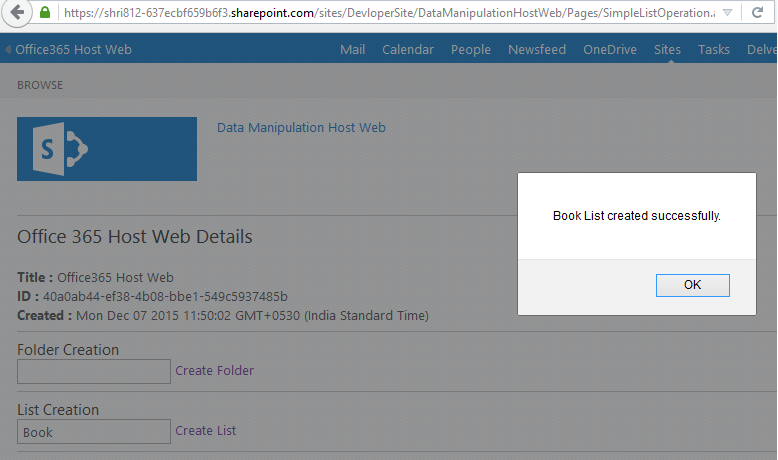

Output


Finally list is created at host web.


Step 11: Delete list at host web using the following code,
  1. DeleteList = function()
  2. {
  3.     // debugger
  4.     var DeleteListNameVal = $(txtDeletionListName).val();
  5.     oList = web.get_lists().getByTitle(DeleteListNameVal);
  6.     oList.deleteObject();
  7.     clientContext.executeQueryAsync(Function.createDelegate(this, DeleteListHostWebSucceeded), Function.createDelegate(this, DeleteListHostWebFailed));
  8.
  9.     function DeleteListHostWebSucceeded()
  10.     {
  11.         alert("Delete List done Successfully ...");
  12.     }
  13.
  14.     function DeleteListHostWebFailed(sender, args)
  15.     {
  16.         alert('Request failed. ' + args.get_message() + '\n StackTrace : ' + args.get_stackTrace());
  17.     }
  18. }

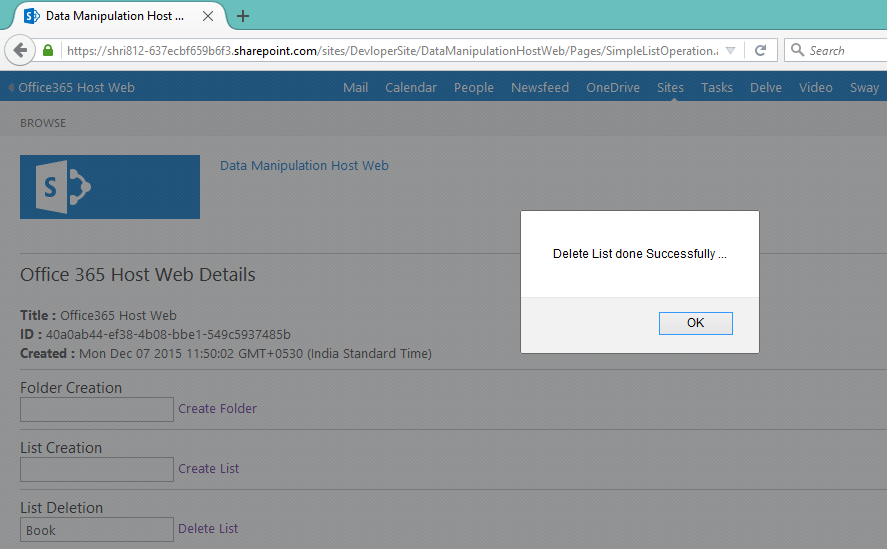

Output

Full Source Code
  1. var clientContext;
  2. var factory;
  3. var appContextSite;
  4. var web;
  5. var collList;
  6. var itemCreateInfo;
  7. var param1, param2, param3;
  8. var oList, targetList, listFields, oListItem, oField, itemId;
  9. var ExsitingListNameVal;
  10. window.Wingtip = window.Wingtip ||
  11. {}
  12. Wingtip.JSOMHostWebCollections = function()
  13. {
  14.     LoadlayoutsJS = function()
  15.     {
  16.         //debugger
  17.         hostweburl = decodeURIComponent(Wingtip.JSOMHostWebCollections.QSParameter("SPHostUrl"));
  18.         appweburl = decodeURIComponent(Wingtip.JSOMHostWebCollections.QSParameter("SPAppWebUrl"));
  19.         var Sessionhostweburl = sessionStorage.getItem("hostweburl");
  20.         var Sessionappweburl = sessionStorage.getItem("appweburl");
  21.         if (Sessionhostweburl == null || Sessionappweburl == null)
  22.         {
  23.             sessionStorage.setItem("hostweburl", hostweburl);
  24.             sessionStorage.setItem("appweburl", appweburl);
  25.         }
  26.         if (hostweburl == null || appweburl == null || hostweburl == 'undefined' || appweburl == 'undefined')
  27.         {
  28.             hostweburl = sessionStorage.getItem("hostweburl");
  29.             appweburl = sessionStorage.getItem("appweburl");
  30.         }
  31.         var scriptbase = hostweburl + "/_layouts/15/";
  32.         $.getScript(scriptbase + "SP.Runtime.js", function()
  33.         {
  34.             $.getScript(scriptbase + "SP.js", function()
  35.             {
  36.                 $.getScript(scriptbase + "SP.RequestExecutor.js", Wingtip.JSOMHostWebCollections.HWLoadClientContext);
  37.             });
  38.         });
  39.     }
  40.     getQueryStringParameter = function(paramToRetrieve)
  41.     {
  42.         //debugger
  43.         try
  44.         {
  45.             var params = document.URL.split("?")[1].split("&");
  46.             var strParams = "";
  47.             for (var i = 0; i < params.length; i = i + 1)
  48.             {
  49.                 var singleParam = params[i].split("=");
  50.                 if (singleParam[0] == paramToRetrieve) return singleParam[1];
  51.             }
  52.         }
  53.         catch (ex)
  54.         {}
  55.     }
  56.     LoadClientContext = function()
  57.     {
  58.         //debugger
  59.         clientContext = new SP.ClientContext(appweburl);
  60.         factory = new SP.ProxyWebRequestExecutorFactory(appweburl);
  61.         clientContext.set_webRequestExecutorFactory(factory);
  62.         appContextSite = new SP.AppContextSite(clientContext, hostweburl);
  63.         web = appContextSite.get_web();
  64.         clientContext.load(web);
  65.         Wingtip.JSOMHostWebCollections.HWGetTitle();
  66.         //Wingtip.JSOMHostWebCollections.HWCreateFolder("Rupali");
  67.         //Wingtip.JSOMHostWebCollections.HWCreateList("Book");
  68.         //Wingtip.JSOMHostWebCollections.HWDeleteList("Book");
  69.     }
  70.     GetTitle = function()
  71.     {
  72.         //debugger
  73.         web.set_title('Office365 Host Web');
  74.         web.update();
  75.         clientContext.load(web);
  76.         clientContext.executeQueryAsync(Function.createDelegate(this, SPHostWebDetailsSuccessHandler), Function.createDelegate(this, SPHostWebDetailsErrorHandler));
  77.
  78.         function SPHostWebDetailsSuccessHandler()
  79.         {
  80.             var Result = "";
  81.             Result = Result + "<b>Title :</b> " + web.get_title() + "<br/>";
  82.             Result = Result + "<b> ID :</b> " + web.get_id() + "</br>";
  83.             Result = Result + "<b> Created :</b> " + web.get_created() + "</br>";
  84.             document.getElementById("HostwebDetails").innerHTML = Result;
  85.         }
  86.
  87.         function SPHostWebDetailsErrorHandler(data, errorCode, errorMessage)
  88.         {
  89.             alert("fail" + errorMessage);
  90.             document.getElementById("HostwebTitle").innerText = "Could not complete cross-domain call: " + errorMessage;
  91.         }
  92.     }
  93.     CreateFolder = function()
  94.     {
  95.         //debugger
  96.         oList = web.get_lists().getByTitle("Documents");
  97.         itemCreateInfo = new SP.ListItemCreationInformation();
  98.         itemCreateInfo.set_underlyingObjectType(SP.FileSystemObjectType.folder);
  99.         var FolderNameVal = $(txtFolderName).val();
  100.         console.log(FolderNameVal);
  101.         itemCreateInfo.set_leafName(FolderNameVal);
  102.         //itemCreateInfo.set_leafName("My new folder!!!");
  103.         oListItem = oList.addItem(itemCreateInfo);
  104.         oListItem.update();
  105.         clientContext.load(oListItem);
  106.         clientContext.executeQueryAsync(Function.createDelegate(this, CreateFolderSuccessHandler), Function.createDelegate(this, CreateFolderErrorHandler));
  107.
  108.         function CreateFolderSuccessHandler()
  109.         {
  110.             alert("Go to Site Content ->Documents to see your new folder.");
  111.         }
  112.
  113.         function CreateFolderErrorHandler()
  114.         {
  115.             alert("Request failed: " + arguments[1].get_message());
  116.         }
  117.     }
  118.     CreateList = function()
  119.     {
  120.         //debugger
  121.         var listCreationInfo = new SP.ListCreationInformation();
  122.         var ListNameVal = $(txtListName).val();
  123.         //var ListNameVal = ListName;
  124.         listCreationInfo.set_title(ListNameVal);
  125.         listCreationInfo.set_templateType(SP.ListTemplateType.announcements);
  126.         oList = web.get_lists().add(listCreationInfo);
  127.         clientContext.load(oList);
  128.         oList.set_description(ListNameVal + 'created via JSOM Model ...');
  129.         oList.update();
  130.         clientContext.executeQueryAsync(Function.createDelegate(this, SPHostWebCreateListSuccessHandler), Function.createDelegate(this, SPHostWebCreateListErrorHandler));
  131.
  132.         function SPHostWebCreateListSuccessHandler()
  133.         {
  134.             var result = oList.get_title() + ' List created successfully.';
  135.             alert(result);
  136.         }
  137.
  138.         function SPHostWebCreateListErrorHandler(sender, args)
  139.         {
  140.             alert('Request failed. ' + args.get_message() + '\n' + args.get_stackTrace());
  141.         }
  142.     }
  143.     DeleteList = function()
  144.     {
  145.         // debugger
  146.         var DeleteListNameVal = $(txtDeletionListName).val();
  147.         oList = web.get_lists().getByTitle(DeleteListNameVal);
  148.         oList.deleteObject();
  149.         clientContext.executeQueryAsync(Function.createDelegate(this, DeleteListHostWebSucceeded), Function.createDelegate(this, DeleteListHostWebFailed));
  150.
  151.         function DeleteListHostWebSucceeded()
  152.         {
  153.             alert("Delete List done Successfully ...");
  154.         }
  155.
  156.         function DeleteListHostWebFailed(sender, args)
  157.         {
  158.             alert('Request failed. ' + args.get_message() + '\n StackTrace : ' + args.get_stackTrace());
  159.         }
  160.     }
  161.
  162.     function Empty()
  163.     {
  164.         console('Hello');
  165.     }
  166.     //public interface
  167.     return {
  168.         HWLoadlayoutsJS: LoadlayoutsJS,
  169.         QSParameter: getQueryStringParameter,
  170.         HWLoadClientContext: LoadClientContext,
  171.         HWGetTitle: GetTitle,
  172.         HWCreateFolder: CreateFolder,
  173.         HWCreateList: CreateList,
  174.         HWDeleteList: DeleteList,
  175.         HWEmpty: Empty
  176.     }
  177. }();
  178. $(document).ready(function()
  179. {
  180.     //Load Out Of Box JS file for List Operation
  181.     Wingtip.JSOMHostWebCollections.HWLoadlayoutsJS();
  182. });

  • JavaScript Library
  • Office 365
  • SharePoint
  • SharePoint Hosted App doing Data Manipulation
Up Next
    Ebook Download
    View all
    C# Corner Ebook
    Getting Started with Managed Metadata Service in SharePoint 2010
    Read by 2.9k people
    Download Now!
    Learn
    View all
    Learn Image
    Oracle Jump Start
    Leaderboard
    View all
    Sarthak Varshney

    Sarthak Varshney
    +0
    Deepak Tewatia

    Deepak Tewatia
    +0
    View all
    Yesterday's leader
    Sarthak Varshney
    Sarthak Varshney
    Pune (India)
    70
    102
    1.7k
    100
    Member of the month
    Rinki
    Rinki
    Chennai (India)
    15
    5.4k
    14.8k
    50
    Speaker of the month
    Shivam Payasi
    Shivam Payasi
    C#, .NET
    Chitrakoot (India)
    8
    21.1k
    19.7k
    10
    Upcoming events
    View all
    • The Cloud Show with Magnus Mårtensson ft. Oscar Garcia Colon - Ep: 45
    • Bhubaneswar Chapter
    • Building Websites with Microsoft Power Pages: Exploring WebPage, WebTemplate, and Page Templates - Microsoft Business Application Ep. 25
    Suggested for you
    View all
    Nitin Pandit Nitin Pandit
    Follow
    Rathrola Prem Kumar Rathrola Prem Kumar
    Follow
    Allen James Allen James
    Follow
    Manish Tewatia Manish Tewatia
    Follow
    Rinki Rinki
    Follow

    CSharpBot

    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    Sign-Up Now

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    Sign-Up Now

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    Sign-Up Now

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
    About Us Contact Us Privacy Policy Terms Media Kit Partners C# Tutorials Consultants Ideas Report A Bug FAQs Certifications Sitemap Stories CSharp TV DB Talks Let's React Web3 Universe Interviews.help Jumpstart Blockchain Build with JavaScript

    ©2024 C# Corner.

    All contents are copyright of their authors.
