Combo Box With Check Boxes in WPF DataGrid

Introduction

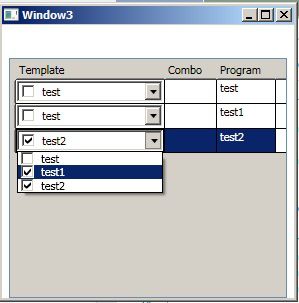

Recently I have worked with WPF requirements to show a Combo Box with check boxes as shown in the following image. This article shows how to do it.

Procedure

To work with a Data Grid in WPF currently I am using the WPF Toolkit available in the following link.

https://wpftoolkit.codeplex.com/wikipage?title=DataGrid

In the XAML page we need to add the Data Grid code as specified below.

<toolkit:DataGrid Name="resultGrid" Loaded="resultGrid_Loaded" ItemsSource="{Binding Programs}" CanUserAddRows="False"
CanUserDeleteRows="False" CanUserReorderColumns="False" Margin="7,33,7,0"
CanUserResizeRows="False" AutoGenerateColumns="False"
AreRowDetailsFrozen="True" IsReadOnly="False" SelectionMode="Extended"
CanUserSortColumns="False">
<toolkit:DataGrid.Columns>
<toolkit:DataGridTemplateColumn Header="Template">
<toolkit:DataGridTemplateColumn.CellTemplate>
<DataTemplate>
<ComboBox Loaded="ComboBox_Loaded">
<ComboBox.ItemTemplate>
<DataTemplate>
<StackPanel Orientation="Horizontal">
<CheckBox IsChecked="{Binding IsChecked}" Width="20" />
<TextBlock Text="{Binding Program}" Width="100" />
</StackPanel>
</DataTemplate>
</ComboBox.ItemTemplate>
</ComboBox>
</DataTemplate>
</toolkit:DataGridTemplateColumn.CellTemplate>
</toolkit:DataGridTemplateColumn>
<toolkit:DataGridComboBoxColumn Header="Combo" x:Name="Combo" SelectedItemBinding="{Binding Program}"/>
<toolkit:DataGridTextColumn Header="Program" Binding="{Binding Program}"/>
</toolkit:DataGrid.Columns>
</toolkit:DataGrid>

In the code above we need to add a “DataGridTemplateColumn” and inside that we can create our own controls like check box and text block.

We have added two “Load” events for Data Grid and Combo box.

private void ComboBox_Loaded(object sender, RoutedEventArgs e)
{
ObservableCollection<Programs> data = new ObservableCollection<Programs>();
data.Add(new Programs("test", false));
data.Add(new Programs("test1", false));
data.Add(new Programs("test2", true));

// ... Get the ComboBox reference.
var comboBox = sender as ComboBox;

// ... Assign the ItemsSource to the List.
comboBox.ItemsSource = data;

// ... Make the first item selected.
comboBox.SelectedIndex = 0;
}

private void resultGrid_Loaded(object sender, RoutedEventArgs e)
{
ObservableCollection<Programs> programs = new ObservableCollection<Programs>();
programs.Add(new Programs("test", false));
programs.Add(new Programs("test1", false));
programs.Add(new Programs("test2", true));

//var grid = sender as DataGrid;
resultGrid.ItemsSource = programs;

Combo.ItemsSource = programs;

}

And we have the model class as in the following:

public class Programs
{
public Programs(string Program, bool IsChecked)
{
this.Program = Program;
this.IsChecked = IsChecked;
}
public string Program { get; set; }
public bool IsChecked { get; set; }
}

Finally we can embed check boxes within the combo box in the DataGrid.
