Introduction
In this article we use the ListView control in WinJS. Here we bind the name and some images of the actors in a ListView. First of all we create a data source and item template and bind a data source for elements which are name and photo.
So, we have to follow the steps given below.

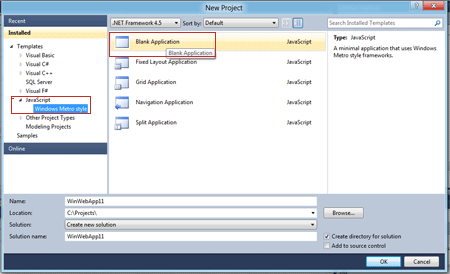

Step 1 : First of all you have to create a new Metro Style Application; let us see the description with images of how to create it.
- Open Visual Studio 2011
- File>New>Project
- Choose Template>JavaScript> Blank Application
- Rename this Application
![home.gif]()
Step 2 : In the Solution Explorer there are two files that we will primarily work with, default.js and default.html.
![solution-explorer.gif]()
Step 3 : Open the default.html page and add a ListView. The values of the data should be set to the id of the div. In the following code we have to create a ListView.
Code :
<div id="ActorListView"
data-win-control="WinJS.UI.ListView" style="height:185px;"
data-win-options="{itemRenderer:Actoritemtemplate,layout:{type:WinJS.UI.GridLayout,maxRows:1}}" >
</div>
Step 4 : Here we bind the data source to the ListView. By fetching the ListView div and set the data source values by the created data source.
Code :
var ActorList = document.getElementById('ActorListView').winControl;
ActorList.dataSource = ActorData;
Step 5 : Putting it all together, the js file will have the code as shown below.
Code : Default.js
(function () {
'use strict';
// Uncomment the following line to enable first chance exceptions.
// Debug.enableFirstChanceException(true);
var ActorData = [
{ Name: 'Sharukh Khan', Photo: 'images/ST.jpg' },
{ Name: 'Salman Khan', Photo: 'images/SG.jpg' },
{ Name: 'Amir khan', Photo: 'images/VS.jpg' },
{ Name: 'Sharukh Khanr', Photo: 'images/ST.jpg' },
{ Name: 'Salman Khan', Photo: 'images/SG.jpg' },
{ Name: 'Amir khan', Photo: 'images/VS.jpg' }
];
WinJS.Application.onmainwindowactivated = function (e) {
if (e.detail.kind === Windows.ApplicationModel.Activation.ActivationKind.launch) {
WinJS.UI.processAll().then(function () {
var ActorList = document.getElementById('ActorListView').winControl;
ActorList.dataSource = ActorData;
ActorList.addEventListener('iteminvoked', SelectItem);
});
}
}
function SelectItem(e) {
var selectedItem = ActorData[e.detail.itemIndex];
var selecteActor = document.getElementById('selectedActor');
selecteActor.innerText = selectedItem.Name;
var selecteActorImg = document.getElementById('selectedActorImg');
selecteActorImg.src = selectedItem.Photo;
}
WinJS.Application.start();
})();
Step 6 : In the default.html page the code looks as given below.
Code :
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>DataBindingActors</title>
<!-- WinJS references -->
<link rel="stylesheet" href="/winjs/css/ui-dark.css" />
<script src="/winjs/js/base.js"></script>
<script src="/winjs/js/ui.js"></script>
<script src="/winjs/js/binding.js"></script>
<script src="/winjs/js/controls.js"></script>
<script src="/winjs/js/animations.js"></script>
<script src="/winjs/js/uicollections.js"></script>
<script src="/winjs/js/wwaapp.js"></script>
<!-- DataBindingActor references -->
<link rel="stylesheet" href="/css/default.css" />
<script src="/js/default.js"></script>
</head>
<body>
<h2>Actors</h2>
<br />
<div id="Actoritemtemplate"
data-win-control="WinJS.Binding.Template">
<div data-win-bind="innerText:Name"
style="height:20px;">
</div>
<img data-win-bind="src:Photo"
style="width:200px;height:150px;" />
</div>
<div id="ActorListView"
data-win-control="WinJS.UI.ListView" style="height:185px;"
data-win-options="{itemRenderer:Actoritemtemplate,layout:{type:WinJS.UI.GridLayout,maxRows:1}}" >
</div>
<br />
<div id="ouputDiv" >
<span> </span>
<span id="selectedActor" style="height:20px;" ></span> <br />
<img id="selectedActorImg" style="width:200px;height:150px;"/>
</div>
</body>
</html>

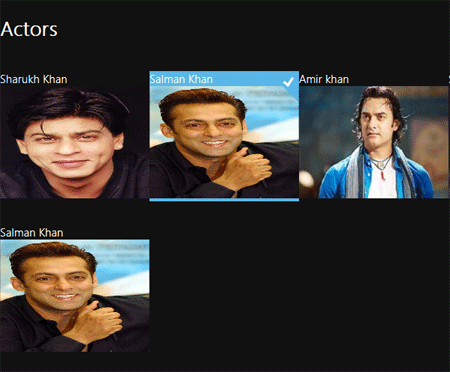

Step 7 : After applying this code, run this application and then we get the following output.
![output.gif]()
