Working with Accelerometer in PhoneGap


Introduction

In this article we are going to understand the working of the accelerometer with Phone Gap. An accelerometer is a device that measures proper acceleration, also called the four-acceleration. You need to have Phone Gap with your Visual Studio 2010. If you are very new to Phone Gap then you need to follow the previous article

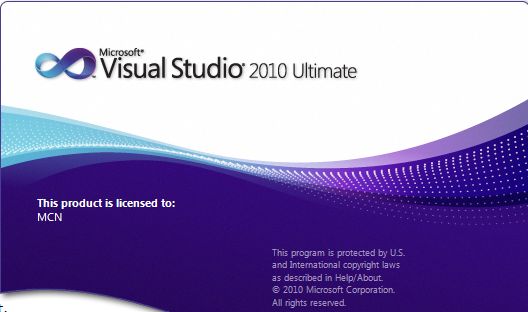

Step 1 : Open Visual Studio 2010

pg 2.jpg

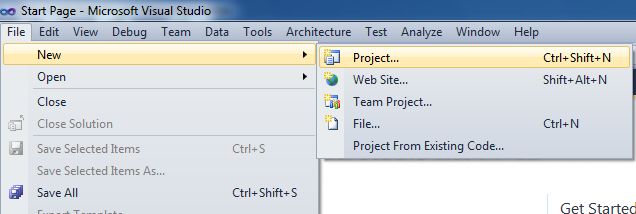

Step 2 : Open File menu -select new - Choose Project then.

vs new.jpg

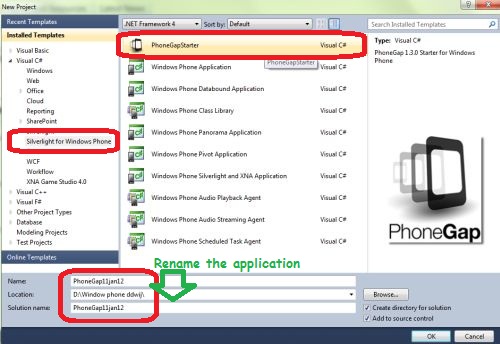

Step 3 : Select the new phone application and rename it according to your requirement. We're going to see here how to get the values sent back by the accelerometer (of the emulator or the real device) in a very simple way.


pg 4.jpg

Step 4 : We're going to see here how to get the values sent back by the accelerometer (of the emulator or the real device) in a very simple way. Open the index.html page and add 3 div tags for x-coordinate, y-coordinate and z-coordinates respectively.

Scripting for Accelerometer

Replace the HTML in your index.html with this code.

<!DOCTYPE html>
<html>
  <head>
    <meta name="viewport" content="width=device-width, height=device-height, initial-scale=1.0, maximum-scale=1.0, user-scalable=no;" />
    <meta http-equiv="Content-type" content="text/html; charset=utf-8"/>
    <title>PhoneGap WP7</title>
         <link rel="stylesheet" href="master.css" type="text/css" media="screen" title="no title" charset="utf-8"/>
      <script type="text/javascript" charset="utf-8" src="phonegap-1.3.0.js"></script>
      <script type="text/javascript">
          document.addEventListener("deviceready", onDeviceReady, false);
          // variable to output the current x, y & z values of the accelerometer
          var valueX;
          var valueY;
          var valueZ;
          // when PhoneGap tells us everything is ready, start watching the accelerometer
          function onDeviceReady() {
              valueX = document.getElementById("valueX");
              valueY = document.getElementById("valueY");
              valueZ = document.getElementById("valueZ");
              startWatch();
          }
          // start monitoring the state of the accelerometer
          function startWatch() {
              var options = { frequency: 500 };
              navigator.accelerometer.watchAcceleration(onSuccess, onError, options);
          }
          // if the z-axis has moved outside of our sensitivity threshold, move the aardvark's head in the appropriate direction
          function onSuccess(acceleration) {
              valueX.innerHTML = "X Cordinate: " + acceleration.x;
              valueY.innerHTML = "Y Cordinate: " + acceleration.y;
              valueZ.innerHTML = "Z Cordinate: " + acceleration.z;
          }

          function onError() {
              alert('onError!');
          }
</script>
 </head>
 <body>
    <h1>Accelerometer with Phone Gap</h1>
    <div id="valueX"></div>
    <div id="valueY"></div>
    <div id="valueZ"></div>
</
body
>
</html>

Step 5 : Code for the Master.css file:

body
  {
    background:#000 none repeat scroll 0 0;
    color:#ccc;
    font-family:Helvetica, Verdana, Geneva, sans-serif;
    margin:0;
    border-top:1px solid #393939;
  }
  h1
  {
     text-align:center;
     font-size:18px;
     color:#FFC312; /* Mango me! */
  }

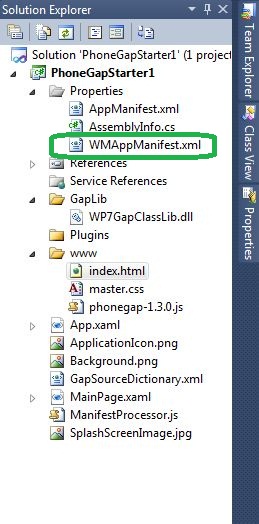

Step 6 : You need the change in WMAppManifest.xml because you need to specify in the project's properties that you want to request access to the device's sensor. The capabilities needed for the proper execution of our application is listed inside the WMAppManifest.xml file available in the Properties directory.

Double-click on the WMAappManifest.xml and replace the code.



<?xml version="1.0" encoding="utf-8"?>
<Deployment xmlns="http://schemas.microsoft.com/windowsphone/2009/deployment" AppPlatformVersion="7.1">
  <App xmlns="" ProductID="{295d4cb6-76ba-4fed-baa4-2d5f4208d4c4}" Title="PhoneGapStarter1"
       RuntimeType="Silverlight" Version="1.0.0.0" Genre="apps.normal"
       Author="PhoneGapStarter1 author"
       Description="PhoneGap for Windows Phone 7"
       Publisher="PhoneGapStarter1">
    <IconPath IsRelative="true" IsResource="false">ApplicationIcon.png</IconPath>
    <Capabilities>
      <
Capability Name="ID_CAP_IDENTITY_DEVICE" />
      <Capability Name="ID_CAP_IDENTITY_USER" />
      <Capability Name="ID_CAP_LOCATION" />
      <Capability Name="ID_CAP_NETWORKING" />
      <Capability Name="ID_CAP_WEBBROWSERCOMPONENT" />
      <Capability Name="ID_CAP_SENSORS" />
    </Capabilities>
    <
Tasks>
      <
DefaultTask Name="_default" NavigationPage="MainPage.xaml" />
    </Tasks>
    <
Tokens>
      <
PrimaryToken TokenID="PhoneGapStarter1Token" TaskName="_default">
        <TemplateType5>
          <
BackgroundImageURI IsRelative="true" IsResource="false">Background.png</BackgroundImageURI>
          <Count>0</Count>
          <Title>PhoneGapStarter1</Title>
        </TemplateType5>
      </
PrimaryToken>
    </
Tokens>
  </
App>
</
Deployment>

Step 6 : Output press F5

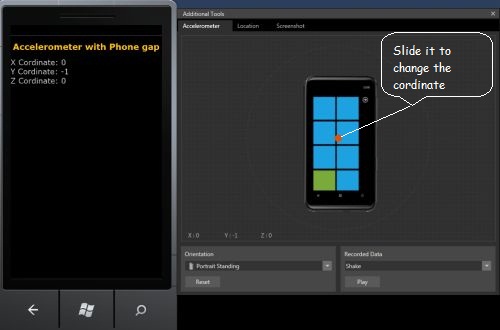

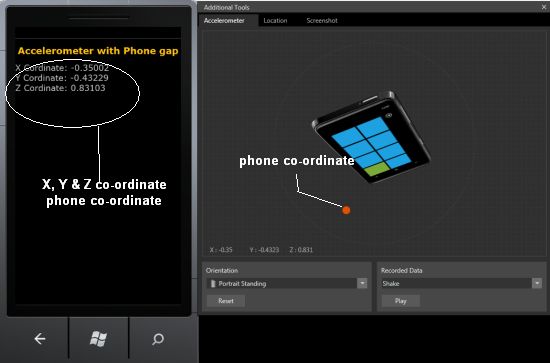

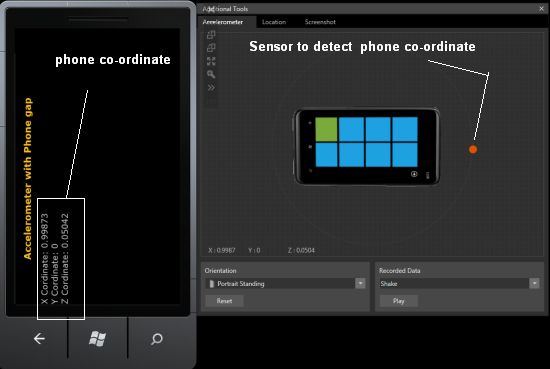

In this output when you change the slider you change the position and value of the x, y & z coordinates.

acc 1.jpg

acce 3.jpg

acc 4.jpg

Thanks !
