We will learn here how to bind controls with data without a database and how to handle total sum of a column on controls.

Also read:

Binding Data Using ListView and GridView in ASP.NET without Database

Initial Chamber

Step 1

Open your Visual Studio and create an empty website then provide a suitable name such as GridViewColumnAdd.

Step 2

In Solution Explorer you will get your empty website, then add some web forms.

GridViewColumnAdd (your empty website). Right-click and select Add New Item Web Form. Name it GridViewColumnAdd.aspx.

Design Chamber

Step 3

Open the GridViewColumnAdd.aspx file and write some code for the design of the application.

Choose the control from the toolbox and provide your design page like:

<form id="form1" runat="server">
<div>
<asp:GridView ID="GridView1" runat="server" AlternatingRowStyle-BackColor="Wheat" ShowFooter="true">
</asp:GridView>
</div>
</form>

Here I've enabled the "ShowFooter" property of GridView to show the total sum of a column in the footer.

Here I've designed the GridView Control and used some property as in the following.

Design Page

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="GridViewColumnAdd.aspx.cs" Inherits="GridViewColumnAdd" %>
<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
</head>
<body>
<form id="form1" runat="server">
<div>
<asp:GridView ID="GridView1" runat="server" AlternatingRowStyle-BackColor="Wheat" ShowFooter="true">
</asp:GridView>
</div>
</form>
</body>
</html>

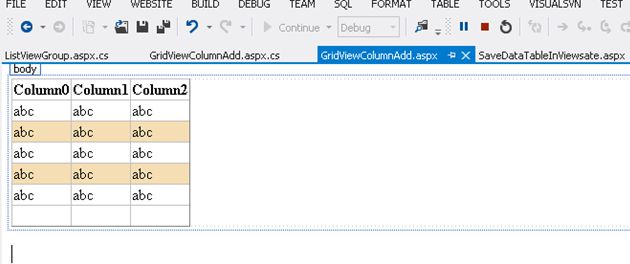

Your design looks as in the following:

design

Figure 1

Code Chamber

Step 4

In the code chamber we will write some code so that our application works.

Add the following namespaces to the namespace section of your code behind page:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data;
using System.Data.SqlClient;

Now your page looks as in the following.

Code behind Page

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data;
using System.Data.SqlClient;
public partial class GridViewColumnAdd : System.Web.UI.Page
{
protected void Page_Load(object sender, EventArgs e)
{
if (!IsPostBack) {
BindGridviewFooter();
}
}
protected void BindGridviewFooter()
{
//Creating a dataset
DataSet ds = new DataSet();
DataTable dt;
DataRow dr;
DataColumn pName;
DataColumn pQty;
DataColumn pPrice;
DataColumn pCategory;
//create an object of datatable
dt = new DataTable();
//creating column of datatable with datatype
pName = new DataColumn("Product_Name", Type.GetType("System.String"));
pQty = new DataColumn("Quantity", Type.GetType("System.Int32"));
pPrice = new DataColumn("Price", Type.GetType("System.Int32"));
pCategory = new DataColumn("Category", Type.GetType("System.String"));
//bind data table columns in datatable
dt.Columns.Add(pName);
dt.Columns.Add(pQty);
dt.Columns.Add(pPrice);
dt.Columns.Add(pCategory);
//creating data row and assiging the value to columns of datatable
dr = dt.NewRow();
dr["Product_Name"] = "Product 1";
dr["Quantity"] = 2;
dr["Price"] = 200;
dr["Category"] = "Cat1";
dt.Rows.Add(dr);
dr = dt.NewRow();
dr["Product_Name"] = "Product 2";
dr["Quantity"] = 5;
dr["Price"] = 480;
dr["Category"] = "Cat2";
dt.Rows.Add(dr);
dr = dt.NewRow();
dr["Product_Name"] = "Product 3";
dr["Quantity"] = 8;
dr["Price"] = 100;
dr["Category"] = "Cat1";
dt.Rows.Add(dr);
dr = dt.NewRow();
dr["Product_Name"] = "Product 4";
dr["Quantity"] = 2;
dr["Price"] = 500;
dr["Category"] = "Cat2";
dt.Rows.Add(dr);
dr = dt.NewRow();
dr["Product_Name"] = "Product 5";
dr["Quantity"] = 8;
dr["Price"] = 100;
dr["Category"] = "Cat1";
dt.Rows.Add(dr);
dr = dt.NewRow();
dr["Product_Name"] = "Product 6";
dr["Quantity"] = 3;
dr["Price"] = 90;
dr["Category"] = "Cat1";
dt.Rows.Add(dr);
dr = dt.NewRow();
dr["Product_Name"] = "Product 7";
dr["Quantity"] = 18;
dr["Price"] = 1100;
dr["Category"] = "Cat2";
dt.Rows.Add(dr);
ds.Tables.Add(dt);
GridView1.DataSource = ds.Tables[0];
GridView1.DataBind();
//here add code for column total sum and show in footer
int total = 0; ;
GridView1.FooterRow.Cells[0].Text = "Total";
GridView1.FooterRow.Cells[1].Font.Bold = true;
GridView1.FooterRow.Cells[1].HorizontalAlign = HorizontalAlign.Left;
for (int k = 1; k < dt.Columns.Count-1; k++)
{
total = dt.AsEnumerable().Sum(row => row.Field<Int32>(dt.Columns[k].ToString()));
GridView1.FooterRow.Cells[k].Text = total.ToString();
GridView1.FooterRow.Cells[k].Font.Bold = true;
GridView1.FooterRow.BackColor = System.Drawing.Color.Beige;
}
}
}
