Introduction
In this article we will learn about the canvas element in HTML5 by using an example. The <canvas> element is used to draw graphics, on the fly, via a scripting language like JavaScript.
Create a Canvas
A Canvas drawable region is defined in HTML code with height and width attributes by specifying id, width and height of the <canvas> element.
<canvasid="mygame"width="1500"height="900">
</canvas>
Canvas Drawing
The <canvas> element has no drawing abilities of its own so all drawing must be done inside JavaScript and JavaScript uses the id to find the <canvas> element.
In our example we use two variables, a and b, to define the axis. We create a function Sphere and pass color, radius, da and db as parameters. These parameters are used to create Spheres of different size, color and direction.
<scripttype="text/javascript">
var a = 40;
var b = 50;
function Sphere(color, radius, da, db) {
this.canvas = canvas;
this.context = canvas.getContext('2d');
this.radius = radius;
this.a = a;
this.b = b;
this.da = da;
this.db = db;
this.color = color;
}
Sphere.prototype.form = function () {
this.context.beginPath();
this.context.fillStyle =this.color;
this.context.arc(this.a,this.b, this.radius, 0, Math.PI * 2, false);
this.context.fill();
}
Sphere.prototype.Jump = function () {
if (this.a >= (canvas.width - this.radius) ||this.a <= this.radius) this.da *= -1;
if (this.b >= (canvas.height - this.radius) ||this.b <= this.radius) this.db *= -1;
}
function init() {
canvas = document.getElementById("mygame")
context = canvas.getContext('2d');
// form an arry to store the Sphere info
Spheres = [];
Spheres.push(new Sphere('Olive', 40, 1, 3));
Spheres.push(new Sphere('Silver', 40, 2, 3));
Spheres.push(new Sphere('Lime', 40, 3, 4));
Spheres.push(new Sphere('Grey', 40, 4, 1));
Spheres.push(new Sphere('Pink', 40, 2, 4));
Spheres.push(new Sphere('Navy', 50, 3, 3));
Spheres.push(new Sphere('Teal', 40, 3, 5));
Spheres.push(new Sphere('Blue', 30, 4, 3));
Spheres.push(new Sphere('Black', 30, 3, 9));
Spheres.push(new Sphere('Red', 30, 1, 6));
Spheres.push(new Sphere('Blue', 40, 2, 8));
Spheres.push(new Sphere('Green', 40, 3,8));
Spheres.push(new Sphere('Orange', 30, 4, 4));
Spheres.push(new Sphere('Yellow', 40 , 4, 9));
setInterval(form, 20);
}
function form() {
context.clearRect(0, 0, 2000, 1000);
for (iin Spheres) {
Spheres[i].a += Spheres[i].da;
Spheres[i].b += Spheres[i].db;
Spheres[i].Jump();
Spheres[i].form();
}
}
</script>
Canvas 2D API
The canvas element has no drawing abilities of its own and is a rectangular area where you can control every pixel using scripting. We use canvas.getContext('2d') to create a Sphere shape and getContext("2d") object has methods to draw lines, boxes, circles, and more.
setInterval Method
The setInterval method is used to call a function or evaluate an expression at specified intervals (in milliseconds), like this:
setInterval(code,millisec,lang)
The Complete code look like this:
<!DOCTYPEhtml PUBLIC"-//W3C//DTD XHTML 1.0 Transitional//EN""http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>Canvas Game</title>
<script type="text/javascript">
var a = 40;
var b = 50;
function Sphere(color, radius, da, db) {
this.canvas = canvas;
this.context = canvas.getContext('2d');
this.radius = radius;
this.a = a;
this.b = b;
this.da = da;
this.db = db;
this.color = color;
}
Sphere.prototype.form = function () {
this.context.beginPath();
this.context.fillStyle =this.color;
this.context.arc(this.a,this.b, this.radius, 0, Math.PI * 2, false);
this.context.fill();
}
Sphere.prototype.Jump = function () {
if (this.a >= (canvas.width - this.radius) ||this.a <= this.radius)this.da *= -1;
if (this.b >= (canvas.height - this.radius) ||this.b <= this.radius)this.db *= -1;
}
function init() {
canvas = document.getElementById("mygame")
context = canvas.getContext('2d');
// form an arry to store the Sphere info
Spheres = [];
Spheres.push(new Sphere('Olive', 40, 1, 3));
Spheres.push(new Sphere('Silver', 40, 2, 3));
Spheres.push(new Sphere('Lime', 40, 3, 4));
Spheres.push(new Sphere('Grey', 40, 4, 1));
Spheres.push(new Sphere('Pink', 40, 2, 4));
Spheres.push(new Sphere('Navy', 50, 3, 3));
Spheres.push(new Sphere('Teal', 40, 3, 5));
Spheres.push(new Sphere('Blue', 30, 4, 3));
Spheres.push(new Sphere('Black', 30, 3, 9));
Spheres.push(new Sphere('Red', 30, 1, 6));
Spheres.push(new Sphere('Blue', 40, 2, 8));
Spheres.push(new Sphere('Green', 40, 3,8));
Spheres.push(new Sphere('Orange', 30, 4, 4));
Spheres.push(new Sphere('Yellow', 40 , 4, 9));
setInterval(form, 20);
}
function form() {
context.clearRect(0, 0, 2000, 1000);
for (i in Spheres) {
Spheres[i].a += Spheres[i].da;
Spheres[i].b += Spheres[i].db;
Spheres[i].Jump();
Spheres[i].form();
}
}
</script>
</head>
<body onLoad="init();">
<canvas id="mygame" width="1500"height="900"></canvas>
</body>
</html>

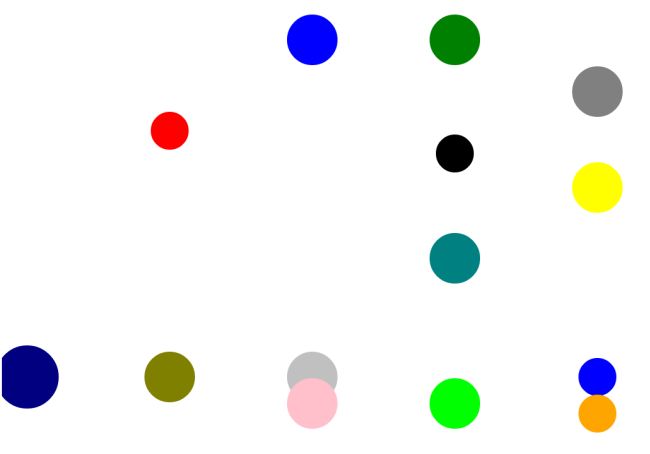

Output
![adiii.jpg]()
