Implement Change Notification Using INotifyPropertyChanged in WPF

INotifyPropertyChanged was introduced in .NET 2.0. This interface has only one member, the PropertyChanged event that will notify listeners when a property of the implementing class is changed.

Demo

  • Open Visual Studio and select WPF application.
  • Open/add one user control or window.
  • Create one normal property, here I have added FirstName as in the following:
    1. private string firstname = string.Empty;
    2.
    3.         public string FristName
    4.         {
    5.             get { return firstname; }
    6.             set
    7.             {
    8.                 firstname = value;
    9.
    10.             }
    11.  }
  • Add the same property into two controls as in the following:
    1. <TextBlock Margin="2">First Name</TextBlock>
    2. <TextBox Margin="2" Grid.Row="0" Grid.Column="1" MinWidth="120" Text="{Binding Path=FristName,ElementName=ThisControl,UpdateSourceTrigger=PropertyChanged}"></TextBox>
    3. <TextBlock Margin="2" Grid.Column="2" Text="{Binding Path=FristName,ElementName=ThisControl,UpdateSourceTrigger=PropertyChanged}"></TextBlock>
  • Run the application, I entered the first name field but not displaying in my TextBlock in the right side.

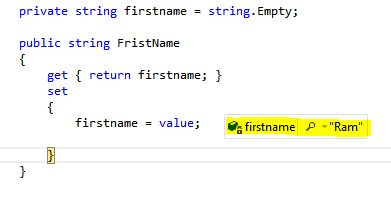

  • But we can see the property change in the preceding picture. But it's not reflecting it in the UI.
  • Implement the INotifyPropertyChanged interface, no change in the XAML.
    1. public partial class INotify : UserControl, INotifyPropertyChanged
    2.
    3.  public INotify()
    4.  {
    5.      InitializeComponent();
    6.  }
    7.
    8.  private string firstname = string.Empty;
    9.
    10.  public string FristName
    11.  {
    12.      get { return firstname; }
    13.      set
    14.      {
    15.          firstname = value;
    16.          OnPropertyChanged("FristName");
    17.      }
    18.  }
    19.
    20.
    21.  #region INotifyPropertyChanged Members
    22.
    23.  public event PropertyChangedEventHandler PropertyChanged;
    24.  public void OnPropertyChanged(string txt)
    25.  {
    26.
    27.      PropertyChangedEventHandler handle = PropertyChanged;
    28.      if (handle != null)
    29.      {
    30.          handle(thisnew PropertyChangedEventArgs(txt));
    31.      }
    32.  }
    33.  #endregion
  • Run the application and see the change.


  • We got the change in the UI.

Conclusion

The INotifyPropertyChanged interface will notify the source of changes to the target.
