How to Send an Email With Image in C#

Introduction

This article describes how to send an email with image in C#. For sending the email, you need to configure the email services on server.

Note: For more info about configuration read how to configure mail server (http://technet.microsoft.com/en-us/library/cc780996%28v=ws.10%29.aspx).

To explain this article, I will use the following procedure after configuring the server:

• Create a new website and add a page into it.
• Add 3 textboxes into the page for receiver Email-ID, subject of Email and message of Email and a button for sending mail.
• Write the some code on ".cs" file to send the mail with some Text and an Image at a "button click" event.

The following procedure is the details of the preceding steps.

Step 1

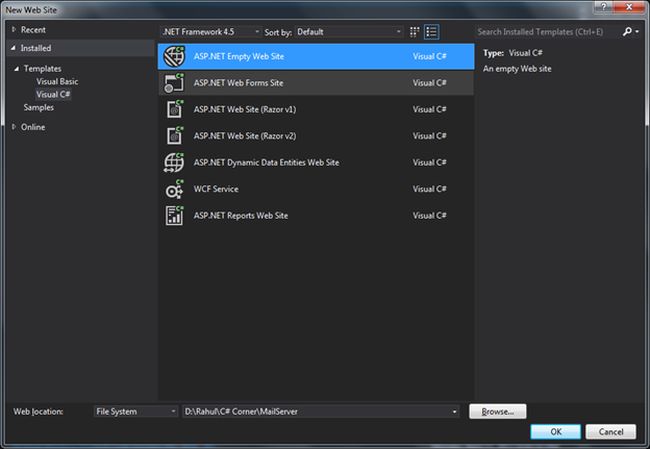

Create a new empty Website named "MailServer".



Step 2

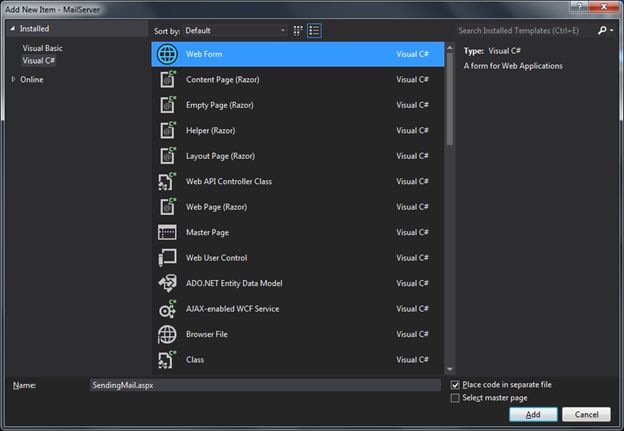

• Add a new Page named "SendingMail.aspx".

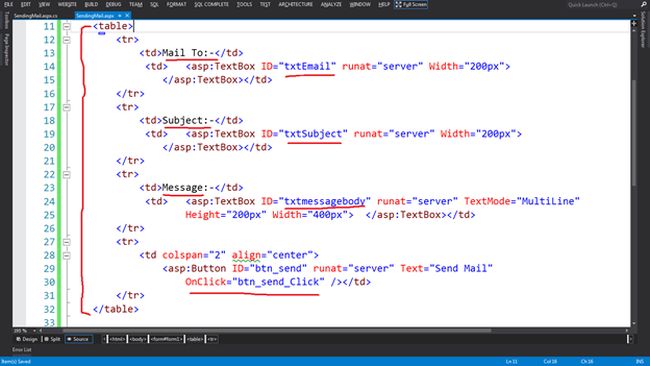

• Add a Button with Onclick event (for sending the email) on the page.


  <table>
              <tr>
                  <td>Mail To:-</td>
                  <td>
                      <asp:TextBox ID="txtEmail" runat="server" Width="200px">
                      </asp:TextBox></td>
              </tr>
              <tr>
                  <td>Subject:-</td>
                  <td>
                      <asp:TextBox ID="txtSubject" runat="server" Width="200px">
                      </asp:TextBox></td>
              </tr>
              <tr>
                  <td>Message:-</td>
                  <td>
                      <asp:TextBox ID="txtmessagebody" runat="server" TextMode="MultiLine" Height="200px" Width="400px">
                      </asp:TextBox></td>
              </tr>
              <tr>
                  <td colspan="2" align="center">
                      <asp:Button ID="btn_send" runat="server" Text="Send Mail"
                          OnClick="btn_send_Click" /></td>
              </tr>
          </table>

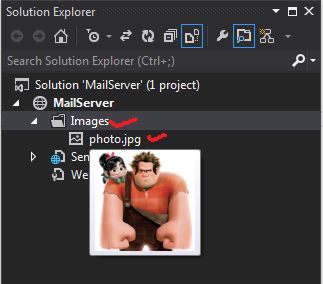

• Add an image named "photo.jpg" into the folder named "Images".




• Add the 4 namespaces at the top of the ".cs" file.




  using System.Net.Mail;
  using System.IO;
  using System.Text;
  using System.Net.Mime;

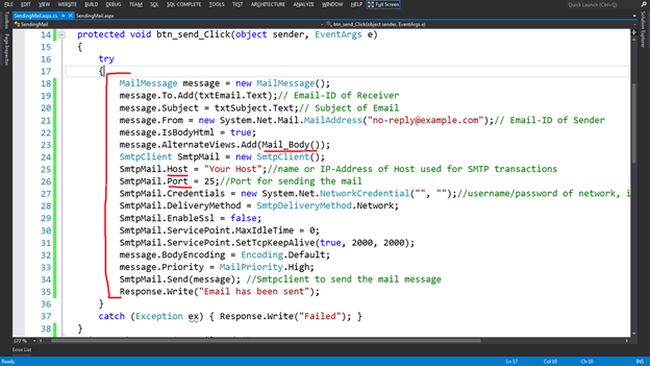

• Write the following code to send the email on the click event of the button.

     protected void btn_send_Click(object sender, EventArgs e)
      {
          try
          {
              MailMessage message = new MailMessage();
              message.To.Add(txtEmail.Text);// Email-ID of Receiver
              message.Subject = txtSubject.Text;// Subject of Email
              message.From = new
  System.Net.Mail.MailAddress("[email protected]");// Email-ID of Sender
              message.IsBodyHtml = true;
              message.AlternateViews.Add(Mail_Body());
              SmtpClient SmtpMail = new SmtpClient();
              SmtpMail.Host = "Your Host";//name or IP-Address of Host used for SMTP transactions
              SmtpMail.Port = 25;//Port for sending the mail
              SmtpMail.Credentials = new
  System.Net.NetworkCredential("", "");//username/password of network, if apply
              SmtpMail.DeliveryMethod = SmtpDeliveryMethod.Network;
              SmtpMail.EnableSsl = false;
              SmtpMail.ServicePoint.MaxIdleTime = 0;
              SmtpMail.ServicePoint.SetTcpKeepAlive(true, 2000, 2000);
              message.BodyEncoding = Encoding.Default;
              message.Priority = MailPriority.High;
              SmtpMail.Send(message); //Smtpclient to send the mail message
              Response.Write("Email has been sent");
          }
          catch (Exception ex)
          { Response.Write("Failed"); }
      }

Note: the "SmtpMail.Host" value will be your hosting name or IP Address and the "SmtpMail.Port" will also vary.

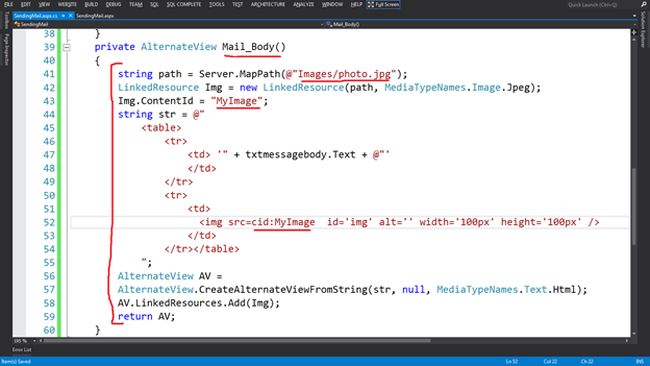

private AlternateView Mail_Body()
    {
        string path = Server.MapPath(@"Images/photo.jpg");
        LinkedResource Img = new LinkedResource(path, MediaTypeNames.Image.Jpeg);
        Img.ContentId = "MyImage";
        string str = @"
            <table>
                <tr>
                    <td> '" + txtmessagebody.Text + @"'
                    </td>
                </tr>
                <tr>
                    <td>
                      <img src=cid:MyImage  id='img' alt='' width='100px' height='100px'/>
                    </td>
                </tr></table>
            ";
        AlternateView AV =
        AlternateView.CreateAlternateViewFromString(str, null, MediaTypeNames.Text.Html);
        AV.LinkedResources.Add(Img);
        return AV;
    }

Step 3

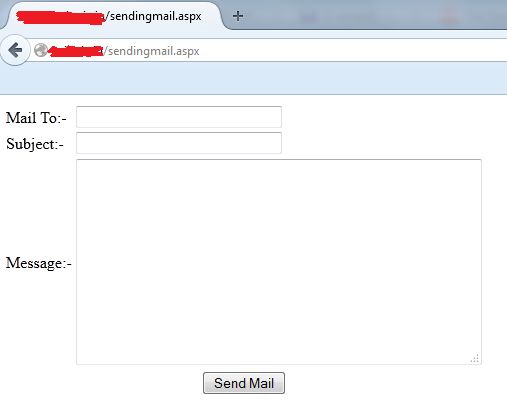

• Run the page on server that will be like:

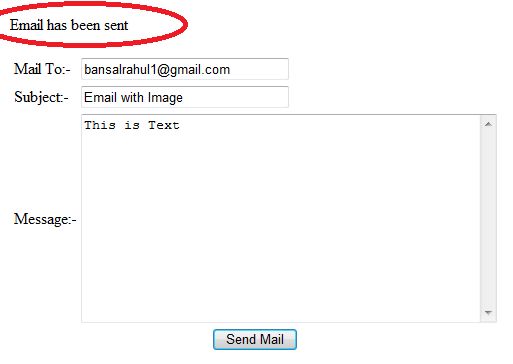

• After filling in the valid Email ID, Subject of Email and message of Email, click on the "Send mail" button to send the email.

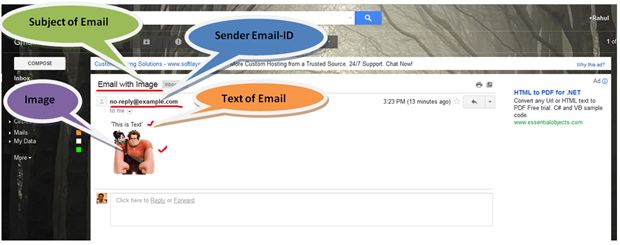

Result: Now you can see that, I (the receiver) got the email.
