Introduction
In this article we are going to upload a document from html input & we can find the magic number of that file & from that number we can find the type of that file.
Magic Number:
- A magic number is a number embedded at or near the beginning of a file that indicates its file format (i.e. the type of file it is).
- This number is not visible to us.
- Every file has a number which represents name of file types which is hexadecimal format.
- In our program we will convert it into bytes and array for checking file type from.

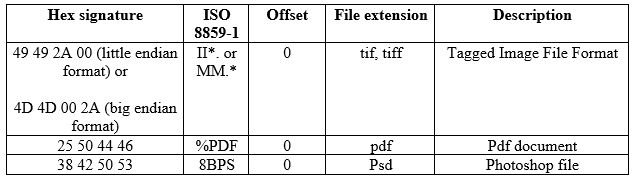

Chart for magic number
![table]()
Note: Refer chart source for file types Wikipedia.

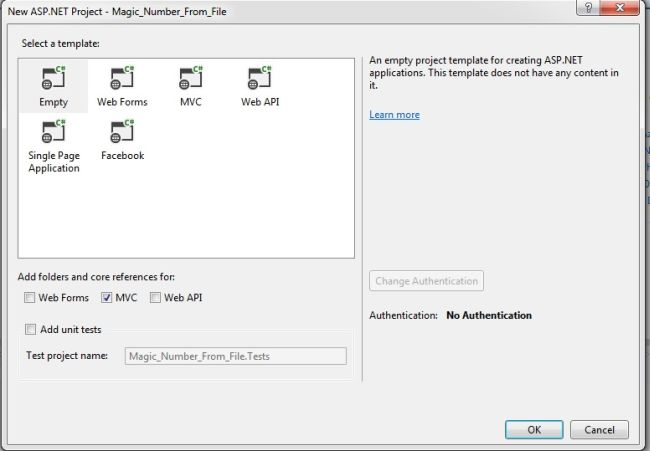

Step 1: Create simple project in Visual Studio 2013.
![Empty template]()

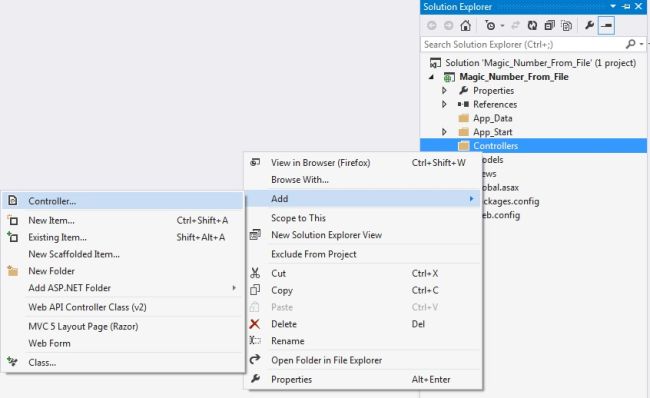

Step 2: Create one controller (right click on controller folder, add, then controller).
![Controller]()

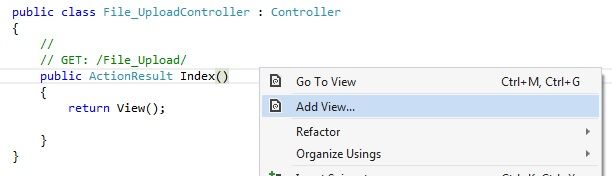

Step 3: Now from Index action create single view (right click on action method => add view) for this action.
![Add view]()
Step 4: Now add code for UI which will represent one input file button, one submit button & some label (to show error, success, file name, etc).
- <h2>Find File Type From Magic Number of File</h2>
- @using (Html.BeginForm("Index",
- "File_Upload",
- FormMethod.Post,
- new { enctype = "multipart/form-data" }))
- {
- <label for="file">Upload file :</label>
- <input type="file" name="file" id="file" /><br>
- <input type="submit" id="submit" /> <br />
- <p>Program_Errors will show here:</p>
- @ViewBag.error
- <p>You have uploaded file type is : @ViewBag.File_Type </p>
- <br />
- @ViewBag.Message
- <br />
- @ViewBag.signature
- <br />
- @ViewBag.out_put
- }
Step 5: Now create another action method with same name as index & pass ttpPostedFileBase object.
In our action we will do the following things:
- Will create one array in which we can store above magic number so that it will help us at the end to compare file type in switch case.
- We need to add namespace using System.IO;
- Create one folder in our solution file as “Docs” to upload a document in this folder (download code for more information).
- Substring to select first 11 characters from hexadecimal array because every file has a different magic number so I chose only three which have same characters.
- [HttpPost]
-
- public ActionResult Index(HttpPostedFileBase file)
- {
-
- string ext = null;
-
- string[] file_hexa_signature = {
- "38-42-50-53", "25-50-44-46", "4D-4D-00-2A", "4D-4D-00-2A"
- };
-
- try
-
- {
-
- ext = System.IO.Path.GetExtension(file.FileName).ToLower();
-
- } catch (Exception ex)
-
- {
-
- ViewBag.error = ex.Message;
-
- }
-
- if (ext == null)
-
- {
-
- ViewBag.error = "please select onlt psd, pdf, tif file types only";
-
- }
-
-
- if (file != null && file.ContentLength > 0)
-
- {
-
- string str = Path.GetFileName(file.FileName);
-
- string path = Path.Combine(Server.MapPath("~/Docs"),
-
- Path.GetFileName(file.FileName));
-
- file.SaveAs(path);
-
- BinaryReader reader = new BinaryReader(new FileStream(Convert.ToString(path), FileMode.Open, FileAccess.Read, FileShare.None));
-
- reader.BaseStream.Position = 0x0;
-
- byte[] data = reader.ReadBytes(0x10);
-
- string data_as_hex = BitConverter.ToString(data);
-
- reader.Close();
-
-
-
- string my = data_as_hex.Substring(0, 11);
-
- string output = null;
-
- switch (my)
-
- {
-
- case "38-42-50-53":
-
- output = " => psd";
-
- break;
-
- case "25-50-44-46":
-
- output = " => pdf";
-
- break;
-
- case "49-49-2A-00":
-
- output = " => tif";
-
- break;
-
- case "4D-4D-00-2A":
-
- output = " => tif";
-
- break;
-
- case "null":
-
- output = "file type is not matches with array";
-
- break;
-
- }
-
- ViewBag.Message = data_as_hex;
-
- ViewBag.signature = my;
-
- ViewBag.out_put = output;
-
- }
-
- return View();
-
- }

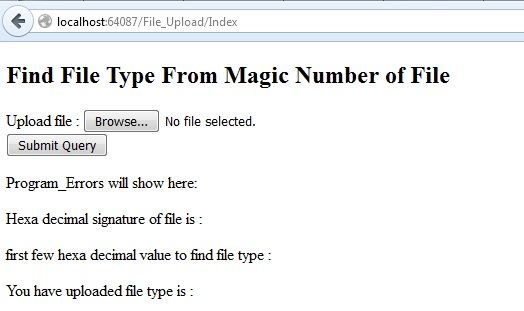

Step 6: Now run our program.
![run our program]()

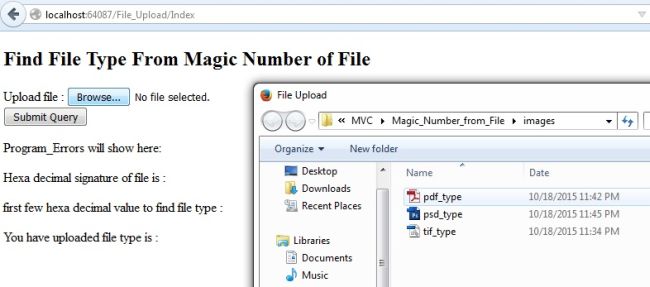

Step 7: Now click on browse button & select file as shown.
![click on browse button]()

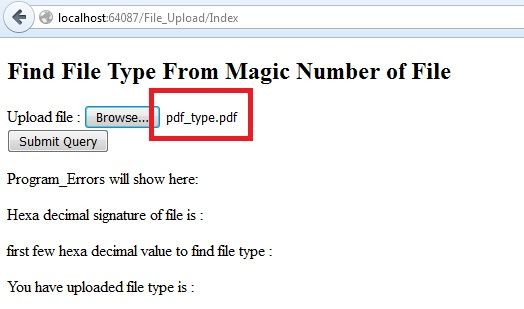

Step 8: After selecting file it will show the file name.
![shows file name]()

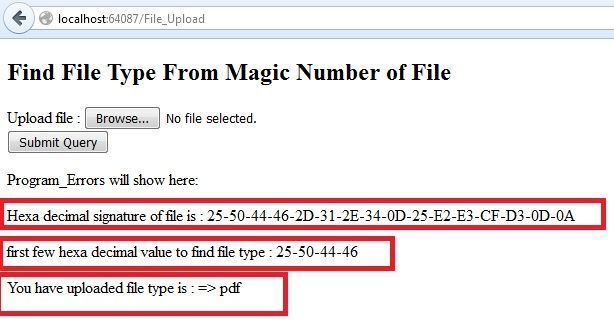

Step 9: Now click on submit query & our output will be like. the following
![click on submit query]()
Summary
This article will help freshers as well as experience candidates.
Hope you enjoyed this complete article. Don’t forget to comment.
