Upload Image To Database and Show in ASP.Net GridView

This article shows how to upload a photo image with other details in an ASP.NET and C# application and display the details in a GridView. This is a simple web application for beginners to learn C#, ASP.NET and .Net controls. This will show how to upload and retrieve an image with other information from a database and display it in a GridView.

The following sample demonstrates step-by-step.

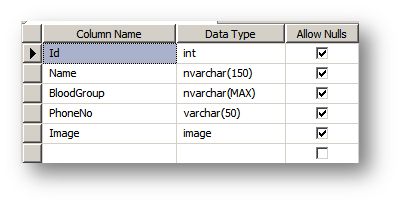

  1. Create a table in a database with the following fields:
    database Table

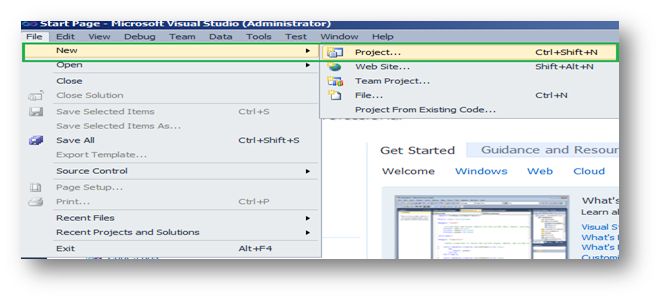

  2. In Visual Studio select "File" -> "New" -> "Project..." as in the following:
    Projects

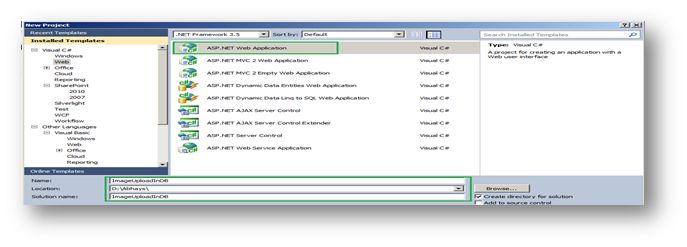

  3. Create a project and an ASP.NET WebApplication named ImageUploadInDB as below:
    WebApplication
  4. Open the default.aspx and modify the code as below:
    1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="ImageUploadInDB._Default" %>
    2.
    3. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
    4. <html xmlns="http://www.w3.org/1999/xhtml">
    5. <head runat="server">
    6.     <title></title>
    7. </head>
    8. <body>
    9.     <form id="form1" runat="server">
    10.     <div>
    11.         <table>
    12.             <tr>
    13.                 <td colspan="2">
    14.                     <h2>Employee Details</h2>
    15.                 </td>
    16.             </tr>
    17.             <tr>
    18.                 <td>ID</td>
    19.                 <td><asp:TextBox ID="txtID" runat="server" Width="211px"></asp:TextBox></td>
    20.             </tr>
    21.             <tr>
    22.                 <td>Name</td>
    23.                 <td><asp:TextBox ID="txtName" runat="server" Width="211px"></asp:TextBox></td>
    24.             </tr>
    25.             <tr>
    26.                 <td>BloodGroup</td>
    27.                 <td><asp:TextBox ID="txtBloodGroup" runat="server" Width="211px"></asp:TextBox></td>
    28.             </tr>
    29.             <tr>
    30.                 <td>Emergency Contact No.</td>
    31.                 <td><asp:TextBox ID="txtContactNo" runat="server" Width="211px"></asp:TextBox></td>
    32.             </tr>
    33.             <tr>
    34.                 <td>Photo:</td>
    35.                 <td><asp:FileUpload ID="fileuploadEmpImage" runat="server" Width="180px" /></td>
    36.             </tr>
    37.             <tr>
    38.                 <td colspan="2"><asp:Button ID="btnSubmit" runat="server" Text="Save" OnClick="btnSubmit_Click" /></td>
    39.             </tr>
    40.         </table>
    41.     </div>
    42.     <div>
    43.         <asp:GridView ID="grdEmployee" runat="server" AutoGenerateColumns="false">
    44.             <Columns>
    45.              <asp:BoundField HeaderText="Name" DataField="Name" />
    46.               <asp:BoundField HeaderText="Blood Group" DataField="BloodGroup" />
    47.               <asp:BoundField HeaderText="Phone No" DataField="PhoneNo" />
    48.                 <asp:BoundField HeaderText="Image" DataField="Image" Visible="false" />
    49.                 <asp:TemplateField HeaderText="Image">
    50.                     <ItemTemplate>
    51.                         <asp:Image ID="Image1" runat="server" ImageUrl='<%# "EmployeeImageHandler.ashx?Id="+ Eval("Id") %>'
    52.                             Height="150px" Width="150px" />
    53.                     </ItemTemplate>
    54.                 </asp:TemplateField>
    55.             </Columns>
    56.         </asp:GridView>
    57.     </div>
    58.     </form>
    59. </body>
    60. </html>
  5. Open the Default.aspx.cs and modify the code as below:
    1. using System;
    2. using System.Web;
    3. using System.Web.UI;
    4. using System.Data.SqlClient;
    5. using System.Data;
    6.
    7. namespace ImageUploadInDB
    8. {
    9.     public partial class _Default : System.Web.UI.Page
    10.     {
    11.         protected void Page_Load(object sender, EventArgs e)
    12.         {
    13.             if (!Page.IsPostBack)
    14.             {
    15.                 BindGridData();
    16.             }
    17.         }
    18.         protected void btnSubmit_Click(object sender, EventArgs e)
    19.         {
    20.             //Condition to check if the file uploaded or not
    21.             if (fileuploadEmpImage.HasFile)
    22.             {
    23.                 //getting length of uploaded file
    24.                 int length = fileuploadEmpImage.PostedFile.ContentLength;
    25.                 //create a byte array to store the binary image data
    26.                 byte[] imgbyte = new byte[length];
    27.                 //store the currently selected file in memeory
    28.                 HttpPostedFile img = fileuploadEmpImage.PostedFile;
    29.                 //set the binary data
    30.                 img.InputStream.Read(imgbyte, 0, length);
    31.                 int id = Convert.ToInt32(txtID.Text);
    32.                 string name = txtName.Text;
    33.                 string bloodGroup = txtBloodGroup.Text;
    34.                 string phoneNo = txtContactNo.Text;
    35.
    36.                 //Connection String
    37.                 SqlConnection connection = new SqlConnection(@"Data Source=.\SQLEXPRESS;Initial Catalog=CMS;Integrated Security=True");
    38.                 //Open The Connection
    39.                 connection.Open();
    40.                 SqlCommand cmd = new SqlCommand("INSERT INTO Employee (Id,Name,BloodGroup,PhoneNo,Image) VALUES (@id,@Name,@BloodGroup,@ContactNo,@imagedata)", connection);
    41.                 cmd.Parameters.Add("@id", SqlDbType.Int).Value = id;
    42.                 cmd.Parameters.Add("@Name", SqlDbType.VarChar,150).Value = name;
    43.                 cmd.Parameters.Add("@BloodGroup", SqlDbType.NVarChar, 250).Value = bloodGroup;
    44.                 cmd.Parameters.Add("@ContactNo", SqlDbType.VarChar, 50).Value = phoneNo;
    45.                 cmd.Parameters.Add("@imagedata", SqlDbType.Image).Value = imgbyte;
    46.
    47.                 int count = cmd.ExecuteNonQuery();
    48.                 //Close The Connection
    49.                 connection.Close();
    50.                 if (count == 1)
    51.                 {
    52.                     //BindGridData();
    53.                     txtID.Text = string.Empty;
    54.                     txtName.Text = string.Empty;
    55.                     txtBloodGroup.Text = string.Empty;
    56.                     txtContactNo.Text = string.Empty;
    57.                     ScriptManager.RegisterStartupScript(thisthis.GetType(), "alertmessage""javascript:alert('Record added successfully')"true);
    58.                     //call the method to bind the grid
    59.                     BindGridData();
    60.                 }
    61.             }
    62.         }
    63.
    64.         private void BindGridData()
    65.         {
    66.             SqlConnection connection = new SqlConnection(@"Data Source=.\SQLEXPRESS;Initial Catalog=CMS;Integrated Security=True");
    67.             SqlCommand command = new SqlCommand("SELECT Id,Name,BloodGroup,PhoneNo,Image from [Employee]", connection);
    68.             SqlDataAdapter daimages = new SqlDataAdapter(command);
    69.             DataTable dt = new DataTable();
    70.             daimages.Fill(dt);
    71.             grdEmployee.DataSource = dt;
    72.             grdEmployee.DataBind();
    73.         }
    74.
    75.     }

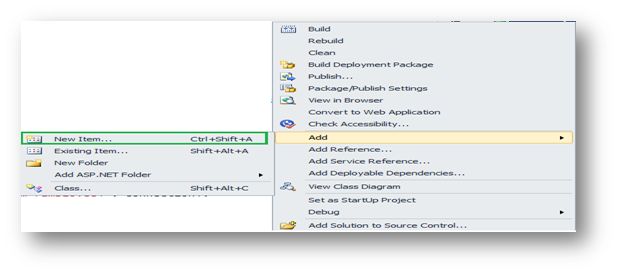

  6. Add a new file in solution
    new file in solution

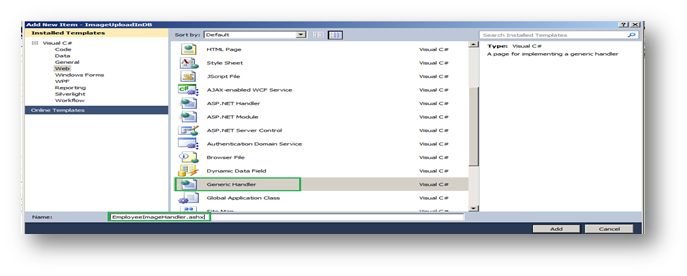

  7. Add the Generic Handler and name it EmployeeImageHandler.ashx.
    Generic Handler
  8. Modify the code of the Generic Handler class as below:
    1. using System;
    2. using System.Collections.Generic;
    3. using System.Linq;
    4. using System.Web;
    5. using System.Data.SqlClient;
    6.
    7. namespace ImageUploadInDB
    8. {
    9.     /// <summary>
    10.     /// Summary description for EmployeeImageHandler
    11.     /// </summary>
    12.     public class EmployeeImageHandler : IHttpHandler
    13.     {
    14.
    15.         public void ProcessRequest(HttpContext context)
    16.         {
    17.             string imageid = context.Request.QueryString["Id"];
    18.             SqlConnection connection = new SqlConnection(@"Data Source=.\SQLEXPRESS;Initial Catalog=CMS;Integrated Security=True");
    19.             connection.Open();
    20.             SqlCommand command = new SqlCommand("select Image from Employee where Id=" + imageid, connection);
    21.             SqlDataReader dr = command.ExecuteReader();
    22.             dr.Read();
    23.             context.Response.BinaryWrite((Byte[])dr[0]);
    24.             connection.Close();
    25.             context.Response.End();
    26.         }
    27.
    28.         public bool IsReusable
    29.         {
    30.             get
    31.             {
    32.                 return false;
    33.             }
    34.         }
    35.     }

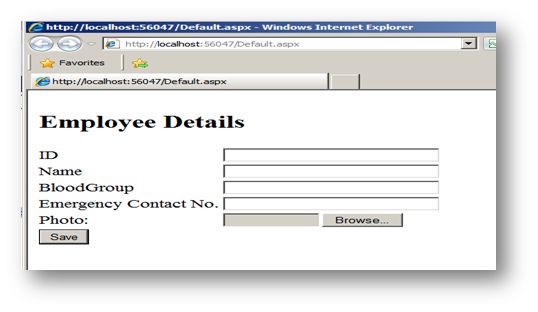

  9. Run the code, the page will be opened as below:
    Run the code

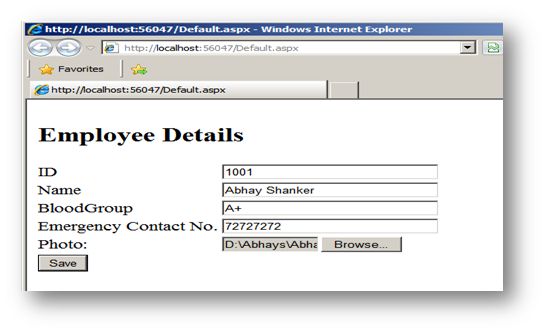

  10. Make an entry in all fields and add an image as below:
    add image

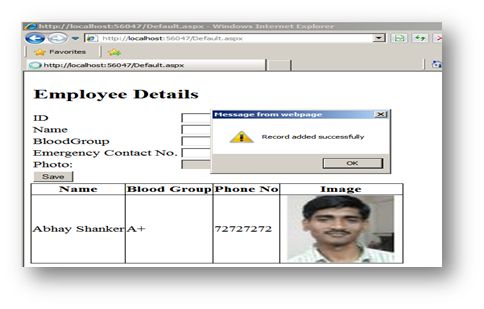

  11. Click the Save button, a message will be prompt and the record wil be saved and shown in the GridView as below
    record saved
Conclusion

In this article I explained step-by-step how to upload an image with other details to a database and show the image in a GridView.
