Binding CheckBoxList in ASP.Net MVC2

Introduction

I would like to share how to bind the checkbox list in MVC. I will use a Model (a class file) to define various attributes for checkboxes.

For a basic understanding of MVC kindly use the following link:

ASP.NET MVC Overview

The following is the procedure.

1. Creating Model

We created a "SubjectModel" class under the Models folder and defined the following two properties:

1. Subject: to display text
2. Selected: to display check/uncheck

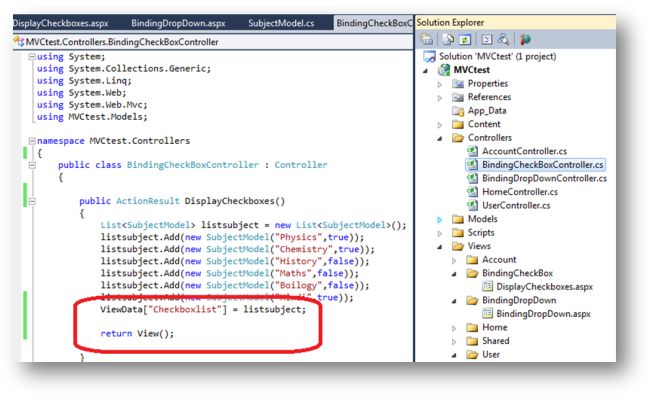

2. Creating the controller

• We created a Controller "BindingCheckBoxController" under the controllers folder
• We created an Action having the name = "DisplaycheckBoxes"
• We created a list of Subjects (Subject model class)
• Returning a list of subjects to the View.

public ActionResult DisplayCheckboxes()

{

    List<SubjectModel> listsubject = new List<SubjectModel>();

    listsubject.Add(new SubjectModel("Physics",true));

    listsubject.Add(new SubjectModel("Chemistry",true));

    listsubject.Add(new SubjectModel("History",false));

    listsubject.Add(new SubjectModel("Maths",false));

    listsubject.Add(new SubjectModel("Boilogy",false));

    listsubject.Add(new SubjectModel("Hindi",true));

    ViewData["Checkboxlist"]=listsubject;

        return View();
}

3. Creating View

Right-click on "Action" and click on "Create view". The following screen will be displayed.

• Click on the "Add" button and the View will be created. Here we are not creating a strongly typed view.

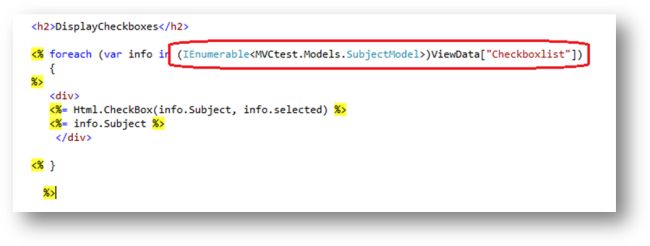

4. Code at view

Here we have a view and we are trying to bind a Checkbox using Model properties.

• At the highlighted code we are parsing the list of "SubjectModel" from ViewData["Checkboxlist"]) as in the following:

  <% foreach (var info in (IEnumerable<MVCtest.Models.SubjectModel>)ViewData["Checkboxlist"])

  We have passed Viewdata["Checkboxlist"] from the Controller (from the above, point 2.d).

• We have used a foreach loop on the list of subjects.
• We are using a HTML helper class to bind the Checkboxlist

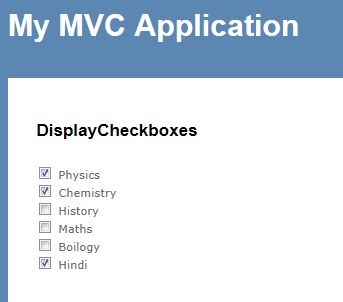

5. Output



6. Binding checkboxes through strongly typed view

• We have created a strongly typed view.
• We have selected the "SubjectModel" class from the view data class dropdown.
• We have made small changes while passing an object of the list to the view.

The following would be the updated code for the Action:

public ActionResult DisplayCheckboxes ()

{

     List<SubjectModel> listsubject = new List<SubjectModel>();

     listsubject.Add(new SubjectModel("Physics", true));

     listsubject.Add(new SubjectModel("Chemistry", true));

     listsubject.Add(new SubjectModel("History", false));

        listsubject.Add(new SubjectModel("Maths", false));

     listsubject.Add(new SubjectModel("Boilogy", false));

     listsubject.Add(new SubjectModel("Hindi", true));

     return View(listsubject);
}

7. Code at view

For a strongly typed view we have the following code.


The preceding line inherits "SubjectModel", which implies that the view is coupled with the Model.

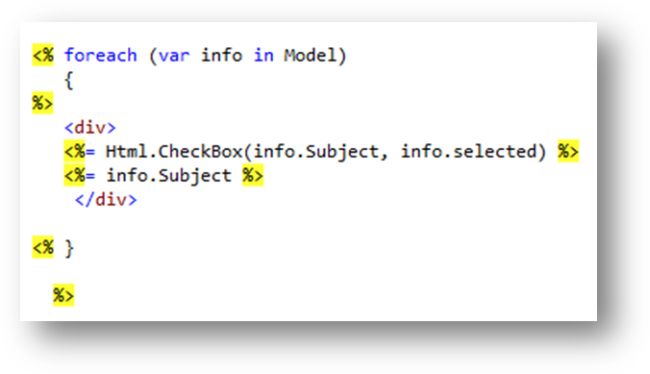

Using a foreach loop as per the following, we can display a list of checkboxes using the DOM.



8. Output

We will get the same output as from point 5.

Conclusion

In this article we have learned how to bind a checkbox list using MVC2. We have learned two ways to bind checkboxes; using a strongly typed view and without using a strongly typed view.

References

I had posted another article for binding a Dropdown list using MVC2:


Ways to Bind Dropdown List in ASP.Net MVC
