Data Validations in WPF

Snapshot of WPF Data Validations.

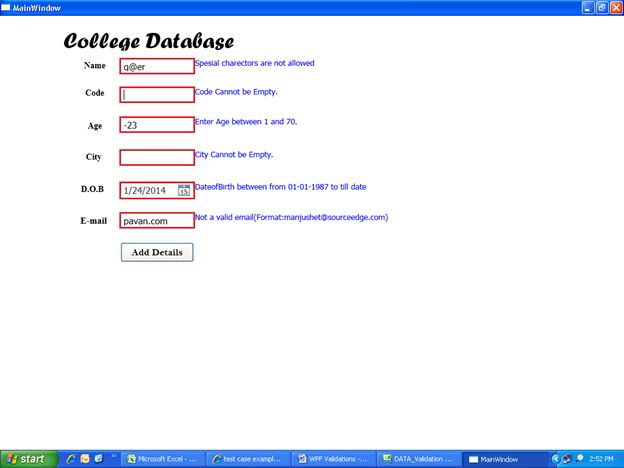

Snapshot of invalid inputs:

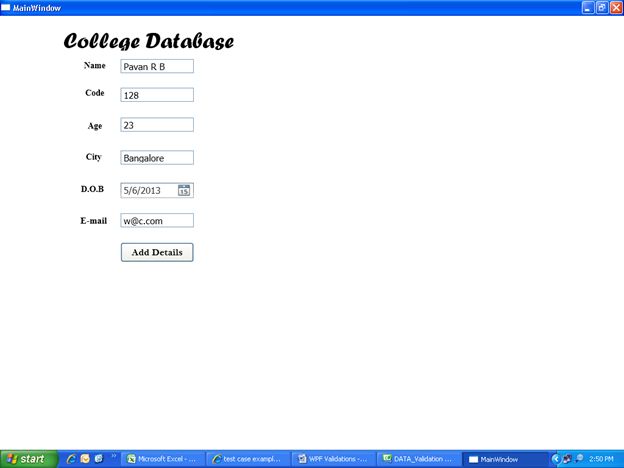

Snapshot of output for correct details (valid input):


XAML code for NAME field

<TextBox Height="23" Validation.ErrorTemplate="{StaticResource ResourceKey=eTemplate}" HorizontalAlignment="Left" Margin="198,71,0,0" Name="Name" VerticalAlignment="Top" Width="120" FontSize="15">

<TextBox.Text>

<Binding Path="Name" ValidatesOnDataErrors="True" UpdateSourceTrigger="PropertyChanged"/>

</TextBox.Text>

</TextBox>


CS code for Name


get

{

string result = null;

if (cuurectname == "Name")

{

if (string.IsNullOrEmpty(Name))

{

result = "Name Cannot be Empty.";

return result;

}

String st = @"!|@|#|\$|%|\?|\>|\<|\*";

if (Regex.IsMatch(Name,st))

{

result = "Spesial charectors are not allowed";

return result;

}

}

Input

XYZ valid
Xyz valid
X@yz invalid

XAML code for CODE


<TextBox Height="23" Validation.ErrorTemplate="{StaticResource ResourceKey=eTemplate}" HorizontalAlignment="Left" Margin="198,118,0,0" Name="Code" VerticalAlignment="Top" Width="120" FontSize="15">

<TextBox.Text>

<Binding Path="Code" ValidatesOnDataErrors="True" UpdateSourceTrigger="PropertyChanged"/>

</TextBox.Text>

</TextBox>


CS code for CODE


if (cuurectname == "Code")

{

if (string.IsNullOrEmpty(Code))

{

result = "Code Cannot be Empty.";

return result;

}

}


Input

The code field accepts integer, string, special chars and so on.

123 : valid
Abc : valid
Qwe#asd : valid
Invalid : Empty string

CS code for AGE


if (cuurectname == "Age")

{

if (Age < 1 || Age > 70)

{

result = "Enter Age between 1 and 70.";

return result;

}

}


XAML code


<TextBox Height="23" HorizontalAlignment="Left" Validation.ErrorTemplate="{StaticResource ResourceKey=eTemplate}" Margin="198,167,0,0" Name="Age" VerticalAlignment="Top" Width="120" FontSize="15">

<TextBox.Text>

<Binding Path="Age" ValidatesOnDataErrors="True" UpdateSourceTrigger="PropertyChanged"/>

</TextBox.Text>

</TextBox>

Inputs

Range 1 - 70
-12 : invalid
25 : valid
69 : valid
71 : invalid

Enter all the valid details in respective fields. Then click "ADD". The data will be saved in the database.



CS CODE


using System;

using System.Collections.Generic;

using System.Linq;

using System.Text;

using System.ComponentModel;

using System.Text.RegularExpressions;



namespace DATA_Validation

{

    public class student : IDataErrorInfo

    {

        public int id { get; set; }

        public string Name { get; set; }

        public string Code { get; set; }

        public int Age { get; set; }

        public string City { get; set; }

        public DateTime? DateofBirth { get; set; }

        public string Email { get; set; }



        public string Error

        {

            get

            {

                return this[string.Empty];

            }

        }



        public string this[string cuurectname]

        {

            get

            {

                string result = null;

                if (cuurectname == "Name")

                {

                    if (string.IsNullOrEmpty(Name))

                    {

                        result = "Name Cannot be Empty.";

                        return result;

                    }

                    String st = @"!|@|#|\$|%|\?|\>|\<|\*";

                    if (Regex.IsMatch(Name, st))

                    {

                        result = "Spesial charectors are not allowed";

                        return result;

                    }

                }



                if (cuurectname == "Code")

                {

                    if (string.IsNullOrEmpty(Code))

                    {

                        result = "Code Cannot be Empty.";

                        return result;

                    }

                }



                if (cuurectname == "Age")

                {

                    if (Age < 1 || Age > 70)

                    {

                        result = "Enter Age between 1 and 70.";

                        return result;

                    }

                }



                if (cuurectname == "City")

                {

                    if (string.IsNullOrEmpty(City))

                    {

                        result = "City Cannot be Empty.";

                        return result;

                    }

                }

                if (cuurectname == "DateofBirth")

                {

                    if (DateofBirth < DateTime.Parse("01-01-1987") || DateofBirth > DateTime.Now)

                    {

                        result = "DateofBirth between from 01-01-1987 to till date";

                        return result;

                    }

                }



                if (cuurectname == "Email")

                {

                    string s1 = @"^([\w]+\.+[\w]+@[\w]+\.[a-zA-Z]{3})$";

                    string s2 = @"^[\w]+@+[\w]+\.[a-zA-Z]{3}$";



                    if (Email == null)

                    {

                        result = "Email cannot be empty";

                        return result;

                    }

                    if (Regex.IsMatch(Email, s1) || Regex.IsMatch(Email, s2))

                    {

                        return null;

                    }

                    else

                    {

                        result = "Not a valid email(Format:[email protected])";

                        return result;

                    }

                }

                return null;



            }

        }

    }

}


XAML CODE:


<window x:class="DATA_Validation.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" title="MainWindow" height="500"

    width="525">

<Window.Resources>

<ControlTemplate x:Key="eTemplate">

<DockPanel LastChildFill="True">

<TextBlock DockPanel.Dock="Right" Foreground="Blue" FontSize="13" Text="{Binding ElementName=adorned,Path=AdornedElement.(Validation.Errors)[0].ErrorContent}" >

</TextBlock>

<Border BorderBrush="Red" BorderThickness="2">

<AdornedElementPlaceholder x:Name="adorned"/>

</Border>

</DockPanel>

</ControlTemplate>

</Window.Resources>

<Grid>

<TextBox Height="23" Validation.ErrorTemplate="{StaticResource ResourceKey=eTemplate}" HorizontalAlignment="Left" Margin="198,71,0,0" Name="Name" VerticalAlignment="Top" Width="120" FontSize="15">

<TextBox.Text>

<Binding Path="Name" ValidatesOnDataErrors="True" UpdateSourceTrigger="PropertyChanged"/>

</TextBox.Text>

</TextBox>

<TextBox Height="23" Validation.ErrorTemplate="{StaticResource ResourceKey=eTemplate}" HorizontalAlignment="Left" Margin="198,118,0,0" Name="Code" VerticalAlignment="Top" Width="120" FontSize="15">

<TextBox.Text>

<Binding Path="Code" ValidatesOnDataErrors="True" UpdateSourceTrigger="PropertyChanged"/>

</TextBox.Text>

</TextBox>



<TextBox Height="23" HorizontalAlignment="Left" Validation.ErrorTemplate="{StaticResource ResourceKey=eTemplate}" Margin="198,167,0,0" Name="Age" VerticalAlignment="Top" Width="120" FontSize="15">

<TextBox.Text>

<Binding Path="Age" ValidatesOnDataErrors="True" UpdateSourceTrigger="PropertyChanged"/>

</TextBox.Text>

</TextBox>



<TextBox Height="23" HorizontalAlignment="Left" Validation.ErrorTemplate="{StaticResource ResourceKey=eTemplate}" Margin="198,221,0,0" Name="City" VerticalAlignment="Top" Width="120" FontSize="15">

<TextBox.Text>

<Binding Path="City" ValidatesOnDataErrors="True" UpdateSourceTrigger="PropertyChanged"/>

</TextBox.Text>

</TextBox>



<Label Content="College Database" FontFamily="Forte" FontSize="36" Height="50" HorizontalAlignment="Left" Margin="99,12,0,0" Name="label1" VerticalAlignment="Top" Width="298" />

<Label Content="Name" FontSize="14" Height="28" HorizontalAlignment="Left" Margin="133,68,0,0" Name="label2" VerticalAlignment="Top" FontFamily="Times New Roman" FontWeight="Bold" />

<Label Content="Code" FontSize="14" Height="28" HorizontalAlignment="Left" Margin="135,113,0,0" Name="label3" VerticalAlignment="Top" FontFamily="Times New Roman" FontWeight="Bold" />

<Label Content="Age" FontSize="14" Height="38" HorizontalAlignment="Left" Margin="139,167,0,0" Name="label4" VerticalAlignment="Top" FontFamily="Times New Roman" FontWeight="Bold" />

<Label Content="City" FontSize="14" Height="37" HorizontalAlignment="Left" Margin="136,218,0,0" Name="label5" VerticalAlignment="Top" FontFamily="Times New Roman" FontWeight="Bold" />

<Label Content="D.O.B" Height="28" HorizontalAlignment="Left" Margin="128,271,0,0" Name="label6" VerticalAlignment="Top" FontFamily="Times New Roman" FontSize="14" FontWeight="Bold" />

<DatePicker Height="25" Validation.ErrorTemplate="{StaticResource eTemplate}" HorizontalAlignment="Left" Margin="198,274,0,0" Name="DateofBirth" VerticalAlignment="Top" Width="120" FontSize="15">

<DatePicker.DisplayDate>

<Binding Path="DateofBirth" ValidatesOnDataErrors="True" UpdateSourceTrigger="PropertyChanged"/>

</DatePicker.DisplayDate>

</DatePicker>

<Button Content="Add Details" FontSize="16" FontFamily="Bell MT" FontWeight="Bold" Height="32" HorizontalAlignment="Left" Margin="198,372,0,0" Name="button1" VerticalAlignment="Top" Width="120" Click="button1_Click" />

<TextBox Height="23" Validation.ErrorTemplate="{StaticResource eTemplate}" HorizontalAlignment="Left" Margin="198,324,0,0" Name="textBox1" VerticalAlignment="Top" Width="120" FontSize="15">

<TextBox.Text>

<Binding Path="Email" ValidatesOnDataErrors="True" UpdateSourceTrigger="PropertyChanged"/>

</TextBox.Text>

</TextBox>

<Label Content="E-mail" Height="28" HorizontalAlignment="Left" Margin="127,322,0,0" Name="label7" VerticalAlignment="Top" FontFamily="Times New Roman" FontSize="15" FontWeight="Bold" />

</Grid>

</window>
