Working With ListBox In Windows Phone (Send SMS, Email and Make a Call) : Part 3

Windows Phone ListBox previous articles:

Here we can make a call to the Student, send a SMS to that student and send Email to that student. For that use this procedure.

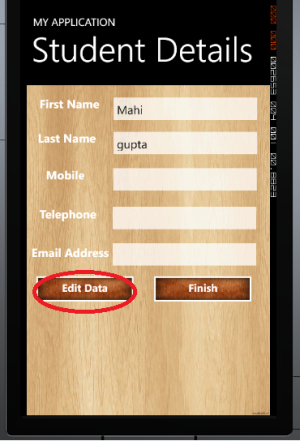

Step 1: Here we continue the previous article in which we edit the data in the ListBox like this:

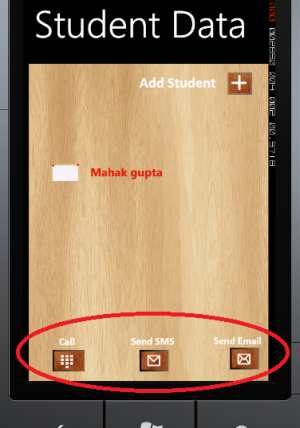

Step 2: First we use three buttons (For Call, Send SMS, Send Email) and three TextBlocks like this:


            <Button Height="65" HorizontalAlignment="Left" Margin="33,532,0,0" Name="btnCall" VerticalAlignment="Top" Width="85" FontSize="18" Click="btnCall_Click" IsEnabled="True"
Visibility="Collapsed" Grid.ColumnSpan
="2">
                    <Button.Background>
                        <ImageBrush ImageSource="/WorkingWithListBoxInWP7;component/Image/Dialer.png" />
                    </Button.Background>
                    <Button.BorderBrush>
                        <LinearGradientBrush EndPoint="1,0.5" StartPoint="0,0.5">
                            <GradientStop Color="Black" Offset="0" />
                            <GradientStop Color="#FF905E35" Offset="1" />
                            <GradientStop Color="#FF3E352F" Offset="0.082" />
                        </LinearGradientBrush>
                    </Button.BorderBrush>
                </Button>
                <Button Height="65" HorizontalAlignment="Right" Margin="0,532,178,0" Name="btnSMS" VerticalAlignment="Top" Width="79" FontSize="18" IsEnabled="True"
Visibility="Collapsed" Click="btnSMS_Click" Grid.Column
="1">
                    <Button.BorderBrush>
                        <LinearGradientBrush EndPoint="1,0.5" StartPoint="0,0.5">
                            <GradientStop Color="Black" Offset="0" />
                            <GradientStop Color="#FF7C674E" Offset="1" />
                        </LinearGradientBrush>
                    </Button.BorderBrush>
                    <Button.Background>
                        <ImageBrush ImageSource="/WorkingWithListBoxInWP7;component/Image/Message1.png" />
                    </Button.Background>
                </Button>
                <Button Height="65" HorizontalAlignment="Left" Margin="302,528,0,0" Name="btnEmail" VerticalAlignment="Top" Width="79" FontSize="18" IsEnabled="True"
Visibility="Collapsed" Click="btnEmail_Click" Grid.Column
="1">
                    <Button.Background>
                        <ImageBrush ImageSource="/WorkingWithListBoxInWP7;component/Image/Send%20Email1.png" />
                    </Button.Background>
                    <Button.BorderBrush>
                        <LinearGradientBrush EndPoint="1,0.5" StartPoint="0,0.5">
                            <GradientStop Color="Black" Offset="0" />
                            <GradientStop Color="#FF80644A" Offset="1" />
                        </LinearGradientBrush>
                    </Button.BorderBrush>
                </Button>

<TextBlock FontFamily="Calibri" FontSize="20" FontStyle="Normal" FontWeight="Bold" Height="32" HorizontalAlignment="Left" Margin="18,516,0,0" Name="txtBlkCall" Text="Call" TextAlignment="Center" VerticalAlignment="Top" Width="109" Visibility="Collapsed" Grid.ColumnSpan="2" />
                <TextBlock FontFamily="Calibri" FontSize="20" FontStyle="Normal" FontWeight="Bold" Height="32" HorizontalAlignment="Left" Margin="112,515,0,0" Name="txtBlkSMS" Text="Send
SMS"
TextAlignment="Center" VerticalAlignment="Top" Width="109" Grid.Column="1" Visibility
="Collapsed" />
                <TextBlock FontFamily="Calibri" FontSize="20" FontStyle="Normal" FontWeight="Bold" Height="32" HorizontalAlignment="Left" Margin="265,514,0,0" Name="txtBlkSendEmail"
Text="Send Email" TextAlignment="Center" VerticalAlignment="Top" Width="127" Grid.Column="1" Visibility
="Collapsed" />

Note: Here we set the Visibility=Collapsed. In this example the buttons will be visible when we tap a single item in the ListBox For this we create a Tap event of our ListBox and we write the following code in it:

    private void lstStudentname_Tap(object sender, System.Windows.Input.GestureEventArgs e)
    {
         btnCall.Visibility = Visibility.Visible;
         btnSMS.Visibility = Visibility.Visible;
         btnEmail.Visibility = Visibility.Visible;
         txtBlkCall.Visibility = Visibility.Visible;
         txtBlkSendEmail.Visibility = Visibility.Visible;
         txtBlkSMS.Visibility = Visibility.Visible;
    }


Step 3: Now we will write the code for the Call Button:

    private void btnCall_Click(object sender, RoutedEventArgs e)
    {
           var listBoxItem = lstStudentname.ItemContainerGenerator.ContainerFromIndex(lstStudentname.SelectedIndex) as ListBoxItem;
           var txtBlk = FindVisualChildByType<TextBlock>(listBoxItem, "txtBlkExtra");
           a = txtBlk.Text;
           using (StudentdataContext StudentDB = new StudentdataContext(strConnectionString))
           {
                 var c = from b in StudentDB.GetTable<StudentInfo>() where b.Extra == a.ToString() select b;
                 foreach (var x in c)
                 {
                      if (x.Mobile == "")
                      {
                           MessageBox.Show("Please Add the Mobile Number");
                       }

else
                      {
                           PhoneCallTask pct = new PhoneCallTask();
                           pct.PhoneNumber = x.Mobile;
                           pct.Show();
                      }
                 }
            }
      }

The output will be:

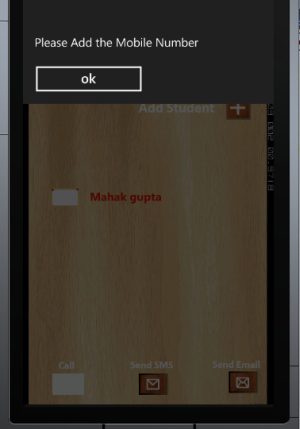

If we cannot enter the Mobile Number then the following message will appear:

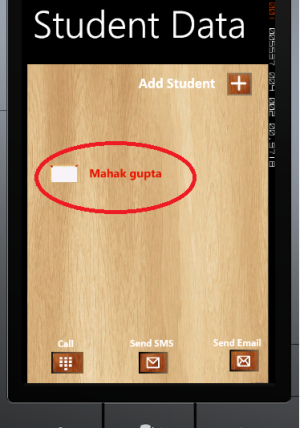

To enter a Mobile Number we should first edit the data. To do that we double-tap on the ListBox like this:

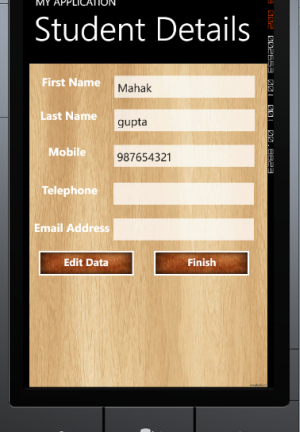

The following window will be shown, here we enter a Mobile Number and edit the Student Details:

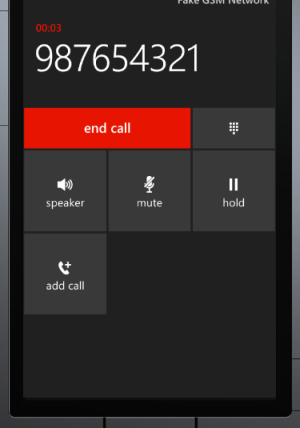

Now we click on the Call Button:


Step 4: Now we will write the code to send the SMS:

First we create a page (SendSMS.xaml) add controls like this:

    <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <Grid.Background>
                <ImageBrush ImageSource="/WorkingWithListBoxInWP7;component/Image/wooden-background.jpg" />
            </Grid.Background>
            <TextBlock Height="33" HorizontalAlignment="Left" Margin="32,20,0,0" Name="txtBlkTo" Text="To" VerticalAlignment="Top" FontWeight="Bold" Width="43" FontSize="22"
FontFamily
="Portable User Interface" />
            <TextBox Height="72" HorizontalAlignment="Left" Margin="107,0,0,0" Name="txtTo" Text="" VerticalAlignment="Top" Width="343" FontSize="18" />
            <TextBlock FontSize="22" FontWeight="Bold" Height="33" HorizontalAlignment="Left" Margin="32,81,0,0" Name="txtBlkCC" Text="CC" VerticalAlignment="Top" Width="43"
FontFamily
="Portable User Interface" />
            <TextBox FontSize="18" Height="72" HorizontalAlignment="Left" Margin="107,63,0,0" Name="txtCC" Text="" VerticalAlignment="Top" Width="343" />
            <TextBlock FontSize="22" FontWeight="Bold" Height="33" HorizontalAlignment="Left" Margin="14,163,0,0" Name="textBlkSubject" Text="Subject" VerticalAlignment="Top" Width="97" FontFamily="Portable User Interface" />
            <TextBox FontSize="18" Height="72" HorizontalAlignment="Left" Margin="107,138,0,0" Name="txtSubject" Text="" VerticalAlignment="Top" Width="343" />
            <TextBlock FontSize="22" FontWeight="Bold" Height="33" HorizontalAlignment="Left" Margin="22,0,0,287" Name="textBlkBody" Text="Body" VerticalAlignment="Bottom" Width="97"
FontFamily
="Portable User Interface" />
            <TextBox FontSize="18" Height="206" HorizontalAlignment="Left" Margin="107,216,0,0" Name="txtBody" Text="" VerticalAlignment="Top" Width="343" />
            <Button Content="Send" Height="72" HorizontalAlignment="Left" Margin="280,450,0,0" Name="btnSend" VerticalAlignment="Top" Width="160" Click="btnSend_Click"
FontWeight
="Bold">
                <Button.Background>
                    <ImageBrush ImageSource="/WorkingWithListBoxInWP7;component/Image/Dark%20Wooden%20Background.jpg" />
                </Button.Background>
            </Button>
        </Grid>
    </Grid>

Step 5: So when we click on the "Send SMS" button in MainPage we pass the following parameter (Mobile Number):

NavigationService.Navigate(new Uri(string.Format("/SendSMS.xaml?parameter={0}", x.Mobile), UriKind.Relative));

After that we write the following code to fetch the data in the SendSMS.xaml.cs page:

    protected override void OnNavigatedTo(System.Windows.Navigation.NavigationEventArgs e)
    {
         base.OnNavigatedTo(e);
         parameterValue = NavigationContext.QueryString["parameter"];
         txtMobileNumber.Text = parameterValue.ToString();
         object sample;
         if (PS.State.TryGetValue("numbertext", out sample))
             txtMobileNumber.Text = sample as string;
         if (PS.State.TryGetValue("messagetext", out sample))
             txtMessage.Text = sample as string;
         base.OnNavigatedTo(e);
    }

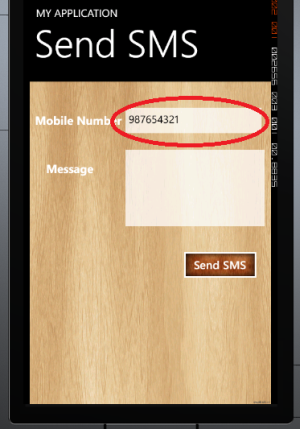

The output will be:


Now we will write the code for the "Send SMS" button:

    private void button1_Click(object sender, RoutedEventArgs e)
    {
         if (txtMobileNumber.Text == "" || txtMessage.Text == "")
         {
             MessageBox.Show("Please Enter the Correct Data");
         }

else
         {
             CT.To = txtMobileNumber.Text;
             CT.Body = txtMessage.Text;
             CT.Show();
             this.NavigationService.Navigate(new Uri("/MainPage.xaml", UriKind.Relative));
         }
    }

Here we send the message to the following number.

Step 6: Now we will write the code for sending an email.

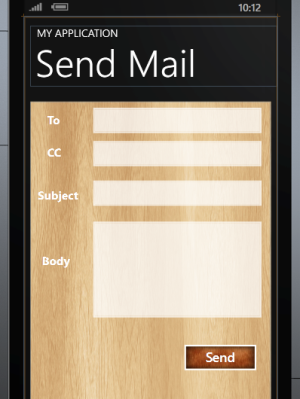

First we create a page (SendMail.xaml) and add controls like this:


    <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <Grid.Background>
                <ImageBrush ImageSource="/WorkingWithListBoxInWP7;component/Image/wooden-background.jpg" />
            </Grid.Background>
            <TextBlock Height="33" HorizontalAlignment="Left" Margin="32,20,0,0" Name="txtBlkTo" Text="To" VerticalAlignment="Top" FontWeight="Bold" Width="43" FontSize="22"
FontFamily
="Portable User Interface" />
            <TextBox Height="72" HorizontalAlignment="Left" Margin="107,0,0,0" Name="txtTo" Text="" VerticalAlignment="Top" Width="343" FontSize="18" />
            <TextBlock FontSize="22" FontWeight="Bold" Height="33" HorizontalAlignment="Left" Margin="32,81,0,0" Name="txtBlkCC" Text="CC" VerticalAlignment="Top" Width="43"
FontFamily
="Portable User Interface" />
            <TextBox FontSize="18" Height="72" HorizontalAlignment="Left" Margin="107,63,0,0" Name="txtCC" Text="" VerticalAlignment="Top" Width="343" />
            <TextBlock FontSize="22" FontWeight="Bold" Height="33" HorizontalAlignment="Left" Margin="14,163,0,0" Name="textBlkSubject" Text="Subject" VerticalAlignment="Top" Width="97"
FontFamily
="Portable User Interface" />
            <TextBox FontSize="18" Height="72" HorizontalAlignment="Left" Margin="107,138,0,0" Name="txtSubject" Text="" VerticalAlignment="Top" Width="343" />
            <TextBlock FontSize="22" FontWeight="Bold" Height="33" HorizontalAlignment="Left" Margin="22,0,0,287" Name="textBlkBody" Text="Body" VerticalAlignment="Bottom" Width="97"
FontFamily
="Portable User Interface" />
            <TextBox FontSize="18" Height="206" HorizontalAlignment="Left" Margin="107,216,0,0" Name="txtBody" Text="" VerticalAlignment="Top" Width="343" />
            <Button Content="Send" Height="72" HorizontalAlignment="Left" Margin="280,450,0,0" Name="btnSend" VerticalAlignment="Top" Width="160" Click="btnSend_Click"
FontWeight
="Bold">
                <Button.Background>
                    <ImageBrush ImageSource="/WorkingWithListBoxInWP7;component/Image/Dark%20Wooden%20Background.jpg" />
                </Button.Background>
            </Button>
        </Grid>
    </Grid>

So when we click on the "Send Email" button in the MainPage we pass the following parameter (Email Id):

using (StudentdataContext StudentDB = new StudentdataContext(strConnectionString))
{
      var email = from b in StudentDB.GetTable<StudentInfo>() where b.Extra == a.ToString() select b;
      foreach (var x in email)
      {
           if (x.Email == "")
           {
                 MessageBox.Show("Please Add the Email Address");
           }

else
           {
                 NavigationService.Navigate(new Uri(string.Format("/SendMail.xaml?parameter={0}", x.Email), UriKind.Relative));
           }
      }
}

After that we write the following code to fetch the data in the SendMail.xaml.cs page:

protected override void OnNavigatedTo(System.Windows.Navigation.NavigationEventArgs e)
{
      base.OnNavigatedTo(e);
      parameterValue = NavigationContext.QueryString["parameter"];
      txtTo.Text = parameterValue.ToString();
}

Now we will write the code for to send an email:

private void btnSend_Click(object sender, RoutedEventArgs e)
{
       EmailComposeTask MYEmailTask = new EmailComposeTask();
       MYEmailTask.To = txtTo.Text;
       MYEmailTask.Cc = txtCC.Text;
       MYEmailTask.Subject = txtSubject.Text;
       MYEmailTask.Body = txtBody.Text;
       MYEmailTask.Show();
}

Using this example we can make a call, send SMS and send an email to that Student.
