RadioButton in WPF

Introduction

A RadioButton is usually used in a group with multiple options where one must be selected.

The RadioButton tag represents a RadioButton control in XAML.



<RadioButton></RadioButton>



The Width and Height properties represent the width and the height of a RadioButton. The Name property represents the name of the control, which is a unique identifier of a control. The Margin property tells the location of a RadioButton on the parent control. The HorizontalAlignment and VerticalAlignment properties specify the horizontal and vertical alignments.



The Background and Foreground properties represent the background and foreground colors of  a RadioButton.



The following code snippet sets the name, height, and width of a RadioButton control.  The code also sets the horizontal alignment to the left and the vertical alignment to the top.



<RadioButton Margin="10,10,0,13" Name="RadioButton1" HorizontalAlignment="Left" VerticalAlignment="Top" Width="150" Height="15" Background="Yellow " Foreground="Blue">

    C# Corner

</RadioButton>

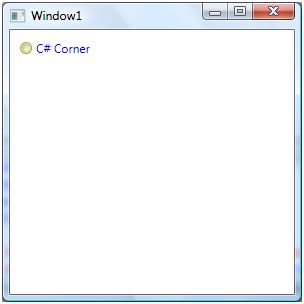

The RadioButton looks like following:

Figure 1. RadioButton

RadioButton Grouping

The GroupName property of a RadioButton assigns a RadioButton to a group. Only one RadioButton can be in the selected states at once and by selecting a new RadioButton unselects the previous selected RadioButton.

The following code assigns four RadioButton controls to a group called MCSites.

<RadioButton Margin="10,5,0,0" GroupName="MCSites" Background="Yellow" Foreground="Blue" >

    C# Corner

</RadioButton>

<RadioButton Margin="10,5,0,0" GroupName="MCSites" Background="Yellow" Foreground="Orange" >

    VB.NET Heaven

</RadioButton>

<RadioButton Margin="10,5,0,0" GroupName="MCSites" Background="Yellow" Foreground="Green" >

    Longhorn Corner

</RadioButton>

<RadioButton Margin="10,5,0,0" GroupName="MCSites" Background="Yellow" Foreground="Purple" >

    Mindcracker

</RadioButton>

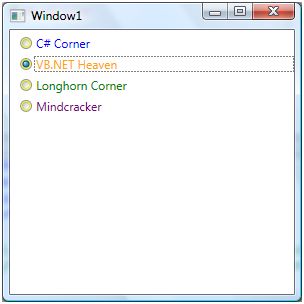

The output looks as in Figure 2. If you select one RadioButton then the previous RadioButton will be unselected.

Figure 2

Adding a Checked Event Handler

The RadioButton control has the Checked event as the default event and raised when you check a radio button. The following code snippet adds the event handler.

<RadioButton Name="Btn1" Margin="10,5,0,0" GroupName="MCSites"

                     Background="Yellow" Foreground="Blue" Checked="Btn1_Checked">

The following checked event handler sets the foreground and background colors of the checked RadioButton and sets black and white for the rest of them.

private void Btn1_Checked(object sender, RoutedEventArgs e)

{

    Btn1.Foreground = Brushes.Blue;

    Btn1.Background = Brushes.Yellow;

    Btn2.Foreground = Brushes.Black;

    Btn2.Background = Brushes.White;

    Btn3.Foreground = Brushes.Black;

    Btn3.Background = Brushes.White;

    Btn4.Foreground = Brushes.Black;

    Btn4.Background = Brushes.White;

}

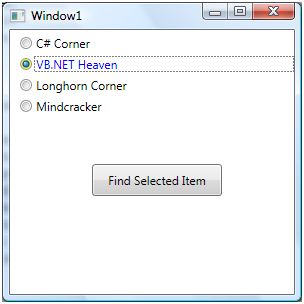

The new RadioButton group looks as in Figure 3.



Figure 3.

Finding a Selected Item in the Group

The IsChecked property of RadioButton indicates whether a RadioButton is checked. The following code snippet on a button click event handler finds the text of the selected RadioButton in a group.

private void button1_Click(object sender, RoutedEventArgs e)

{

   if( Btn1.IsChecked == true)

       MessageBox.Show(Btn1.Content.ToString());

   else if (Btn2.IsChecked == true)

       MessageBox.Show(Btn2.Content.ToString());

   else if (Btn3.IsChecked == true)

       MessageBox.Show(Btn3.Content.ToString());

   else

       MessageBox.Show(Btn4.Content.ToString());

}



Alternatively, you may want to replace the "if..else" statement with the "switch" statement to make your code read and work better.

Summary

In this article, I explained how to create and use a RadioButton control available in WPF and XAML.
