Using XAML Frame in WPF

The WPF Frame control using XAML and C# supports content navigation within content. A Frame can be hosted within a Window, NavigationWindow, Page, UserControl, or a FlowDocument control.

How to create a Frame in WPF

This XAML code shows how to create a Frame control and sets its Source property to load a XAML page within it.

<Window x:Class="FrameSample.Window1"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    Title="Window1" Height="300" Width="300">
    <Grid>
        <TextBlock>Outside area of frame</TextBlock>
        <Frame Source="Page1.xaml">
        </Frame>
    </Grid>
</Window>

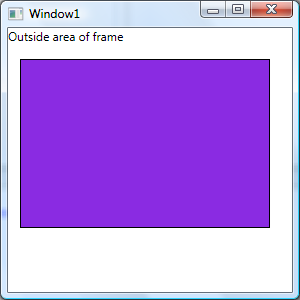

The Window looks like this. The Purple area is the Page1.xaml and the White area is outside of the frame.



Now you can manage the contents of a frame the way you want.

For example, the following code rotates the contents of the frame to a 45 degree angle.

<Frame Source="Page1.xaml">
    <Frame.LayoutTransform>
        <RotateTransform Angle="45" />
    </Frame.LayoutTransform>
</Frame>

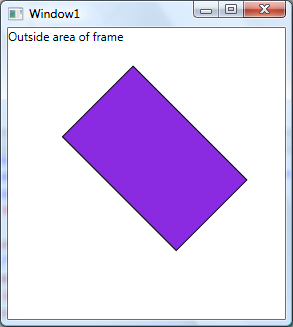

The new output looks like this.



How to Navigate to a URI in a WPF Frame

The following code creates a Frame within a window and adds a button control to the window. On the button click event handler we will navigate to a URI using a Frame.

<Window x:Class="FrameSample.Window1"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    Title="Window1" Height="300" Width="300">
    <Grid>
        <TextBlock>Outside area of frame</TextBlock>
        <Frame Name="FrameWithinGrid" >
        </Frame>
        <Button Height="23" Margin="114,12,25,0"
                Name="button1" VerticalAlignment="Top" Click="button1_Click">Navigate to C# Corner
        </Button>
    </Grid>
</Window>

The Navigate method of Frame is used to navigate to a URI. The following code navigates to Page1.xaml.

private void button1_Click(object sender, RoutedEventArgs e)
{
    FrameWithinGrid.Navigate(new System.Uri("Page1.xaml",
             UriKind.RelativeOrAbsolute));
}

The following code navigates to an external website URL and opens the ASPX page within a Frame.

FrameWithinGrid.Source = new Uri("http://www.c-sharpcorner.com/Default.aspx", UriKind.Absolute);

If you need to open a URI in a new browser window, the following code will do that. This code first creates a NavigationWindow and then sets its Source to a URI.

NavigationWindow window = new NavigationWindow();
Uri source = new Uri("http://www.c-sharpcorner.com/Default.aspx", UriKind.Absolute);
window.Source = source; window.Show();
