Using XAML ToolTip in WPF

The XAML Tooltip element represents a window tooltip. A ToolTip is a pop-up window that displays some information in a small window. This article shows how to use a ToolTip control in WPF.

Creating a ToolTip

The ToolTip element represents a ToolTip control in XAML.

<ToolTip/>

The IsOpen property indicates whether or not a ToolTip is visible. The HorizontalOffset and VerticalOffset properties represent the horizontal and vertical distance between the target control and the pop-up window. The Content property represents the contents of the ToolTip.

The code snippet in Listing 1 creates a ToolTip control and sets the horizontal offset, vertical offset and content of a ToolTip control.

<ToolTip Content="Hello! I am a ToolTip."
HorizontalOffset="10" VerticalOffset="20"/>

                                                            Listing 1

The output looks as in Figure 1.


                                                            Figure 1

ToolTip Service

To display a tooltip for a control, the ToolTipService class must be used. The SetToolTip and GetToolTip static methods are used to set and get the tooltip of a control.

The following code snippet creates a ToolTipService.ToolTip for a control.

<ToolTipService.ToolTip >
    <ToolTip Content="Hello! I am a ToolTip."
    HorizontalOffset="10" VerticalOffset="20"/>
</ToolTipService.ToolTip>

                                                            Listing 2

The code snippet in Listing 3 sets a ToolTip of a Button control.

<Button Content="Mouse over me" Width="150" Height="30"
        Canvas.Top="10" Canvas.Left="10">
    <ToolTipService.ToolTip >
        <ToolTip Content="Hello! I am a ToolTip."
        HorizontalOffset="10" VerticalOffset="20"/>
    </ToolTipService.ToolTip>
</Button>

                                                            Listing 3

Then if you run the application and hover the mouse over the button control, the output looks as in Figure 2.


                                                            Figure 2

Creating a Fancy Tooltip

The ToolTip content can be any control and multiple controls. The code snippet in Listing 4 creates a ToolTip with an image and text in it.

<!-- Create a button -->
<Button Content="Mouse over me" Width="150" Height="30"
        Canvas.Top="50" Canvas.Left="20">
    <!-- Create a tooltip by using the ToolTipService -->
    <ToolTipService.ToolTip >
        <ToolTip HorizontalOffset="0" VerticalOffset="0">
            <!-- Add a StackPanel to the tooltip content -->
            <StackPanel Width="250" Height="150">
                <!-- Add an image -->
                <StackPanel.Background>
                    <ImageBrush ImageSource="Garden.jpg"
                                Opacity="0.4"/>
                </StackPanel.Background>
                <!-- Add a text block -->
                <TextBlock >
                    <Run Text="This is a tooltip with an image and text"
                        FontFamily="Georgia" FontSize="14" Foreground="Blue"/>
                </TextBlock>
            </StackPanel>
        </ToolTip>
    </ToolTipService.ToolTip>
</Button>

                                                            Listing 4

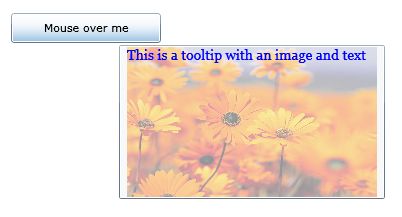

The new tooltip looks as in Figure 3.


                                                            Figure 3

Summary

In this article, I discussed how to add a tooltip to a control in Silverlight.
