WCF

Create and Consume WCF Restful Service

  • WhatsApp
  • Rahul Saxena
  • 10y
  • 135.2k
  • 0
  • 3
    • 100
  • Article
RESTWCFService.zip

Representational State Transfer (REST) is a protocol for exchanging data over a distributed environment. The fundamental idea of REST is that we should treat our distributed services as a resource and we should be able to use simple HTTP protocols to do various operations on that resource.

When we talk about the database as a resource we usually talk in terms of Create, Retrieve, Update and Delete (CRUD) operations. Now the philosophy of REST is that for a remote resource all these operations should be possible and they should be possible using simple HTTP protocols.

Now the basic CRUD operations are mapped to the HTTP protocols in the following manner:

  • GET: Retrieve the required data (representation of data) from the remote resource.
  • POST: Update the current representation of the data on the remote server.
  • PUT: Insert new data.
  • DELETE: Delete the specified data from the remote server.

Now we will learn this REST WCF service with an example.

Here in this example I will show a REST WCF Service by taking an Employee example.

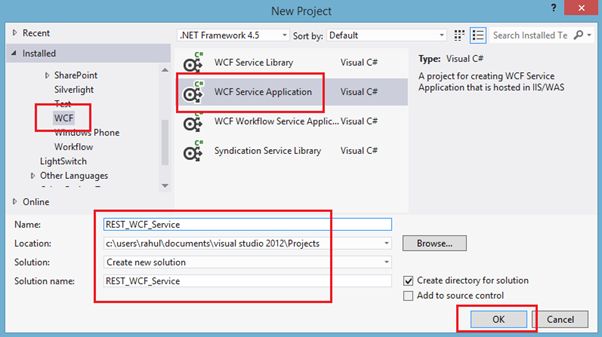

Now open Visual Studio and select "File" -> "New" -> "Project..." then select WCF in the left side then select WCF Service Application then click "OK".



Image 1.

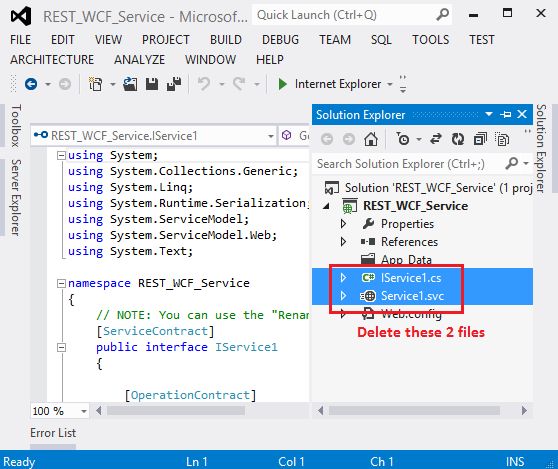

Now delete the IService.cs and Service.cs files.



Image 2.

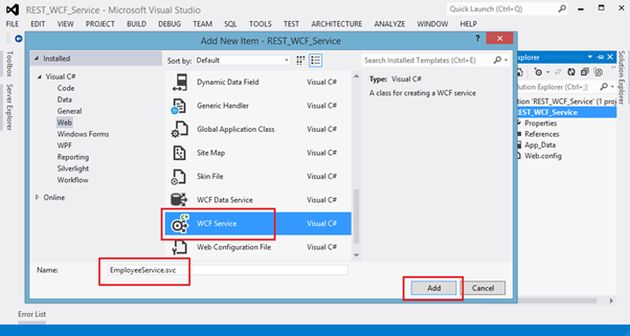

Now right-click on the project in the Solution Explorer then select Add New Item then select WCF Service and provide the the name "EmployeeService".



Image 3.

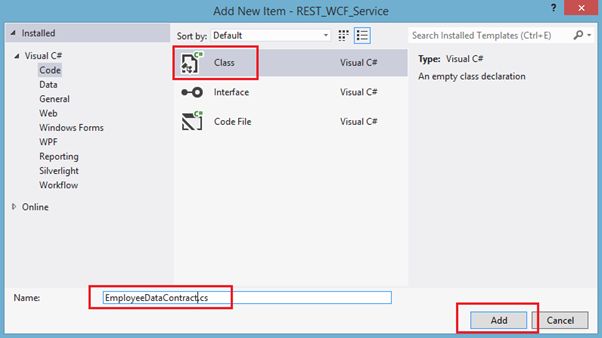

Now I will create a Data Contract as EmployeeDataContract . Right-click on the project in the Solution Explorer then select "Add New Item" then add a .cs file and use the following code:



Image 4.

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Runtime.Serialization;
  6.
  7. namespace REST_WCF_Service
  8. {
  9.     [DataContract]
  10.     public class EmployeeDataContract
  11.     {
  12.         [DataMember]
  13.         public string EmployeeID { get; set; }
  14.
  15.         [DataMember]
  16.         public string Name { get; set; }
  17.
  18.         [DataMember]
  19.         public string JoiningDate { get; set; }
  20.
  21.         [DataMember]
  22.         public string CompanyName { get; set; }
  23.
  24.         [DataMember]
  25.         public string Address { get; set; }
  26.     }
  27. }

Now open IEmployeeService.cs to define the interface.

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Runtime.Serialization;
  5. using System.ServiceModel;
  6. using System.ServiceModel.Web;
  7. using System.Text;
  8.
  9. namespace REST_WCF_Service
  10. {
  11.     // NOTE: You can use the "Rename" command on the "Refactor" menu to change the interface name "IEmployeeService" in both code and config file together.
  12.     [ServiceContract]
  13.     public interface IEmployeeService
  14.     {
  15.
  16. [OperationContract]
  17.         [WebGet(UriTemplate = "/GetEmployeeDetails/{EmpId}", RequestFormat = WebMessageFormat.Json, ResponseFormat = WebMessageFormat.Json)]
  18.         EmployeeDataContract GetEmployeeDetails(string EmpId);
  19.
  20.         [OperationContract]
  21.         [WebInvoke(UriTemplate = "/AddNewEmployee", RequestFormat = WebMessageFormat.Json, ResponseFormat = WebMessageFormat.Json, Method = "POST")]
  22.         bool AddNewEmployee(EmployeeDataContract emp);
  23.
  24.         [OperationContract]
  25.         [WebInvoke(Method = "PUT", ResponseFormat = WebMessageFormat.Json)]
  26.         void UpdateEmployee(EmployeeDataContract contact);
  27.
  28.         [OperationContract]
  29.         [WebInvoke(Method = "DELETE", RequestFormat = WebMessageFormat.Json, ResponseFormat = WebMessageFormat.Json, UriTemplate = "DeleteEmployee/{EmpId}")]
  30.         void DeleteEmployee(string EmpId);
  31.     }
  32. }

Now open EmployeeService.cs.

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Runtime.Serialization;
  5. using System.ServiceModel;
  6. using System.Text;
  7. using System.Xml.Linq;
  8.
  9. namespace REST_WCF_Service
  10. {
  11.     // NOTE: You can use the "Rename" command on the "Refactor" menu to change the class name "EmployeeService" in code, svc and config file together.
  12.     // NOTE: In order to launch WCF Test Client for testing this service, please select EmployeeService.svc or EmployeeService.svc.cs at the Solution Explorer and start debugging.
  13.     public class EmployeeService : IEmployeeService
  14.     {
  15.         public EmployeeDataContract GetEmployeeDetails(string EmpId)
  16.         {
  17.             EmployeeDataContract emp = new EmployeeDataContract();
  18.
  19.             try
  20.             {
  21.                 XDocument doc = XDocument.Load("H:\\EmployeeData.xml");
  22.
  23.                 IEnumerable<XElement> employee =
  24.                     (from result in doc.Descendants("DocumentElement").Descendants("Employees")
  25.                      where result.Element("EmployeeID").Value == EmpId.ToString()
  26.                      select result);
  27.
  28.                 emp.EmployeeID = employee.ElementAt(0).Element("EmployeeID").Value;
  29.                 emp.Name = employee.ElementAt(0).Element("Name").Value;
  30.                 emp.JoiningDate = employee.ElementAt(0).Element("JoiningDate").Value;
  31.                 emp.CompanyName = employee.ElementAt(0).Element("CompanyName").Value;
  32.                 emp.Address = employee.ElementAt(0).Element("Address").Value;
  33.             }
  34.             catch (Exception ex)
  35.             {
  36.                 throw new FaultException<string>
  37.                         (ex.Message);
  38.             }
  39.             return emp;
  40.         }
  41.
  42.         public bool AddNewEmployee(EmployeeDataContract employee)
  43.         {
  44.             try
  45.             {
  46.                 XDocument doc = XDocument.Load("H:\\EmployeeData.xml");
  47.
  48.                 doc.Element("DocumentElement").Add(
  49.                         new XElement("Employees",
  50.                         new XElement("EmployeeID", employee.EmployeeID),
  51.                         new XElement("Name", employee.Name),
  52.                         new XElement("JoiningDate", employee.JoiningDate),
  53.                         new XElement("CompanyName", employee.CompanyName),
  54.                         new XElement("Address", employee.Address)));
  55.
  56.                 doc.Save("H:\\EmployeeData.xml");
  57.             }
  58.             catch (Exception ex)
  59.             {
  60.                 throw new FaultException<string>
  61.                         (ex.Message);
  62.             }
  63.             return true;
  64.         }
  65.
  66.         public void UpdateEmployee (EmployeeDataContract employee)
  67.         {
  68.             try
  69.             {
  70.                 XDocument doc = XDocument.Load("H:\\EmployeeData.xml");
  71.                 var target = doc
  72.                      .Element("DocumentElement")
  73.                      .Elements("Employees")
  74.                      .Where(e => e.Element("EmployeeID").Value == employee.EmployeeID)
  75.                      .Single();
  76.
  77.                 target.Element("Name").Value = employee.Name;
  78.                 target.Element("JoiningDate").Value = employee.JoiningDate;
  79.                 target.Element("CompanyName").Value = employee.CompanyName;
  80.                 target.Element("Address").Value = employee.Address;
  81.
  82.                 doc.Save("H:\\EmployeeData.xml");
  83.             }
  84.             catch (Exception ex)
  85.             {
  86.                 throw new FaultException<string>
  87.                         (ex.Message);
  88.             }
  89.         }
  90.
  91.         public void DeleteEmployee(string EmpId)
  92.         {
  93.             try
  94.             {
  95.                 XDocument doc = XDocument.Load("H:\\EmployeeData.xml");
  96.                 foreach (var result in doc.Descendants("DocumentElement").Descendants("Employees"))
  97.                 {
  98.                     if (result.Element("EmployeeID").Value == EmpId.ToString())
  99.                     {
  100.                         result.Remove();
  101.                         break;
  102.                     }
  103.                 }
  104.                 doc.Save("H:\\EmployeeData.xml");
  105.             }
  106.             catch (Exception ex)
  107.             {
  108.                 throw new FaultException<string>
  109.                         (ex.Message);
  110.             }
  111.         }
  112.     }
  113. }

Now create a new project (WindowForm) to consume this REST WCF service. Here I will use a WPF application.

  1. <Window x:Class="WpfApplication1.MainWindow"
  2.         xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  3.         xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  4.         Title="Consume WCF REST To Perform CRUD Operations" Height="471" Width="625">
  5.     <Grid Margin="0,0,-67,-31">
  6.         <Grid.ColumnDefinitions>
  7.             <ColumnDefinition/>
  8.             <ColumnDefinition Width="37*"/>
  9.         </Grid.ColumnDefinitions>
  10.         <Label Content="Employee Id" HorizontalAlignment="Left" Margin="36,36,0,0" VerticalAlignment="Top" Width="120" Grid.Column="1"/>
  11.         <TextBox HorizontalAlignment="Left" Height="23" Margin="187,36,0,0" TextWrapping="Wrap" VerticalAlignment="Top" Width="120" Grid.Column="1" Name="txtEmpId"/>
  12.         <Button Content="Click To View Employee Detail" HorizontalAlignment="Left" Margin="329,36,0,0" VerticalAlignment="Top" Width="194" Grid.Column="1" Click="btn_ViewEmployeeDetail"/>
  13.         <Label Content="Employee ID" HorizontalAlignment="Left" Margin="35.632,87,0,0" VerticalAlignment="Top" Grid.Column="1"/>
  14.         <Label Content="Name" HorizontalAlignment="Left" Margin="35.632,135,0,0" VerticalAlignment="Top" Grid.Column="1"/>
  15.         <Label Content="Joining Date" HorizontalAlignment="Left" Margin="35.632,191,0,0" VerticalAlignment="Top" Grid.Column="1"/>
  16.         <Label Content="Company Name" HorizontalAlignment="Left" Margin="35.632,239,0,0" VerticalAlignment="Top" Grid.Column="1"/>
  17.         <Label Content="Address" HorizontalAlignment="Left" Margin="35.632,290,0,0" VerticalAlignment="Top" Grid.Column="1"/>
  18.         <TextBox HorizontalAlignment="Left" Height="23" Margin="187,87,0,0" TextWrapping="Wrap"  VerticalAlignment="Top" Width="120" Grid.Column="1" Name="txtShowEmpId"/>
  19.         <TextBox HorizontalAlignment="Left" Height="23" Margin="187,135,0,0" TextWrapping="Wrap" VerticalAlignment="Top" Width="187" Grid.Column="1" Name="txtShowEmpName"/>
  20.         <TextBox HorizontalAlignment="Left" Height="23" Margin="187,195,0,0" TextWrapping="Wrap" VerticalAlignment="Top" Width="187" Grid.Column="1" Name="txtShowEmpJoiningDate"/>
  21.         <TextBox HorizontalAlignment="Left" Height="23" Margin="187,243,0,0" TextWrapping="Wrap" VerticalAlignment="Top" Width="187" Grid.Column="1" Name="txtShowCompany"/>
  22.         <TextBox HorizontalAlignment="Left" Height="44" Margin="187,290,0,0" TextWrapping="Wrap" VerticalAlignment="Top" Width="187" Grid.Column="1" Name="txtShowAddress"/>
  23.         <Button Content="Add New Employee" Grid.Column="1" HorizontalAlignment="Left" Margin="50,379,0,0" VerticalAlignment="Top" Width="120" Height="48" Click="btn_AddnewEmployee"/>
  24.         <Button Content="Update Employee" Grid.Column="1" HorizontalAlignment="Left" Margin="205,379,0,0" VerticalAlignment="Top" Width="120" Height="48" Click="btn_UpdateEmployee"/>
  25.         <Button Content="Delete Employee" Grid.Column="1" HorizontalAlignment="Left" Margin="361,379,0,0" VerticalAlignment="Top" Width="120" Height="48" Click="btn_DeleteEmployee"/>
  26.
  27.     </Grid>
  28. </Window>

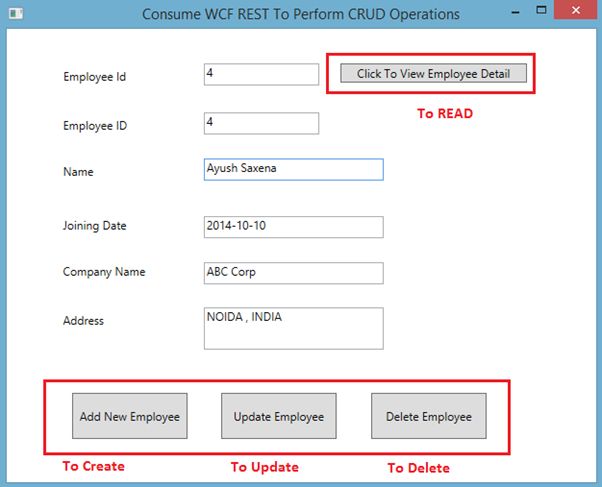

Run the application and do a CRUD operation by consuming REST WCF.



Image 5.

Code to perform the preceding operations is:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Threading.Tasks;
  6. using System.Windows;
  7. using System.Windows.Controls;
  8. using System.Windows.Data;
  9. using System.Windows.Documents;
  10. using System.Windows.Input;
  11. using System.Windows.Media;
  12. using System.Windows.Media.Imaging;
  13. using System.Windows.Navigation;
  14. using System.Windows.Shapes;
  15. using System.Runtime.Serialization;
  16. using System.Runtime.Serialization.Json;
  17. using System.Net;
  18. using System.IO;
  19. using REST_WCF_Service;
  20.
  21. namespace WPF_ClientApplication
  22. {
  23.     /// <summary>
  24.     /// Interaction logic for MainWindow.xaml
  25.     /// </summary>
  26.     public partial class MainWindow : Window
  27.     {
  28.         public MainWindow()
  29.         {
  30.             InitializeComponent();
  31.         }
  32.
  33.         private void btn_AddnewEmployee(object sender, RoutedEventArgs e)
  34.         {
  35.             EmployeeDataContract employee = new EmployeeDataContract
  36.             {
  37.                 EmployeeID = txtShowEmpId.Text,
  38.                 Name = txtShowEmpName.Text,
  39.                 JoiningDate = txtShowEmpJoiningDate.Text,
  40.                 CompanyName = txtShowCompany.Text,
  41.                 Address = txtShowAddress.Text
  42.             };
  43.
  44.             DataContractJsonSerializer ser = new DataContractJsonSerializer(typeof(EmployeeDataContract));
  45.             MemoryStream mem = new MemoryStream();
  46.             ser.WriteObject(mem, employee);
  47.             string data = Encoding.UTF8.GetString(mem.ToArray(), 0, (int)mem.Length);
  48.             WebClient webClient = new WebClient();
  49.             webClient.Headers["Content-type"] = "application/json";
  50.             webClient.Encoding = Encoding.UTF8;
  51.             webClient.UploadString("http://localhost:23610/EmployeeService.svc/AddNewEmployee", "POST", data);
  52.             MessageBox.Show("Employee Saved Successfully...");
  53.
  54.             txtShowEmpId.Text = "";
  55.             txtShowEmpName.Text = "";
  56.             txtShowEmpJoiningDate.Text = "";
  57.             txtShowCompany.Text = "";
  58.             txtShowAddress.Text = "";
  59.         }
  60.
  61.         private void btn_ViewEmployeeDetail(object sender, RoutedEventArgs e)
  62.         {
  63.             WebClient proxy = new WebClient();
  64.             string serviceURL = string.Format("http://localhost:23610/EmployeeService.svc/GetEmployeeDetails/{0}", txtEmpId.Text);
  65.             byte[] data = proxy.DownloadData(serviceURL);
  66.             Stream stream = new MemoryStream(data);
  67.             DataContractJsonSerializer obj = new DataContractJsonSerializer(typeof(EmployeeDataContract));
  68.             EmployeeDataContract employee = obj.ReadObject(stream) as EmployeeDataContract;
  69.             txtShowEmpId.Text = employee.EmployeeID;
  70.             txtShowEmpName.Text = employee.Name;
  71.             txtShowEmpJoiningDate.Text = employee.JoiningDate;
  72.             txtShowCompany.Text = employee.CompanyName;
  73.             txtShowAddress.Text = employee.Address;
  74.         }
  75.
  76.         private void btn_UpdateEmployee(object sender, RoutedEventArgs e)
  77.         {
  78.             EmployeeDataContract employeeContact = new EmployeeDataContract
  79.             {
  80.                 EmployeeID = txtShowEmpId.Text,
  81.                 Name = txtShowEmpName.Text,
  82.                 JoiningDate = txtShowEmpJoiningDate.Text,
  83.                 CompanyName = txtShowCompany.Text,
  84.                 Address = txtShowAddress.Text
  85.             };
  86.
  87.             WebClient client = new WebClient();
  88.             client.Headers["Content-type"] = "application/json";
  89.
  90.             MemoryStream ms = new MemoryStream();
  91.             DataContractJsonSerializer ser = new DataContractJsonSerializer(typeof(EmployeeDataContract));
  92.             ser.WriteObject(ms, employeeContact);
  93.
  94.             // invoke the REST method
  95.             client.UploadData("http://localhost:23610/EmployeeService.svc/UpdateEmployee", "PUT", ms.ToArray());
  96.
  97.             MessageBox.Show("Employee updated Successfully...");
  98.
  99.             txtShowEmpId.Text = "";
  100.             txtShowEmpName.Text = "";
  101.             txtShowEmpJoiningDate.Text = "";
  102.             txtShowCompany.Text = "";
  103.             txtShowAddress.Text = "";
  104.
  105.         }
  106.
  107.         private void btn_DeleteEmployee(object sender, RoutedEventArgs e)
  108.         {
  109.             WebClient client = new WebClient();
  110.             client.Headers["Content-type"] = "application/json";
  111.
  112.             MemoryStream ms = new MemoryStream();
  113.             DataContractJsonSerializer ser = new DataContractJsonSerializer(typeof(string));
  114.             ser.WriteObject(ms, txtEmpId.Text);
  115.
  116.             // invoke the REST method
  117.             byte[] data = client.UploadData("http://localhost:23610/EmployeeService.svc/DeleteEmployee", "DELETE", ms.ToArray());
  118.
  119.             MessageBox.Show("Employee deleted Successfully...");
  120.
  121.             txtShowEmpId.Text = "";
  122.             txtShowEmpName.Text = "";
  123.             txtShowEmpJoiningDate.Text = "";
  124.             txtShowCompany.Text = "";
  125.             txtShowAddress.Text = "";
  126.         }
  127.     }
  128. }

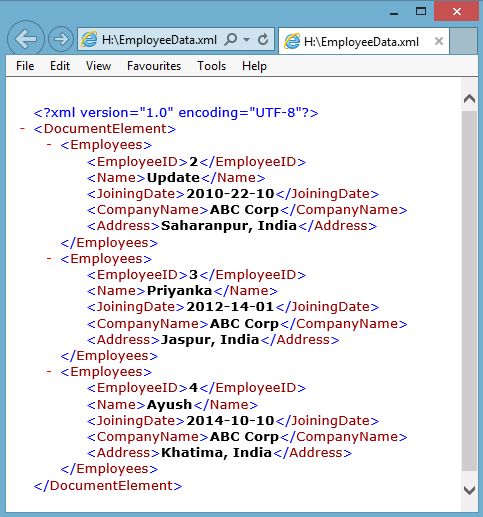

The following is my XML:



Image 6.

  • consume WCF Restful Service
  • Create WCF Restful Service
  • CRUD operations
  • WCF
Up Next
    Ebook Download
    View all
    C# Corner Ebook
    Essential WCF Practical Implementation
    Read by 12.7k people
    Download Now!
    Learn
    View all
    Learn Image
    Core Java
    Leaderboard
    View all
    Sarthak Varshney

    Sarthak Varshney
    +0
    Deepak Tewatia

    Deepak Tewatia
    +0
    View all
    Yesterday's leader
    Sarthak Varshney
    Sarthak Varshney
    Pune (India)
    70
    102
    1.7k
    100
    Member of the month
    Rinki
    Rinki
    Chennai (India)
    15
    5.4k
    14.8k
    50
    Speaker of the month
    Shivam Payasi
    Shivam Payasi
    C#, .NET
    Chitrakoot (India)
    8
    21.1k
    19.7k
    10
    Upcoming events
    View all
    • The Cloud Show with Magnus Mårtensson ft. Oscar Garcia Colon - Ep: 45
    • Bhubaneswar Chapter
    • Building Websites with Microsoft Power Pages: Exploring WebPage, WebTemplate, and Page Templates - Microsoft Business Application Ep. 25
    Suggested for you
    View all
    Mahesh Chand Mahesh Chand
    Follow
    Nilesh Jadav Nilesh Jadav
    Follow
    Praveen Moosad Praveen Moosad
    Follow
    James Tomar James Tomar
    Follow
    Gaurav Kumar Singh Gaurav Kumar Singh
    Follow

    CSharpBot

    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    Sign-Up Now

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    Sign-Up Now

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    Sign-Up Now

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
    About Us Contact Us Privacy Policy Terms Media Kit Partners C# Tutorials Consultants Ideas Report A Bug FAQs Certifications Sitemap Stories CSharp TV DB Talks Let's React Web3 Universe Interviews.help Jumpstart Blockchain Build with JavaScript

    ©2024 C# Corner.

    All contents are copyright of their authors.
