Create Crystal Reports Report in ASP.Net

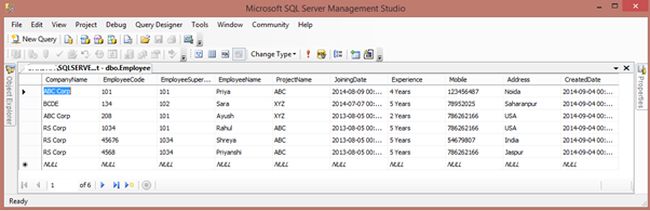

The following is my Employee Table, of which the data I will show as a report in ASP.NET using Crystal Reports.

Employee Table
                                                                              Image 1.

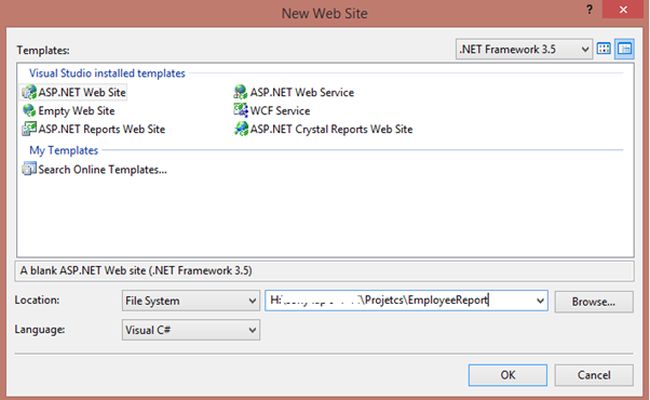

Now open Visual Studio then select File -> New -> Web Site.

New Web Site
                                                                              Image 2.

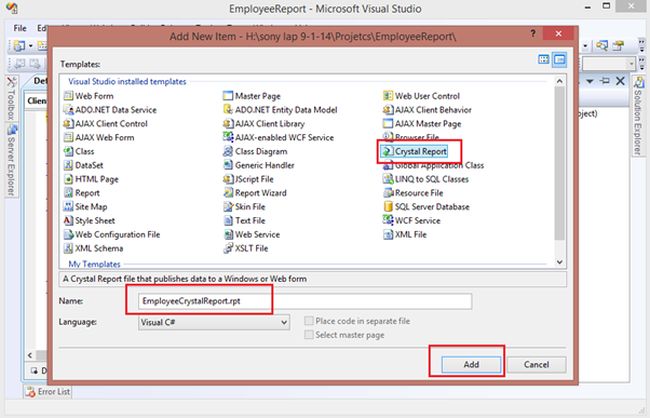

Then right-click on the Solution Explorer then select Add New Item then select Crystal Reports then click Add.

Crystal Report
                                                                                    Image 3.

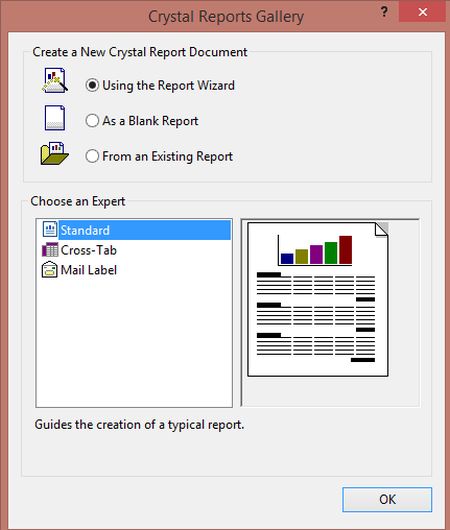

Crystal Report gallery
                                                      Image 4.

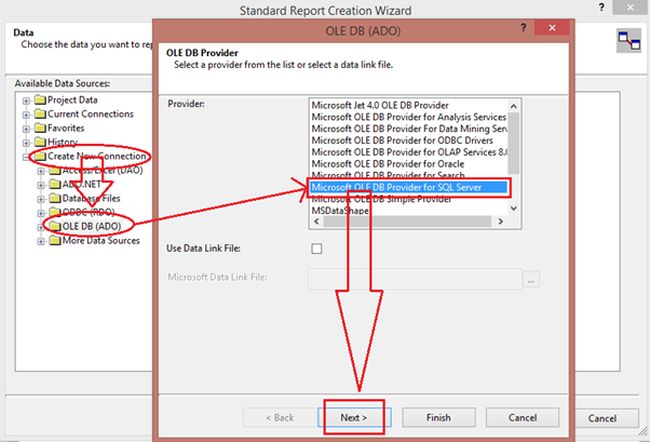

Here expand something then select Create New Connection then select OLE DB (ADO) then a pop-up window will open. Select Microsoft OLE DB Provider for SQL Server then click Next.

Microsoft OLE DB Provider
                                                                              Image 5.

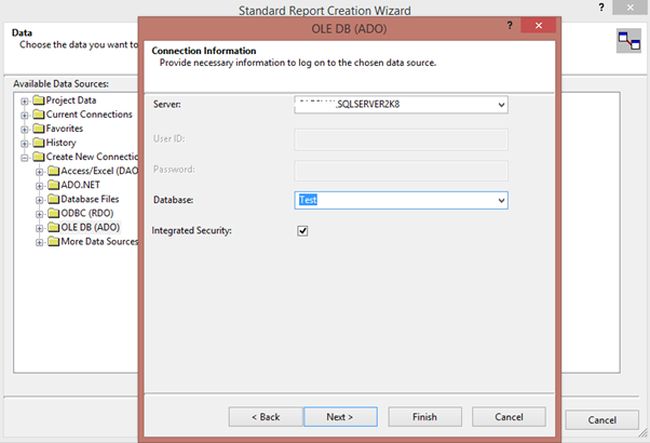

Now enter your SQL Server details.

SQL server Details.
                                                                              Image 6.

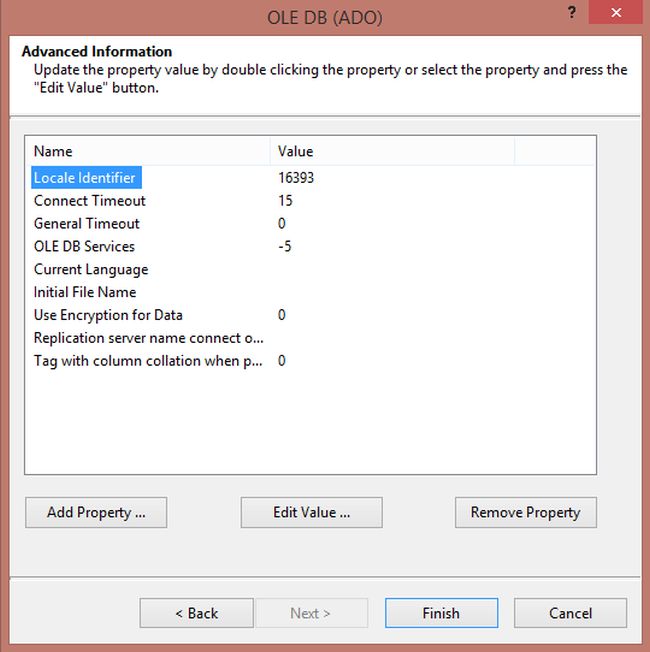

local identifier
                                                                              Image 7.

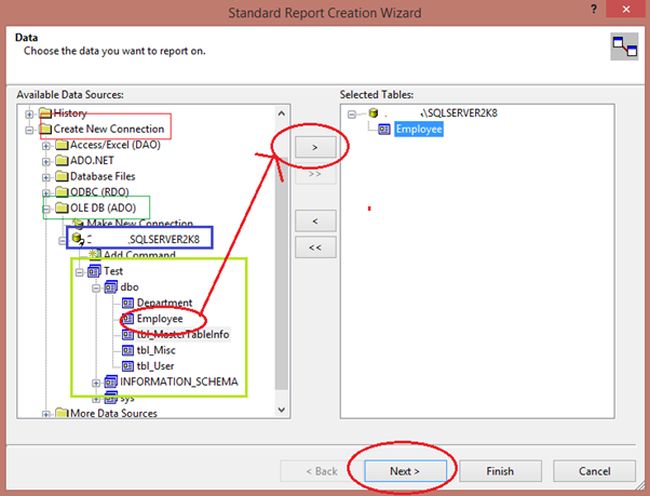

Now select your database then select your table and Move.

Select Your Table and Move
                                                                              Image 8.

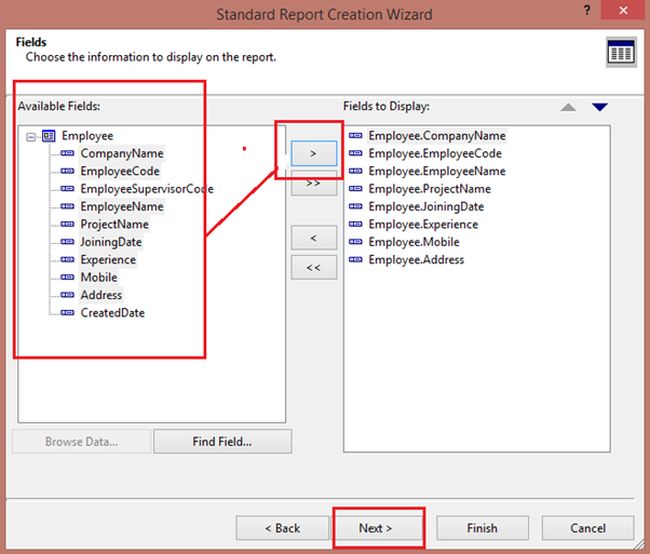

Now select the columns to be shown in the reports. Then click Finish.

Select those column
                                                                              Image 9.

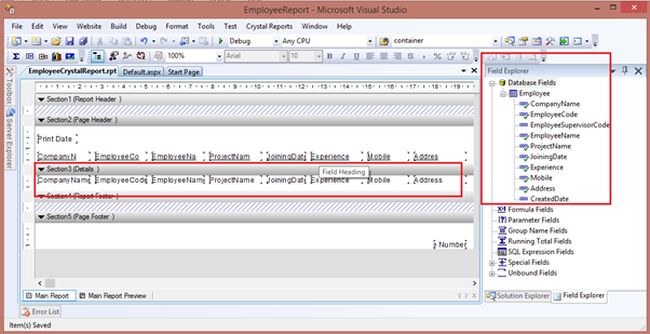

Now you can see your report is ready. All the columns are already in the Details sections. You can remove any column or you can add a new column by drag and drop from the fields explorer to the report.

field explorer to report
                                                                              Image 10.

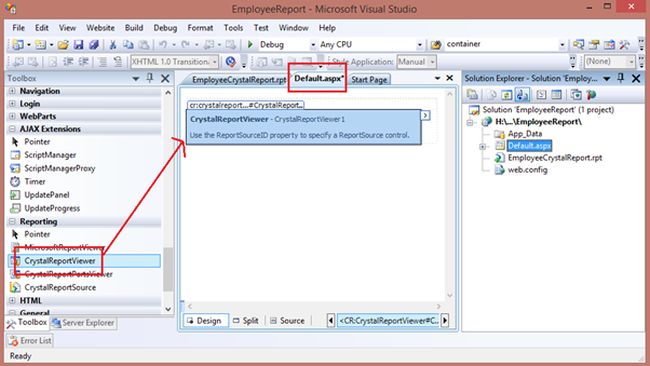

Now to add a Report Viewer for showing this Crystal Reports report. In the Default.aspx page drag and drop a CrystalReportViewer from the tool box like the following.

                                                                              Image 11.

Now for the Page_Load event write the following code:

  1. using System;
  2. using System.Configuration;
  3. using System.Data;
  4. using System.Linq;
  5. using System.Web;
  6. using System.Web.Security;
  7. using System.Web.UI;
  8. using System.Web.UI.HtmlControls;
  9. using System.Web.UI.WebControls;
  10. using System.Web.UI.WebControls.WebParts;
  11. using System.Xml.Linq;
  12. using CrystalDecisions.CrystalReports.Engine;
  14. public partial class _Default : System.Web.UI.Page
  15. {
  16.     protected void Page_Load(object sender, EventArgs e)
  17.     {
  18.         ReportDocument cryRpt = new ReportDocument();
  19.         cryRpt.Load(Server.MapPath("EmployeeCrystalReport.rpt"));
  20.         CrystalReportViewer1.ReportSource = cryRpt;
  21.     }
  22. }

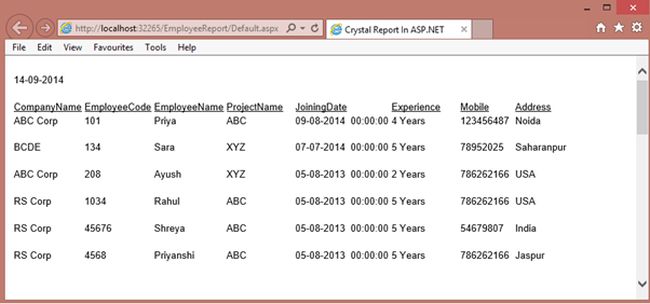

Now run your application:

Run your Application
                                                                           Image 12.
