Role Based Access Of An MVC Application

It means if you have some Admin related pages then only those users can access these pages that have Admin role.

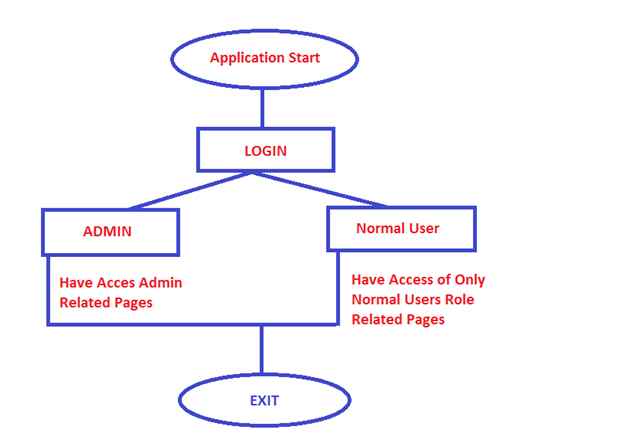

For this here's the figure:

                                                            Figure 1

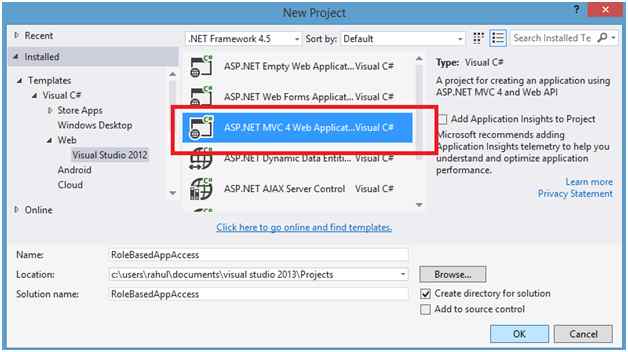

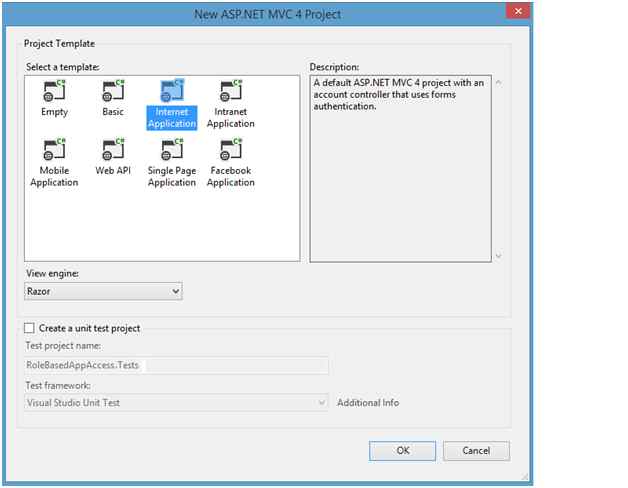

Now open Visual Studio, then New Project.


                                                                           Figure 2


                                                                  Figure 3

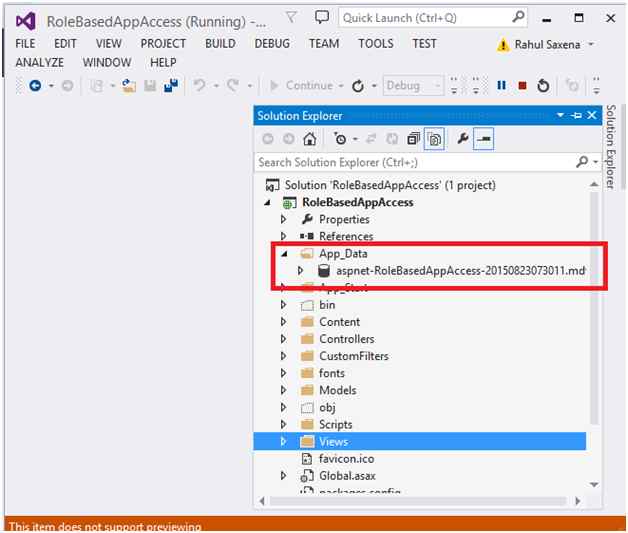

For User and Role I am going to use Application default database as in the following screenshot:


                                                                           Figure 4

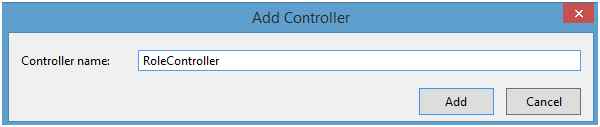

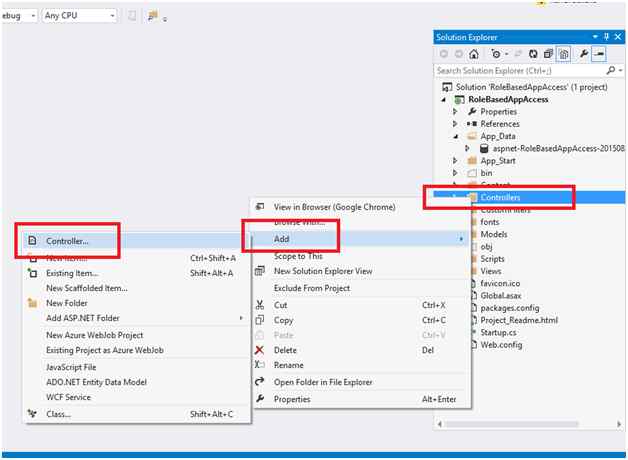

Now we will write code to manage role mean, Add new role, View All Role. Right click on Controllers folder and Add New Controller.


                                                                        Figure 5


                                                                     Figure 6


                                                                     Figure 7

Now here in this RoleController write code to view and add new role. Here I will use ApplicationDbContext as in the following figure 4.

RoleController

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;
using RoleBasedAppAccess.Models;
using Microsoft.AspNet.Identity.EntityFramework;

namespace RoleBasedAppAccess.Controllers
{
    public class RoleController : Controller
    {
        ApplicationDbContext context;

        public RoleController()
        {
            context = new ApplicationDbContext();
        }

        /// <summary>
        /// Get All Roles
        /// </summary>
        /// <returns></returns>
        public ActionResult Index()
        {
            var Roles = context.Roles.ToList();
            return View(Roles);
        }

        /// <summary>
        /// Create  a New role
        /// </summary>
        /// <returns></returns>
        public ActionResult Create()
        {
            var Role = new IdentityRole();
            return View(Role);
        }

        /// <summary>
        /// Create a New Role
        /// </summary>
        /// <param name="Role"></param>
        /// <returns></returns>
        [HttpPost]
        public ActionResult Create(IdentityRole Role)
        {
            context.Roles.Add(Role);
            context.SaveChanges();
            return RedirectToAction("Index");
        }

    }
}

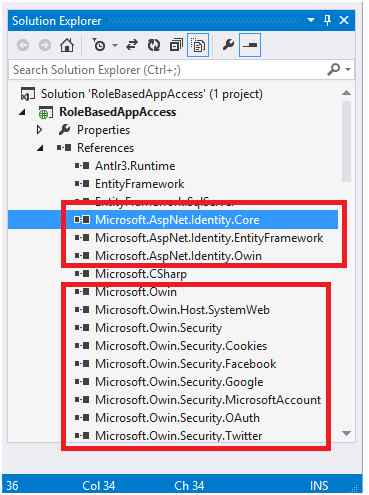

Here I am using ASP.NET identity:


                                          Figure 8

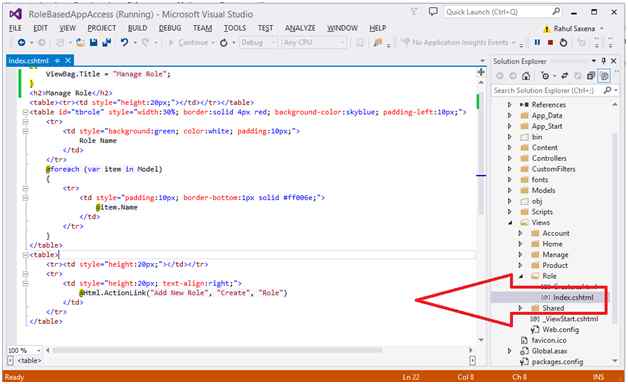

Now Add View on Index ActionMethod of RoleController:

Go to Views, then Role and Index.cshtml.

@model IEnumerable<Microsoft.AspNet.Identity.EntityFramework.IdentityRole>
@{
    ViewBag.Title = "Manage Role";
}
<h2>Manage Role</h2>
<table><tr><td style="height:20px;"></td></tr></table>
<table id="tbrole" style="width:30%; border:solid 4px red; background-color:skyblue; padding-left:10px;">
    <tr>
        <td style="background:green; color:white; padding:10px;">
            Role Name
        </td>
    </tr>
    @foreach (var item in Model)
    {
        <tr>
            <td style="padding:10px; border-bottom:1px solid #ff006e;">
                @item.Name
            </td>
        </tr>
    }
</table>
<table>
    <tr><td style="height:20px;"></td></tr>
    <tr>
        <td style="height:20px; text-align:right;">
            @Html.ActionLink("Add New Role", "Create", "Role")
        </td>
    </tr>
</table>

                                                                              Figure 9

Now again right click on Create ActionMethod in RoleController, then click Add View.

Go to Views, then Role and Create.cshtml.

@model Microsoft.AspNet.Identity.EntityFramework.IdentityRole
@{
    ViewBag.Title = "Add New Role";
}
<h2>Add New Role:</h2>
<style type="text/css">
    #tbrole, .c {
        border: double;
    }
</style>
@using (Html.BeginForm())
{
    <table style="width:40%; border:solid 4px red; background-color:skyblue; padding:10px;">
        <tr>
            <td style="background:green; color:white; padding:10px;">Role Name:</td>
            <td style="background:green; color:white; padding:10px;">
                @Html.EditorFor(m => m.Name)
            </td>
        </tr>
        <tr><td style="height:20px;" colspan="2"></td></tr>
        <tr><td></td><td><input type="submit" value="Create Role" /></td></tr>
        <tr><td style="height:20px;" colspan="2"></td></tr>
    </table>
}

                                                                           Figure 10

Now open Views, then Shared and _Layout.cshtml



Add a link here to manage Role.

<div class="navbar-collapse collapse">
   <ul class="nav navbar-nav">
      <li>@Html.ActionLink("Manage Role", "Index", "Role")</li>
   </ul>
   @Html.Partial("_LoginPartial")
</div>

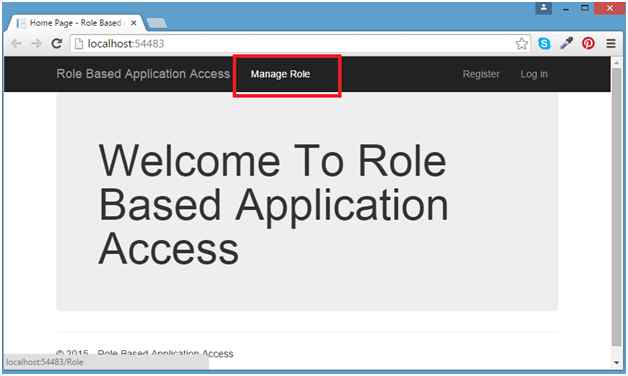

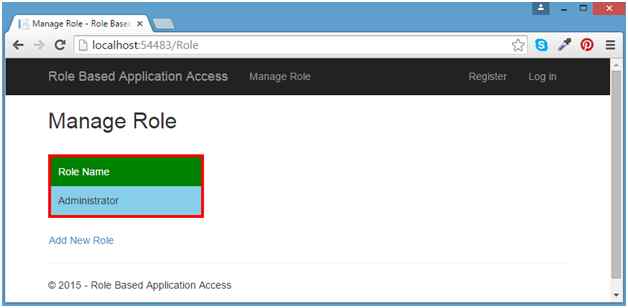

Now run you application:


                                                                           Figure 11

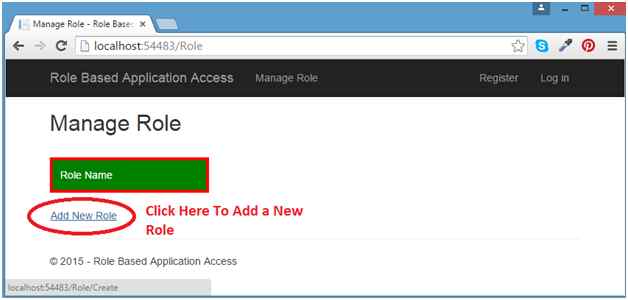

See Manage Role Menu and Click.


                                                                        Figure 12

Click Add New Role


                                                                           Figure 13

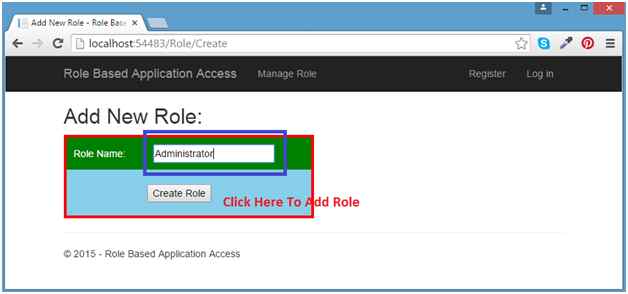

Enter your Role Name and click Create Role Button.


                                                                           Figure 14

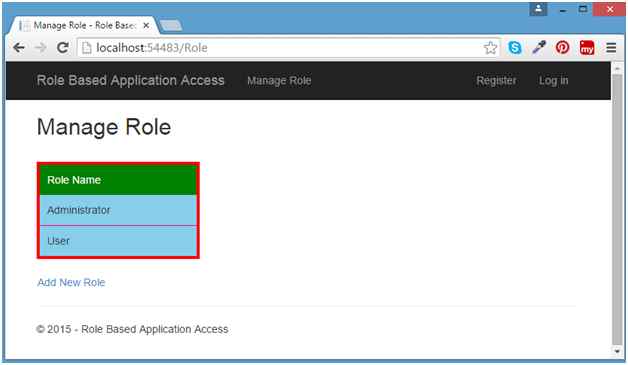

See your available roles. Now I added one more role i.e.: User.

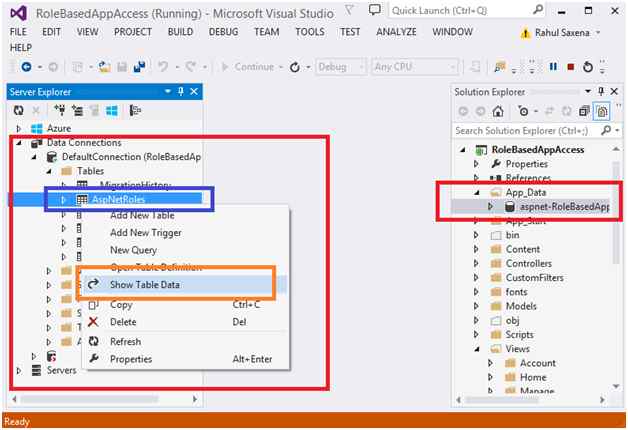

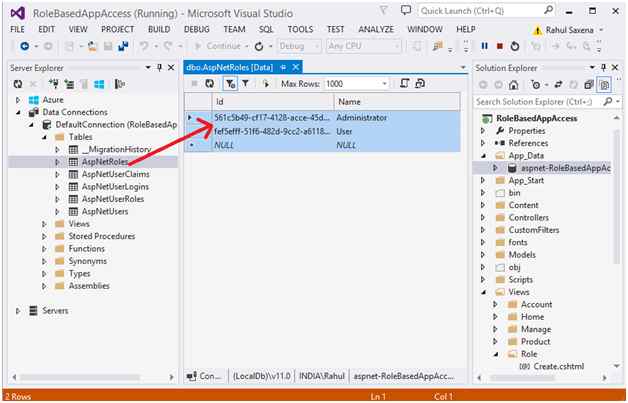

Now see these roles in your ASP.NET database.


                                                                           Figure 15


                                                                           Figure 16


                                                                       Figure 17

Now add users to your application, so now open Controller and go to AccountController.

Create an instance of ApplicationDbContext as in the following code snippet:

ApplicationDbContext context;

public AccountController()
{
   context = new ApplicationDbContext();
}

Here while adding new user we will assign role to this user, so I am showing role in a dropdown list:

// GET: /Account/Register
[AllowAnonymous]
public ActionResult Register()
{
    ViewBag.Name = new SelectList(context.Roles.ToList(), "Name", "Name");
    return View();
}

I made a change here in Register View and added a dropdown to select Role:

Go to My Views, then Account and Register.cshtml:

@model RoleBasedAppAccess.Models.RegisterViewModel
@{
    ViewBag.Title = "Register";
}

<h2>@ViewBag.Title.</h2>

@using (Html.BeginForm("Register", "Account", FormMethod.Post, new { @class = "form-horizontal", role = "form" }))
{
    @Html.AntiForgeryToken()
    <h4>Create a new account.</h4>
    <hr />
    @Html.ValidationSummary("", new { @class = "text-danger" })
    <div class="form-group">
        @Html.LabelFor(m => m.Email, new { @class = "col-md-2 control-label" })
        <div class="col-md-10">
            @Html.TextBoxFor(m => m.Email, new { @class = "form-control" })
        </div>
    </div>
    <div class="form-group">
        @Html.LabelFor(m => m.Password, new { @class = "col-md-2 control-label" })
        <div class="col-md-10">
            @Html.PasswordFor(m => m.Password, new { @class = "form-control" })
        </div>
    </div>
    <div class="form-group">
        @Html.LabelFor(m => m.ConfirmPassword, new { @class = "col-md-2 control-label" })
        <div class="col-md-10">
            @Html.PasswordFor(m => m.ConfirmPassword, new { @class = "form-control" })
        </div>
    </div>
    <!--Select the Role Type for the User-->
    <div class="form-group">
        @Html.Label("Select Your User Type", new { @class = "col-md-2 control-label" })
        <div class="col-md-10">
            @*@Html.DropDownList("Name")*@
            @Html.DropDownList("Name", (SelectList)ViewBag.Name, "--Choose Role--")
        </div>
    </div>
    <!--Ends Here-->

    <div class="form-group">
        <div class="col-md-offset-2 col-md-10">
            <input type="submit" class="btn btn-default" value="Register" />
        </div>
    </div>
}

@section Scripts {
    @Scripts.Render("~/bundles/jqueryval")
}

I updated Controller, then Account and Register.

[HttpPost]
[AllowAnonymous]
[ValidateAntiForgeryToken]
public async Task<ActionResult> Register(RegisterViewModel model)
{
    if (ModelState.IsValid)
    {
        var user = new ApplicationUser { UserName = model.Email, Email = model.Email };
        var result = await UserManager.CreateAsync(user, model.Password);
        if (result.Succeeded)
        {

            //Assign Role to user Here
            await this.UserManager.AddToRoleAsync(user.Id, model.Name);
            //Ends Here


            await SignInManager.SignInAsync(user, isPersistent: false, rememberBrowser: false);

            return RedirectToAction("Index", "Home");
        }
        AddErrors(result);
    }

    // If we got this far, something failed, redisplay form
    return View(model);
}

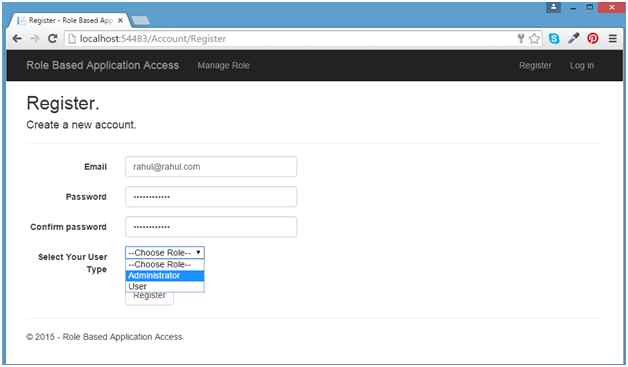

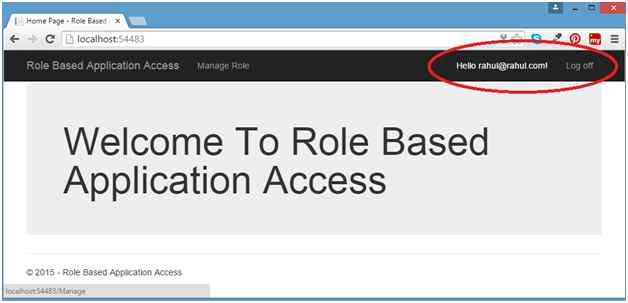

Run your application and click Register:


                                                                        Figure 18


                                                                           Figure 19

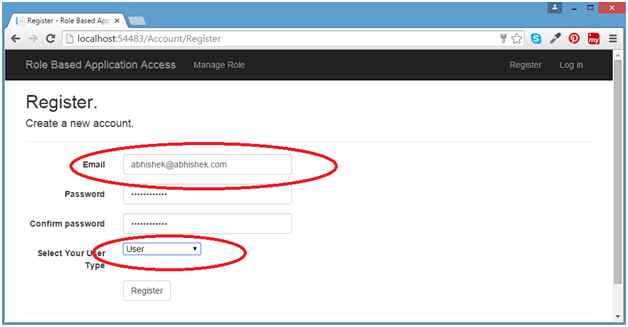

Now again make a registration.


                                                                           Figure 20

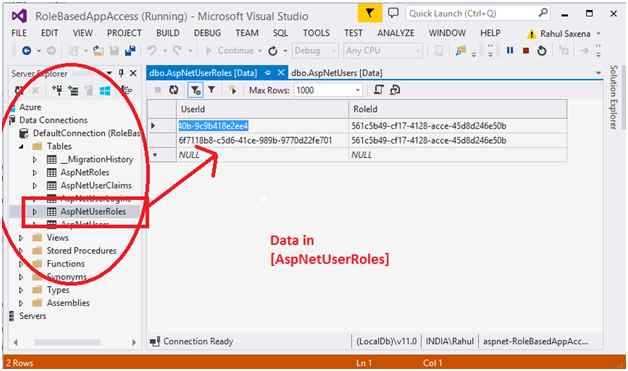

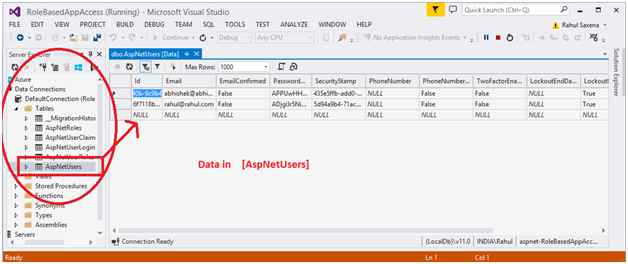

Now see your data in your Server Explorer:

AspNetUsers

                                                                           Figure 21

                                                                        Figure 22

Now suppose we have 2 pages in my application. I want the Admin to access only Admin page and normal user can access User page. I am going to give link on header for these 2 pages.

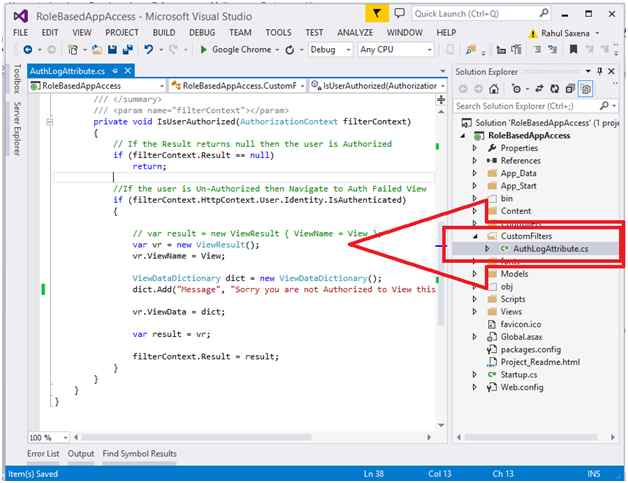

So for this I am going to add a Folder, then CustomFilters and Add here a class-> AuthLogAttribute.cs and write the following code:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;

namespace RoleBasedAppAccess.CustomFilters
{
    public class AuthLogAttribute : AuthorizeAttribute
    {
        public AuthLogAttribute()
        {
            View = "AuthorizeFailed";
        }

        public string View { get; set; }

        /// <summary>
        /// Check for Authorization
        /// </summary>
        /// <param name="filterContext"></param>
        public override void OnAuthorization(AuthorizationContext filterContext)
        {
            base.OnAuthorization(filterContext);
            IsUserAuthorized(filterContext);
        }

        /// <summary>
        /// Method to check if the user is Authorized or not
        /// if yes continue to perform the action else redirect to error page
        /// </summary>
        /// <param name="filterContext"></param>
        private void IsUserAuthorized(AuthorizationContext filterContext)
        {
            // If the Result returns null then the user is Authorized
            if (filterContext.Result == null)
                return;

            //If the user is Un-Authorized then Navigate to Auth Failed View
            if (filterContext.HttpContext.User.Identity.IsAuthenticated)
            {

                // var result = new ViewResult { ViewName = View };
                var vr = new ViewResult();
                vr.ViewName = View;

                ViewDataDictionary dict = new ViewDataDictionary();
                dict.Add("Message", "Sorry you are not Authorized to View this Page");

                vr.ViewData = dict;

                var result = vr;

                filterContext.Result = result;
            }
        }
    }
}

                                                                        Figure 23

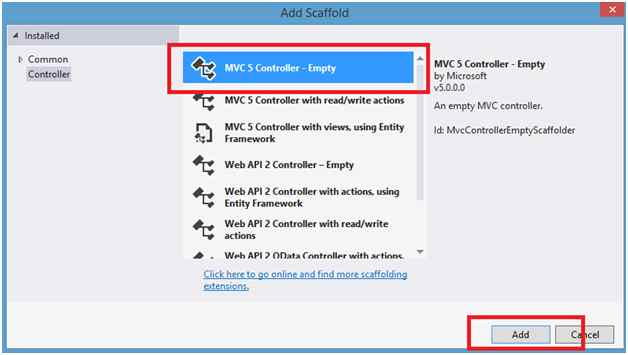

Now Add 2 Controllers: 1. Admin 2. Users.

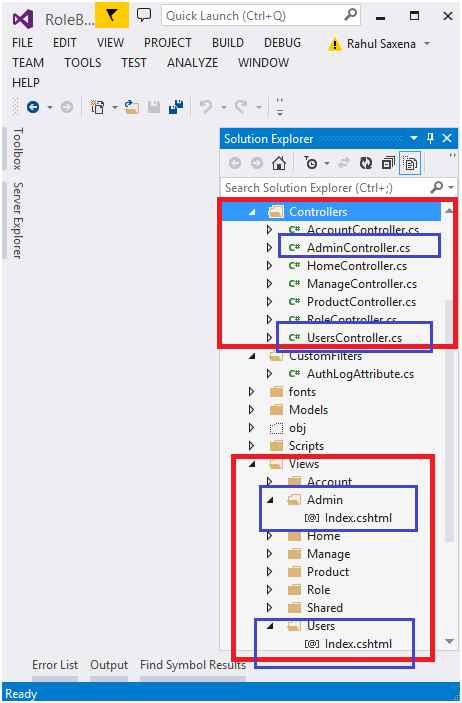

Add view for both controller as in the following screenshot:


                                                   Figure 24

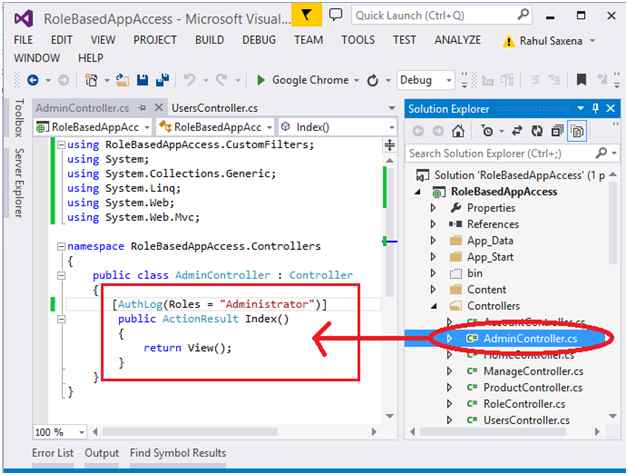

Now Set Access permission. Open Admin Controller and write the following code above your index action method:


                                                                        Figure 25

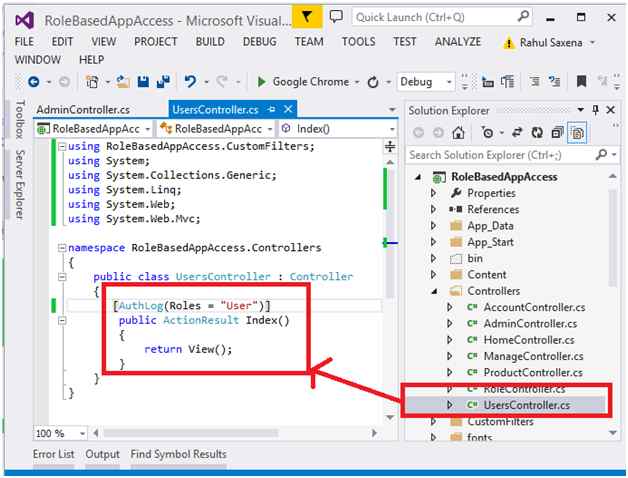

Controller-> Users:


                                                                              Figure 26

Now open Views, then Shared and click _Layout.cshtml. After that add link button to add Access to these 2 pages:

<div class="navbar-collapse collapse">
   <ul class="nav navbar-nav">
       <li>@Html.ActionLink("Manage Role", "Index", "Role")</li>
       <li>@Html.ActionLink("ADMIN PAGE", "Index", "Admin")</li>
       <li>@Html.ActionLink("USER PAGE", "Index", "Users")</li>
   </ul>
   @Html.Partial("_LoginPartial")
</div>

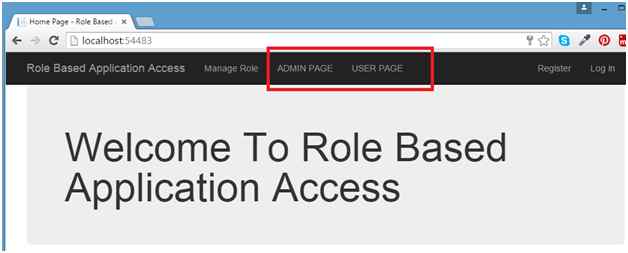

Now run the application:


                                                                        Figure 27

Click on ADMIN PAGE Link:


                                                                           Figure 28

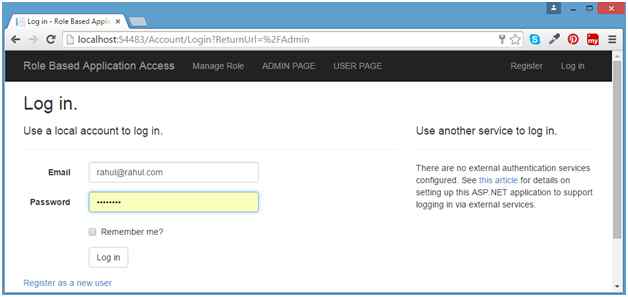

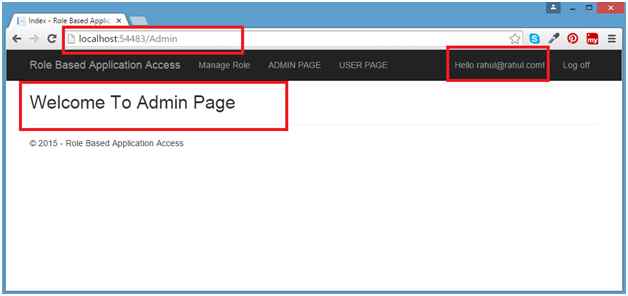

You will redirect to login page. Now login with [email protected] which is in Admin Role.


                                                                        Figure 29

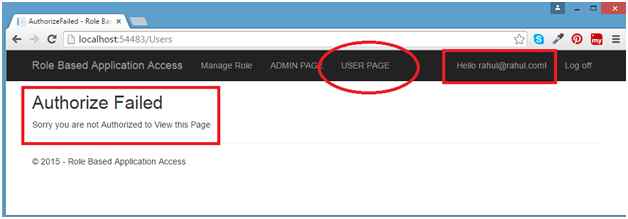

Now click on USER PAGE as [email protected] is an ADMIN user and can’t access others Role page:


                                                                           Figure 30

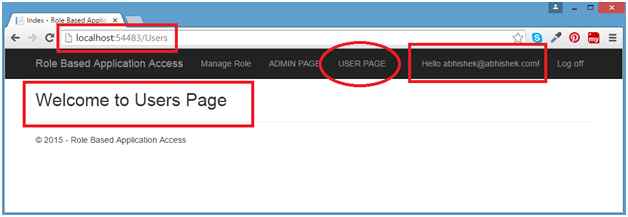

Now Login as [email protected] which is in User Role:


                                                                              Figure 31

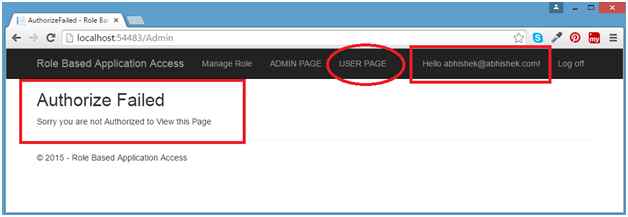

If you try to access ADMIN PAGE, the following error message will be visible:


                                                                        Figure 32
