CRUD Operations in MVC 5 Using WebAPI With AngularJS

Before proceeding further I recommend reading my previous angularJS articles, so that you can understand AngularJS very well.

Getting Started

  • Start Visual Studio 2013
  • Create a new Project
  • Select Web Template and select ASP.NET Web Application
  • Provide the name and location of website
  • Click "Next"

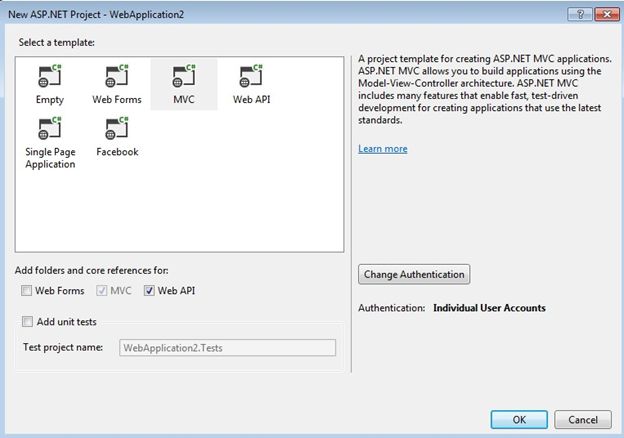

  • Now select MVC template and do check Web API to add folder and core references.

MVC template

Now add a new model class in the model directory.

  1. public class Friend
  2. {
  3.     [Key]
  4.     [DatabaseGeneratedAttribute(DatabaseGeneratedOption.Identity)]
  5.     public int FriendId { get; set; }
  6.     public string FirstName { get; set; }
  7.     public string LastName { get; set; }
  8.     public string Address { get; set; }
  9.     public string City { get; set; }
  10.     public string PostalCode { get; set; }
  11.     public string Country { get; set; }
  12.     public string Notes { get; set; }
  13. }

Now add a context class.

  1. public class FriendsContext : DbContext
  2. {
  3.      public FriendsContext()
  4.          : base("name=DefaultConnection")
  5.      {
  6.          base.Configuration.ProxyCreationEnabled = false;
  7.      }
  8.      public DbSet<Friend> Friends { get; set; }
  9. }

Now add a controller in the controller directory.

  1. public class FriendController : ApiController
  2.     {
  3.         private FriendsContext db = new FriendsContext();
  4.
  5.  // GET api/<controller>
  6. [HttpGet]
  7. public IEnumerable<Friend> Get()
  8.         {
  9.             return db.Friends.AsEnumerable();
  10.         }
  11. // GET api/<controller>/5
  12.         public Friend Get(int id)
  13.         {
  14.             Friend friend = db.Friends.Find(id);
  15.             if (friend == null)
  16.             {
  17.                 throw new HttpResponseException(Request.CreateResponse(HttpStatusCode.NotFound));
  18.             }
  19.
  20.             return friend;
  21.         }
  22. // POST api/<controller>
  23.         public HttpResponseMessage Post(Friend friend)
  24.         {
  25.             if (ModelState.IsValid)
  26.             {
  27.                 db.Friends.Add(friend);
  28.                 db.SaveChanges();
  29.
  30.                 HttpResponseMessage response = Request.CreateResponse(HttpStatusCode.Created, friend);
  31.                 response.Headers.Location = new Uri(Url.Link("DefaultApi", new { id = friend.FriendId }));
  32.                 return response;
  33.             }
  34.             else
  35.             {
  36.                 return Request.CreateErrorResponse(HttpStatusCode.BadRequest, ModelState);
  37.             }
  38.         }
  39. // PUT api/<controller>/5
  40.         public HttpResponseMessage Put(int id, Friend friend)
  41.         {
  42.             if (!ModelState.IsValid)
  43.             {
  44.                 return Request.CreateErrorResponse(HttpStatusCode.BadRequest, ModelState);
  45.             }
  46.
  47.             if (id != friend.FriendId)
  48.             {
  49.                 return Request.CreateResponse(HttpStatusCode.BadRequest);
  50.             }
  51.
  52.             db.Entry(friend).State = EntityState.Modified;
  53.
  54.             try
  55.             {
  56.                 db.SaveChanges();
  57.             }
  58.             catch (DbUpdateConcurrencyException ex)
  59.             {
  60.                 return Request.CreateErrorResponse(HttpStatusCode.NotFound, ex);
  61.             }
  62.
  63.             return Request.CreateResponse(HttpStatusCode.OK);
  64.         }
  65.  // DELETE api/<controller>/5
  66.         public HttpResponseMessage Delete(int id)
  67.         {
  68.             Friend friend = db.Friends.Find(id);
  69.             if (friend == null)
  70.             {
  71.                 return Request.CreateResponse(HttpStatusCode.NotFound);
  72.             }
  73.
  74.             db.Friends.Remove(friend);
  75.
  76.             try
  77.             {
  78.                 db.SaveChanges();
  79.             }
  80.             catch (DbUpdateConcurrencyException ex)
  81.             {
  82.                 return Request.CreateErrorResponse(HttpStatusCode.NotFound, ex);
  83.             }
  84.
  85.             return Request.CreateResponse(HttpStatusCode.OK, friend);
  86.         }
  87.  protected override void Dispose(bool disposing)
  88.         {
  89.             db.Dispose();
  90.             base.Dispose(disposing);
  91.         }
  92.     }

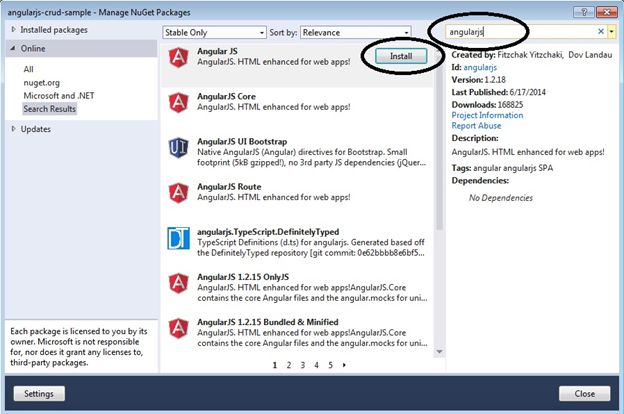

Now add AngularJS using Manage Nuget Package Manager and search AngularJS.

search AngularJS

Now add a new JavaScript file in the scripts directory and add angular functions.

  1. function friendController($scope, $http) {
  2.     $scope.loading = true;
  3.     $scope.addMode = false;
  4.
  5.     //Used to display the data
  6.     $http.get('/api/Friend/').success(function (data) {
  7.         $scope.friends = data;
  8.         $scope.loading = false;
  9.     })
  10.     .error(function () {
  11.         $scope.error = "An Error has occured while loading posts!";
  12.         $scope.loading = false;
  13.     });
  14.
  15.     $scope.toggleEdit = function () {
  16.         this.friend.editMode = !this.friend.editMode;
  17.     };
  18.     $scope.toggleAdd = function () {
  19.         $scope.addMode = !$scope.addMode;
  20.     };
  21.
  22.     //Used to save a record after edit
  23.     $scope.save = function () {
  24.         alert("Edit");
  25.         $scope.loading = true;
  26.         var frien = this.friend;
  27.         alert(emp);
  28.         $http.put('/api/Friend/', frien).success(function (data) {
  29.             alert("Saved Successfully!!");
  30.             emp.editMode = false;
  31.             $scope.loading = false;
  32.         }).error(function (data) {
  33.             $scope.error = "An Error has occured while Saving Friend! " + data;
  34.             $scope.loading = false;
  35.
  36.         });
  37.     };
  38.
  39.     //Used to add a new record
  40.     $scope.add = function () {
  41.         $scope.loading = true;
  42.         $http.post('/api/Friend/', this.newfriend).success(function (data) {
  43.             alert("Added Successfully!!");
  44.             $scope.addMode = false;
  45.             $scope.friends.push(data);
  46.             $scope.loading = false;
  47.         }).error(function (data) {
  48.             $scope.error = "An Error has occured while Adding Friend! " + data;
  49.             $scope.loading = false;
  50.
  51.         });
  52.     };
  53.
  54.     //Used to edit a record
  55.     $scope.deletefriend = function () {
  56.         $scope.loading = true;
  57.         var friendid = this.friend.FriendId;
  58.         $http.delete('/api/Friend/' + friendid).success(function (data) {
  59.             alert("Deleted Successfully!!");
  60.             $.each($scope.friends, function (i) {
  61.                 if ($scope.friends[i].FriendId === friendid) {
  62.                     $scope.friends.splice(i, 1);
  63.                     return false;
  64.                 }
  65.             });
  66.             $scope.loading = false;
  67.         }).error(function (data) {
  68.             $scope.error = "An Error has occured while Saving Friend! " + data;
  69.             $scope.loading = false;
  70.
  71.         });
  72.     };
  73.
  74. }

Now open the _Layout.cshtml page from the Shared folder and add these two lines to render AngularJS and empjs in the application.

  1. @Scripts.Render("~/bundles/jquery")
  2. @Scripts.Render("~/bundles/bootstrap")
  3. @Scripts.Render("~/bundles/angularjs")
  4. @Scripts.Render("~/bundles/empjs")

Now let's work on the View.

  1. @{
  2.     ViewBag.Title = "FriendView";
  3.     Layout = "~/Views/Shared/_Layout.cshtml";
  4. }
  5.
  6. <h2>Friends View</h2>
  7. <style>
  8.     #mydiv {
  9.         position: absolute;
  10.         top: 0;
  11.         left: 0;
  12.         width: 100%;
  13.         height: 100%;
  14.         z-index: 1000;
  15.         background-color: grey;
  16.         opacity: .8;
  17.     }
  18.
  19.     .ajax-loader {
  20.         position: absolute;
  21.         left: 50%;
  22.         top: 50%;
  23.         margin-left: -32px; /* -1 * image width / 2 */
  24.         margin-top: -32px; /* -1 * image height / 2 */
  25.         display: block;
  26.     }
  27. </style>
  28. <div data-ng-app data-ng-controller="friendController" class="container">
  29.     <strong class="error">{{ error }}</strong>
  30.     <div id="mydiv" data-ng-show="loading">
  31.         <img src="Images/ajax-loader.gif" class="ajax-loader" />
  32.     </div>
  33.     <p data-ng-hide="addMode"><a data-ng-click="toggleAdd()" href="javascript:;" class="btn btn-primary">Add New</a></p>
  34.     <form name="addFriend" data-ng-show="addMode" style="width:600px;margin:0px auto;">
  35.         <label>FirstName:</label><input type="text" data-ng-model="newfriend.FirstName" required />
  36.         <label>LastName:</label><input type="text" data-ng-model="newfriend.LastName" required />
  37.         <label>Address:</label><input type="text" data-ng-model="newfriend.Address" required />
  38.         <label>City:</label><input type="text" data-ng-model="newfriend.City" required />
  39.         <label>PostalCode:</label><input type="text" data-ng-model="newfriend.PostalCode" required />
  40.         <label>Country:</label><input type="text" data-ng-model="newfriend.Country" required />
  41.         <label>Notes:</label><input type="text" data-ng-model="newfriend.Notes" required />
  42.         <br />
  43.         <br />
  44.         <input type="submit" value="Add" data-ng-click="add()" data-ng-disabled="!addFriend.$valid" class="btn btn-primary" />
  45.         <input type="button" value="Cancel" data-ng-click="toggleAdd()" class="btn btn-primary" />
  46.         <br /><br />
  47.     </form>
  48.     <table class="table table-bordered table-hover" style="width:800px">
  49.         <tr>
  50.             <th>#</th>
  51.             <td>FirstName</td>
  52.             <th>LastName</th>
  53.             <th>Address</th>
  54.             <th>City</th>
  55.             <th>PostalCode</th>
  56.             <th>Country</th>
  57.             <th>Notes</th>
  58.         </tr>
  59.
  60.         <tr data-ng-repeat="friend in friends">
  61.             <td><strong data-ng-hide="friend.editMode">{{ friend.FriendId }}</strong></td>
  62.             <td>
  63.                 <p data-ng-hide="friend.editMode">{{ friend.FirstName }}</p>
  64.                 <input data-ng-show="friend.editMode" type="text" data-ng-model="friend.FirstName" />
  65.             </td>
  66.             <td>
  67.                 <p data-ng-hide="friend.editMode">{{ friend.LastName }}</p>
  68.                 <input data-ng-show="friend.editMode" type="text" data-ng-model="friend.LastName" />
  69.             </td>
  70.             <td>
  71.                 <p data-ng-hide="friend.editMode">{{ friend.Address }}</p>
  72.                 <input data-ng-show="friend.editMode" type="text" data-ng-model="friend.Address" />
  73.             </td>
  74.             <td>
  75.                 <p data-ng-hide="friend.editMode">{{ friend.City }}</p>
  76.                 <input data-ng-show="friend.editMode" type="text" data-ng-model="friend.City" />
  77.             </td>
  78.             <td>
  79.                 <p data-ng-hide="friend.editMode">{{ friend.PostalCode }}</p>
  80.                 <input data-ng-show="friend.editMode" type="text" data-ng-model="friend.PostalCode" />
  81.             </td>
  82.             <td>
  83.                 <p data-ng-hide="friend.editMode">{{ friend.Country }}</p>
  84.                 <input data-ng-show="friend.editMode" type="text" data-ng-model="friend.Country" />
  85.             </td>
  86.             <td>
  87.                 <p data-ng-hide="friend.editMode">{{ friend.Notes }}</p>
  88.                 <input data-ng-show="friend.editMode" type="text" data-ng-model="friend.Notes" />
  89.             </td>
  90.             <td>
  91.                 <p data-ng-hide="friend.editMode"><a data-ng-click="toggleEdit(friend)" href="javascript:;">Edit</a> | <a data-ng-click="deletefriend(friend)" href="javascript:;">Delete</a></p>
  92.                 <p data-ng-show="friend.editMode"><a data-ng-click="save(friend)" href="javascript:;">Save</a> | <a data-ng-click="toggleEdit(friend)" href="javascript:;">Cancel</a></p>
  93.             </td>
  94.         </tr>
  95.     </table>
  96.     <hr />
  97.
  98. </div>

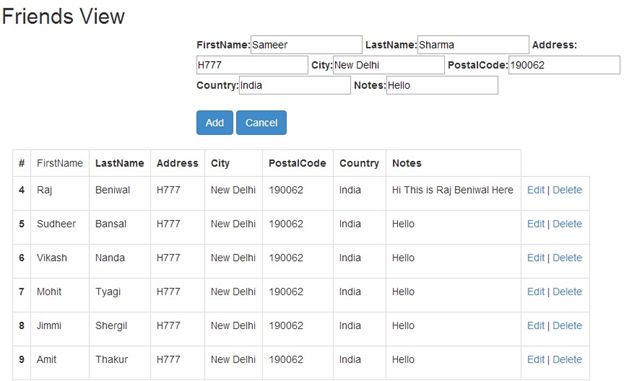

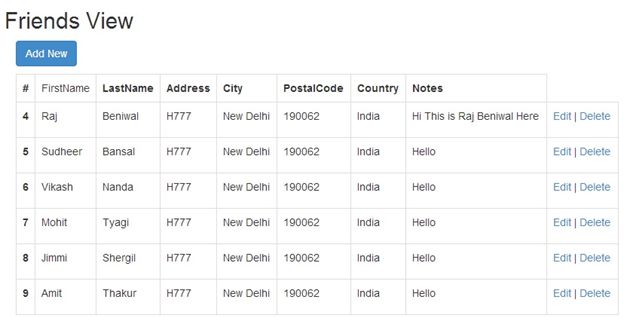

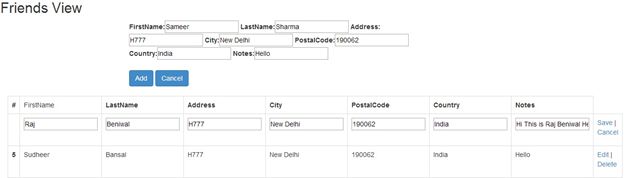

Run the application to see the output:

output

Click on the Add New Button:

edit link

Click on the edit link:

New Button

For more information download the attached sample.

Conclusion

In this article we have learned how to do CRUD operations in MVC 5 using the Web API and AngularJS. If you have any question or comments then put a line in the c-sharcorner comments section.

Up Next
    Ebook Download
    View all
    Learn
    View all
    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
