Add a Splash Form to a Windows Application

Introduction

I think that adding a splash form to a windows application is good decision in terms of design but also those kinds of windows forms are used for commercial, ergonomics and psychological purposes. Splash screens are often used to display information to the final user while an application is loading. So that it can give him a glance about what he is going to bring into play and this short moment can affect deeply the user either positively or negatively.

In this tutorial, I propose a method of how to do this programmatically.

Within VS2005-VB.NET IDE the problem is solved because we can add a splash screen as an item proposed by the IDE as is mentioned in the figure 1 below:

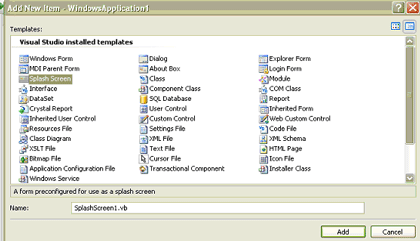

Figure 1

But within C# IDE this kind of items are not provided as the figure 2 shows:

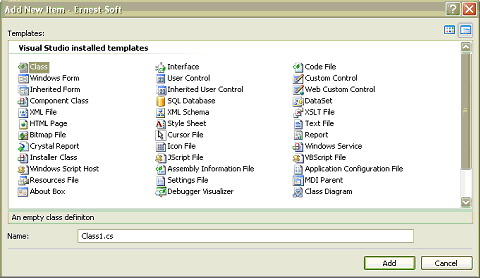

Figure 2

To resolve the problem I invite you to follow those steps:

First of all we create new windows application within C# IDE, in this case we can use either Visual Studio 2005, VS C# express edition that you can download form Microsoft official web site or Sharp Develop 2.0 witch is an open source IDE for developing DOT Net applications that you can download for free.

Add a new project by clicking File --> New project

  • The form showed below appears

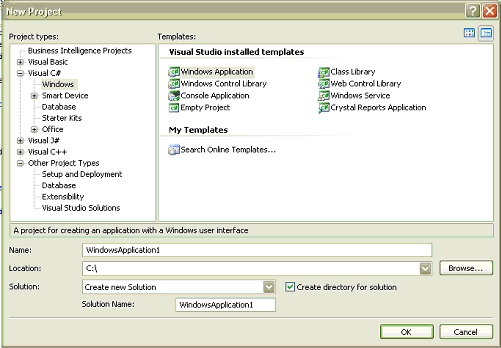

Figure 3

  • You can select Windows application after expanding the tree view at left and selecting Windows as shown in the figure 3 above
  • After clicking Ok we add a form to the project, namely Form2, Form1 is already exists.
  • We configure the Form2 so that it appears as a splash form and this is a sample that I configured only for a demonstration purposes relating to this tutorial.

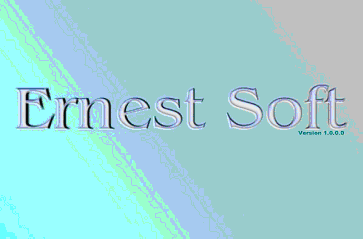

Figure 4

So now we go to the important stage in this tutorial. In the solution explorer as shown below

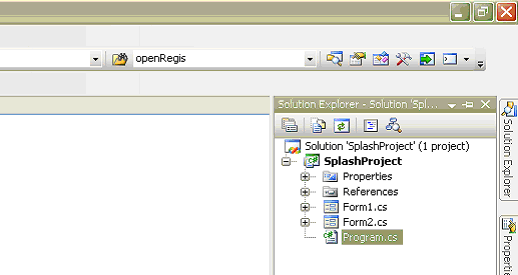

Figure 5

Select 'Program.cs' and open it so that the code appears. It is from this point that the application will be started. The following code will be displayed in the editor:

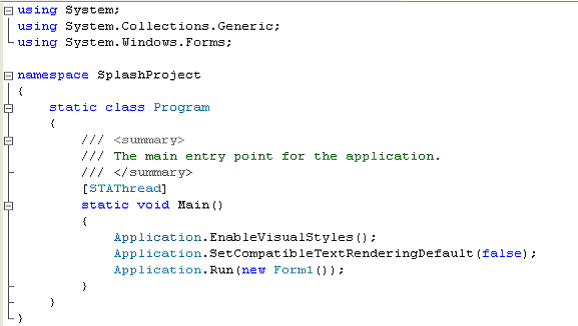

Figure 6

When we fire up the program, Form1 appears due to this fragment of code:

Application.Run (new Form1 ());

In order to display the Form2, witch is the Splash-From in your case, for a few moments before showing the Form1, you have to implement the following code instead of this one above (See figure 6)

using System;

using System.Collections.Generic;

using System.Windows.Forms;



namespace SplashProject

{

    static class Program

    {

        /// <summary>

        /// The main entry point for the application.

        /// </summary>

        /* a new static timer instance, it's important for starting and handeling the time during it the splash form is displayed*/

        static System.Windows.Forms.Timer myTimer = new System.Windows.Forms.Timer();

        // Counter is an integer that help us to fix the number of seconds during them the Splash form is displayed

        static int counter = 0;

        // b is a boolean related to the event if the Spalsh form will be disposed or not

        static bool b = false;



        [STAThread]

        static void Main()

        {

            Application.EnableVisualStyles();

            Application.SetCompatibleTextRenderingDefault(false);

/*-----------------The modification of the void Main method behavior----------------*/

            // New instance of Form2

            Form2 oForm2 = new Form2();

            //Add event handler to myTimer.Tick event

            myTimer.Tick+=new EventHandler(myTimer_Tick);

            //Fix myTimer interval to 1000 witch is 1 second

            myTimer.Interval = 1000;

            //Start myTimer

            myTimer.Start();

            /* This is the conditional loop during it the Form2 will appear as Splash form */

            while (b == false)

            {

                //Display oForm2

                oForm2.Show();

                /*This is very important to add this line of code because it is responsable for

                 dispalying oForm2 during the time provided to this action*/

                Application.DoEvents();

                if (b == true)

                {

                    /*Disposing oForm2 when the time is out */

                    oForm2.Dispose();

                    /*Going out of this while loop*/

                    break;

                }

                Application.Run(new Form1());

            }

        }

        /*This is the surcharged method that handels myTimer.Tick*/

        static void myTimer_Tick(Object sender, EventArgs e)

        {

            // Stop the timer

            myTimer.Stop();

            /* Here we chose 4 seconds or a little more to dispaly the splash form oForm2, and then to dispose it */

            if (counter < 4)

            {

                // Enable the counter

                myTimer.Enabled = true;

                // Increment the counter

                counter++;

            }

            // The condition related to witch the Spalsh form will be disposed

            if (counter == 4) b = true;



        }

    }
}

In deed, if you want to precise the position and the size of your Splash-Form programmatically, you can implement the Form2_Load(Object sender, EventArgs e) {} according to two ways and you can chose one among those mentioned below:

//The first way

private void Form2_Load(object sender, EventArgs e)

{

    this.Location = new Point(200, 200);

    this.Size = new Size(300, 300);

}

//The second way

private void Form2_Load(object sender, EventArgs e)

{

    this.Top = 200;

    this.Left = 200;

    this.Width = 300;

    this.Left = 300;

}

This is my manner to add a Splash screen or a Splash-Form programmatically using C# 2.0
