Building An IoT Based Smart Trash Can

Introduction

In this article, I will explain the concept of an IoT based smart trash can.  It will automatically open when we take waste to it; and when it is full, a light will come on automatically.

Parts Of List

Hardware Parts
  • Arduino Uno
  • UltraSonic Sensor-2
  • Servo motor
  • LED
  • Buzzer
  • Bread Board
  • HookUp wires.
Software Parts
  • Arduino IDE.
Parts Explanation

UltraSonic Sensor
  • It is used to produce a high frequency sound effect.
  • It can measure the signal from the sender to the receiver.
  • The echo is to be determined from the object.

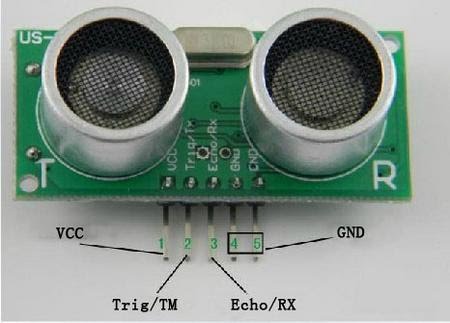

Figure1 UltraSonic Sensor.

ServoMotor
  • It is small and cost effective.
  • It is used for small robotics and radio controls.

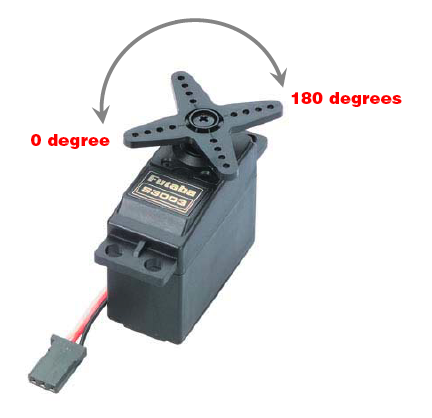

Figure 2 ServoMotor

Buzzer
  •  A buzzer is a sound maker which which can alert you to a problem
  • Then in the buzzer which can have the gnd and vcc

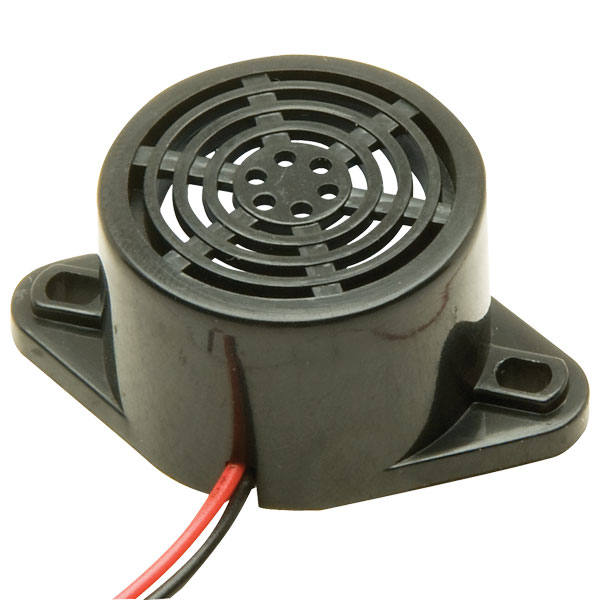

Figure 2 Buzzer

Connection

Step 1 UltraSonic Sensor-1 to Arduino
  • Connect the Vcc of the Ultrasonic Sensor to the 5v of the Arduino Uno.
  • Connect the Gnd of the Ultrasonic Sensor to the Gnd of the Arduino Uno.
  • Connect the First Trigger of the Ultrasonic Sensor to the 5 of the digital Input in the Arduino Uno.
  • Connect the First Echo of the Ultrasonic Sensor to the 4 of the digital Input in the Arduino Uno.
Step 2 UltraSonic Sensor-2 to Arduino
  • Connect the Vcc of the Ultrasonic Sensor to the 5v of the Arduino Uno.
  • Connect the Gnd of the Ultrasonic Sensor to the Gnd of the Arduino Uno.
  • Connect the First Trigger of the Ultrasonic Sensor to the 7 of the digital Input in the Arduino Uno.
  • Connect the First Echo of the Ultrasonic Sensor to the 6 of the digital Input in the Arduino Uno.
Step 3 Servo Motor To Arduino
  • Connect the Vcc of the ServoMotor to the 5v of the Arduino Uno and also connect the vcc in the 8th pin of the Arduino.
  • Connect the Gnd of the ServoMotor to the Gnd of the Arduino Uno.
Step 4 Buzzer To Arduino
  • Connect the Vin of the buzzer to the 2 of the Arduino Uno.
  • Connect the Gnd of the buzzer to the Gnd of the Arduino Uno.
Step 5 Led To Arduino
  • Connect the Led1 to Negative pin to the Arduino Uno
  • Connect the Led1 to postive pin 8 to the Arduino Uno
  • Connect the Led2 to Negative pin to the Arduino Uno
  • Connect the Led2 to postive pin 9 to the Arduino Uno
  • Connect the Led3 to Negative pin to the Arduino Uno
  • Connect the Led3 to postive pin 10 to the Arduino Uno
  • Connect the Led4 to Negative pin to the Arduino Uno
  • Connect the Led4 to postive pin 11 to the Arduino Uno
Figure Of the Connection

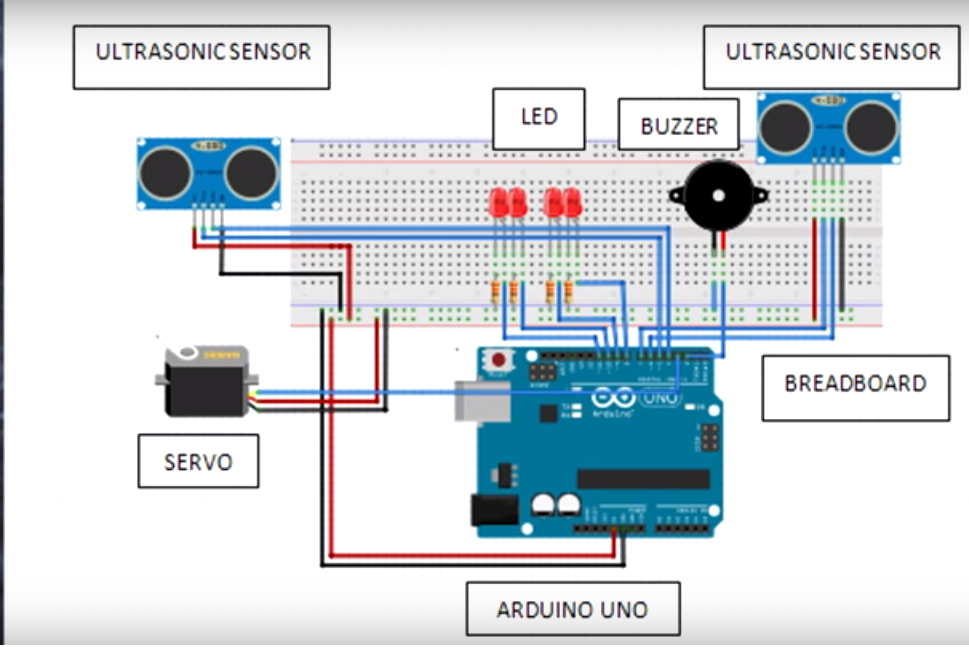

Figure 4 Connection

Programming
  1. #define pingTrig2 7
  2. #define pingEcho2 6
  3. #define pingTrig 5
  4. #define pingEcho4
  5. #define buzzer 2
  6. #include < Servo.h >
  7. Servo myservo()
  8. void setup() {
  9.     Serial.begin(9600);
  10.     PinMode[PingTrig2, OUTPUT];
  11.     PinMode[PingEcho2, OUTPUT];
  12.     PinMode(8, OUTPUT);
  13.     PinMode(9, OUTPUT);
  14.     PinMode(10, OUTPUT);
  15.     PinMode(11, OUTPUT);
  16.     PinMode(Buzzer, OUTPUT);
  17.     PinMode(pingTrig, OUTPUT);
  18.     PinMode(pingEcho, OUTPUT);
  19.     myservo, attach(3);
  20. }
  21. Void Loop() {
  22.         lond duration2 distance2;
  23.         digitalWrite(pingTrig2.LOW);
  24.         delay Microsecconds(2);
  25.         digitalWrite(pingTrig2.HIGH);
  26.         delay Microsecconds(10);
  27.         digitalWrite(pingTrig2.LOW);
  28.         digitalWrite(buzzer, LOW);
  29.         duration2 = PulseIn(pingEcho2, HIGH);
  30.         distance2 = duration 2 / 20 / 2;
  31.         if (distance 2 > 15) {
  32.             open close();
  33.         } else {
  34.             mysowo,
  35.             write(0)
  36.             lighting();
  37.             digitalwrite(buzzer, low)
  38.         }
  39.         void openclose() {
  40.                 long during, inches, cn;
  41.                 digitalwrite(pingTrig, LOW);
  42.                 delay Microseconds(02);
  43.                 digitalwrite(pingTrig, HIGH);
  44.                 delay Microseconds(10);
  45.                 digitalwrite(pingTrig, Low);
  46.                 duration = pulseIn(pingEcho, High);
  47.                 cn = duration / 29 / 2;
  48.                 if (cn < 10) {
  49.                     myservo.write(50);
  50.                     delay(100);
  51.                 } else {
  52.                     myservo.write(0);
  53.                 }
  54.                 delay(1000);
  55.                 void lighting() {
  56.                     digitalWrite(buzzer, HIGH);
  57.                     digitalWrite(8, HIGH);
  58.                     digitalWrite(9, HIGH);
  59.                     delay(300);
  60.                     digitalWrite(8, LOW);
  61.                     digitalWrite(9, LOW);
  62.                     digitalWrite(10, High);
  63.                     digitalWrite(11, High);
  64.                     delay(300);
  65.                     digitalWrite(10, Low);
  66.                     digitalWrite(11, Low);
  67.                     delay(300);
  68.                }
Explanation
  • It will sense when we want to put waste in the can and when the can is full a light will come on.
Output

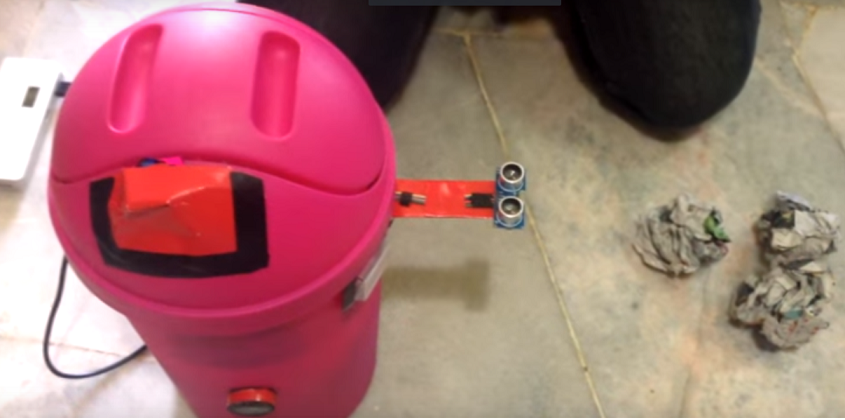

Figure 5 Output 1

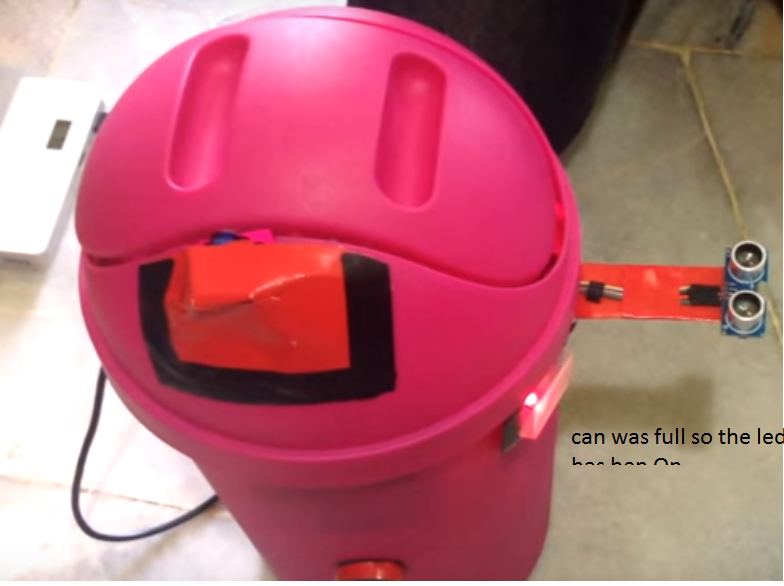

Figure 6 Output 2
