Chart web part is a new feature in SharePoint
2010 which is used to create static and dynamic charts. In this article we will
be seeing how to create an out-of-box chart web part in SharePoint 2010.
Add the Chart web part:
- Go to the SharePoint site.
- Go to Site Actions = Edit the Page.

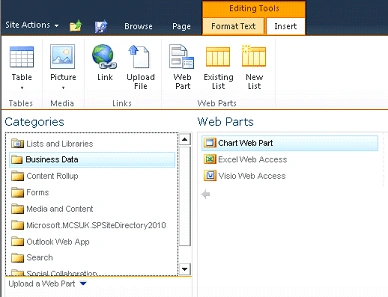

- In the ribbon interface, go to Editing
Tools = Insert = Web Part.
- In the Categories, select Business Data =
Chart Web Part.
- Click on Add.
- A sample dummy chart will be displayed as
shown in the following
We will be seeing how to create a chart by connecting to the following data
- Connect to a list.
- Connect to another web part.
- Connect to Excel Services.
Connect to a SharePoint List:
- Click on Data & Appearance.

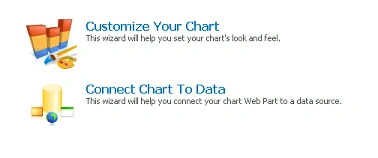

- You could see the following options as
shown in the following.
- Click on "Connect Chart to Data".

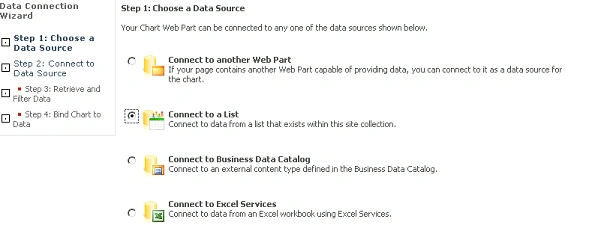

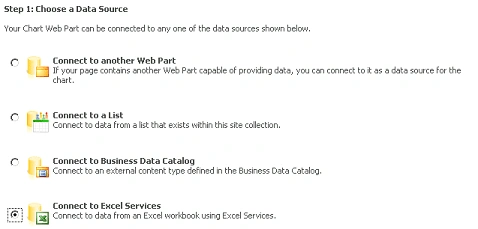

- In the Data Connection Wizard select
"Connect to a list" option.
- Click on Next.

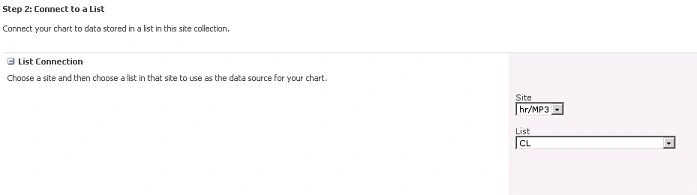

- In the List Connection, select the site
and the list.
- Click on Next.

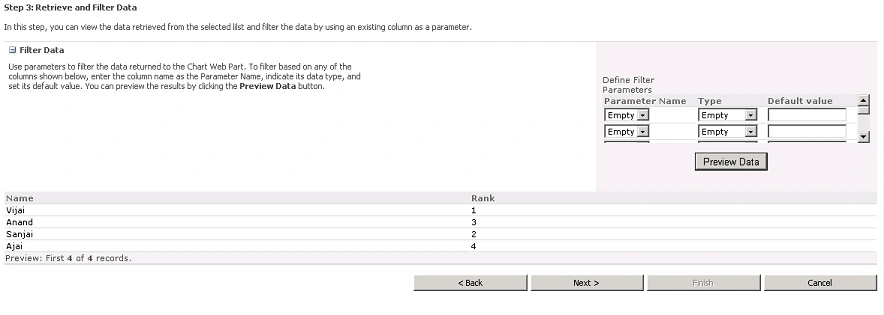

- You can view all the data and you can
configure the filter the data as shown in the following.
- Click on Next.

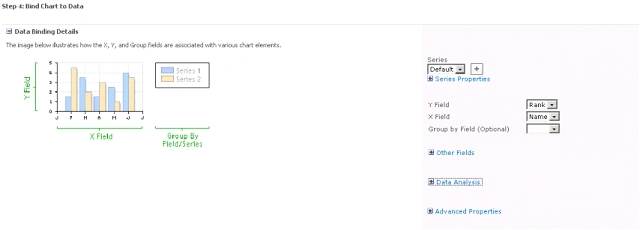

- In the "Bind Chart to Data" section, you
can choose the X field and Y field and lot of other configurations can be
made in this section.
- Click on Finish.
- You could be able to see the chart
displaying the SharePoint list items as shown in the following
Customize the chart:
- Click on Data & Appearance.
- Click on "Customize your chart".

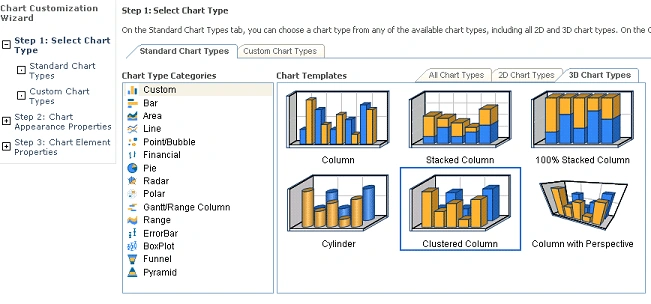

- Select the Chart type and click on Next.

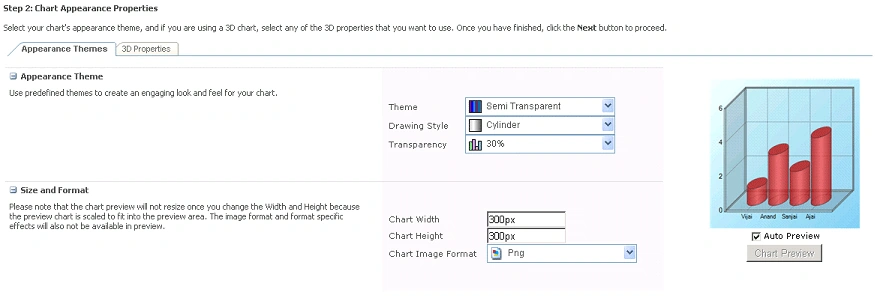

- You can change the chart appearance as
shown in the following.
- Click on Next.

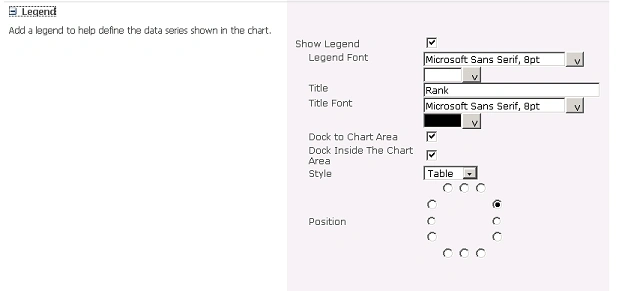

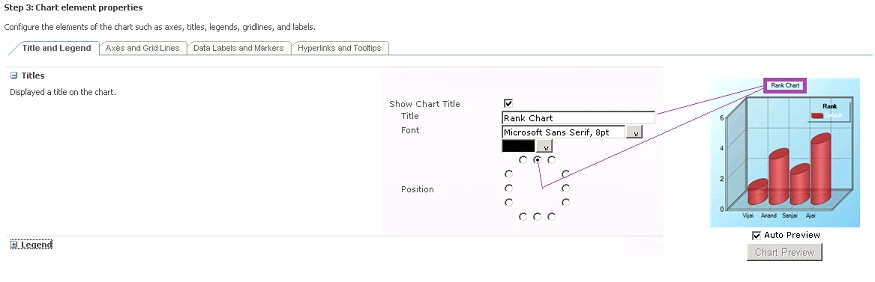

- Chart Element Properties.
- Click on Finish.

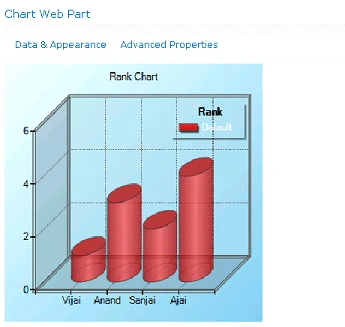

- My chart looks like the following

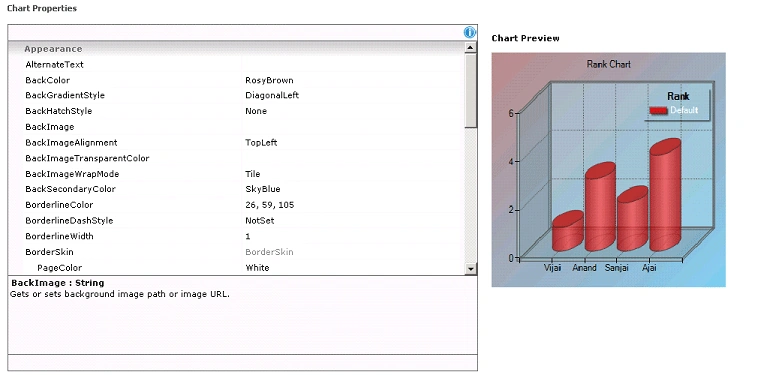

- Advanced Properties:
Connect to Excel Services:
- In this section, we will be seeing how to
connect to the excel services.
- I have created a named range in the excel
workbook which contains the following information.

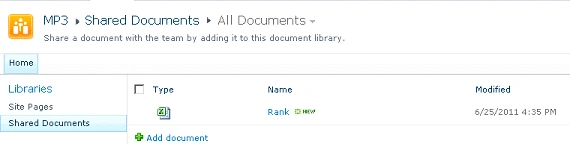

- I have uploaded the excel workbook to the
"Shared Documents".
- In the Chart web part that we have
created, go to "Data & Appearance" = Connect Chart to data".

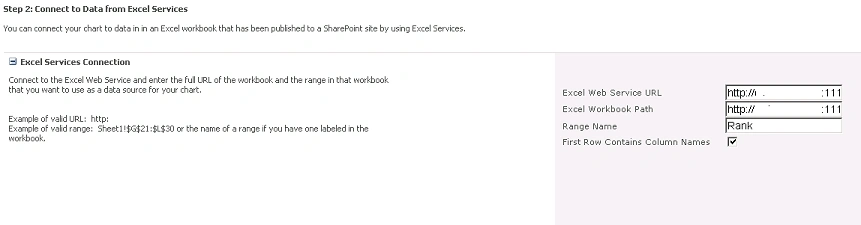

- Select "Connect to Excel Services" option.
- Enter the Excel workbook path
http://serverName:1111/hr/MP3/Shared%20Documents/Rank.xlsx and enter the
range.

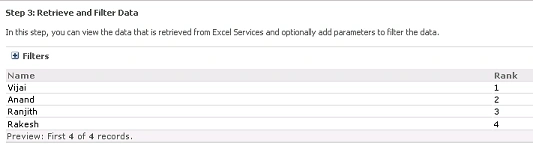

- You could see the values retrieved from
Excel workbook.
- Chart connected to excel services:

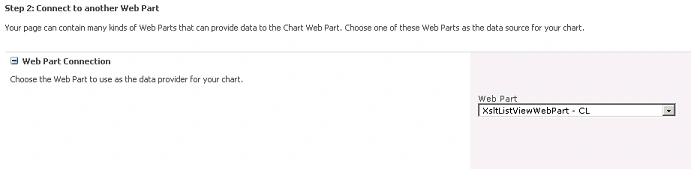

Similarly you could connect to the another web
part and display the chart with those data.
