DropBox API V2 Integration

Dropbox.NET

• Dropbox API is a .NET SDK for API v2, which helps you easily integrate Dropbox into your app. The Dropbox .NET SDK is a Portable Class Library that works with multiple platforms, including Windows, Windows Phone, and Mono.

Step 1 Create WPF Application

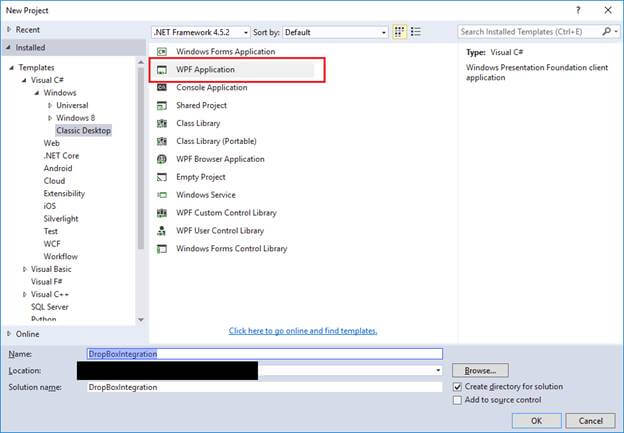

• Create new WPF application.




Step 2 Install Dropbox.NET SDK in to the project

• Dropbox.NET SDK can be installed through NuGet.

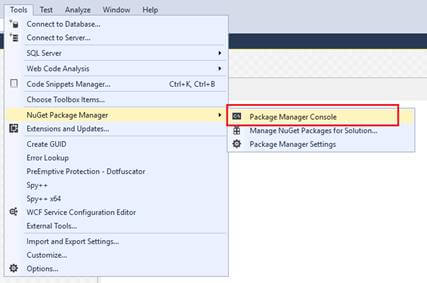

• Open NuGet Package Manager Console (PMC) in Visual Studio.




• Run the below mentioned command in PMC to install Dropbox API.

  PM> Install-Package Dropbox.Api

• Follow the basic steps to complete the installation.

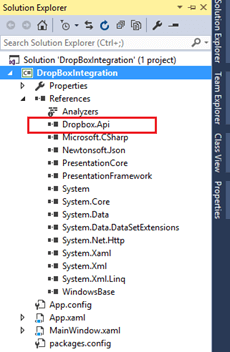

• After successful installation, Dropbox.Api will be added into the project references.




Step 3 Create App in Dropbox

• Go to the below mentioned link to create account in Dropbox.
  https://www.dropbox.com

• Navigate to below mentioned link to create new app required to work with Dropbox API.
  https://www.dropbox.com/developers/apps

• Follow the steps and create new app as per your convenient.

Step 4 Configure Created App for Access

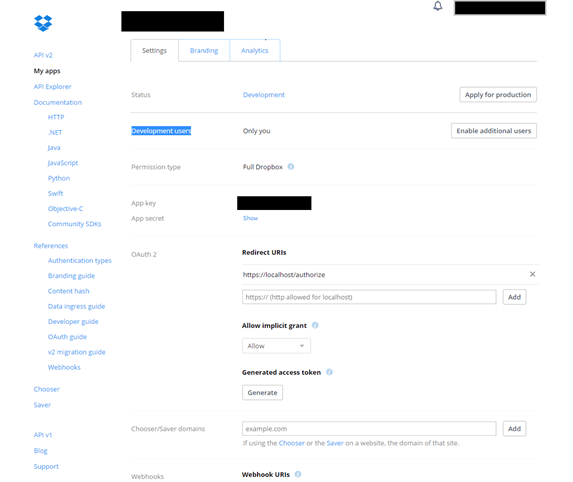

• Click on created application and redirect to Settings tab.




• Initially only one user can access API and to enable multiple users, click on “Enable additional users” button. This will allow 500 users to use this app for API use.
• App Key: This is a unique key generated for this app which will be required for the API connection.
• Redirected URIs: Here, we can add redirection URIs required for the API connection. (For testing purpose, we should add https://localhost.authorize)
• There is no fix pattern for the URL, We can go with the structure as per our convenient.

Step 5 Start Development for API Integration.

• In the above 4 steps, we have completed prerequisite steps required to start development related to API Integration.
• Same as Prerequisite, we have to do some authentication steps to login into Dropbox for Upload, Download etc. operations.

DropBoxBase Class

• This class contains all the operations related to Dropbox.


  using Dropbox.Api;
  using Dropbox.Api.Files;
  using System;
  using System.Collections.Generic;
  using System.IO;
  using System.Linq;
  using System.Net.Http;
  using System.Text;
  using System.Threading.Tasks;
  using System.Windows;

  namespace DropBoxIntegration
  {
      class DropBoxBase
      {
          #region Variables
          private DropboxClient DBClient;
          private ListFolderArg DBFolders;
          private string oauth2State;
          private const string RedirectUri = "https://localhost/authorize"; // Same as we have configured Under [Application] -> settings -> redirect URIs.
          #endregion

          #region Constructor
          public DropBoxBase(string ApiKey, string ApiSecret, string ApplicationName = "TestApp")
          {
              try
              {
                  AppKey = ApiKey;
                  AppSecret = ApiSecret;
                  AppName = ApplicationName;
              }
              catch (Exception)
              {

                  throw;
              }
          }
          #endregion
          #region Properties
          public string AppName
          {
              get; private set;
          }
          public string AuthenticationURL
          {
              get; private set;
          }
          public string AppKey
          {
              get; private set;
          }

          public string AppSecret
          {
              get; private set;
          }

          public string AccessTocken
          {
              get; private set;
          }
          public string Uid
          {
              get; private set;
          }
          #endregion

          #region UserDefined Methods

          /// <summary>
          /// This method is to generate Authentication URL to redirect user for login process in Dropbox.
          /// </summary>
          /// <returns></returns>
          public string GeneratedAuthenticationURL()
          {
              try
              {
                  this.oauth2State = Guid.NewGuid().ToString("N");
                  Uri authorizeUri = DropboxOAuth2Helper.GetAuthorizeUri(OAuthResponseType.Token, AppKey, RedirectUri, state: oauth2State);
                  AuthenticationURL = authorizeUri.AbsoluteUri.ToString();
                  return authorizeUri.AbsoluteUri.ToString();
              }
              catch (Exception)
              {
                  throw;
              }
          }

          /// <summary>
          /// This method is to generate Access Token required to access dropbox outside of the environment (in ANy application).
          /// </summary>
          /// <returns></returns>
          public string GenerateAccessToken()
          {
              try
              {
                  string _strAccessToken = string.Empty;

                  if (CanAuthenticate())
                  {
                      if (string.IsNullOrEmpty(AuthenticationURL))
                      {
                          throw new Exception("AuthenticationURL is not generated !");

                      }
                      Login login = new Login(AppKey, AuthenticationURL, this.oauth2State); // WPF window with Webbrowser control to redirect user for Dropbox login process.
                      login.Owner = Application.Current.MainWindow;
                      login.ShowDialog();
                      if (login.Result)
                      {
                          _strAccessToken = login.AccessToken;
                          AccessTocken = login.AccessToken;
                          Uid = login.Uid;
                          DropboxClientConfig CC = new DropboxClientConfig(AppName, 1);
                          HttpClient HTC = new HttpClient();
                          HTC.Timeout = TimeSpan.FromMinutes(10); // set timeout for each ghttp request to Dropbox API.
                          CC.HttpClient = HTC;
                          DBClient = new DropboxClient(AccessTocken, CC);
                      }
                      else
                      {
                          DBClient = null;
                          AccessTocken = string.Empty;
                          Uid = string.Empty;
                      }
                  }

                  return _strAccessToken;
              }
              catch (Exception ex)
              {
                  throw ex;
              }
          }

          /// <summary>
          /// Method to create new folder on Dropbox
          /// </summary>
          /// <param name="path"> path of the folder we want to create on Dropbox</param>
          /// <returns></returns>
          public bool CreateFolder(string path)
          {
              try
              {
                  if (AccessTocken == null)
                  {
                      throw new Exception("AccessToken not generated !");
                  }
                  if (AuthenticationURL == null)
                  {
                      throw new Exception("AuthenticationURI not generated !");
                  }

                  var folderArg = new CreateFolderArg(path);
                  var folder = DBClient.Files.CreateFolderAsync(folderArg);
                  var result = folder.Result;
                  return true;
              }
              catch (Exception ex)
              {
                  return false;
              }

          }

          /// <summary>
          /// Method is to check that whether folder exists on Dropbox or not.
          /// </summary>
          /// <param name="path"> Path of the folder we want to check for existance.</param>
          /// <returns></returns>
          public bool FolderExists(string path)
          {
              try
              {
                  if (AccessTocken == null)
                  {
                      throw new Exception("AccessToken not generated !");
                  }
                  if (AuthenticationURL == null)
                  {
                      throw new Exception("AuthenticationURI not generated !");
                  }

                  var folders = DBClient.Files.ListFolderAsync(path);
                  var result = folders.Result;
                  return true;
              }
              catch (Exception ex)
              {
                  return false;
              }
          }

          /// <summary>
          /// Method to delete file/folder from Dropbox
          /// </summary>
          /// <param name="path">path of file.folder to delete</param>
          /// <returns></returns>
          public bool Delete(string path)
          {
              try
              {
                  if (AccessTocken == null)
                  {
                      throw new Exception("AccessToken not generated !");
                  }
                  if (AuthenticationURL == null)
                  {
                      throw new Exception("AuthenticationURI not generated !");
                  }

                  var folders = DBClient.Files.DeleteAsync(path);
                  var result = folders.Result;
                  return true;
              }
              catch (Exception ex)
              {
                  return false;
              }
          }
          /// <summary>
          /// Method to upload files on Dropbox
          /// </summary>
          /// <param name="UploadfolderPath"> Dropbox path where we want to upload files</param>
          /// <param name="UploadfileName"> File name to be created in Dropbox</param>
          /// <param name="SourceFilePath"> Local file path which we want to upload</param>
          /// <returns></returns>
          public bool Upload(string UploadfolderPath, string UploadfileName, string SourceFilePath)
          {
              try
              {
                  using (var stream = new MemoryStream(File.ReadAllBytes(SourceFilePath)))
                  {
                      var response = DBClient.Files.UploadAsync(UploadfolderPath + "/" + UploadfileName, WriteMode.Overwrite.Instance, body: stream);
                      var rest = response.Result; //Added to wait for the result from Async method
                  }

                  return true;
              }
              catch (Exception ex)
              {
                  return false;
              }

          }

          /// <summary>
          /// Method to Download files from Dropbox
          /// </summary>
          /// <param name="DropboxFolderPath">Dropbox folder path which we want to download</param>
          /// <param name="DropboxFileName"> Dropbox File name availalbe in DropboxFolderPath to download</param>
          /// <param name="DownloadFolderPath"> Local folder path where we want to download file</param>
          /// <param name="DownloadFileName">File name to download Dropbox files in local drive</param>
          /// <returns></returns>
          public bool Download(string DropboxFolderPath, string DropboxFileName, string DownloadFolderPath, string DownloadFileName)
          {
              try
              {
                  var response = DBClient.Files.DownloadAsync(DropboxFolderPath + "/" + DropboxFileName);
                  var result = response.Result.GetContentAsStreamAsync(); //Added to wait for the result from Async method

                  return true;
              }
              catch (Exception ex)
              {
                  return false;
              }

          }
          #endregion
          #region Validation Methods
          /// <summary>
          /// Validation method to verify that AppKey and AppSecret is not blank.
          /// Mendatory to complete Authentication process successfully.
          /// </summary>
          /// <returns></returns>
          public bool CanAuthenticate()
          {
              try
              {
                  if (AppKey == null)
                  {
                      throw new ArgumentNullException("AppKey");
                  }
                  if (AppSecret == null)
                  {
                      throw new ArgumentNullException("AppSecret");
                  }
                  return true;
              }
              catch (Exception)
              {
                  throw;
              }

          }
          #endregion
      }
  }

Login Window

• Form to redirect user for login into Dropbox for authentication.

XAML

<Window x:Class="DropBoxIntegration.Login"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:DropBoxIntegration"
        mc:Ignorable="d" WindowStartupLocation="CenterOwner" WindowStyle="ToolWindow"
        Title="Login" BorderThickness="2" BorderBrush="#FF333738" Loaded="Window_Loaded">
    <Grid>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="457*"/>
            <ColumnDefinition Width="30"/>
        </Grid.ColumnDefinitions>
        <Grid.RowDefinitions>
            <RowDefinition Height="30"/>
            <RowDefinition Height="131*"/>
        </Grid.RowDefinitions>
        <Border HorizontalAlignment="Stretch"
                    VerticalAlignment="Stretch" Margin="2" Grid.Row="1" Grid.ColumnSpan="2" SnapsToDevicePixels="True">
            <WebBrowser x:Name="Browser" Navigating="Browser_Navigating"/>
        </Border>

    </Grid>
</Window>

.CS Class

using Dropbox.Api;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Shapes;

namespace DropBoxIntegration
{
    /// <summary>
    /// Interaction logic for Login.xaml
    /// </summary>
    public partial class Login : Window
    {
        #region Variables
        private const string RedirectUri = "https://localhost/authorize";
        private string DBAppKey = string.Empty;
        private string DBAuthenticationURL = string.Empty;
        private string DBoauth2State = string.Empty;
        #endregion

        #region Properties
        public string AccessToken { get; private set; }

        public string UserId { get; private set; }

        public bool Result { get; private set; }
        #endregion


        public Login(string AppKey, string AuthenticationURL, string oauth2State)
        {
            InitializeComponent();
            DBAppKey = AppKey;
            DBAuthenticationURL = AuthenticationURL;
            DBoauth2State = oauth2State;
        }

        public void Navigate()
        {
            try
            {
                if (!string.IsNullOrEmpty(DBAppKey))
                {
                    Uri authorizeUri = new Uri(DBAuthenticationURL);
                    Browser.Navigate(authorizeUri);
                }
            }
            catch (Exception)
            {
                throw;
            }
        }

        private void Window_Loaded(object sender, RoutedEventArgs e)
        {
            Dispatcher.BeginInvoke(new Action(Navigate));
            // Navigate();
        }

        private void Button_Click(object sender, RoutedEventArgs e)
        {
            try
            {
                this.Close();
            }
            catch (Exception)
            {
                throw;
            }

        }

        private void Browser_Navigating(object sender, System.Windows.Navigation.NavigatingCancelEventArgs e)
        {
            if (!e.Uri.AbsoluteUri.ToString().StartsWith(RedirectUri.ToString(), StringComparison.OrdinalIgnoreCase))
            {
                // we need to ignore all navigation that isn't to the redirect uri.
                return;
            }


            try
            {

                OAuth2Response result = DropboxOAuth2Helper.ParseTokenFragment(e.Uri);
                if (result.State != DBoauth2State)
                {
                    return;
                }

                this.AccessToken = result.AccessToken;
                this.Uid = result.Uid;
                this.Result = true;
            }

            catch (ArgumentException ex)
            {
            }

            finally
            {
                e.Cancel = true;
                this.Close();
            }
        }
    }
}

MainWindow

• UI Interface to work with Dropbox.

Xaml

<Window x:Class="DropBoxIntegration.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:DropBoxIntegration"
        mc:Ignorable="d"
        Title="MainWindow" Height="321" Width="1024" MinHeight="300" MinWidth="600">
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="35"/>
            <RowDefinition Height="70"/>
            <RowDefinition Height="113*"/>
            <RowDefinition Height="20"/>
        </Grid.RowDefinitions>
        <Label Content="Work with your DropBox account" FontSize="18" Foreground="Black" FontWeight="SemiBold" Margin="20,0,5,0"></Label>
        <GroupBox x:Name="gbAuthentication" HorizontalAlignment="Stretch" Margin="2" VerticalAlignment="Stretch" Grid.Row="1" Background="White">
            <GroupBox.Header>
                <Label Content="DropBox Authentication" FontWeight="SemiBold"></Label>
            </GroupBox.Header>
            <Grid>
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="100"/>
                    <ColumnDefinition Width="100*"/>
                    <ColumnDefinition Width="100"/>
                </Grid.ColumnDefinitions>
                <Label Content="App Key: " Grid.Column="0" HorizontalContentAlignment="Right" Margin="2"/>
                <TextBox x:Name="txtApiKey" Grid.Column="1" Margin="2" MaxLength="100" Text=""></TextBox>
                <Button Content="Authenticate" x:Name="btnApiKey" Grid.Column="2" Margin="2" Click="btnApiKey_Click"></Button>
            </Grid>

        </GroupBox>
        <GroupBox x:Name="gbDropBox" HorizontalAlignment="Stretch" Margin="2" Grid.Row="2" VerticalAlignment="Stretch" Background="White" IsEnabled="false">
            <GroupBox.Header>
                <Label Content="DropBox Operations" FontWeight="SemiBold"></Label>
            </GroupBox.Header>
            <Grid>
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="05"/>
                    <ColumnDefinition Width="220*"/>
                    <ColumnDefinition Width="220*"/>
                    <ColumnDefinition Width="220*"/>
                    <ColumnDefinition Width="220*"/>
                    <ColumnDefinition Width="05"/>
                </Grid.ColumnDefinitions>
                <Grid.RowDefinitions>
                    <RowDefinition Height="05"/>
                    <RowDefinition Height="150*"/>
                    <RowDefinition Height="05"/>
                </Grid.RowDefinitions>
                <Button x:Name="btnCreateFolder" Content="Create Folder" HorizontalAlignment="Stretch" Margin="5" VerticalAlignment="Stretch" Grid.Row="1" Grid.Column="1" FontSize="14" Click="btnCreateFolder_Click"/>
                <Button x:Name="btlUpload" Content="Upload File" HorizontalAlignment="Stretch" Margin="5" VerticalAlignment="Stretch" Grid.Row="1" Grid.Column="2" FontSize="14" Click="btlUpload_Click"/>
                <Button x:Name="btnDownload" Content="Download File" HorizontalAlignment="Stretch" Margin="5" VerticalAlignment="Stretch" Grid.Row="1" Grid.Column="3" FontSize="14" Click="btnDownload_Click"/>
                <Button x:Name="btnDelete" Content="Delete File/Directory" HorizontalAlignment="Stretch" Margin="5" VerticalAlignment="Stretch" Grid.Row="1" Grid.Column="4" FontSize="14" Click="btnDelete_Click"/>
            </Grid>

        </GroupBox>

    </Grid>
</Window>

.CS File

using Dropbox.Api;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;

namespace DropBoxIntegration
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        #region Variables
        private string strAppKey = "[Yor Application App Key]";
        private string strAccessToken = string.Empty;
        private string strAuthenticationURL = string.Empty;
        private DropBoxBase DBB;
        #endregion

        #region Constructor
        public MainWindow()
        {
            InitializeComponent();
        }
        #endregion

        #region Private Methods
        public void Authenticate()
        {
            try
            {
                if (string.IsNullOrEmpty(strAppKey))
                {
                    MessageBox.Show("Please enter valid App Key !");
                    return;
                }
                if (DBB == null)
                {
                    DBB = new DropBoxBase(strAppKey, "PTM_Centralized");

                    strAuthenticationURL = DBB.GeneratedAuthenticationURL(); // This method must be executed before generating Access Token.
                    strAccessToken = DBB.GenerateAccessToken();
                    gbDropBox.IsEnabled = true;
                }
                else gbDropBox.IsEnabled = false;
            }
            catch (Exception)
            {
                throw;
            }
        }
        #endregion

        private void btnApiKey_Click(object sender, RoutedEventArgs e)
        {
            try
            {
                strAppKey = txtApiKey.Text.Trim();
                Authenticate();
            }
            catch (Exception)
            {
                throw;
            }

        }

        private void btnCreateFolder_Click(object sender, RoutedEventArgs e)
        {
            try
            {
                if (DBB != null)
                {
                    if (strAccessToken != null && strAuthenticationURL != null)
                    {
                        if (DBB.FolderExists("/Dropbox/DotNetApi") == false)
                        {
                            DBB.CreateFolder("/Dropbox/DotNetApi");
                        }
                    }
                }
            }
            catch (Exception ex)
            {
                ex = ex.InnerException ?? ex;
            }
        }

        private void btlUpload_Click(object sender, RoutedEventArgs e)
        {
            try
            {
                if (DBB != null)
                {
                    if (strAccessToken != null && strAuthenticationURL != null)
                    {
                        DBB.Upload("/Dropbox/DotNetApi", "Sample-test.jpg", @"D:\Capture4-test.PNG");
                    }
                }
            }
            catch (Exception)
            {

                throw;
            }
        }

        private void btnDownload_Click(object sender, RoutedEventArgs e)
        {
            try
            {
                if (DBB != null)
                {
                    if (strAccessToken != null && strAuthenticationURL != null)
                    {
                        DBB.Download("/Dropbox/DotNetApi", "Sample-test.jpg", @"D:\", "capture4_dwnld.png");
                    }
                }
            }
            catch (Exception)
            {

                throw;
            }
        }

        private void btnDelete_Click(object sender, RoutedEventArgs e)
        {
            try
            {
                if (DBB != null)
                {
                    if (strAccessToken != null && strAuthenticationURL != null)
                    {
                        DBB.Delete("/Dropbox/DotNetApi");
                    }
                }
            }
            catch (Exception)
            {

                throw;
            }
        }


    }
}

That’s it. We are done with the integration. Enjoy Coding !
