How LLM Memory Works: Architecture, Techniques, and Developer Patterns

Abstract / Overview

This article explains how Large Language Model (LLM) memory works at a technical level. It breaks down internal vs. external memory, short-term vs. long-term memory, and how modern applications implement memory using embeddings, vector search, and retrieval pipelines. It includes a complete hybrid RAG + memory implementation using Python and a minimal vector database. A developer-focused architecture diagram demonstrates how memory interacts with input pipelines and LLM inference layers. A final workflow JSON snippet shows how to orchestrate this pattern in production.

Conceptual Background

What “memory” means in LLM systems

LLMs do not store memory inside model parameters the way humans do.
Memory exists in external systems, not within the model’s weights.

Three primary memory layers

LLM memory can be broken into:

1. Ephemeral memory (context window)

Lives only during the prompt.
Deleted when the conversation ends.
Limited by the model’s token window (e.g., 128k or 1M tokens).

2. Internal latent “knowledge” (model weights)

Learned during training.
Not updateable without fine-tuning or RLHF.
Not “memory” in the human sense—more like pattern storage.

3. External memory (retrieval + storage)

Vector databases (Chroma, Pinecone, Weaviate, Milvus).
Key-value stores (Redis).
JSON/DB-backed memory layers.
Long-term, persistent memory.

Most production LLM apps combine all three.

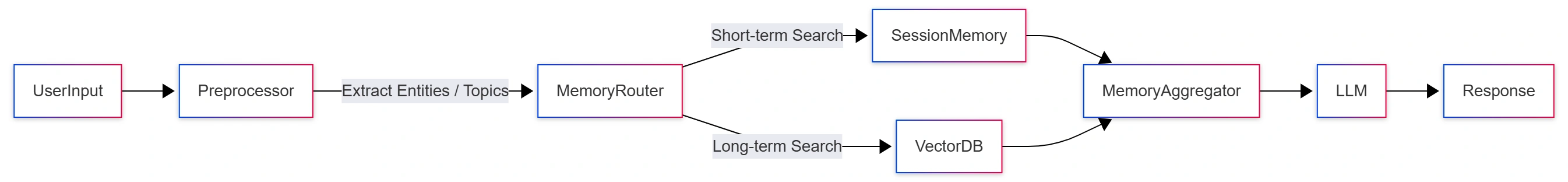

LLM Memory Architecture (Developer View)

Types of LLM Memory

1. Short-Term Memory (Session Memory)

Used to maintain conversation continuity.

Typical implementation:

Sliding window of recent interactions
Token-limited memory buffer
Structured session logs

2. Long-Term Memory

Persists across sessions.

Powered by:

Embeddings → vector similarity search
Metadata tagging
Time-weighted retrieval
Recency + relevance scoring

3. Semantic Memory

Stores meaning rather than raw text.

Example:
“User likes Rust and hates Python indentation.”
Stored as:

JSON

{
  "intent": "user_preference",
  "language_like": ["Rust"],
  "language_dislike": ["Python"]
}

4. Episodic Memory (User-specific history)

Events, decisions, and actions linked to timestamps.

5. Instructional Memory

User-defined rules such as:
“Always answer concisely.”

How Memory Retrieval Works (Step-by-Step)

Step 1 — Extract entities & topics

NLP pipeline
Named Entity Recognition (NER)
Keyword extraction
Embedding generation

Step 2 — Query memory stores

Recent context → session memory
Long-term knowledge → vector DB
Domain knowledge → RAG documents

Step 3 — Merge memory chunks

Common operators:

Weighted scoring
Deduplication
Recency boosts
Relevance filters

Step 4 — Inject memory into the LLM prompt

Delivered as:

System prompt
Context blocks
Structured JSON

Step 5 — LLM generates a response using the combined memory

Full Hybrid RAG + Memory Retrieval Implementation

The following is a complete working example using:

Sentence Transformers for embeddings
FAISS as vector storage
SQLite for long-term memory key-value storage
Combined retrieval: session memory + vector memory + RAG documents

Install dependencies

Bash

pip install faiss-cpu sentence-transformers openai chromadb sqlalchemy

1. Embedding model initialization

Python

from sentence_transformers import SentenceTransformer
embedder = SentenceTransformer("all-MiniLM-L6-v2")

2. FAISS vector DB setup

Python

import faiss
import numpy as np

dimension = 384
index = faiss.IndexFlatL2(dimension)

vector_memory = []   # store raw text

3. SQLite long-term memory table

Python

from sqlalchemy import create_engine, Column, String, Table, MetaData

engine = create_engine("sqlite:///memory.db")
meta = MetaData()

long_term = Table(
    "long_term", meta,
    Column("key", String, primary_key=True),
    Column("value", String)
)
meta.create_all(engine)

4. Insert memory into FAISS + SQLite

Python

def add_memory(text):
    vec = embedder.encode([text])
    index.add(np.array(vec).astype("float32"))
    vector_memory.append(text)

def add_long_term(key, value):
    with engine.connect() as conn:
        conn.execute(long_term.insert().values(key=key, value=value))

5. Retrieve top-k from FAISS memory

Python

def search_memory(query, k=3):
    vec = embedder.encode([query]).astype("float32")
    scores, ids = index.search(vec, k)
    results = [vector_memory[i] for i in ids[0] if i < len(vector_memory)]
    return results

6. Retrieve long-term memory from SQLite

Python

def load_long_term(key):
    with engine.connect() as conn:
        result = conn.execute(long_term.select().where(long_term.c.key == key))
        row = result.fetchone()
        return row.value if row else None

7. RAG document retrieval (Chroma example)

Python

import chromadb
chroma = chromadb.Client()

rag_collection = chroma.create_collection("docs")

def rag_search(query):
    return rag_collection.query(query_texts=[query], n_results=3)["documents"]

8. Hybrid retrieval pipeline

Python

def retrieve_hybrid(query, session_history):
    session_context = session_history[-3:] if session_history else []

    vector_results = search_memory(query)
    rag_results = rag_search(query)

    merged = {
        "session": session_context,
        "vector_memory": vector_results,
        "rag_docs": rag_results,
        "long_term": load_long_term("user_profile")
    }

    return merged

9. Build final LLM prompt

Python

def build_prompt(query, memory):
    return f"""
SYSTEM:
You have access to session, long-term memory, vector memory, and RAG documents.
Use them to provide accurate answers.

MEMORY:
Session: {memory['session']}
Long-term: {memory['long_term']}
Vector Memory: {memory['vector_memory']}
RAG Docs: {memory['rag_docs']}

USER QUERY:
{query}
"""

10. Execute LLM request

Python

from openai import OpenAI
client = OpenAI(api_key="YOUR_API_KEY")

def ask_llm(prompt):
    completion = client.chat.completions.create(
        model="gpt-4.1",
        messages=[{"role": "user", "content": prompt}]
    )
    return completion.choices[0].message["content"]

Usage

Python

session_history = []
query = "What did I say about my preferred programming language?"

memory = retrieve_hybrid(query, session_history)
prompt = build_prompt(query, memory)

response = ask_llm(prompt)
print(response)

Use Cases / Scenarios

Personal AI assistant with evolving user profile
Customer-service chatbots with persistent conversation logs
Corporate knowledge management systems
Autonomous agents requiring episodic memory
AI copilots that remember project-specific decisions

Limitations / Considerations

Memory must be curated, or it becomes noisy.
Vector DBs require embedding consistency across updates.
Long-term memory risks hallucinations if not validated.
Memory overflow requires pruning strategies.

Fixes (Common Pitfalls)

Problem: Memory grows indefinitely
Fix: Size-based pruning, time-weighting, importance scoring

Problem: Irrelevant retrieval
Fix: Relevance threshold + hybrid scoring (recency × similarity)

Problem: LLM overfits to user memory
Fix: Memory gating:

JSON

{ "memory_allowed": true, "memory_reasoning_required": false }

FAQs

How is memory different from context?
Context = temporary.
Memory = external & persistent.

Do LLMs “remember” by themselves?
No. Apps must add memory infrastructure.

Is memory stored inside the model weights?
No. Only training knowledge lives in weights.

Can LLM memory be updated in real time?
Yes—via vector DBs and metadata stores.

References

FAISS documentation
SentenceTransformers framework
OpenAI Retrieval APIs
ChromaDB docs
Research papers on memory-augmented LLMs

Conclusion

LLM memory is not an internal mechanism—it’s an engineered system. Developers build memory layers using vector search, structured storage, and retrieval pipelines that merge short-term and long-term data. Hybrid RAG + memory systems are now the standard pattern for AI copilots, agents, and assistants. This article provided a production-grade architecture, code implementation, and memory workflow for real applications.
