Integrate Angular 5 With Visual Studio 2017

As of now there is no direct template for Angular5 available in Visual Studio 2017.

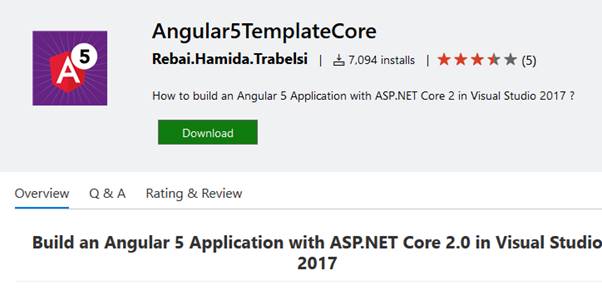

Go to below link and click on download button.

https://marketplace.visualstudio.com/items?itemName=RebaiHamidaTrabelsi.Angular5TemplateCore2

Angular

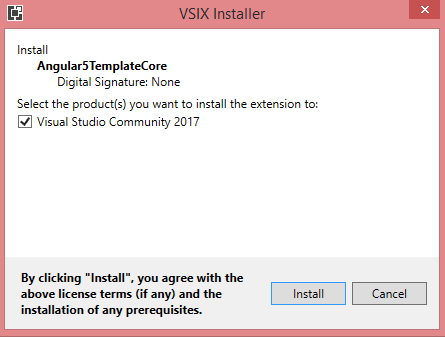

Once it is downloaded close the all the instances of the Visual Studio and install the template.

Angular

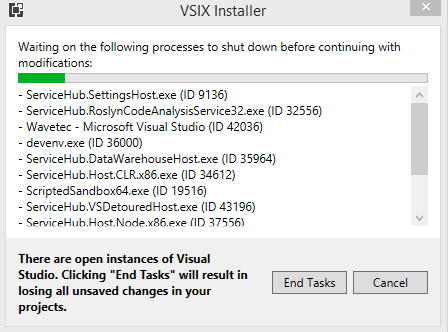

If installation file finds any open Visual Studio instances it will stop the installation and ask us to click on “EndTask”, by clicking , it will close the all the instances of Visual Studio.

Angular

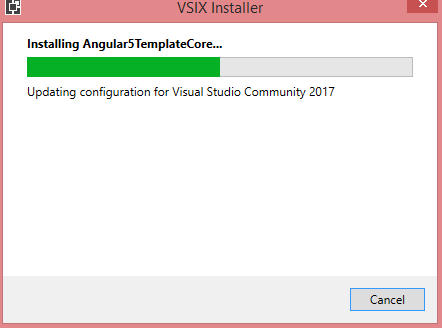

Once after closing the VS instances it continues to install the template.

Angular

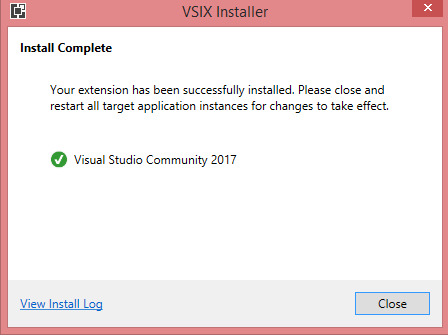

Once it completes the installation click on Close button.

Angular

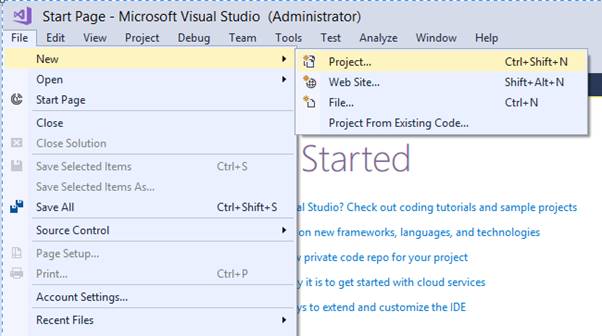

Now open Visual Studio 2017, go to New->Project

Angular

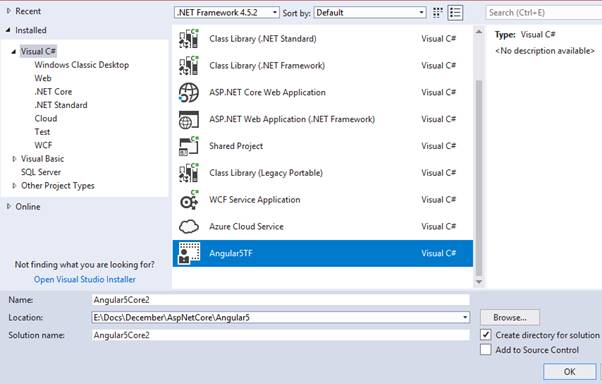

Select Visual C# in left menu and select “Angular5TF” template. It should be available by now since we installed this template in a previous step.

Angular

Select the project location, project name and solution name, click “OK” button, it will create a Angular 5 with .net core 2.0 project solution.

Angular

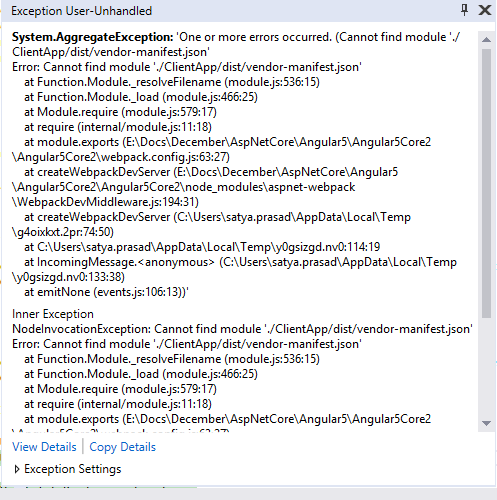

Build the solution and run the application by pressing F5. We may get the below error if “vendor-manifest.json” file is missing from /ClientApp/dist folder.

Angular

It’s available in below github location.

https://github.com/satyainumarthi/Angular5AspNetCore2/tree/master/Angular5Core2/ClientApp/dist

Download vendor-manifest.json file .

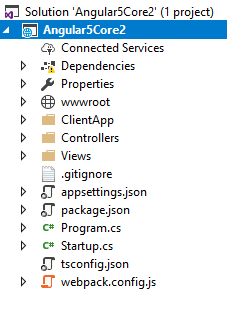

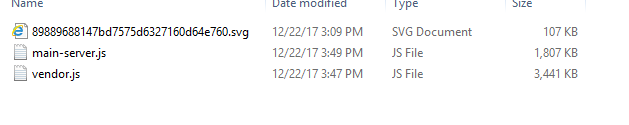

open ClientApp/dist folder. It looks like one in below

Angular

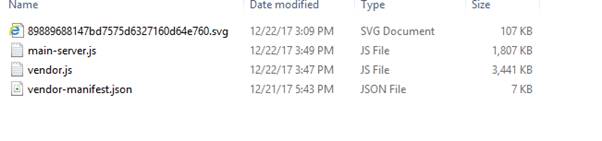

Paste the copied file in this location, now it should contain that file as shown below.


Angular

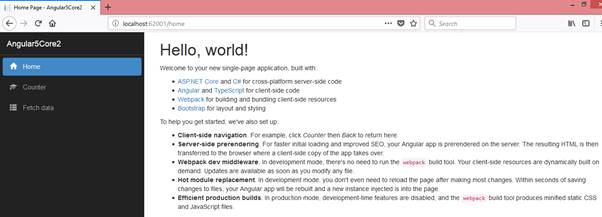

Now run the application, if we see the below screen up and running with Angular 5 and .net core 2.0, it means initial setup has done properly and we can start our implementation from this boiler plate.

Angular
